All stock codes associated to this product
AFMSS3W64GS, AFMSS3W64G-S
AFMSS3W64G-S
Overview

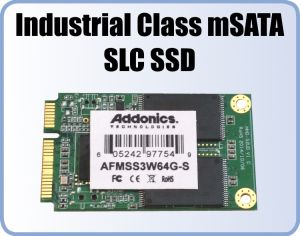

Addonics' Industrial class mSATA SSD is one of the most reliable SSDs
in the market. Made of SLC NAND flash, the Addonics Industrial mSATA
SSD boost the durability of the card to over 7 times that of commercial
grade MLC SSD. This highly durable mSATA SSD is ideal for mission
critical applications that are deployed in different industries such as
data center, finance and aerospace or manufacturing facilities with
equipment operating in a harsh environment.
The Addonics mSATA card is also available in Enterprise class mSATA
that is made of MLC flash. This offers a more economical solution for
applications or equipment operating in industrial temperature range .
For detail information on the Enterprise grade MLC type of mSATA card,
please visit the following product Enterprise mSATA SSD product web page.
Features
- Industrial class mSATA SLC SSD
- Great for the following industries: data center, finance, aero
space, manufacturing and others that require high durability and wide
operating temperature range
- Choice of 8G - 64GB capacities
- SATA III 3.0Gbps interface
- SLC NAND flash
- Data transfer rate
- 32G and 64G - Read Seq. up to 130MB/s, Write Seq. up to 110MB/s
- 8G and 16G - Read Seq. up to 66MB/s, Write Seq. up to 60MB/s
- Industrial operating temperature: -40°C to +85°C
- TeraBytes Written (TBW): 3,448TBW for 64GB
| Model |
Capacity |
NAND type |
Price |
Max. Read speed |
Max. Write speed |
Operating temp. |
| AFMSS3W8G-S |
8GB |
SLC |
$105.00 |
66 MB/sec |
60 MB/sec |
-40°C to +85°C |
| AFMSS3W16G-S |
16GB |
SLC |
$175.00 |
66 MB/sec |
60 MB/sec |
-40°C to +85°C |
| AFMSS3W32G-S |
32GB |
SLC |
$325.00 |
130 MB/sec |
110 MB/sec |
-40°C to +85°C |
| AFMSS3W64G-S |
64GB |
SLC |
$639.00 |
130 MB/sec |
110 MB/sec |
-40°C to +85°C |
Specifications:
- Flash type: SLC
- Compliant with SATA Revision 3.0
- Transfer rate
- 32G and 64G - Read Seq. up to 130MB/s, Write Seq. up to 110MB/s
- 8G and 16G - Read Seq. up to 66MB/s, Write Seq. up to 60MB/s
- Advanced Flash management
- Static and Dynamic Wear Leveling
- Bad Block Management
- TRIM
- SMART
- Over-Provision
- Support expanded register for SATA protocol 48 bits addressing mode
- Power Fail Protection
- Voltage: 3.3 V +/- 5%
- Power consumption:
- Active mode: < 2000mW
- Idle mode: < 330mW
- DEVSLP mode: < 5mW
- Dimension (LxWxH): 50.8mm x 29.85mm x 4mm
- TeraBytes Written (TBW): 3,448TBW for 64GB
- ECC scheme: Up to 72 bits / 1K Byte
- UART function
- GPIO
- Operating shock rating: 1,500G
- Vibration: 20G
- MTBF: > 3,000,000 hours
- Humidity: RH 95% under 55°C (operational)
- Complies with Compact flash Association specification standards
- Operating Temperature:-40°C to +85°C
- Storage Temperature: -40°C to + 85°C
- Warranty: 3 year
- Compliant: RoHS, CE/FCC
