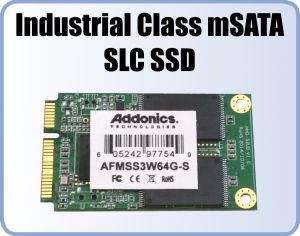

Addonics 8GB Solid State Disk, mSATA, SLC, SATA-III (AFMSS3W8G-S) Industrial Grade

IMG 1 of 1
No Longer Available
Part Number:
401943
(?) Brand:
Addonics Web Site
Manuf No:
AFMSS3W8G-S
AFMSS3W8GS
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
AFMSS3W8GS, AFMSS3W8G-S
8G mSATA SLC SSD, industrial grade and temp.

AFMSS3W8G-S

Overview

Addonics' Industrial class mSATA SSD is one of the most reliable SSDs in the market. Made of SLC NAND flash, the Addonics Industrial mSATA SSD boost the durability of the card to over 7 times that of commercial grade MLC SSD. This highly durable mSATA SSD is ideal for mission critical applications that are deployed in different industries such as data center, finance and aerospace or manufacturing facilities with equipment operating in a harsh environment.

The Addonics mSATA card is also available in Enterprise class mSATA that is made of MLC flash. This offers a more economical solution for applications or equipment operating in industrial temperature range . For detail information on the Enterprise grade MLC type of mSATA card, please visit the following product Enterprise mSATA SSD product web page.

Features

  • Industrial class mSATA SLC SSD
  • Great for the following industries: data center, finance, aero space, manufacturing and others that require high durability and wide operating temperature range
  • Choice of 8G - 64GB capacities
  • SATA III 3.0Gbps interface
  • SLC NAND flash
  • Data transfer rate
    • 32G and 64G - Read Seq. up to 130MB/s, Write Seq. up to 110MB/s
    • 8G and 16G - Read Seq. up to 66MB/s, Write Seq. up to 60MB/s
  • Industrial operating temperature: -40°C to +85°C
  • TeraBytes Written (TBW): 3,448TBW for 64GB

Model Capacity NAND type Price Max. Read speed Max. Write speed Operating temp.
AFMSS3W8G-S 8GB SLC $105.00 66 MB/sec 60 MB/sec -40°C to +85°C
AFMSS3W16G-S 16GB SLC $175.00 66 MB/sec 60 MB/sec -40°C to +85°C
AFMSS3W32G-S 32GB SLC $325.00 130 MB/sec 110 MB/sec -40°C to +85°C
AFMSS3W64G-S 64GB SLC $639.00 130 MB/sec 110 MB/sec -40°C to +85°C

Specifications:

  • Flash type: SLC
  • Compliant with SATA Revision 3.0
  • Transfer rate
    • 32G and 64G - Read Seq. up to 130MB/s, Write Seq. up to 110MB/s
    • 8G and 16G - Read Seq. up to 66MB/s, Write Seq. up to 60MB/s
  • Advanced Flash management
    • Static and Dynamic Wear Leveling
    • Bad Block Management
    • TRIM
    • SMART
    • Over-Provision
  • Support expanded register for SATA protocol 48 bits addressing mode
  • Power Fail Protection
  • Voltage: 3.3 V +/- 5%
  • Power consumption:
    • Active mode: < 2000mW
    • Idle mode: < 330mW
    • DEVSLP mode: < 5mW
  • Dimension (LxWxH): 50.8mm x 29.85mm x 4mm
  • TeraBytes Written (TBW): 3,448TBW for 64GB
  • ECC scheme: Up to 72 bits / 1K Byte
  • UART function
  • GPIO
  • Operating shock rating: 1,500G
  • Vibration: 20G
  • MTBF: > 3,000,000 hours
  • Humidity: RH 95% under 55°C (operational)
  • Complies with Compact flash Association specification standards
  • Operating Temperature:-40°C to +85°C
  • Storage Temperature: -40°C to + 85°C
  • Warranty: 3 year
  • Compliant: RoHS, CE/FCC










No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.
