What This Product Does

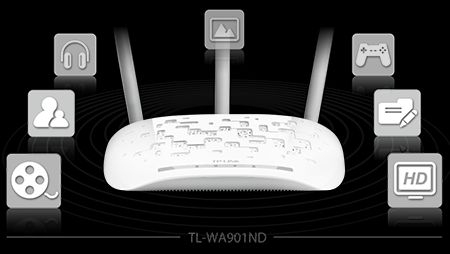

The TP-LINK Wireless N Access Point TL-WA901ND is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet enabled devices such as game consoles, digital media adapters, printers, or network attached storage devices to a wireless network. The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or with any other application that you may wish to use.

Wireless N Speed & Range

Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through three antennas with smart antenna technology to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

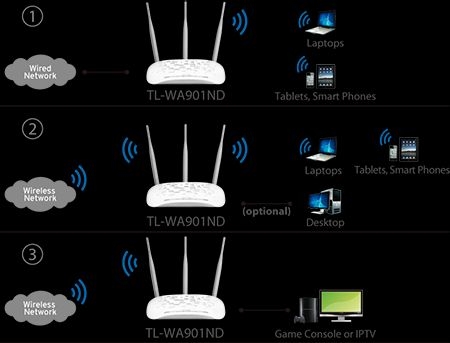

Multiple Operating Modes - Easy to Build WLAN

Supports AP Client, Bridge, Repeater and AP operation modes to enable various wireless applications to give users a more dynamic and comprehensive experience when using your AP. Multiple operating mode also helps you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.

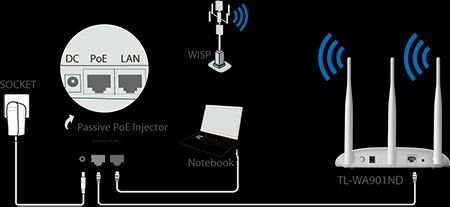

Passive PoE Supported - More Flexible Deployment

The TL-WA901ND is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.

HARDWARE FEATURES Interface One 10/100M Ethernet Port(RJ45)
Support Passive PoE Button WPS/Reset, Power On/Off Power Consumption 5.8W External Power Supply 12VDC/1A Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Dimensions ( W x D x H ) 7.67*5.12*1.43 in.( 194.82*129.93*36.2mm) Antenna Type 3*5dBi Detachable Omni Directional (RP-SMA)

WIRELESS FEATURES
Frequency	2.4-2.4835GHz
Signal Rate	11n: Up to 450Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Transmit Power	<20dBm(EIRP)
Wireless Modes	Access Point /Repeater (Range Extender)/ Bridge with AP/ Client/Multi-SSID/
Wireless Functions	Enable/Disable Wireless Radio; WMM (Wi-Fi Multimedia) Wireless MAC Address Filtering Wireless Statistic Domain Login Function
Wireless Security	64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
DHCP	DHCP Server
Quality of Service	WMM
Management	SNMP
Advanced Functions	Up to 30 meters PoE is supported

OTHERS
Certification	CE, FCC, RoHS
Package Contents	Wireless Access Point TL-WA901ND 3 Detachable Omni Directional Antennas Power Supply Unit PoE Power Injector Resource CD Quick Installation Guide RJ-45 Ethernet Cable
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8
Environment	Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
