DV2860VAC | Draytek Vigor 2860VAC MultiWan ADSL2+ Modem/Wireless Router

• ADSL2+/VDSL2, Gigabit Ethernet WAN port, Dual USB ports for failover and load-balancing
• Two USB ports for connection to two 3.5G/4G LTE USB mobiles, FTP server and network printer
• 6 x Gigabit LAN ports with multiple subnets
• Integrated IEEE 802.11ac wireless Access Point; dual band; up to 1300Mbps throughput
• VoIP (2 x FXS and 1 x FXO Line Port) for Vigor2860Vac
• Object-based SPI Firewall and CSM (Content Security Management) for network security
• VLAN for secure and efficient workgroup management
• 32 VPN tunnels with comprehensive secure protocols
• VPN load-balancing and backup for site-to-site applications
• Embedded Central VPN Management for 8 remote Vigor routers
• Embedded Central AP Management for multi-deployed Vigor wireless access points
• Working with Smart Monitor Network Traffic Analyzer (30-nodes)
• Working with VigorACS SI Central Management for multi-site deployment

Overview

Vigor2860 series security firewall routers have built-in VDSL2/ADSL2+ modem, plus a second Ethernet WAN port for Cable or Satellite broadband, and 2 USB ports for 3G/4G mobile broadband access. With the multi-WAN accesses, Vigor2860 series router supports multi-wan fail-over and load-balancing for USB WANs, VDSL2/ADSL2+, FTTx broadband. If your premise can not subscribe fixed broadband line, you can rely on the 3G/4G LTE (connected to USB WANs) as primary connection.
The specifications cover many functions that are required by modern day businesses, including secure but easy to apply firewall, comprehensive VPN capability, Gigabit LAN ports, USB ports for 3G/4G mobile dongles, FTP and Samba server and network printers, VLAN for flexible workgroup management, and much more.

The Vigor2860Vac provides you with 2.4GHz/5GHz dual band WLAN access point. The Vigor2860Vac plus is with IEEE802.11ac to ensure best performance and encryption processing. In addition, IEEE802.11ac allows you to have greater coverage and resilience to interference compared to previous wireless standards thanks to the Vigor’s antennae diversity arrangement and the MIMO technology. The Vigor2860Vac plus provides you with different levels of security including authentication (802.11x), encryption (up to WPA2) and methods such as DHCP fixing to restrict access to authorized users only and Mac address locking. Through the Web User Interface (WUI), you can see how many and which clients are currently connected and how much bandwidth usage they consume. The wireless VLAN function lets you isolate wireless clients from each other or from the “wired� LAN. You can set certain password for your guest to let guests access your WLAN with “password�. The Web-portal setup (log-in) can let you have four rules along with 4 multiple SSIDs. When users connect to your WLAN, they will be directed with your log-in screen before any Internet access is permitted. You can customize your Web-portal setup (log-in) page. The multiple SSID features can let your network administrator set up four common or distinct virtual wireless access points. e.g. those with SSID1 can access to your ERP, those with SSID2 can surf internet. With the button of WPS (Wi-Fi protected setup), your client PC can get its security keys by pressing the WPS button on front of the router. There are several wireless channels for you to choose the best channel where is with the least congested wireless traffic. DrayTek Vigor2860 series are implemented with AP Management to facilitate deployment of multiple VigorAP 810 SOHO-level access point and VigorAP 900 enterprise-level access point. You can have overview over the status of multiple APs. For multiple wireless clients, to apply the AP Load Balancing to the multiple APs will manage wireless traffic with smooth flow and enhanced efficiency.

Fail-over and Load Balancing with a second Gigabit Ethernet WAN

The Gigabit Ethernet WAN port caters for any type of Internet access, including ADSL, Cable or Satellite broadband. You can then use both WAN 1 and WAN 2 for Fail-over, ensuring that you will always have an access to the Internet even if one of the WAN fails, or for Load Balancing so the 2 WANs share Internet traffic requirements of your organization.

Comprehensive VPN

For remote teleworkers and inter-office links, Vigor2860 series provide up to 32 simultaneous VPN tunnels (such as IPSec/PPTP/L2TP protocols) for secure data exchange and communication. With a dedicated VPN co-processor, the hardware encryption of AES/DES/3DES and hardware key hash of SHA-1/MD5 are seamlessly handled, thus maintaining maximum router performance. Teleworkers can be authenticated directly with your LDAP server if preferred. The Vigor2860 series are equipped physical DSL port and Gigabit Ethernet port for WAN load-balancing and backup. The VPN trunking (VPN load-balancing and VPN backup) are hence implemented on Vigor2860 series. With VPN trunking, you can create multiple WAN connections to a remote site in order to increase bandwidth. The VPN trunking also can allow you to have failover (backup) of VPN route through a secondary WAN connection.

With SSL VPN, Vigor2860 series let teleworkers have convenient and simple remote access to central site VPN. The teleworkers do not need to install any VPN software manually. From regular web browser, you can establish VPN connection back to your main office even in a guest network or web cafe. The SSL technology is same as the encryption that you use for secure web sites such as your online bank. The SSL VPNs can be operated in either full tunnel mode or Proxy mode. After F/W 3.7.3, the Vigor2860 series allow up to 16 simultaneous incoming users.

Centralized Management

With F/W 3.7.3, the embedded Central VPN Management (CVM) will let network administrator register up to 16 remote routers but run concurrent remote management over 8 remote routers.

AP Management

APM provides the 3-step installation, plug-plug-press, and then wireless clients are able to enjoy surfing internet. Moreover, through the unified user interface of Draytek routers, the status of APs is clear at the first sight.

If your network requires several VigorAP900 or VigorAP 810 units, to centrally manage and monitor them individually as a group will be expected. DrayTek central wireless management (AP Management) lets control, efficiency, monitoring and security of your company-wide wireless access easier be managed. Inside the web user interface, we call “central wireless management� as Central AP Management which supports mobility, client monitoring/reporting and load-balancing to multiple APs. For central wireless management, you will need a Vigor2860 or Vigor2925 series router; there is no per-node licensing or subscription required. For multiple wireless clients, to apply the AP Load Balancing to the multiple APs will manage wireless traffic with smooth flow and enhanced efficiency.

Multi-subnets

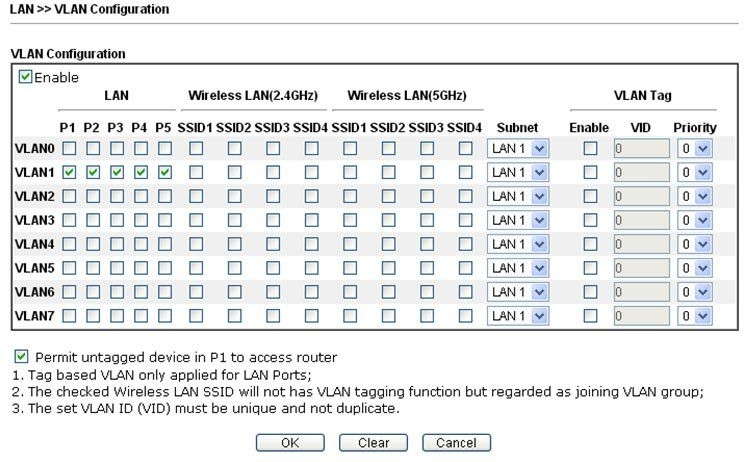

With the 6-port Gigabit switch on the LAN side provides extremely high speed connectivity for the highest speed local data transfer of any server or local PCs. The tagged VLANs (802.1q) can mark data with a VLAN identifier. This identifier can be carried through an onward Ethernet switch to specific ports. The specific VLAN clients can also pick up this identifier as it is just passed to the LAN. You can set the priorities for LAN-side QoS. You can assign each of VLANs to each of the different IP subnets that the router may also be operating, to provide even more isolation. The said functionality is tag-based Multi-subnet.
On the Wireless-equipped models (Vigor2860n/Vigor2860n plus/Vigor2860Vn plus/Vigor2860ac/Vigor2860Vac) each of the wireless SSIDs can also be grouped within one of the VLANs.

With multi-subnet, the traffic can be sent through non-NAT mode with higher performance.If you deploy Vigor2860 series with MPLS network with your main office, the multi-subnet settings will let your data transactions be carried out without NAT.

DrayTek IPv6 solutions

We support Dual Stack (PPP, DHCPv6 Client, Static IPv6, 6rd) and Tunnel Mode (TSPC, AICCU, 6in4 static-tunnel) to let your business operation successfully be migrated to the era of IPv6. Because the IPv4 addresses are limited and IPv6 allows for a larger address space and much more efficient routing. The Vigor2860 series support IPv6 and IPv4. The Vigor2860 series can support IPv6 broker/tunnel services to provide IPv6 access using either AICCU or TSPC via 3rd party IPv6 providers if your ISP does not support IPv6 yet.

• can be run on any one of the WAN ports (ADSL/VDSL2, Ethernet or 3G; but the USB WAN port can run AICCU/TSPC tunnel mode only)
• can connect to direct native IPv6 ISPs
• can build tunnel to 3rd party IPv6 brokers using either AICCU or TSPC methods
• Default stateful firewall for all IPv6 LAN clients/ devices
• DHCPv6 Client
• Static IPv6 Client
• DHCPv6 & RADVD (Router Advertisement Server) for client configuration
• QoS for IPv6 with DiffServ
• IP Filtering Rules
• Router Management over IPv6 (Telnet/HTTP) with IPv6 access list
• Concurrent operation with IPv4 (“Dual-Stackâ€�)
• Other router features are only available on IPv4

Multi-task USB functionalities

Through mobility, brought by cellular networks, you can connect 3.5G/4G USB mobile to 2.0 version USB port on Vigor2860 series. This can be a backup broadband connection if the primary fixed line drops. You can connect USB disk or hard-drive to USB port for memory storage and file sharing. The Vigor2860 series provide you with FTP access file uploading/downloading, which can be used from the local LAN or from anywhere on the Internet. The access can be using “username and password� or ‘public’. Each of them can have their own directories and/or file access rights. The VDSL2/ADSL2+ interface, Gigabit Ethernet interface and USB mobile can be used either for WAN-backup or load balancing.

Secured networking

DrayTek Vigor2860 series inherited versatile firewall mechanism from previous Vigor series routers. The object-based design used in SPI (Stateful Packet Inspection) firewall allows users to set firewall policy with ease. Object-based firewall is flexible and allows your network be safe. DoS/DDoS prevention and URL/Web content filter strengthen the security outside and control inside. The enterprise-level CSM (Content Security Management) enables users to control and manage IM(Instant Messenger) and P2P (Peer-to-Peer) applications more efficiently. The CSM hence prevents inappropriate content from distracting employees and impeding productivity. Furthermore, the CSM can keep office networks threat-free and available.

By adoption of the world-leading CYREN GlobalView Web Content Filtering, you can block whole categories of web sites (e.g. sports, online shopping), subject to an annual subscription to the CYREN GlobalView WCF, which is timely updated with changed or new site categorizations. A free 30-day trial can be activated via activation wizard of WUI.

The “User Management� implemented on your router firmware can allow you to prevent any computer from accessing your Internet connection without a username or password. You can set scheduler or maximum usage time to your employees within office network. The user accounts can also be restricted by any other aspect of the firewall rule on a user-by-user basis.

Vigor2860 series support DrayTek’s SmartMonitor network traffic analyzer (up to 30 users), which captures actual live data of activities in your managed network, such as the content of MSN entering to or out of your network. You can track specified files download/upload or view statistics on data type activities to realize what corporate related information have been released accidentally or on purpose.

Integration of Telephony

It supports multiple SIP Registrars with high flexible configuration and call handing options. You can connect your regular analogue line (PSTN/POTS*) to the Line port of Vigor2860Vac. While you enable VoIP facility, you still can access fixed line (analogue line) to make calls just by dialing #0. The phone connected to two FXS ports (via analogue phone adapter) can be used for both analogue calls and VoIP calls because the incoming calls are automatically switched through to your telephone(s) (either one or both). As a result, both analogue telephones plugged into your router allow you to access VoIP and analogue line. Furthermore, you can set rules through “Digit Map� function about particular call destinations using either your SIP/VoIP service or the POTS line. For example, you can route local calls via your PSTN line (if you have a free calls package) whereas international calls go via your preferred VoIP provider; there is flexibility to have several Digit Map rules.

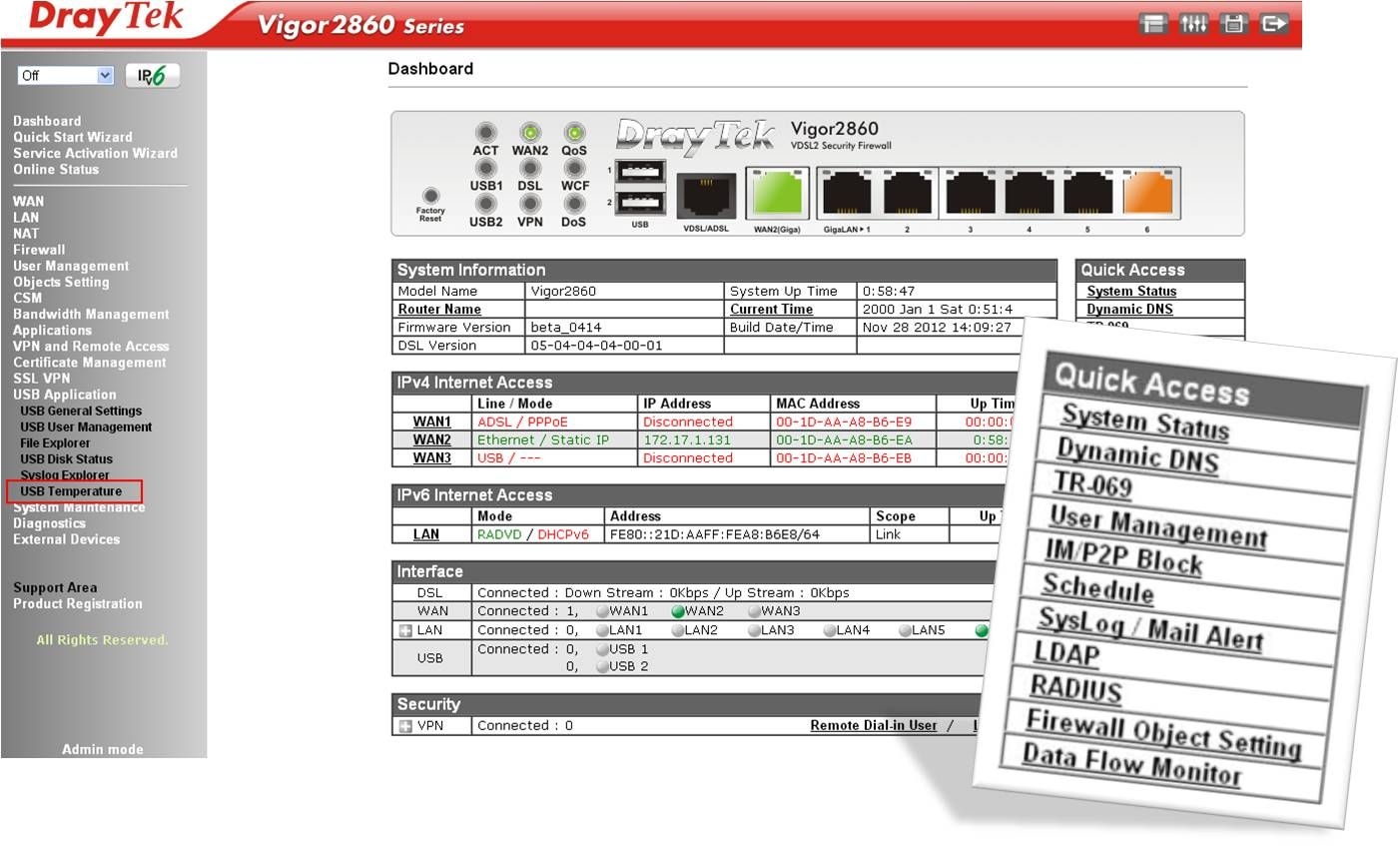

Dashboard implementing in DrayTek Vigor2860 series summarizes the status of WAN/LAN/WLAN/VPN

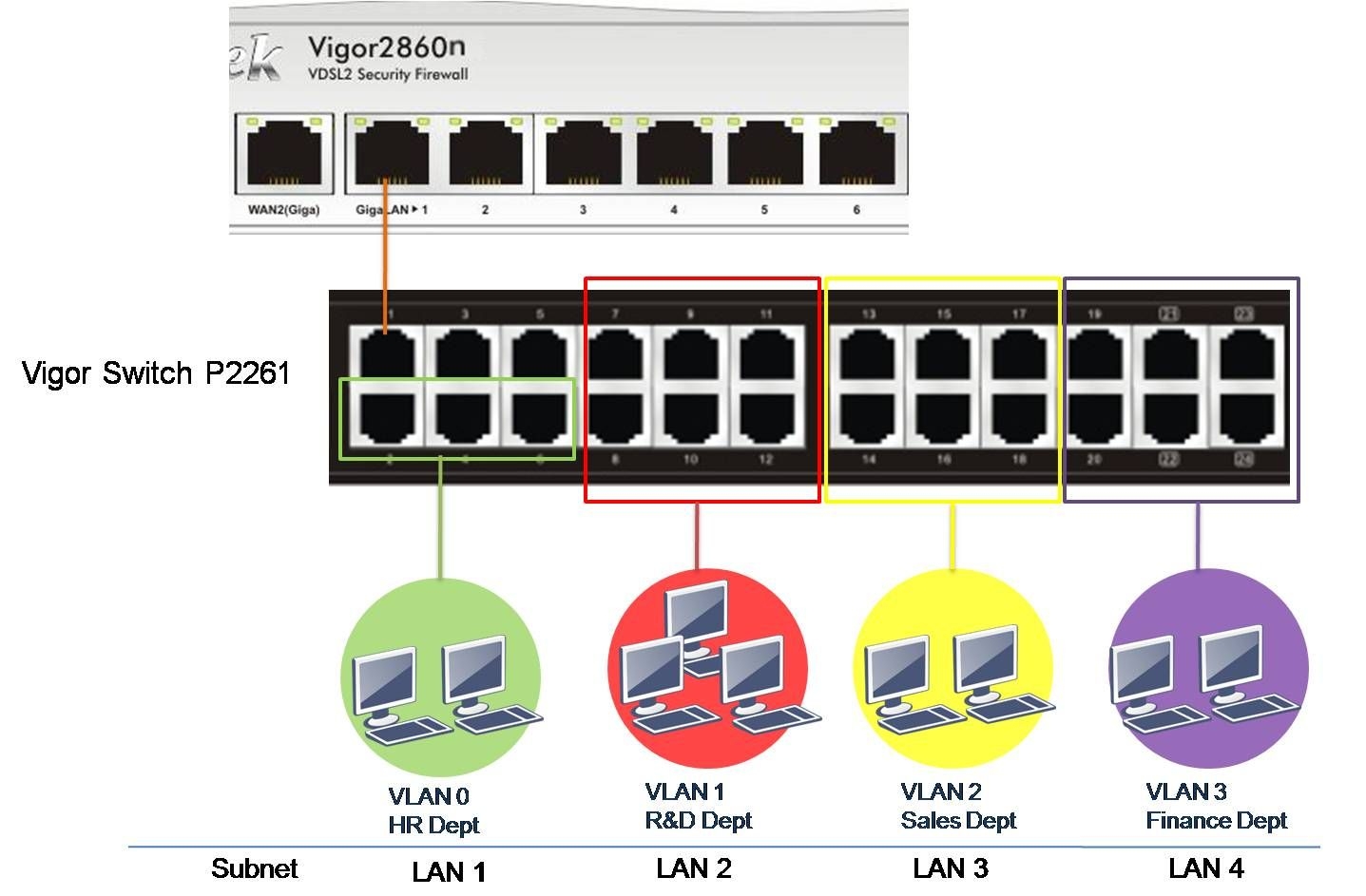

 The feature of tag-based Multi-subnets helps business isolate different work groups, preventing important and valuable information from any leakage.

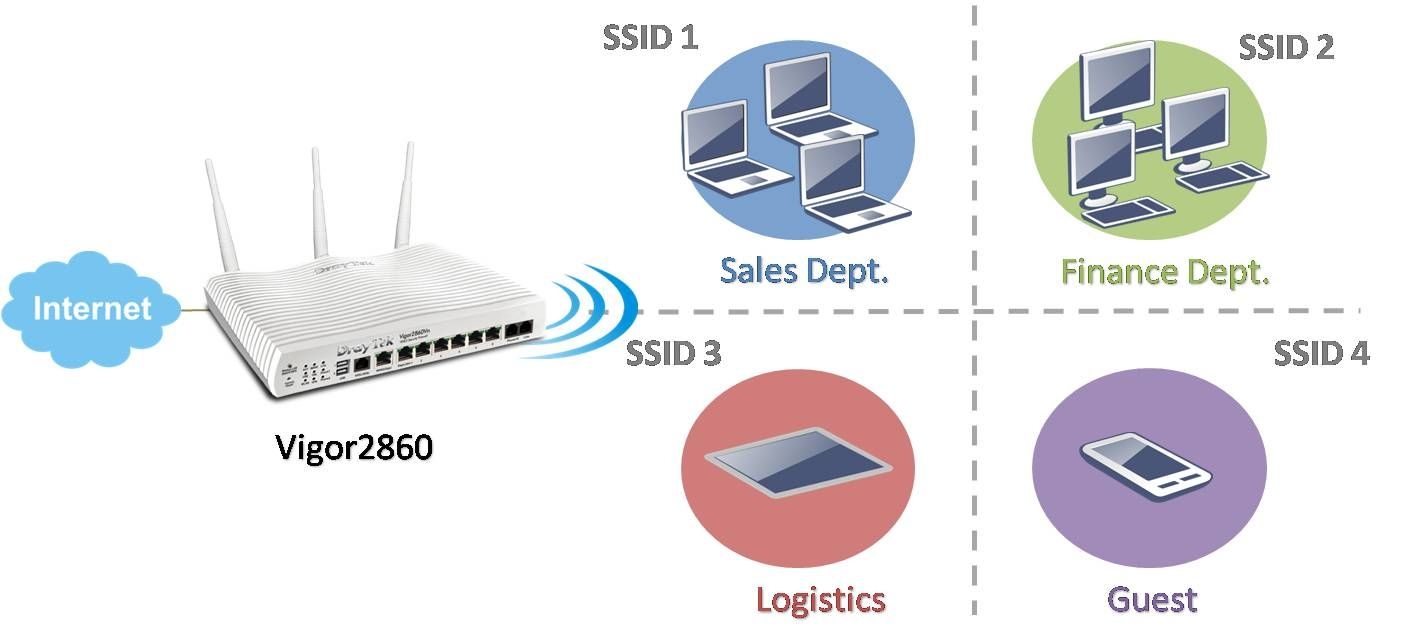

On the Wireless-equipped models, each of the wireless SSIDs can also be grouped within one of the VLANs
