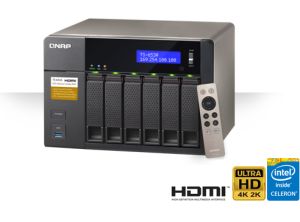

QNAP Systems TS-653A-8G Network Storage Device
  • 6x2.5/3.5"SATA HDD, 8GB-RAM, RAID 0,1, 5, 6, 10, + Hot Spare, JBOD Single, 4xUSB3.0, 2xHDMI, 4xGigLAN

IMG 1 of 1
No Longer Available
Part Number:
403949
(?) Brand:
QNAP Systems
Manuf No:
TS-653A-8G
TS653A8G
Shipping Weight:
6.5 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
TS653A8G, TS-653A-8G, QN17107
TS-653A

QTS-Linux Combo NAS: a well-rounded private cloud solution centralizing storage and IoT applications

Features

In response to the coming era of Internet of Things (IoT), the TS-653A innovatively supports the open-source Linux® platform as a gateway for IoT solutions to other smart devices. The TS-653A allows users to directly utilize various feature-rich Linux apps, enjoying a private cloud combining storage and IoT applications, and professional developers can develop and run IoT applications directly on the TS-653A. The secure, reliable TS-653A is packed with business-critical features such as Volume/LUN Snapshot – allowing files/folders to revert to a previous state in case of any corruption or file-loss. The TS-653A is powered by the latest quad-core Intel® Celeron® processor which allows users to enjoy 4K (H.264) video playback and 1080p/4K video real-time transcoding directly from the TS-653A to an HD/4K display.

  • Supports the Linux® OS with direct output via HDMI
  • Dual HDMI output for switching between duplicated and extended desktop options
  • AES-NI hardware-accelerated encryption for efficient cryptographic performance up to 416 MB/s
  • Supports 4K hardware decoding and transcodes 4K H.264 videos on-the-fly or offline
  • Quickly find files using a real-time, natural search with Qsirch 2.1
  • NAS and iSCSI-SAN unified storage solution for virtualization
  • Supports VMware®, Citrix®, Microsoft® Hyper-V and advanced virtualization features
  • A hybrid approach to virtualization in one NAS: Virtualization Station & Container Station
  • Build a personal karaoke system with high-quality audio output with the new OceanKTV app

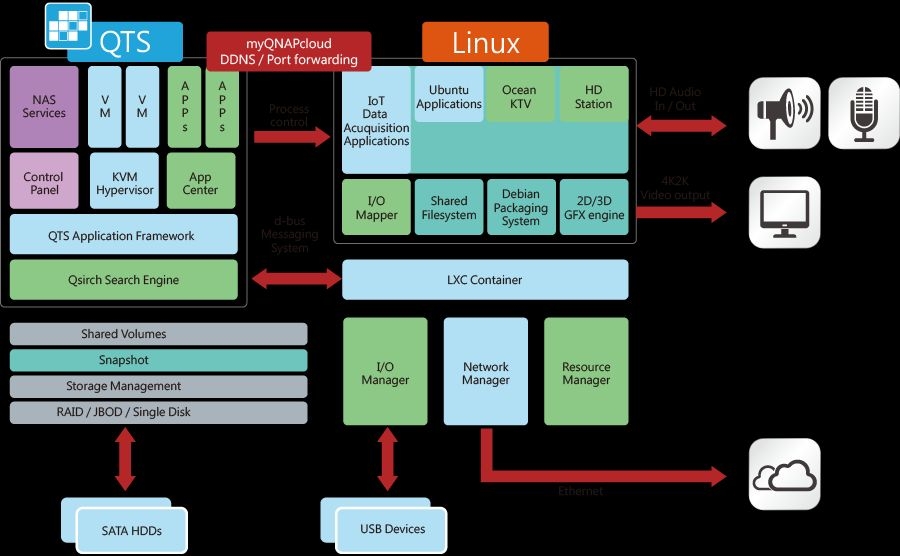

QTS-Linux dual systems, geared for the IoT era

The TS-653A’s QTS-Linux dual systems are based upon QNAP’s advanced virtualization technologies. The revolutionary architecture of the TS-653A enables users not only to download rich apps from QTS App Center but also to develop or utilize IoT packages for Linux® and display them using HDMI output. With the TS-653A, you can develop and install various IoT packages on demand and centrally store the data on the TS-653A, benefiting from a secure private storage and development solution. Simply plug in a keyboard, mouse and HDMI monitor to the TS-653A, and use the Linux Station as if you were using a PC*. You can also operate the Linux Station as a remote desktop via web browser for instant management**.

Linux Station will be available from QTS 4.2.1. To use the Linux Station, you must install it from the App Center.
The remote desktop function does not support remote audio output

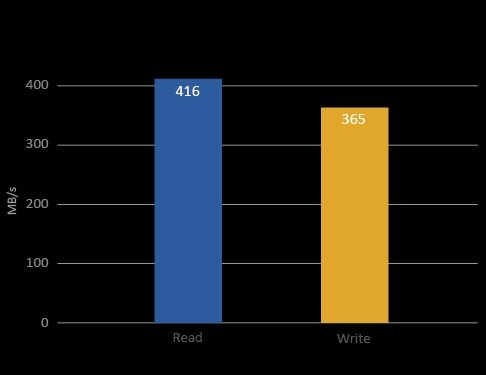

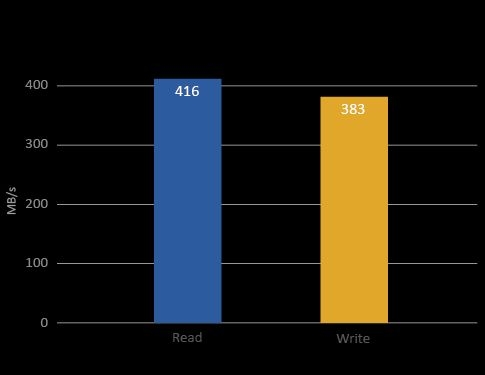

Intel® Celeron® N3150 quad-core CPU fulfills multi-tasking efficiency

Powered by the latest 14 nm Intel® Celeron® N3150 quad-core 1.6GHz processor, dual-channel 4/8GB DDR3L-1600 RAM (upgradable to 8GB), 4 Gigabit LAN ports and SATA 6Gb/s, the TS-653A delivers up to 416 MB/s read speed and runs tasks smoothly and quickly. The TS-653A can automatically increase the processor's clock speed from 1.6GHz to 2.08GHz when performing CPU-intensive tasks. The TS-653A features Intel® AES-NI hardware-accelerated encryption engine to drive transfer speeds of up to 416 MB/s with AES 256-bit encryption for both full NAS volume and shared folders, boosting system performance & security while ensuring the safety of sensitive business data stored in the TS-653A.





Tested in QNAP Labs. Figures may vary by environment.

Test Environment:

NAS:
OS: QTS 4.2.0
Volume type: RAID 5; 4 x Seagate 1TB ST1000NM0033 HDDs: NAS and PCs are connected.

Client PCs:

Intel® Core™ i7-4770 3.40GHz CPU; DDR3L 1600Hz 16GB; WD 1TB WD10EZEX;
Intel Gigabit CT( MTU 1500 ) ; Windows® 7 Professional 64bit SP1 & Windows 8.1 Pro 64-bit IOMeter configuration: Multiple PCs via switch. Transferring 32GB file continuously to NAS for 3 minutes. Block size: 64KB for SMB2.0

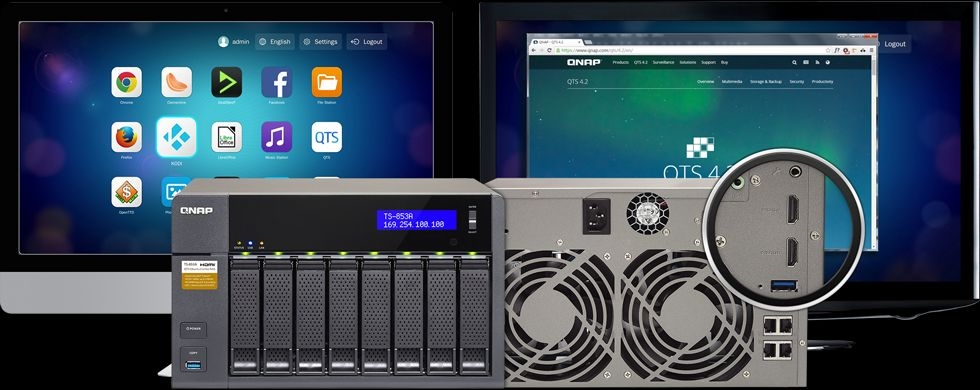

Dual HDMI outputs - Switch between HD Station and Linux desktop

The TS-653A comes with dual HDMI outputs for using two monitors in either a “duplicated” or “extended” desktop configuration. Duplicating will display the same content on both displays, and extended desktop mode allows users to display applications over two displays for improved multitasking convenience and productivity.

When displaying content using HDMI outputs, you can use the TS-653A as an amazing multimedia player by using HD Station to enjoy rich apps including Kodi™, HD Player, Plex Home Theater, YouTube™, Spotify®, JRiver, Google Chrome™, Mozilla Firefox®, and more. Alternatively, you can choose to output the Linux® operating system desktop to use the TS-653A as a PC.

Note: the Linux desktop will be available from QTS 4.2.1. To use it, you must install the Linux Station from the App Center.

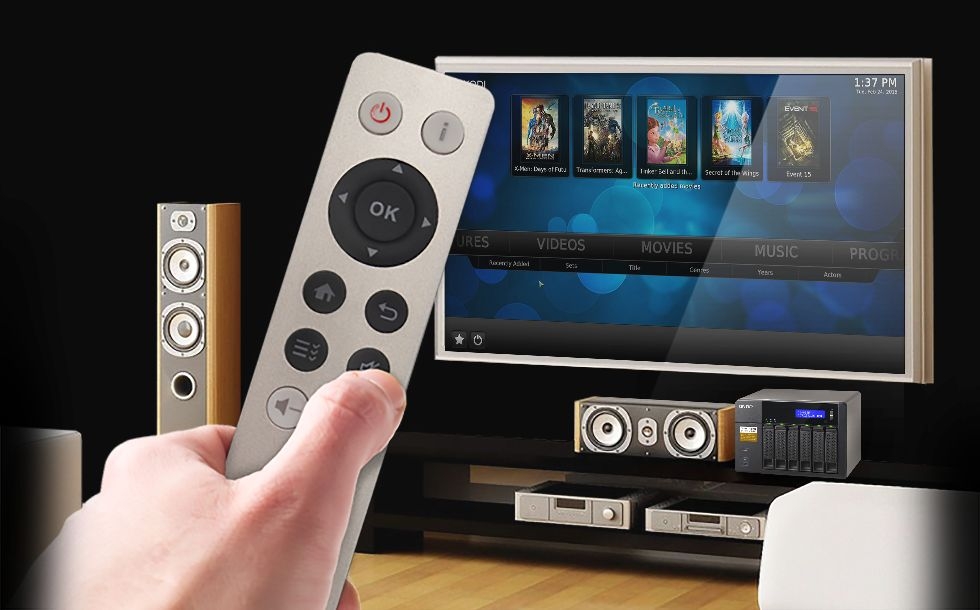

Enjoy the best audiovisual experience on TV including a free remote control

QNAP HD Station integrates the powerful Kodi™ media player and web browser. With HDMI connectivity, you can connect the TS-653A to a HDTV or an A/V receiver to enjoy your rich multimedia content and 4K( H.264) videos with the best audiovisual experience. The splendid user interface of Kodi™, 7.1 channel audio passthrough*, and the TS-653A’s powerful real-time transcoding capability facilitate smooth and enhanced playback of 4K videos **. You can even watch YouTube™ videos, surf the web and manage the TS-653A using a web browser with multilingual keyboard input. HD Station supports multi-tasking and user authentication so only authorized users can access the stored data.

The TS-653A includes a QNAP remote control for you to conveniently control HD Station through its built-in IR receiver. With the help of the new smart remote control learning function, you can pair up to three TV or stereo IR remote controls and program your frequently-used buttons and functions. From now on, you'll never again live in fear of losing or damaging your dedicated remote controls***. You can also turn your mobile devices into remote controls by installing the Qremote app.

A receiver with HDMI support is required for decoding multi-channel surround sound.

The quality of video and music delivery can vary according to hardware and network environments.

The smart remote control learning function will be available from QTS 4.2.1.

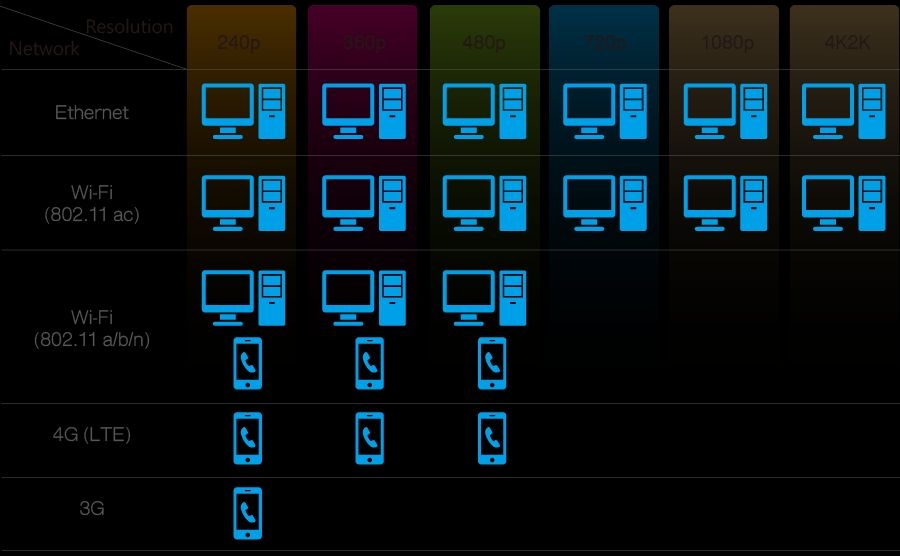

Superior real-time and offline 4K video transcoding

Featuring advanced 8th-generation Intel® HD Graphics, the TS-653A supports 4K (H.264) hardware decoding and delivers superior real-time 4K (H.264) and 1080p video transcoding to convert videos to universal formats that can be smoothly played on PCs, mobile devices and Smart TVs. With offline transcoding, even when you can only connect using a low-speed Internet connection, you can still enjoy smooth video playback via File Station, Video Station, and the Qfile mobile app by selecting a pre-rendered lower resolution video. The TS-653A also allows you to set a dedicated folder for automatic video transcoding.

Note:

Which video formats support hardware acceleration?
How to transcode videos to formats suitable for other devices?



QTS 4.2 – Simple, convenient and efficient

Thanks to the intuitive user interface of QTS, your NAS experience is smarter, smoother and spectacular. Its modern flat design streamlines loading times, and the intelligent desktop allows you to find desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater working efficiency. QTS breaks the barriers of devices, platforms and geography to bring optimized cloud experiences to you, and incorporates more advanced features including volume/LUN snapshot, remote connection to public cloud services in File Station, multi-zone multimedia system, and more.

Disaster recovery solutions brings peace of mind

The TS-653A offers various data recovery options. RTRR (Real-Time Remote Replication) supports real time or scheduled data backup to a remote QNAP NAS or FTP server and synchronizes files to a remote folder from a local folder with better backup efficiency. You can enjoy backup versioning to preserve a certain amount of versions, with options of simple versioning to schedule how many versions should be retained and for how long, or smart versioning with a rotation scheme that automatically replaces earlier backup versions. The TS-653A also supports the rsync protocol to back up data to another remote server on a scheduled basis. Data can also be backed up to and restored from a range of cloud storage services, including Amazon® S3, Amazon® Glacier, Microsoft® Azure, ElephantDrive®, Dropbox®, Google Drive™, Google Cloud Storage™, and more.

Restore files with Snapshot

QTS Storage Manager adds an easy-to-use web-based snapshot tool for you to easily backup and restore data on the TS-653A back to any point of time in case you lose any important data. You can take snapshots for both volumes and LUN (up to 256 snapshots per volume or LUN and maximum 1024 snapshots per NAS), efficiently replicate volume/LUN snapshots via Snapshot Replica to remote servers by copying only the changes made, and quickly clone a volume /LUN snapshot as a local volume without interrupting the current system operation. You can even set up the system to automatically take a snapshot of the volume before backup via RTRR/rsync, even when the file is opened.

Qsirch - a smarter, faster way to search

The TS-653A supports Qsirch, a proprietary near real-time search tool for quick file searching. In addition to thumbnail previews, Qsirch now allows you to find and preview Gmail emails that are backed up on the TS-653A. Qsirch even remembers your search history allowing you to quickly navigate to files you've previously searched for. Qsirch is a huge productivity boost that greatly reduces the time spent looking for files on the NAS, allowing you to focus on other tasks. The revamped Qsirch 2.1 adds a Google Chrome Extension that allows you to search for files on your NAS when you use Google Search.

Datastore for virtualized environments

The TS-653A is also an iSCSI/ IP-SAN storage that supports VMware® and Citrix®, and is compatible with Microsoft® Hyper-V® and Windows Server 2012, benefiting flexible deployment and management in virtualization environments. The TS-653A supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.

Born for server virtualization

Virtualization Station allows you to host virtual machines (VM) on the TS-653A, and access them via a web browser or VNC. Virtualization Station supports multiple operating systems, fast VM creation, VM backup & restoration, VM import/export, snapshot, and Device Management for centrally managing VM. Virtualization Station uses SDN (Software-defined Networks) and allows the TS-653A and VMs to share the same LAN port. No longer constrained by physical network performance, high-speed Virtual Switches greatly increases data transfer between VMs as well as between VMs and NAS through the internal interface. You can also download VMs on demand from online VM markets and import them to the TS-653A without any complex procedures.

The TS-653A also features the game-changing container technology for server virtualization. QNAP Container Station exclusively integrates LXC and Docker® lightweight virtualization technologies, allowing you to operate multiple isolated Linux® systems on the TS-653A as well as download apps from the built-in Docker Hub Registry®. Container Station also supports the Online Document app*, which allows you to directly view, edit and store files of various types anytime on your NAS, including Office documents, images and text files.

Cross-platform file sharing, centralized data storage

The TS-653A supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows®, Mac®, Linux®/UNIX® networks. Data, logs and ISO images of CDs and DVDs can be centrally stored on the TS-653A and protected by an integrated antivirus solution. The Windows AD® and LDAP services enable system administrators to configure user permissions by using an existing Windows AD server, LDAP server or built-in LDAP service. The TS-653A supports SAMBA v4 and can act as a Windows domain controller to manage privilege settings.

Well-rounded backup solutions to secure data

QNAP NetBak Replicator supports real-time and scheduled data backup on Windows including Outlook email archiving. Apple Time Machine® is also supported to provide Mac® OS X users with a solution to effortlessly back up data to the TS-653A. The front-panel USB 3.0 port of the TS-653A features a one-touch-copy function for you to instantly back up data from external drives to the TS-653A with just one click, or alternatively to back up data from the TS-653A to external drives. A wide range of third-party backup software such as Acronis® True Image and Symantec® Backup Exec are also supported.

Comprehensive security options

In open network environments, business data may be exposed in a potential hack. The TS-653A provides numerous security options, such as encrypted access, IP blocking, and more. IT administrators can also control the access rights of each user to different folders, preventing unauthorized access to important files. The TS-653A supports AES 256-bit encryption, preventing sensitive business data from unauthorized access and breach even if the hard drives or the entire system were stolen.

Secure access with VPN & Proxy Server

The TS-653A can be used as a VPN server with L2TP/IPsec, OpenVPN, and PPTP support, allowing you to securely access data shared within the private local network. The TS-653A can also be used as a VPN Client to connect to other VPN servers or virtual private network through for PPTP and OpenVPN for secure data transmission. VPN Client also allows your NAS to connect to multiple servers at the same time*. You can connect your devices to your NAS and the VPN server at home to access data on the LAN; moreover, via VPN Client on your NAS, you can connect to VPN servers in the United States for accessing regionally-restricted services such as Netflix and Hulu in HD Station. The TS-653A provides you with various VPN options and helps secure your data transmission. The TS-653A also supports setting up a proxy server. The Proxy Server Package can configure the cache size, supported transmission protocols, record web pages you browsed and set up a powerful content control system that limits the use of the Internet. Other features include a work log that remembers users’ habits and preferences and SquidClamav anti-virus for proxy servers to ensure connection safety.

File synchronization across multiple devices and clouds

Qsync utility turns your TS-653A into a safe, large-capacity data center for file synchronization. Any file uploaded to the TS-653A will be made available for all linked devices, such as computers, laptops or mobile devices. Qsync is especially useful for frequent travelers to manage files and always have the most up-to-date files on different devices. Qsync now provides more new features— it allows you to synchronize shared folders and create group-shared folders exclusive for your project team; it provides centralized management configuration, helping saving IT administers’ time; it also supports centralized configuration and allows you to remotely erase the Qsync folder on a lost device to avoid data breaches, and even restore it after you have retrieved the device. You can also install the Cloud Drive Sync app from QTS App Center to easily sync files with Google Drive™ and Dropbox® cloud storage.

Enjoy your exclusive karaoke system with OceanKTV

QNAP OceanKTV is the first NAS-based karaoke application on the market allowing you to create a quality karaoke experience at home. The TS-653A offers high-capacity storage for accommodating up to thousands of 1080p karaoke songs . Simply attach your big-screen TV to the TS-653A via HDMI and start singing with OceanKTV. Four UI themes are provided to create the best atmosphere, and with the OceanKTV mobile app you can control the entire experience on your phone or tablet. More than a NAS, the TS-653A is a karaoke machine for singing entertainment. Enjoy alone or with your friends!

High-quality audio effect with dual microphones outputs and Line Out function

The TS-653A has two 6.3mm dynamic microphone jacks for connecting up to two dynamic microphones. Compared with the average reception quality of USB microphones, the TS-653A offers a clearer reception quality as it is equipped with a 20-bit analog-to-digital converter (ADC). On top of that, the TS-653A has a 24-bit digital to analog converter (DAC) that can send audio signals via the Line Out jack to your amplifier and deliver clearer stereo sound. By offering excellent audio output/input functionalities together with various apps, the TS-653A brings you a fantastic audiovisual experience.

Comprehensive surveillance solution providing 24/7 security

Surveillance Station is a professional network surveillance Video Management System (VMS) that offers a user-friendly management interface, over 3,000 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video & audio recording and playback with a wide range of customizable settings. You can also install the Vmobile app on your iOS® or Android™ devices to manage monitored channels anytime and anywhere to safeguard your office environment, or install the Vcam mobile app to turn your device into a network camera to instantly record to your TS-653A. The TS-653A includes 4 free IP camera channels and you can expand up to 40 channels by purchasing additional licenses.

Install-on-demand apps to extend NAS functionality

The built-in App Center provides various install-on-demand apps developed by QNAP and third-party developers, including tools for backup/sync, business, content management, communications, download, entertainment, and much more. It is also a centralized location for managing & updating installed apps, allowing you to directly update applications once newer versions are released.

Easily expand storage capacity

The TS-653A supports online capacity expansion for archiving rapidly-growing data by connecting a QNAP expansion enclosure. With the QNAP scale-up solution, the raw storage capacity can be expanded on demand*, making the TS-653A an ideal file center with large storage capacity for storage-intensive business applications such as video surveillance, data archiving, TV broadcast storage, and more.

With the support of QJBOD Express (JBOD enclosures roaming)**, you can just connect a large capacity QNAP expansion enclosure to the TS-653A, and migrate data to another NAS through the JBOD enclosure without network connectivity.

The maximum raw storage capacity available by connecting a QNAP expansion enclosure:

QNAP NAS Model RAID Expansion Enclosure No. of RAID Expansion Enclosure Total HDD No. (NAS + Enclosure) Max. Raw Capacity (TB)***
TS-653A UX-800P 1 14 112
UX-500P 1 11 88



Additional SMB-ready features

The TS-653A supports various business applications as an all-in-one Turbo NAS with cost-efficiency.

FTP Server

The Turbo NAS supports FTP server to share large files, with user-defined settings including bandwidth limitation, number of connections, and write-only permissions.

Web Server

The Turbo NAS supports Web server which allows numerous websites built on the same server conveniently. Administrators can manage up to 32 websites on the single one Turbo NAS with reduced IT cost.

RADIUS Server

The Turbo NAS supports RADIUS server which provides centralized authorization management for computers to connect and use a network service.

VPN Server

The Turbo NAS supports VPN server which provides an easy way for IT administrators to build up a secure private network and allows the staff to log on from outside the office and access business resources securely such as files and Internet connections.

Printer Server

The Turbo NAS supports Printer server to send remote printing request over the Internet (max. 3 USB printers), and supports IPP (Internet Printing Protocol), Samba, print job management and Bonjour printing for Mac OS X.

Surveillance Station

The Turbo NAS supports Surveillance Station to connect and manage multiple IP cameras remotely, including real-time monitoring, video recording, playback, and event notifications.

Specifications

Operating System
QTS 4.2 (embedded Linux)
Power Management
  1. Wake on LAN
  2. Internal hard drive standby mode
  3. Scheduled power on/off
  4. Automatic power on after power recovery
  5. USB and network UPS support with SNMP management
  6. System sleep mode (S3)
Supported Client OS
  1. Windows 7 (32/64-bit), Windows 8 (32/64-bit), Windows Server 2003/2008 R2/2012/2012R2
  2. Apple Mac OS X
  3. Linux & UNIX
Access Right Management
  1. Batch users creation
  2. Import/Export users
  3. User quota management
  4. Local user access control for CIFS, AFP, FTP, and WebDAV
  5. Application access control for Photo Station, Music Station, Video Station, and File Station
  6. Subfolder permissions support for CIFS/SMB, AFP, FTP, and File Station
Supported Browsers
  1. Microsoft Internet Explorer 10+
  2. Mozilla Firefox 8+
  3. Apple Safari 4+
  4. Google Chrome
Domain Authentication Integration
  1. Microsoft Active Directory (AD) & Domain Controller support
  2. LDAP server, LDAP client
  3. Domain users login via CIFS/SMB, AFP, FTP, and File Station
Multilingual Support
  1. Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
myQNAPcloud Service
  1. Private cloud storage and sharing
  2. Free host name registration (DDNS)
  3. Optional myQNAPcloud SSL certificates (DDNS)
  4. Auto router configuration (via UPnP)
  5. Web-based file manager with HTTPS 2048-bit encryption
  6. CloudLink for remote access without any complicated router setup
  7. myQNAPcloud connect for easy VPN connection (Windows VPN utility)
File System
  1. Internal Hard Drive: EXT4
  2. External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+
Qsync
  1. Sync files across multiple devices with SSL secure connection
  2. Selective synchronization for only syncing specific folders
  3. Use team folders as a file center for greater team collaboration (maximum sync tasks: 32)
  4. Shares files by links via e-mail
  5. Policy settings for conflicting files and file type filter support
  6. Version control: up to 64 versions.
  7. Unified privilege management
  8. Unified configuration management
  9. Supports central configuration mode
  10. Supports remote erase/restore
  11. Supports shared folders sync
  12. Supports Windows & Mac OS
Networking
  1. TCP/IP (IPv4 & IPv6: Dual Stack)1
  2. Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
  3. Service binding based on network interfaces
  4. Squid Proxy server
  5. Proxy client
  6. DHCP client, DHCP server
  7. Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
  8. UPnP & Bonjour Discovery
  9. USB Wi-Fi Adapter Support
Web Administration
  1. Multi-window, multi-tasking based system management
  2. Smart toolbar and dashboard for neat system status display
  3. Dynamic DNS (DDNS)
  4. SNMP (v2 & v3)
  5. Resource monitor
  6. Network recycle bin for file deletion via CIFS/SMB, AFP, and File Station
    - Automatic Cleanup
    - File Type Filter
  7. Comprehensive logs (events & connection)
  8. Syslog client/server
  9. System settings backup and restore
  10. Mobile app: Qmanager for remote system monitoring & management
Security
  1. Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
  2. CIFS host access control for shared folders
  3. FIPS 140-2 validated AES 256-bit volume-based and shared folder data encryption2
  4. AES 256-bit external drive encryption2
  5. Importable SSL certificates
  6. Instant alerts via email, SMS, beep, push service, and LCD panel3
  7. 2-step verification
File Server
  1. File sharing across Windows, Mac, and Linux/UNIX
  2. Windows ACL
  3. Advanced folder permissions for CIFS/SMB, AFP, FTP
  4. Shared folder aggregation (CIFS/SMB)
Storage Management
  1. Storage Space Utilization monitoring
  2. QNAP flexible Volume/LUN with thin provisioning and space reclaim3
  3. Disk volume types
    • RAID 0,1, 5, 6, 10, + hot spare, JBOD single
  4. Supports storage pools
  5. Supports volume/LUN snapshots
    • Snapshot clone
    • Snapshot vault
    • Snapshot replica
    • Snapshot agent for Microsoft Windows and VMware vSphere
  6. Online volume expansion
  7. Online storage pool expansion
  8. Online RAID capacity expansion and online RAID level migration
  9. SMART data migration
  10. Storage expansion via a QNAP UX-500P/UX-800P expansion unit
  11. JBOD enclosure roaming
  12. SSD read-only/read-write cache
  13. Bad block scan and hard drive S.M.A.R.T.
  14. Bad block recovery & RAID recovery
  15. Bitmap support


Powerful All-in-one server
FTP Server
  1. FTP over SSL/TLS (Explicit)
  2. FXP support
Storage Plug & Connect
  1. Creating and mapping shared folders by QNAP Windows Qfinder
  2. Creation of and connection to iSCSI target/LUN
File Station
  1. Supports mounting cloud drives (such as Google Drive, Dropbox, Microsoft OneDrive, Amazon Cloud Drive, Yandex Disk and Box).
  2. Supports mounting remote shared folders through FTP, WebDAV or Microsoft networking (SMB/CIFS)
  3. Supports opening documents via Office Online, Google Docs or Chrome Extension (Edit Office files in Google Docs, Sheets, and Slides)
  4. Supports ISO Mounting (Up to 256 ISO Files)
  5. Supports sharing download links and upload links
  6. Drag-n-drop Files via Chrome and Firefox Browsers
  7. Photo, music, and video preview and playback with hardware-accelerated transcoding
  8. File Compression (ZIP or 7z)
  9. Creation of and sending download links for sharing public files with expiration date and password protection
  10. Supports displaying subtitles (*.SRT, UTF-8 format)
    - Supports slideshow playback in media viewer
  11. Mobile App: Qfile for file browsing and management
iSCSI (IP SAN)
  1. iSCSI target with multi-LUNs per target (Up to 256 targets/LUNs combined)
  2. Supports LUN mapping & masking
  3. Online LUN capacity expansion
  4. Support for SPC-3 persistent reservation
  5. Supports MPIO & MC/S
  6. iSCSI LUN backup, one-time snapshot, and restoration
  7. iSCSI connection and management by QNAP Windows Qfinder
  8. Virtual disk drive (via iSCSI initiator)
  9. Stack chaining master
  10. Max No. of virtual disk drives: 8
Transcode Management
  1. Transcode video files to 240p, 360p, 480p, 720p and 1080p resolution
  2. Automatic video transcoding for watched folders
  3. Hardware accelerated transcoding support
  4. Embed subtitles into videos for background transcoding
Surveillance Station
  1. Supports over 3,000 IP cameras
  2. Includes 4 free camera licenses, up to 40 camera channels by purchasing additional licenses3
  3. Instant playback to check recent events
  4. Visual aid by e-map
  5. Playback and speed control using the shuttle bar
  6. Video preview on playback timeline
  7. Intelligent video analytics (IVA) for advanced video searching
  8. Surveillance client for Mac
  9. Mobile surveillance app: Vmobile (iOS and Android)
  10. Mobile recording app: Vcam (iOS and Android)
Backup Station
  1. Remote replication server (over rsync)
  2. Real-time remote replication (RTRR) to another QNAP NAS or FTP server
  3. Works as both RTRR server & client with bandwidth control
  4. Real-time & scheduled backup
  5. Backup versioning for RTRR
  6. Snapshot support for RTRR/Rsync
  7. Encryption, compression, file filter, and transfer rate limitation
  8. Desktop backup with QNAP NetBak Replicator for Windows?
  9. Apple Time Machine backup support
  10. Data backup to multiple external storage devices
  11. Synchronizes with cloud storage: Amazon S3, ElephantDrive, Symform, Dropbox, and Google Drive
  12. Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, emc retrospect, Symantec Backup Exec, etc.
VPN Server
  1. Secure remote access: PPTP?L2TP/IPsec & OpenVPN VPN services
  2. Max number of clients: 30
Print Server
  1. Max number of printers: 3
  2. Supports Internet Printing Protocol
  3. Print job display and management
  4. IP-based and domain name-based privilege control
VPN Client
  1. Supported VPN protocols: PPTP & OpenVPN services
  2. PPTP Authentication: PAP, CHAP, MS-CHAP, MS-CHAPv2
  3. PPTP Encryption: None, AES 40/128 bit, AES 256 bit
  4. OpenVPN Encryption: None, AES 40/128 bit, AES 256 bit
  5. Transmission package monitor
  6. OpenVPN port control
  7. OpenVPN link compression
Cloud Backup Station
  1. Amazon S3
  2. Amazon Glacier
  3. WebDAV-based cloud storage
  4. Microsoft Azure
  5. OpenStack
DLNA Server
  1. Supports DLNA/UPnP TVs and players such as PlayStation 4 and Xbox One
  2. Supported audio formats4: AIFF, APE, DSD (DSF, DFF), FLAC, M4A, M4A Apple Lossless (ALAC), MP3, Ogg Vorbis, WAV (PCM, LPCM), WMA, WMA PRO, WMA VBR*
  3. Support CUE indexing file for APE, FLAC audio format.
  4. Video and Audio On-the-?y Transcoding3
AirPlay & Chromecast
  1. Streams videos, photos and music from NAS to Apple TV or Chromecast via File Station, Music Station, Photo Station, Video Station or mobile app (Qfile, Qmusic, Qphoto or Qvideo).

Note: The Media Streaming add-on app must be installed from the QTS App Center.
Q’center (NAS CMS)
  1. Multiple NAS monitoring
  2. Utilization history reports
  3. Unified configuration management
  4. Visual display reports
  5. Monitor NAS behind NAT routers with Q’center Assistant
  6. Virtual appliances supported byMicrosoft Hyper-V and VMware ESXi
HD (HybridDesk) Station 3.0
  1. Playback videos, music, photos on TV with Kodi via HDMI
  2. Watch various online content such as YouTube, Flickr, Picasa, Shoutcast, etc.
  3. Web browsers (Chrome, Firefox)
  4. Supports international keyboards, input and mouse
  5. Supports QNAP Qremote app and the official Kodi remote app
  6. Supports user login permissions
  7. A variety of applications are available including Skype, Plex Home Theater, and more
  8. Up to 7.1 channel audio passthrough is supported
Note:
- The playback and quality of some video ?les may be affected by the system’s CPU and GPU decoding abilities.
OceanKTV
  1. Use the NAS as a karaoke machine.
  2. Display songs by artists, languages, and favorites.
  3. Enhance the experience with effects such as tuning echo, key, or applause
  4. Control the playlist with a mobile app.
  5. Supports keyboard, mouse and remote control (RM-RF001/ RM-IR002).
Note: Microphone not included.
Virtualization Station
  1. Supports Virtual Machine (VM) creation to run operating systems such as Windows, Linux, Unix and Android
  2. Supports VM import and export
  3. Supports VM cloning & snapshots
  4. Supports VM backup and restore
  5. VM console can be displayed via HDMI output - QVM
  6. HTML5-based shared remote console
  7. Supports three different networking modes: Isolated, External-only and Bridged
iTunes Server
  1. Audio and video sharing for Windows® & Mac iTunes
Container Station
  1. Supports LXC and Docker
  2. Download applications from the built-in Docker Hub Registry
  3. Supports one-click installation, container export/import & console mode
  4. Supports auto port forwarding
  5. Supports auto-start containers
  6. Supports downloading Docker certificates
App Center
  1. Over 100 official and community software add-ons such as Photo Station, Music Station, Video Station, Download Station, Notes Station, Signage Station
Qsirch
  1. Supports full-text search
  2. Supports Near Real-time Search
  3. Bar chart to show data distribution
  4. Supports previews for photos, music, videos, Gmail, PDF .etc
  5. Show search results using thumbnails or a list
  6. Supports search Chrome extension



1 Not all IPv6 services are supported.
2 Data encryption functions may be unavailable in accordance with the legislative restrictions of some countries.
3 This feature may vary by model.
4 DRM-protected content is not supported.

Designs and specifications are subject to change without notice.



Ordering P/N TS-653A-4G | TS-653A-8G
CPU 14 nm Intel® Celeron® N3150 1.6GHz quad-core processor (burst up to 2.08GHz)
Floating Point Unit
 ?
Hardware Encryption
 ? (AES-NI)
GPU 8th generation Intel HD Graphics
System memory TS-653A-4G: 4GB (2 x 2GB)
TS-653A-8G: 8GB (2 x 4GB)
Memory Expandable Up To 8 GB
Total Memory Slots 2, SODIMM DDR3L-1600
(*For dual-DIMM configurations, you must use a pair of identical DDR3L modules.)
Flash Memory 512MB
Maximum Number of Hard Drive 6
Hard Disk Drive Hot-swappable 3.5" or 2.5" SATA 6Gb/s, SATA 3Gb/s hard drive or SSD
LAN Port 4 x Gigabit RJ-45 Ethernet port
USB 4 x USB 3.0 port (Front:1, Rear:3)
Support USB printer, pen drive, and USB UPS etc.
Video Output 2 x HDMI, up to 4K 2160P Ultra HD support
Audio Input 2 x 6.3mm microphone jacks (dynamic microphones only)
Audio Output Line Out Jack (for amplifier or headphone amplifier)
LED Indicators Status, USB, HDD 1-6
LCD Panel Mono-LCD display with backlight
Buttons System: Power button, USB one-touch-backup button, Reset button
IR Receiver ?, Support QNAP RM-IR002 Remote Control and RM-IR003 Remote Control
Other Interface Kensington security slot, console port (system maintenance)
Alarm Buzzer System warning
Form Factor Tower
Dimensions 175(H) x 257(W) x 235(D) mm
6.89(H) x 10.12(W) x 9.25(D) inch
Weight Net: 5.2 kg (11.46 lbs)
Gross: 6.5 kg (14.33 lbs)
Power Consumption (W) System sleep mode: 1.7W
HDD standby 32.02W
In operation: 51.16W
Temperature 0-40°C
Relative Humidity 5~95% RH non-condensing, wet bulb: 27°C
Power Supply ATX 240W, 110-240V AC, 50-60Hz, 5A
Fan 2 x 9cm quiet cooling fan (12V DC)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

No related products found.


L7: 4 | TM: 10 | LM: 30 | TY: 228 | T: 1112

About | Contact Us | Service & Support | Feedback | Policies | Secure login | Free signup! | FAQ | SiteMap
We accept the following with No surcharge on VISA, Mastercard and Paypal!
Techbuy Pty Ltd 2000 - 2024 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
