10 Port Layer 3 Lite Managed PoE+ Switch with 10x 10/100/1000Mbps Ports + 2x Paired 100M/1Gb SFP Ports

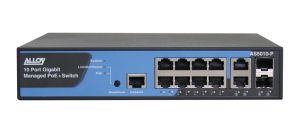

The Alloy AS5010-P Layer 3 Lite
Managed Gigabit POE+ Switch consists of 10x 10/100/1000Mbps Gigabit
Copper UTP Ports and 2x paired dual speed 1000M/100M SFP Ports. With a
comprehensive range of the latest generation Layer 3 Lite, Layer 2+,
QoS, Security, PoE and Management features, the AS5010-P switch is ideal
for businesses of all sizes.
All SFP Ports support both 100M and 1000M SFP modules
allowing easy upgrade paths for existing cabling and network
infrastructure.
The AS5010-P switch provides IEEE 802.3af and the latest 802.3at ‘PoE+’
Power over Ethernet. With all standalone RJ-45 ports supporting PoE+,
devices such as IP Phones and Wireless Access Points can now be
connected directly to the network with data and power supplied over a
single UTP cable, reducing deployment and maintenance costs and making
it much easier to install devices exactly where they are required. With
support of 802.3at PoE+, up to 30 watts of power can be supplied per
port, so power hungry devices such as Pan Tilt Zoom IP Security Cameras
can be connected directly to the network.
All of the Alloy AS Series switches feature Alloy’s latest user friendly responsive Web GUI, allowing ease of configuration on all devices including PC, Tablet and Phones. Alloy have also included a bundle of unique features including a built in Device Management System (DMS), advanced PoE features and support for Alloy’s Android and iOS Apps.
Features
Managed Layer 2+ and Layer 3 Lite GbE Connectivity
Built in Device Management System (DMS)
High performance
Enterprise-class security features
802.3at high power PoE plus standard
PoE Port configuration and scheduling
IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
Dual Speed SFP ports supporting both 100M and 1000M SFP Modules
Limited Lifetime Warranty
Specifications
Port Configuration
Total Ports: 10
10/100/1000Mbps RJ-45 Ports: 10
SFP Ports: 2x 100M/1000M
Console Port: DB9
Poe Power Capacity
Total PoE Power: 130W
PoE Pins: 1, 2, 3 & 6
PoE Per Port: 802.3af; 15.4W, 802.3at; 30.0W
PoE Per Port (Full Load): 16.25W
Hardware Performance
Forwarding Capacity: 14.88Mpps
Switching Capacity: 20Gbps
MAC Table: 8K
Jumbo Frames: 9K
Latency: 1000M Copper Ports: < 2.7ms, 1000M SFP Ports: < 1.1ms
Memory and Processor
SDRAM: 128MB
Flash: 32MB
Voltage and Frequency
Input Voltage: 100-240 VAC
Frequency: 50 ~ 60 Hz
Environmental
Operating Temperature: 0 to 40 C
Storage Temperature: -20 to 70 C
Operating Humidity: 10% to 90% non-condensing
Weights and Dimensions
Dimensions (WxHxD): 220 x 44 x 242mm
Weight: 2.3Kg
