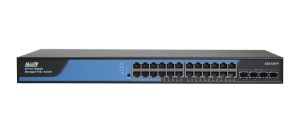

ALLOY AS5128-P
28 Port Layer 3 Lite Managed PoE+ Switch with 24x 10/100/1000Mbps Ports + 4x 100M/1000M/10Gb SFP Ports
The Alloy AS5128-P Layer 3 Lite Managed Gigabit POE+ Switch consists of 24x 10/100/1000Mbps Gigabit Copper UTP Ports and 4x dual speed 10G/1000M SFP Ports. With a comprehensive range of the latest generation Layer 3 Lite, Layer 2+, QoS, Security, PoE and Management features, the AS5128-P switch is ideal for businesses of all sizes.
All SFP Ports support 1000M and 10Gb SFP modules allowing easy upgrade paths for existing cabling and network infrastructure.
The AS5128-P switch provides IEEE 802.3af and the latest 802.3at ‘PoE+’ Power over Ethernet. With all standalone RJ-45 ports supporting PoE+, devices such as IP Phones and Wireless Access Points can now be connected directly to the network with data and power supplied over a single UTP cable, reducing deployment and maintenance costs and making it much easier to install devices exactly where they are required. With support of 802.3at PoE+, up to 30 watts of power can be supplied per port, so power hungry devices such as Pan Tilt Zoom IP Security Cameras can be connected directly to the network.
All of the Alloy AS Series switches feature Alloy’s latest user friendly responsive Web GUI, allowing ease of configuration on all devices including PC, Tablet and Phones. Alloy have also included a bundle of unique features including a built in Device Management System (DMS), advanced PoE features and support for Alloy’s Android and iOS Apps.
Features
Managed Layer 2+ and Layer 3 Lite GbE Connectivity
4x 10GbE SFP Ports for high speed desktop and backbone applications
Built in Device Management System (DMS)
High performance
Enterprise-class security features
802.3at high power PoE plus standard
PoE Port configuration and scheduling
IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
Dual Speed SFP ports supporting 1000M and 10Gb SFP Modules
Limited Lifetime Warranty
Specifications
Port Configuration
Total Ports: 28
10/100/1000Mbps RJ-45 Ports: 24
SFP Ports: 4x 1000M/10Gb
Console Port: DB9
Poe Power Capacity
Total PoE Power: 185W
PoE Pins: 1, 2, 3 & 6
PoE Per Port: 802.3af; 15.4W, 802.3at; 30.0W
PoE Per Port (Full Load): 7.7W
Hardware Performance
Forwarding Capacity: 95.232Mpps
Switching Capacity: 128Gbps
MAC Table: 32K
Jumbo Frames: 10K
Latency: 1000M Copper Ports: < 3.9ms, 1GB SFP: < 3.2ms; 10GB SFP: < 2.2µs
Memory and Processor
SDRAM: 128MB
Flash: 32MB
Voltage and Frequency
Input Voltage: 100-240 VAC
Frequency: 50 ~ 60 Hz
Environmental
Operating Temperature: 0 to 40 C
Storage Temperature: -20 to 70 C
Operating Humidity: 10% to 90% non-condensing
Weights and Dimensions
Dimensions (WxHxD): 442 x 44 x 211mm
Weight: 2.5Kg
