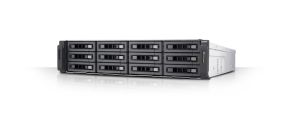

QNAP Systems TVS-EC1280U-SAS-RP-8GE NAS - 2U Rackmount

QNAP TVS-EC1280U-SAS-RP is the world's first unified NAS supporting Auto Tiering to deliver ongoing optimization of data across high-performance SSD, 12Gbps SAS drives and high-capacity SATA disks. Powered by an Intel® Xeon E3 CPU, the 40GbE-ready TVS-EC1280U-SAS-RP delivers exceptional performance and supports cross-platform file sharing, comprehensive backup solutions, iSCSI & virtualization applications, and more practical business functions. With the powerful QTS operating system, the TVS-EC1280U-SAS-RP performs as a reliable, scalable and unbeatable unified and tiered storage solution for businesses.

• 3,800+ MB/s throughput and 260,000+ IOPS
• Qtier Technology drives Auto Tiering for optimal storage efficiency
• Built-in 256GB mSATA modules for caching, beneficial to IOPS-demanding applications
• Scalable design, up to 1,120 TB total capacity
• Virtualization-ready, centralized data storage, backup, sharing and disaster recovery
• Backward compatible with SAS/SATA 6Gbps drives

Enable Auto Tiering with Qtier Technology

QNAP’s Qtier Technology empowers the TVS-EC1280U-SAS-RP with Auto Tiering that helps continuously optimize storage efficiency. With Auto Tiering, the TVS-EC1280U-SAS-RP can automatically move hot data to high-performance storage tiers and cold data to lower-cost, higher-capacity drives, making the TVS-EC1280U-SAS-RP an extremely efficient shared resource. Businesses will no longer have to invest heavily in expensive Flash technology, but can still enjoy exceptional application performance and lower TCO of storage from Auto Tiering with the TVS-EC1280U-SAS-RP.

12Gbps DataBoltâ„¢ Advantage

Implementing DataBolt technology, the TVS-EC1280U-SAS-RP can deliver twice the throughput for 6Gbps SAS drives by automatically aggregating the bandwidth from 3Gbps and 6Gbps drives to fully utilize 12Gbps, effectively accelerating the existing infrastructure.

Excellent performance

The TVS-EC1280U-SAS-RP supports 12Gbps SAS drives to provide fast data transmission speeds and drive up to 3,817 MB/s throughput and 260,441 IOPS*. Powered by an Intel® Xeon® E3 v3 quad-core processor with 16GB or 8GB DDR3 ECC RAM, the TVS-EC1280U-SAS-RP greatly enhances the efficiency of CPU-demanding tasks and serves more concurrent tasks.

Tested in QNAP Lab. Figures may vary by environment.

Test Environment:

4 Client PC configurations: Intel (R) Core (TM) i7-4790 CPU @ 3.60GHz CPU, 16GB DDR3 RAM, Windows 7 professional 64-bit, Dual-port Intel X520 10GbE Server Adapter, IOMeter sequential read and write.

NAS Configuration: Plextor PX-256MPro ; F/W:1.07, SSDs with RAID 5 configuration, QNAP LAN-10G2T-U dual-port 10GBase-T network adapter*2

SSD cache acceleration

The TVS-EC1280U-SAS-RP features 2 pre-installed 128GB mSATA modules, and there are no limits on using SSDs for caching. By installing high-performance SSDs, the IOPS performance of storage volumes can remarkably boost. It is perfect for improving overall workflow of random IOPS demanding applications such as database and virtualization. The internal cache port design reserves the space of hard drive tray for more storage capacity.

Removable motherboard drawer for easy maintenance

With the TVS-EC1280U-SAS-RP's removable motherboard drawer, IT administrators have easier access in upgrading/installing RAM, the internal cache, 40GbE adapter and other components. The motherboard itself can be removed and replaced without needing to remove the heavy TVS-EC1280U-SAS-RP from the rack cabinet, making it especially useful in maintaining the TVS-EC1280U-SAS-RP in data centers with multiple rack cabinets.

Note: The TVS-EC1280U-SAS-RP is not hot-pluggable and must be powered-off before removing the motherboard drawer.

Get ready for 40GbE to your TVS-EC1280U-SAS-RP

The TVS-EC1280U-SAS-RP offers four inbuilt Gigabit Ethernet ports and supports 10 Gigabit high speed network by installing 10GbE network adapter. If 10GbE is insufficient for some workloads, the TVS-EC1280U-SAS-RP supports Mellanox® ConnectX-3 Pro adapter cards with 10/40/56 Gigabit Ethernet connectivity to deliver the most cost-effective computing and storage Ethernet Interconnection solution. It helps achieve significantly higher throughput for high-performance embedded I/O applications and virtualization acceleration. Businesses can greatly benefit from the fast, flexible storage network of the 40GbE-ready TVS-EC1280U-SAS-RP for boosting their mission-critical IT performance.

5 year warranty - Global warranty inclusive

QNAP's TVS-EC1280U-SAS-RP offers 5 year warranty with 3-year global warranty inclusive at no extra cost. This premier warranty demonstrates QNAP’s attention to the essential business needs of continuous operations and non-interrupted services to their customers.

QTS - Simple and efficient

Thanks to the intuitive user interface of QTS, your NAS experience is smarter, smoother and spectacular. Its modern flat design streamlines loading times, and the intelligent desktop allows you to find desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater working efficiency.

Volume & LUN snapshot simplifies restoration

QTS Storage Manager adds an easy-to-use web-based snapshot tool for you to easily back up and restore data on the TVS-EC1280U-SAS-RP back to any point of time to prevent loss of important data. You can take snapshots for both volumes and LUN, efficiently replicate volume/LUN snapshots to remote servers by copying only the changes made, and quickly clone a volume /LUN snapshot as a local volume without interrupting the current system operation. You can even set up the system to automatically take a snapshot of the volume before backup via RTRR/rsync, even when the file is opened.

Seamless capacity expansion

The TVS-EC1280U-SAS-RP supports online capacity expansion by cascading multiple QNAP RAID expansion enclosures to meet the needs of growing business data. With QNAP scale-up solution, total storage capacity can be gradually expanded on demand. It is especially useful for large data applications, such as video surveillance, data archiving, and TV broadcast storage.

The maximum total storage capacity available by connecting RAID expansion enclosures:

Powerful QNAP flexible volume

QNAP's flexible volume provides a more secure and flexible way to store NAS data. This next-generation volume offers powerful features such as storage pooling with multiple RAID group protection, thin provisioned volume with space reclaim, block-level iSCSI LUN, and online capacity expansion. The QTS Storage Manager neatly presents tools and options for managing system storage which simplifies the process of NAS capacity expansion and QNAP RAID expansion enclosure management.

Qsirch – A smarter, faster way to search

Quickly and easily find documents, photos, videos, and music with Qsirch, QNAP’s new built-in NAS search application lets you find what you need by real-time, natural search. Simply type in as much as you know about what you are trying to find, including parts of the file name or even words/phrases in the document, and Qsirch will display a list of matches – complete with thumbnails – as you type. Qsirch even remembers your search history so you can quickly navigate to files you’ve previously searched for. Qsirch is a huge productivity boost that greatly reduces the time spent looking for files on the NAS, allowing you to focus on other tasks.

Qsirch

Monitor and manage multiple NAS with Q'center

Q'center turns your TVS-EC1280U-SAS-RP into a central management system to manage multiple QNAP NAS units. After installing Q'center in the QTS App Center, you can use the TVS-EC1280U-SAS-RP to centrally manage multi-site QNAP NAS for monitoring system logs, manage firmware updates & maintenance, and enjoy major benefits including ease-of-use, cost-efficiency, convenience and flexibility. Managing multiple QNAP NAS becomes effortlessly easy and efficient.

Cross-platform file sharing, centralized data storage

The TVS-EC1280U-SAS-RP supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, and Linux/UNIX networks. Data, logs and ISO images of CDs and DVDs can be centrally stored on the TVS-EC1280U-SAS-RP and protected by an integrated antivirus solution. The Windows AD and LDAP services enable system administrators to configure user permissions by using existing Windows AD server, LDAP server or NAS build-in LDAP services.

Well-rounded backup solutions to secure data

The QNAP NetBak Replicator supports real-time and scheduled data backup on Windows including Outlook email archiving. Apple Time Machine is also supported to provide Mac OS X users with a solution to effortlessly back up data to the TVS-EC1280U-SAS-RP.

Disaster recovery solutions brings peace of mind

The TVS-EC1280U-SAS-RP offers various data recovery options. RTRR (Real-Time Remote Replication) supports real time or scheduled data backup to a remote QNAP NAS or FTP server and synchronizes files to a remote folder from a local folder with better backup efficiency and reduced backup time. The TVS-EC1280U-SAS-RP also supports rsync protocol to back up data to another remote server on a scheduled basis. Data can also be backed up to and restored from a range of cloud storage services, including Amazon® S3, Amazon Glacier, Microsoft® OneDrive, Windows Azure, ElephantDrive®, Dropbox®, Google® Drive, Yandex, Google Cloud Storage, and more.

Learn more: RTRR, rsync, Cloud storage backup

Comprehensive security options

In an open network environment, business data may be exposed in a potential hack. The TVS-EC1280U-SAS-RP provides numerous security options, such as encrypted access, IP blocking, and more. Besides, IT administrators can control the access rights of each user to different folders, preventing unauthorized access to important files. The TVS-EC1280U-SAS-RP is validated with military-level FIPS 140-2 AES 256-bit encryption, preventing sensitive business data from unauthorized access and breach even if the hard drives or the entire system were stolen.

Learn more: Encrypted access, IP blocking, Hard drive encryption

Storage for comprehensive virtualization applications

The TVS-EC1280U-SAS-RP supports VMware® and Citrix®, and is compatible with Microsoft® Hyper-V™ and Windows Server 2012, benefiting flexible deployment and management in virtualization environments. The TVS-EC1280U-SAS-RP supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced efficiency of operations and management in virtualization applications.

Run multiple operating systems on the TVS-EC1280U-SAS-RP

The Virtualization Station transforms the TVS-EC1280U-SAS-RP into a 2-in-a-box NAS that can function as an all-in-one NAS and a virtualization platform supporting multiple operating systems, fast virtual machine (VM) creation, VM backup & restoration, VM import/export, snapshot, and enables desktop operations in web browsers. With an easy-to-use interface, you can centrally manage every VM created on the TVS-EC1280U-SAS-RP with minimal effort. You can download VMs on demand from online VM markets and import them to TVS-EC1280U-SAS-RP to use directly without any complex procedures.

Learn more: Virtualization Station

Container Station – LXC and Docker Containers inclusive

QNAP Container Station exclusively integrates LXC and Docker lightweight virtualization technologies, allowing you to operate multiple isolated Linux systems on the TVS-EC1280U-SAS-RP as well as download apps from the built-in Docker Hub Registry. It supports container import/export and permission settings, and features an informative dashboard and flexible user interface for you to manage multiple containers. You can experience the amazing Container Station and enjoy the playground of virtual containers with the TVS-EC1280U-SAS-RP.

Learn more: Container Station

Highly-efficient storage solution for video editing

Digital video production produces a significant amount of data that requires high-performance storage with sustainable throughput to meet the demanding output of video editing. The TVS-EC1280U-SAS-RP fulfills storage and video editing needs with a high-speed 10GbE network interface. Videos can be quickly stored and edited on the TVS-EC1280U-SAS-RP directly over the network.

File synchronization across multiple devices

The Qsync utility turns your TVS-EC1280U-SAS-RP into a safe data center for file synchronization with a large storage capacity. Any file uploaded to the TVS-EC1280U-SAS-RP will be made available for all linked devices, such as computers, laptops or mobile devices. Qsync is especially useful for frequent travelers to manage files and always have the most updated files on different devices. Qsync provides multiple ways of file synchronization and group file sharing, greatly enhancing the flexibility of collaboration.

Comprehensive surveillance solution with 24/7 security

The TVS-EC1280U-SAS-RP’s Surveillance Station offers a professional surveillance solution with a user-friendly management interface, a wide range of over 3,000 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video & audio recording and playback with a wide range of customizable settings. You can also install the Vmobile app on your iOS® or Android™ mobile devices to manage the monitored channels anytime and anywhere to safeguard your office environment, or install the Vcam app to turn your mobile device into a network camera to instantly record any moment around you to your TVS-EC1280U-SAS-RP.

Install-on-demand apps extend NAS features

The TVS-EC1280U-SAS-RP has a built-in App Center that provides over 100 install-on-demand apps developed by QNAP and third-party developers, including tools for backup/sync, business, content management, communications, download, entertainment, and much more. It is also a centralized location for managing & updating installed apps. In addition, QNAP’s development platform embraces the open-source spirit to enable developers to create their own apps, adding potentially limitless potential for the TVS-EC1280U-SAS-RP.

Learn more: App Center

Additional SMB-ready features

The TVS-EC1280U-SAS-RP supports various business applications as an all-in-one Turbo NAS with cost-efficiency.

FTP Server

The Turbo NAS supports FTP server to share large size files, coming with user-defined settings including bandwidth limitation, number of connections, and write-only permission.

Web Server

RADIUS Server

VPN Server

Printer Server

Surveillance Station

The Turbo NAS supports Surveillance Station to connect and manage multiple IP cameras remotely, including real-time monitoring, video recording, playback, and event notifications.

Specifications

Software Spec.

Operating System QTS 4.2 (embedded Linux)	Disk Management QNAP Flexible volume Thin-provisioning with space reclamation supported Online Volume Expansion Online Storage Pool Expansion (via QNAP RAID expansion enclosure) Single Disk, JBOD, RAID 0, 1, 5, 6, 10 RAID Hot Spare and Global Hot Spare Online RAID Capacity Expansion and Online RAID Level Migration Bad Block Scan and Hard Drive S.M.A.R.T. Bad Block Recovery RAID Recovery Bitmap Support
Supported Clients Windows Server 2003 onward, Apple Mac OS X onward, Linux & UNIX	Power Management Wake on LAN* Internal Hard Drive Standby Mode Scheduled Power on/off Automatic Power on after Power Recovery USB and Network UPS Support with SNMP Management
Supported Browsers Microsoft Internet Explorer 10+ Mozilla Firefox 8+ Apple Safari 4+ Google Chrome	Access Right Management Batch Users Creation Import/Export Users User Quota Management Local User Access Control for CIFS, AFP, FTP, and WebDAV, Subfolder Permissions Support for CIFS/SMB, AFP, FTP, and Web File Manager
Multilingual Support Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish	Domain Authentication Integration Microsoft Active Directory (AD) LDAP Server LDAP Client Domain Users Login via CIFS/SMB, AFP, FTP, and File Station
File System Internal Hard Drive: EXT4 External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+	Web Administration Multi-window, Multi-tasking based System Management Movable Icons and Personalized Desktop Smart Toolbar and Dashboard for Neat Display on System Status Smart Fan Control Dynamic DNS (DDNS) SNMP (v2 & v3) Resource Monitor Network Recycle Bin for File Deletion via CIFS/SMB and AFP Automatic Cleanup File Type Filter Comprehensive Logs (Events & Connection) Syslog Client Firmware Live Update System Settings Backup and Restore Restore to Factory Default Mobile App Qmanager for Remote Monitoring
Networking TCP/IP (IPv4 & IPv6: Dual Stack) Quad Gigabit NICs with Jumbo Frame* Failover Multi-IP Settings Port Trunking/NIC Teaming (Modes: Balance-RR, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-TLB and Balance-ALB) Optional Dual-port 10 GbE and 1 GbE Network Expansion Cards* Service Binding Based on Network Interfaces* Proxy Client, Proxy Server DHCP Client, DHCP Server Protocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC UPnP & Bonjour Discovery USB Wi-Fi Adapter Support	File Server File Sharing across Windows, Mac, and Linux/UNIX Protocols: CIFS/SMB, AFP, NFS, FTP/FTPS, HTTP/HTTPS (Web File Manager), WebDAV Windows ACL Advanced Folder Permission for CIFS/SMB, AFP, FTP Shared Folder Aggregation (CIFS/SMB)
Security IP Filter & Policy-based Automatic IP Blocking Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP Encrypted Access: HTTPS, FTP with SSL/ TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication (Rsync over SSH) CIFS Host Access Control for Shared Folders Antivirus Protection FIPS 140-2 Validated AES 256-bit Volume-based Data Encryption** AES 256-bit External Drive Encryption* Importable SSL Certificate Instant Alert via E-mail, SMS, Beep, and LCD Panel*	File Station Supports ISO Mounting (Up to 256 ISO Files) Creates and Sends Download Links for Sharing Public Files with Expiration Time and Password Protection Drag-n-drop Files via Chrome and Firefox Browsers Photo, Music, and Video Preview and Playback Empowered by Built-in Transcoding Technology File Compression (ZIP or 7z) Advanced Search Mobile App: Qfile for File Browsing and Management
Powerful All-in-one server
FTP Server FTP over SSL/TLS (Explicit) Concurrent Connections: Max 256 Passive FTP Port Range Control FTP Bandwidth & Connection Control Supports FXP & Unicode	Syslog Server Centralized Log Monitoring and Archiving Immediate Email Alerts Supports Log Filtering
Backup Station Remote Replication Server (over Rsync) Real-time Remote Replication (RTRR) to another QNAP NAS or FTP Server Works as Both RTRR Server & Client with Bandwidth Control Real-time & Scheduled Backup Encryption, Compression, File Filter, and Transfer Rate Limitation Encrypted Replication between QNAP NAS Servers Desktop Backup by QNAP NetBak Replicator for Windows Apple Time Machine Support with Backup Management Data Backup to Multiple External Storage Devices Synchronizes with Cloud Storage: Amazon S3, ElephantDrive, Symform, Dropbox, and Google Cloud Storage Third Party Backup Software Support: Veeam Backup & Replication, Acronis True Image, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper, etc.	Print Server Max No. of Printers: 3 Supports Internet Printing Protocol Print Job Display and Management IP-based and Domain Name-based Privilege Control Supports Apple Bonjour Printing
iSCSI (IP SAN) iSCSI Target Multi-LUNs per Target Up to 256 Targets/LUNs Combined Supports LUN Mapping & Masking Block-based LUN Thin-provisioned LUN with Space Reclamation supported Online LUN Capacity Expansion Supports SPC-3 Persistent Reservation Supports MPIO & MC/S iSCSI LUN Backup, One-time Snapshot, and Restore iSCSI Connection and Management by QNAP Finder (Windows) Virtual Disk Drive (via iSCSI Initiator) Stack Chaining Master Max No. of Virtual Disk Drives: 8	Database Server Built-in MySQL Server Web-based Management via phpMyAdmin
Server Virtualization & Clustering VMware vSphere (ESX/ESXi 4.x, 5.x) VMware VAAI for iSCSI and VAAI for NAS vSphere Plug-in Citrix XenServer (6.0) Windows Server 2012 Hyper-V Supports Microsoft ODX QNAP SMI-S provider for Microsoft SCVMM Windows Server 2012 Failover Clustering	RADIUS Server Centralized Account Management and Authentication for Network Access Supports 802.1x Security Authentication TFTP Server with PXE Booting (Read-only)
Virtualization Station Support up to 8 Virtual Machine (32GB RAM is required) creating to run an operating system such as Windows, Linux, Unix. VM import from Virtual Appliances VM export into a virtual appliance in OVF / QVM format VM clone VM snapshot HTML5 based shared remote console	VPN Server Secure Remote Access: PPTP & OpenVPN VPN services Remote Access to Other Resources on Local Network Max No. of Clients: 30
Storage Plug & Connect via Windows Qfinder Pro by QNAP Create and Map Shared Folders Create and Connect to iSCSI Target/LUN	Surveillance Station Supports over 1,400 IP Cameras Includes 8 Free Camera License Up to 80 Camera Channels via Additional License Purchase* Intelligent Video Analytics (IVA) for Advanced Video Search Visual Aid by E-map Surveillance Client for Mac Mobile App: Vmobile (iOS and Android)
myQNAPcloud Service Private Cloud Storage and Sharing Free Host Name Registration (DDNS) Auto Router Configuration (via UPnP) CloudLink for Remote Access without Complicated Router Setup myQNAPcloud Connect for Easy VPN Connection (Windows VPN Utility)	Antivirus Supports ClamAV (free) and McAfee (optional purchase ) virus scanner. Protection against Viruses, Trojans, and Other Threats Free Virus Databases Update on Manual or Scheduled Basis Multiple Scan Tasks (Max: 64, Concurrent: 5) with Custom Folder Selection and Scheduled Scanning Email Notification upon Task Completion or Virus Detection Quarantines or Deletes Infected Files
Qsync Syncs Files among Multiple Devices through the NAS Option for Not Removing Files on the NAS during Synchronization Selective Synchronization Shares Securely with SSL Team Folder Shares Files by Links via E-mail Uploads Photos or Videos to Qsync Folder Automatically via Qfile Restores Files from Network Recycle Bin File Name Conflict Policy Option for Filter Settings Privilege Control for Qsync Users Supports Windows & Mac OS	APP Center Add New Features by Online Installation of over 90 Official and Community Software
Web Server HTTP/HTTPS Connections Built-in MySQL Server Web-based Management via phpMyAdmin (QPKG) Virtual Hosts: Max 32	Add-ons (The actual available software add-ons may vary depending on the NAS platform)
* This feature may vary according to different models. **  The data encryption functions may not available in accordance with the legislative restrictions of some countries. Design and specifications are subject to change without notice.

Operating System QTS 4.1 (embedded Linux)	Disk Management QNAP Flexible volume Thin-provisioning with space reclamation supported Online Volume Expansion Online Storage Pool Expansion (via QNAP RAID expansion enclosure) Single Disk, JBOD, RAID 0, 1, 5, 6, 10 RAID Hot Spare and Global Hot Spare Online RAID Capacity Expansion and Online RAID Level Migration Bad Block Scan and Hard Drive S.M.A.R.T. Bad Block Recovery RAID Recovery Bitmap Support
Supported Clients Windows Server 2003 onward, Apple Mac OS X onward, Linux & UNIX	Power Management Wake on LAN* Internal Hard Drive Standby Mode Scheduled Power on/off Automatic Power on after Power Recovery USB and Network UPS Support with SNMP Management
Supported Browsers Microsoft Internet Explorer 10+ Mozilla Firefox 8+ Apple Safari 4+ Google Chrome	Access Right Management Batch Users Creation Import/Export Users User Quota Management Local User Access Control for CIFS, AFP, FTP, and WebDAV, Subfolder Permissions Support for CIFS/SMB, AFP, FTP, and Web File Manager
Multilingual Support Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish	Domain Authentication Integration Microsoft Active Directory (AD) LDAP Server LDAP Client Domain Users Login via CIFS/SMB, AFP, FTP, and File Station
File System Internal Hard Drive: EXT4 External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+	Web Administration Multi-window, Multi-tasking based System Management Movable Icons and Personalized Desktop Smart Toolbar and Dashboard for Neat Display on System Status Smart Fan Control Dynamic DNS (DDNS) SNMP (v2 & v3) Resource Monitor Network Recycle Bin for File Deletion via CIFS/SMB and AFP Automatic Cleanup File Type Filter Comprehensive Logs (Events & Connection) Syslog Client Firmware Live Update System Settings Backup and Restore Restore to Factory Default Mobile App Qmanager for Remote Monitoring
Networking TCP/IP (IPv4 & IPv6: Dual Stack) Quad Gigabit NICs with Jumbo Frame* Failover Multi-IP Settings Port Trunking/NIC Teaming (Modes: Balance-RR, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-TLB and Balance-ALB) Optional Dual-port 10 GbE and 1 GbE Network Expansion Cards* Service Binding Based on Network Interfaces* Proxy Client, Proxy Server DHCP Client, DHCP Server Protocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC UPnP & Bonjour Discovery USB Wi-Fi Adapter Support	File Server File Sharing across Windows, Mac, and Linux/UNIX Protocols: CIFS/SMB, AFP, NFS, FTP/FTPS, HTTP/HTTPS (Web File Manager), WebDAV Windows ACL Advanced Folder Permission for CIFS/SMB, AFP, FTP Shared Folder Aggregation (CIFS/SMB)
Security IP Filter & Policy-based Automatic IP Blocking Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP Encrypted Access: HTTPS, FTP with SSL/ TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication (Rsync over SSH) CIFS Host Access Control for Shared Folders Antivirus Protection FIPS 140-2 Validated AES 256-bit Volume-based Data Encryption** AES 256-bit External Drive Encryption* Importable SSL Certificate Instant Alert via E-mail, SMS, Beep, and LCD Panel*	File Station Supports ISO Mounting (Up to 256 ISO Files) Creates and Sends Download Links for Sharing Public Files with Expiration Time and Password Protection Drag-n-drop Files via Chrome and Firefox Browsers Photo, Music, and Video Preview and Playback Empowered by Built-in Transcoding Technology File Compression (ZIP or 7z) Advanced Search Mobile App: Qfile for File Browsing and Management
Powerful All-in-one server
FTP Server FTP over SSL/TLS (Explicit) Concurrent Connections: Max 256 Passive FTP Port Range Control FTP Bandwidth & Connection Control Supports FXP & Unicode	Syslog Server Centralized Log Monitoring and Archiving Immediate Email Alerts Supports Log Filtering
Backup Station Remote Replication Server (over Rsync) Real-time Remote Replication (RTRR) to another QNAP NAS or FTP Server Works as Both RTRR Server & Client with Bandwidth Control Real-time & Scheduled Backup Encryption, Compression, File Filter, and Transfer Rate Limitation Encrypted Replication between QNAP NAS Servers Desktop Backup by QNAP NetBak Replicator for Windows Apple Time Machine Support with Backup Management Data Backup to Multiple External Storage Devices Synchronizes with Cloud Storage: Amazon S3, ElephantDrive, Symform, Dropbox, and Google Cloud Storage Third Party Backup Software Support: Veeam Backup & Replication, Acronis True Image, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper, etc.	Print Server Max No. of Printers: 3 Supports Internet Printing Protocol Print Job Display and Management IP-based and Domain Name-based Privilege Control Supports Apple Bonjour Printing
iSCSI (IP SAN) iSCSI Target Multi-LUNs per Target Up to 256 Targets/LUNs Combined Supports LUN Mapping & Masking Block-based LUN Thin-provisioned LUN with Space Reclamation supported Online LUN Capacity Expansion Supports SPC-3 Persistent Reservation Supports MPIO & MC/S iSCSI LUN Backup, One-time Snapshot, and Restore iSCSI Connection and Management by QNAP Finder (Windows) Virtual Disk Drive (via iSCSI Initiator) Stack Chaining Master Max No. of Virtual Disk Drives: 8	Database Server Built-in MySQL Server Web-based Management via phpMyAdmin
Server Virtualization & Clustering VMware vSphere (ESX/ESXi 4.x, 5.x) VMware VAAI for iSCSI and VAAI for NAS vSphere Plug-in Citrix XenServer (6.0) Windows Server 2012 Hyper-V Supports Microsoft ODX QNAP SMI-S provider for Microsoft SCVMM Windows Server 2012 Failover Clustering	RADIUS Server Centralized Account Management and Authentication for Network Access Supports 802.1x Security Authentication TFTP Server with PXE Booting (Read-only)
Virtualization Station Support up to 8 Virtual Machine (32GB RAM is required) creating to run an operating system such as Windows, Linux, Unix. VM import from Virtual Appliances VM export into a virtual appliance in OVF / QVM format VM clone VM snapshot HTML5 based shared remote console	VPN Server Secure Remote Access: PPTP & OpenVPN VPN services Remote Access to Other Resources on Local Network Max No. of Clients: 30
Storage Plug & Connect via Windows Qfinder Pro by QNAP Create and Map Shared Folders Create and Connect to iSCSI Target/LUN	Surveillance Station Supports over 1,400 IP Cameras Includes 8 Free Camera License Up to 80 Camera Channels via Additional License Purchase* Intelligent Video Analytics (IVA) for Advanced Video Search Visual Aid by E-map Surveillance Client for Mac Mobile App: Vmobile (iOS and Android)
myQNAPcloud Service Private Cloud Storage and Sharing Free Host Name Registration (DDNS) Auto Router Configuration (via UPnP) CloudLink for Remote Access without Complicated Router Setup myQNAPcloud Connect for Easy VPN Connection (Windows VPN Utility)	Antivirus Supports ClamAV (free) and McAfee (optional purchase ) virus scanner. Protection against Viruses, Trojans, and Other Threats Free Virus Databases Update on Manual or Scheduled Basis Multiple Scan Tasks (Max: 64, Concurrent: 5) with Custom Folder Selection and Scheduled Scanning Email Notification upon Task Completion or Virus Detection Quarantines or Deletes Infected Files
Qsync Syncs Files among Multiple Devices through the NAS Option for Not Removing Files on the NAS during Synchronization Selective Synchronization Shares Securely with SSL Team Folder Shares Files by Links via E-mail Uploads Photos or Videos to Qsync Folder Automatically via Qfile Restores Files from Network Recycle Bin File Name Conflict Policy Option for Filter Settings Privilege Control for Qsync Users Supports Windows & Mac OS	APP Center Add New Features by Online Installation of over 90 Official and Community Software
Web Server HTTP/HTTPS Connections Built-in MySQL Server Web-based Management via phpMyAdmin (QPKG) Virtual Hosts: Max 32	Add-ons (The actual available software add-ons may vary depending on the NAS platform)
* This feature may vary according to different models. **  The data encryption functions may not available in accordance with the legislative restrictions of some countries. Design and specifications are subject to change without notice.

 Hardware Spec.

CPU	Intel® Xeon® E3-1246 v3 Family 3.5 GHz Quad-core Processor
Memory	TVS-EC1280U-SAS-RP-16G     System memory: 16GB DDR3 non-ECC RAM Memory module pre-installed: 8 GB x2 Total memory slots: 4 Memory expandable up to: 32 GB (8GB x4) TVS-EC1280U-SAS-RP-8GE   System memory: 8 GB DDR3 ECC RAM Memory module pre-installed: 4 GB x2 Total memory slots: 4 Memory expandable up to: 32 GB (8GB x4) Note: ECC RAM and non-ECC RAM cannot be used at the same time in the NAS. For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide
Flash Memory	512MB DOM
Internal Cache Port	Two mSATA port on board for read caching. The standard system is shipped with two 128GB mSATA flash. For the optional mSATA flash, please visit https://shop.qnap.com/
Hard Drive	12 x 3.5-inch SAS 12Gbps, SAS/SATA 6Gbps/3Gbps hard drive or 2.5-inch SAS/SATA SSD hard drive NOTE: The standard system is shipped without hard drives. For the hard drive compatibility list, please visit https://www.qnap.com/compatibility
Hard Drive Tray	12 x hot-swappable and lockable tray
LAN Port	4 x Gigabit RJ-45 Ethernet port (Expandable up to 8 x 1 Gb LAN or 4 x 10 Gb + 4 x 1 Gb LAN by installing optional dual-port 10 Gb and 1 Gb network card) Note: 1. For the optional network card compatibility list, please visit Compatibility list 2. For the information of network card installation, please refer to chapter 6 in the Turbo NAS Hardware Manual.
LED Indicators	10 GbE, Status, LAN, Storage expansion port status
USB	4x USB 3.0 port (rear) 4x USB 2.0 port (rear) Support USB printer, pen drive, USB hub, and USB UPS etc.
Buttons	System: Power button and reset button
Alarm Buzzer	System warning
Form Factor	2U, Rackmount
Dimensions	88(H) x 442.5(W) x 530.5(D) mm 3.46(H) x 17.42(W) x 20.89(D) inch
Weight	Net weight (NAS only) : 14.18 kg/ 31.26 lb Gross weight (with packing and accessories) : 21.41 kg/ 47.20 lb
Sound Level (dB)	Sound Level (dB) Sound pressure (LpAm) (bystander position): 55.3 dB (with 12 x HITACHI HUS724020ALA640 hard drive installed)
Power Consumption (W)	Sleep mode: 80.41 In Operation: 166.58 W (with 12 x 1TB hard drive installed)
Temperature	0-40°C
Relative Humidity	5~95% non-condensing, wet bulb: 27°C.
Power Supply	Redundant power: Input 90~264VAC; 450W x 2
PCIe Slot	2 (Left slot: 1* PCIe Gen3 x8; Right slot: 1* PCIe Gen3 x4)
Fan	4 x 6 cm smart cooling fan
