- Boosts your wireless signal, eliminating previously inaccessible areas or “dead zones”
- Supports all 802.11 a/b/g/n/ac standards of Wi-Fi routers and wireless access points
- Wireless AC technology delivers combined dual band speeds of up to 750Mbps
- Gigabit Ethernet port allows the extender to connect to wired devices as a wireless bridge
- Its compact, wall-mounted design allows for easy, flexible deployment
Overview
An Evolution in Wi-Fi Extension Increased Range, Greater Speed.

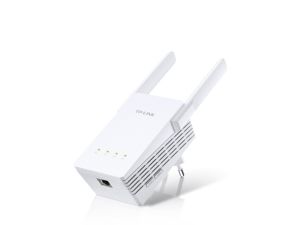

AC750 Wi-Fi Range Extender RE210
Boost Your Wireless Network
Tired of Wi-Fi “dead zones”? TP-LINK’s range extender connects to your router wirelessly, strengthening and expanding its signal into areas it can’t reach on its own. The device also reduces signal interference to ensure reliable Wi-Fi coverage throughout your home or office.
High Performance External Antennas
Two external antennas boost your Wi-Fi coverage and reliability, helping your devices stay connected anywhere your network reaches.
Next-Generation Wi-Fi with Universal Compatibility
The range extender features the next-generation Wi-Fi standard, 802.11ac. Wireless AC technology lets it run on dual bands at a blazing combined speed of up to 750Mbps, including 433Mbps on its 5GHz channel and 300Mbps on its 2.4GHz channel. Plus, the extender can work with any standard Wi-Fi router or wireless access point.
Works With Any Wi-Fi Router
Actual Wi-Fi speeds may vary due to different user environments.
Gigabit Wired Speed
A gigabit Ethernet port turns the extender into a wireless bridge, letting you connect a wired device like a Blu-ray player, gaming console, DVR, or smart TV to your Wi-Fi network.
Gigabit Ethernet port
High Speed Mode
High Speed mode maximizes performance by combining the bandwidth of both the 5GHz and 2.4GHz channels to create a lightning-fast connection with one band sending data and the other receiving it. This setting is ideal for bandwidth-intensive tasks like streaming HD video and gaming online.
A Design for Easy Use
Intelligent Signal Indicator
The Intelligent Signal light changes colors to indicate the strength of the signal received from your wireless router, locating the ideal spot to place the range extender easily.
User-friendly Design
Push the LED on/off button to turn off the lights at night. Wall-mounted design for flexible placement.
RE Button for Easy Setup
Once the extender is plugged in, press its RE button and the WPS button on your router and the two will pair with each other within two minutes.
Specification
HARDWARE FEATURES |
Plug Type |
EU, UK, US |
Standards and Protocols |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Interface |
1 * 10/100/1000M Ethernet Port (RJ45) |
Button |
RE (Range Extender) Button, Reset Button, LED Button, Power Button |
Dimensions (W X D X H) |
3.7x 2.1 x 3.0in. (94 x 54 x 75.2mm) |
Power Consumption |
About 6.5W |
Antenna |
2* external |
WIRELESS FEATURES |
Frequency |
2.4GHz & 5GHz(11ac) |
Signal Rate |
5GHz:Up to 433Mbps 2.4GHz:Up to 300Mpbs |
Reception Sensitivity |
2.4G: 270M: -70dBm@10% PER 130M: -70dBm@10% PER 108M: -73dBm@10% PER 54M: -75dBm@10% PER 11M: -86dBm@8% PER 6M: -92dBm@10% PER 1M: -94dBm@8% PER 5G: 390M: -60dBm@10% PER 29.3M: -83dBm@10% PER 180M: -64dBm@10% PER 13.5M: -87dBm@10% PER 78M: -68dBm@10% PER 6.5M: -90dBm@10% PER 54M: -75dBm@10% PER 6M:-90dBm@10% PER |
Transmit Power |
< 20 dBm (EIRP) |
Wireless Modes |
Range Extender |
Wireless Functions |
WMM (Wi-Fi Multimedia) Wireless Statistic Concurrent Mode boost both 2.4G/5G WiFi band High Speed Mode for great speed for HD Gaming and video Wireless Mac Filter Domain Login Function |
Wireless Security |
64/128-bit WEP WPA-PSK / WPA2-PSK |
OTHERS |
Certification |
CE, FCC, RoHS |
Package Contents |
AC750 WiFi Range Extender RE210 RJ-45 Ethernet Cable Quick Installation Guide |
Box Dimensions (W X D X H) |
4.0 x 3.5 x 6.1in. (100.5 x 89 x 155.5mm) |
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac® OS, NetWare®, UNIX® or Linux. |
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
