SOHO Ethernet Switch Series
Expanding Wired Connectivity for SOHO Networks
Overview
The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and
affordable network connectivity to small offices and home/offices. They
are easy to use, reliable, and rugged with metal enclosures.

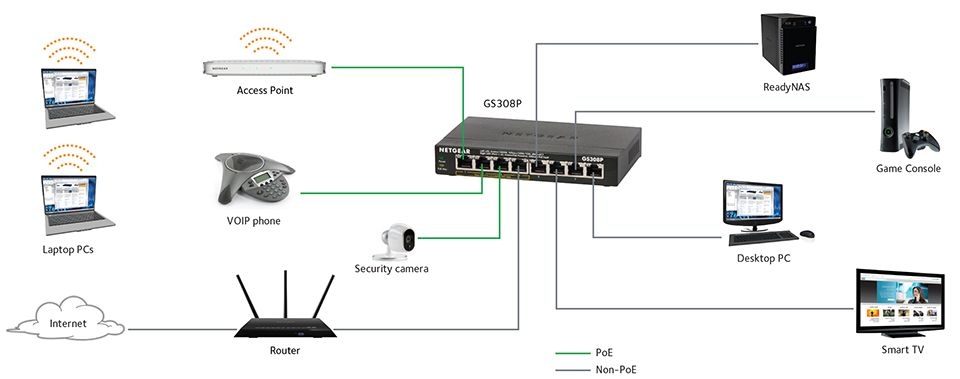

Power-Over-Ethernet (PoE) support is also available for supplying both
power and data across a single CAT-5 ethernet cable to devices such as
IP security cameras, VOIP phones, wireless access points, etc. With
these Plug-N-Play switches, you can quickly and easily expand your
network connections to multiple devices, with no configuration required.
Available with 5 ports to 24 ports, these switches also support energy
saving technologies to help you save power and money.
- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Power-Over-Ethernet (PoE) option available for powering IP
Security Cameras, VOIP phones, wireless access points, and other
PD-powered devices
- Fanless design for silent operation
- Desktop or wall-mountable; GS324 is also rack-mountable (rack-mount kit included)
NETGEAR Warranty
- This product is backed by a NETGEAR limited 3-year Hardware Warranty.
- 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller
Specifications

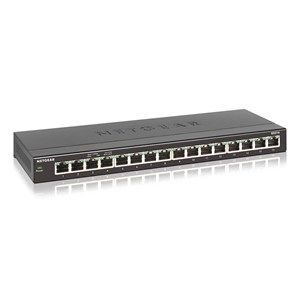

Product Number: GS316
Model Description: 16-Port Gigabit Ethernet Switch
Speed: Gigabit
Number of Ports: 16
PoE Ports / Max Power Per Port: n/a
PoE Max Power Supplied (All Ports): n/a
Connector Type: Metal
Switch Housing: Metal
LEDs: Power, Speed, Link/Activity
Short cable power saving: Yes
Energy Efficient Ethernet Support (IEEE 802.3az): Yes
Jumbo Frame Support: 9,216 bytes
MAC Table Size: 16K
Packet buffer size: 768 KB
DC Power Adapter: 12V / 1.0A
Max Power Consumption (Watts): 8.4W
Acoustic Noise Level @ 25° C (dBA): 0 dBA (Fanless)
Operating Temperature: 0° to 40°C (32° to 104°F)
MTBF (@ 25° C): 9,041,798 hours
Electromagnetic compliance (A or B): Class A
Form Factor: Desktop or wall-mountable
Dimensions (W x D x H): 286 x 101 x 26 mm (11.3 x 4.0 x 1.0 in)
Weight: 0.84 kg (1.86 lb)
