N7700-10G | Thecus N7770-10G NAS Device

Elite Class Business NAS with 10GbE and High Availability

• Intel® Core i3-2120 (3.3.GHz Dual Core) processor
• 8 GB DDR3 ECC Memory (Expandable to 32 GB)
• 10GbE card included
• 1 x HDMI port
• Hot swappable hard drives
• RAID 0, 1, 5, 6, 10, 50, and JBOD

Features

10GbE Included

High-end data centers often need a level of speed that today's average network cannot provide.The 10GbE solution offered by the N7770-10G models makes them ready for the next step in network evolution straight out of the box.

Snapshot Backup

With BTRFS support, Thecus NAS users can enjoy the simplicity of snapshot backups. Through BTRFS subvolumes, snapshots of data at various time points can be manually or automatically made and just as easily later restored to rollback files or folders to previous states.

Disk Clone and Wipe

Disk Clone allows users to copy the entire contents of a disk to one or many other disks while Disk Wipe allows for permanent volume data destruction.

VPN Server

A VPN Server allows users to remotely access a secure network.  with VPNs, businesses will be able to utilize a cost-effective, scalable and secured network infrastructure for its client base.

AES 256-bit RAID Volume Encryption

Thecus's AES 256-bit RAID volume encryption tool allows users to fully encrypt their entire RAID volume, defending essential data even in instances of theft.

Data Guard

Data Guard backup solution is the ultimate software as it provides both local and remote parts. Currently, data is backed up across RAID volumes, external USB drives, and eSATA. In addition, Data Guard uses innovative technology to sync data across the network to other NAS and servers. More importantly, Thecus® Data Guard is the total backup solution which makes managing NAS user-friendly and convenient.

Data Burn

NAS data can now be burned directly to CD, DVD, and Blu-ray discs with Data Burn, this hassle-free module makes burning data to a disk effortless. In addition, burning ISO image file is also supported. Whether you're managing audio, media or essential files; Data Burn copies information fast while significantly reducing waiting time. The process of burning file to disk is now easy and smooth with Data Burn module.

Link Aggregation

Link aggregation can sustain multiple network connections and provide redundancy in case one of the links fails. Thecus NAS supports 7 modes which provide Load Balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, and Balance-ALB, Broadcast.

Antivirus

Thecus' innovative hardware helps prevent failures. But sometimes you have to protect the NAS against itself. Adding an antivirus to the already comprehensive software bundle will provide the necessary software protection by scanning the files on your NAS and defending it against possible threats. McAfee is the world's largest dedicated security technology company and shares Thecus' spirit of dedication and quality. By establishing a strong partnership with them, Thecus will allow users the benefit of McAfee's powerful software on their NAS entirely for free.

Cloud Backup

The private and public clouds meet with Thecus' new DropBox, Amazon S3 and ElephantDrive cloud backup functionality! Guard your data with RAID at home and an additional level of protection in the Cloud. Just drag and drop files into the folder on your NAS and access them on any computer or mobile device with DropBox, Amazon S3 or ElephantDrive.

HDMI Output

Make your NAS into the ultimate multimedia hub! The N7770-10G's HDMI output allows you to connect your NAS directly to your TV for device management.

USB 3.0 Connectivity

The next generation of connectivity is here with speeds 10x faster than USB 2.0. Whether connecting digital cameras and smart phones, backing up large external hard drives, or extending the capacity of your NAS, USB 3.0 will make sure it's done in no time at up to 5 Gbit/s. Backwards compatibility adds the connectivity of a world full of USB 2.0 and USB 1.1 devices to get the best combination of speed and universal access.

Acronis True Image

Thecus brings the best to the table with Acronis's advanced backup software. Back up all your data with One-click Protection or pick and choose only your most important files. Acronis sports a slick interface, user-friendly design, and comprehensive features to keep your data safe.

Multiple RAID

When it comes to data management, Thecus NAS truly let you have it your way. Create multiple RAID volumes each supporting different RAID modes including RAID 0, 1, 5, 6, 10, 50 and JBOD for your own balance of performance and data protection. Should a hard drive malfunction occur, changing one is simple thanks to online RAID migration and expansion, hot spare, and auto rebuild.

Multiple File Systems

Support for multiple file systems including EXT3, EXT4, Btrfs and XFS, gives Thecus NAS flexibility to handle many different types of environments. Users can simultaneously use different file systems across multiple RAID volumes to get the best of each one.

iSCSI Thin-Provisioning

Get the most out of your storage space with the extreme speed of iSCSI and the efficiency of iSCSI thin provisioning. Connect through iSCSI for the fastest data transfer speeds available and make wasted disk space a thing of the past with thin provisioning's flexible storage functionality.

iOS/Android Connectivity

In the modern world, nothing is as important as reaching your data from anywhere. With T-OnTheGo and the T-Dashboard, you can manage your NAS, and upload to and download/stream from your NAS using an iOS or Android device on the go.

Rsync

Backing up your data is very necessary, and everyone has specific needs when it comes to storage. Thecus's Rsync functionality gives users great flexibility with remote backup capability, a flexible scheduler, and the stability of Linux-based transfer.

User Quota

Divide the massive storage of a Thecus NAS among multiple users. Whether there are two users or 100, User Quota make it easy to divvy up and manage disk space.

Overview

Thecus Technology Corp. today announced the launch of the next generation 7-bay, N7770-10G and 8-bay, N8880U-10G NAS. The newest additions to Thecus' line of SMB/Enterprise NAS deliver high-performance, resilience, and a wide range of industry-class solutions that are able to handle the rigorous mission critical storage needs of businesses.

“Innovation has been and continues to be at the very pinnacle of our success at Thecus,� said Florence Shih, CEO at Thecus Technology Corp. “Today's growing businesses require a complete storage solution that can fulfill day to day operations and adapt to unforeseen circumstances and new innovations. With cutting-edge hardware, a comprehensive set of data management features, and attractive price points, these next generation NAS provide an ideal business storage solution.�

Outfitted with an Intel® Core-i3 2120 3.3GHz Processor, 8GB DDR3 ECC RAM, and a 10G PCIe card, the new 10G NAS provide lightning fast, persistent throughput speeds. Designed for cost effective scalability, the 10G NAS are compatible with the latest high capacity SATA drives and NAS stacking is made easy through iSCSI target volumes, allowing for streamline growth with your business. 7 modes of link aggregation are available including load balance and failover for increased performance and network resilience.

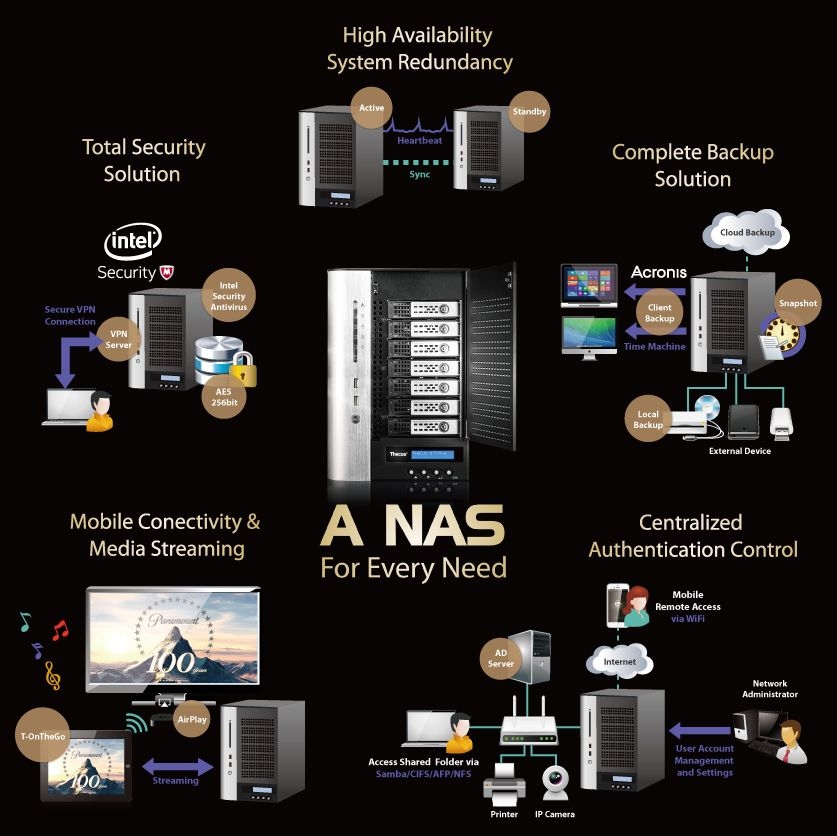

In order to prevent server downtime, the N7770-10G and N8880U-10G support High Availability (HA). In HA, two Thecus NAS are continuously synced using Heartbeat software while providing any number of its wide range of services including web hosting, file sharing, central storage, and iSCSI virtualization.If one NAS experiences issues, the other NAS will take over operations until the first is operational at which time the master NAS will be automatically resynced and brought back under the umbrella of full HA protection.

The 10G NAS series provide several features for data backup and protection. With snapshot technology using the B-tree file system (btrfs), users are able to capture point in time copies of data, providing convenient system restores. Disaster recovery solutions include Data Guard for real-time remote or local backup, bundled Acronis True Image for client data backup and system disaster recovery, and backup to cloud services including DropBox, ElephantDrive, and Amazon S3. The 10G NAS are also bundled with Intel Security for uncompromising data security.

The N7770-10G and N8880U-10G are powered by the Thecus OS5 software, a comprehensive and intuitive web-based operating system designed for advanced data management. The Thecus App Center offers over 700 apps for data backup, content management, multi-media and much more to allow users to increase the functionality of the 10G Thecus NAS.
