All stock codes associated to this product
X6200AU, X6200-AU, 3244579, 745883696833
Overview
SIMULTANEOUS DUAL BAND (2.4 + 5 GHZ)
Delivers a stronger connection at a wider range than a single band router,
and at speeds up to AC750.
BEAMFORMING TECHNOLOGY
Optimizes performance by focusing wireless signal to connected devices.
USB PORT
Share files and add external storage across your network with the USB
port.
GIGABIT ETHERNET PORTS
Transfer data 10x faster than Fast Ethernet, ensuring high-speed connectivity
for wired devices.
ADVANCED WIRELESS SECURITY
Safeguard your network with wireless WPA/WPA2 encryption and an SPI
firewall.
PARENTAL CONTROL
Schedule kids' time online and manage their online activity from anywhere
with Smart Wi-Fi technology.
GUEST ACCESS
Create a guest network with a unique password for convenient and secure guest
access using Linksys Smart Wi-Fi.

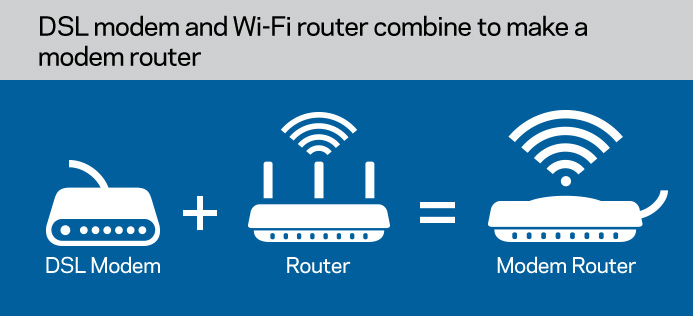

UPGRADE YOUR NETWORK WITH A TWO-IN-ONE DSL MODEM AND AC WI-FI
ROUTER
Our Linksys AC750 Wi-Fi Modem Router (X6200) offers an ADSL/VDSL modem and
Wireless-AC router in one convenient device. This two-in-one modem router
eliminates the need for a separate modem, so you have fewer devices taking up
space on your desktop.
WORKS WITH ALL MAJOR INTERNET PROVIDERS
The AC750 ADSL/VDSL Modem Router is compatible with all major Internet
providers. It's easy to set up, and with built-in AC wireless, you will
experience maximized Wi-Fi speeds from your provider plan.

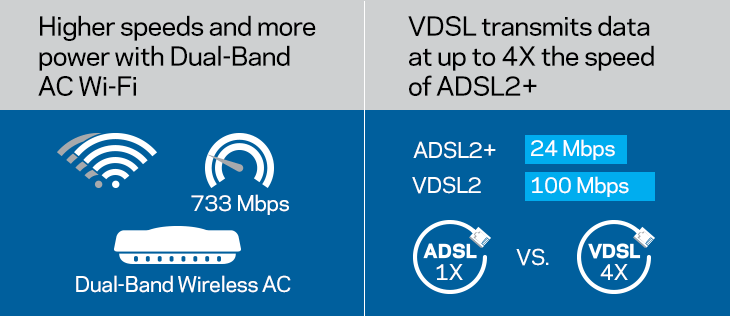

SURF FASTER WITH AC WI-FI AND VDSL CONNECTIVITY
Our AC750 DSL Modem Router has dual Wi-Fi bands of 2.4 GHz and 5 GHz, with
speeds up to N300 + AC433 Mbps* for uninterrupted media streaming, surfing, and
online gaming. And with built-in VDSL technology, the X6200 uses your phone line
more efficiently to transmit data at up to four times the speed of ADSL2+.
IMPROVED
MOBILE SPEED AND RANGE |
Play video games, listen to music, check email, shop, stream movies, and
more--without having to worry about signal drop-off. The X6200 Modem Router
employs Beamforming technology, which directs Wi-Fi signals to each of your
mobile devices for increased signal strength and coverage.
ADVANCED CONNECTIVITY PORTS FOR ULTRA-FAST WIRED SPEEDS
Connect more devices using the four Gigabit Ethernet ports, which allow you
to share and download files 10x faster than with Fast Ethernet. You also can
connect an external storage device to the integrated USB 2.0 port.
ADVANCED SECURITY FEATURES
Keep your network safely connected with WPA/WPA2 encryption, an SPI firewall,
protected guest access, and parental controls.
EASY PLUG-AND-PLAY SETUP
- Plug Modem into a power source.
- Connect phone line to RJ11 port.
Connect your PC to the X6200 and follow setup instructions.
Specifications
Wi-Fi
Technology |
AC750 Dual-band
Gigabit, 300+433 Mbps |
Network
Standards |
802.11b |
802.11a/g |
802.11n |
802.11ac |
IEEE802.3 |
IEEE802.3ab |
IEEE802.3u |
IPv6 support (Internet
Protocol Version 6) |
Wi-Fi
Speed |
AC750 (N300 + AC433)
|
Wi-Fi
Bands |
2.4 GHz and 5 GHz
(simultaneous dual band) |
Wi-Fi
Range |
Large
Homes |
Ports |
USB |
Number of Ethernet
Ports |
4x
LAN |
1x
WAN |
Other
Ports |
USB |
Maximum Line
Rate |
Up to 100Mbps over
VDSL |
Antennas |
Internal
|
LEDS |
Power, Internet, USB,
WPS, WiFi, Ethernet |
Buttons |
Reset |
Wireless
Encryption |
64/128-bit WEP, WPA2
Personal, WPA2 Enterprise |
VPN
Support |
Pass-through |
Storage File System
Support: |
FAT |
NTFS |
HFS+ |
Easy
Setup |
Browser-based
Setup |
Certified Operating
Systems |
MacOS (10.X or higher),
Windows 7, Windows 8.1 |
Minimum System
Requirements |
Internet Explorer
8 |
Safari
5 |
Firefox
8 |
Google
Chrome |
Power |
12V
1.5A |
Interfaces |
RJ-11 DSL Port
|
Security
Features |
64/128-bit
WEP |
WPA2
Personal |
WPA2
Enterprise |
Regulatory
Compliance |
FCC |
CE |
Warranty and
Support |
1-year limited
warranty |
90-day complimentary
assisted technical support |
Standards |
ADSL |
ADSL2 |
ADSL2+ |
VDSL |
VDSL2 |
