HOME / Back -> Networking - Wireless -> Antennas -> TP-Link

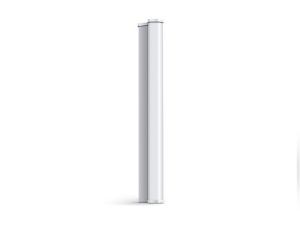

TP-Link TL-ANT5819MS 5GHz 19dBi 2x2 MIMO Sector Antenna - For WBS510
  • High-Gain Directional Antenna, Easy Installation and Seamless Integration, MIMO Technology, Weatherproof Design

IMG 1 of 1
No Longer Available
Part Number:
408223
(?) Brand:
TP-Link
Manuf No:
TL-ANT5819MS
TLANT5819MS
Shipping Weight:
6 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
TLANT5819MS, TL-ANT5819MS, 6935364091897, 69353640918971

Overview

  • High-gain directional antenna provides wide-area coverage, ideal for Point-to-Multi-Point connections
  • Easy installation and seamless integration with the Pharos Base Station WBS510
  • MIMO technology ensures increased throughput
  • Weatherproof design offers protection in harsh environments

The Pharos Sector Antenna features 2x2 MIMO technology, is suitable for outdoor use, and is ideally paired with a Pharos Base Station. These antennas feature high-gain directional transmission and represent an excellent solution for providing long distance Point-to-Multi-Point coverage.

Common Deployment Goals

When installed alongside a Pharos Base Station, the TL-ANT5819MS is capable of providing Point-to-Multi-Point data transmission coverage for a large area.

Easy Installation

TP-LINK sector antennas (TL-ANT5819MS/TL-ANT2415MS) feature a built in mounting apparatus and work seamlessly with Pharos Base Stations, meaning that no tools are required for installation.

Specifications

ANTENNA

Frequency

5.0 - 6.0 GHz

Impedance

50

Gain

19dBi

VSWR(MAX.)

1.8 Max

HPOL Beamwidth

120 (6dB) & 90 (3dB)

VPOL Beamwidth

120 (6dB) & 90 (3dB)





Elevation Beamwidth

4

Polarization

Vertical & Horizontal

Mounting

Pole Mount

Electrical Downtilt

0

F/B Ratio

28dB Min

Survival Wind Speed

241km/h

Standards

RoHS,WEEE

Interfaces

RP-SMA

Dimension

Product Size:70013357mm

Package Size:1030x185x140mm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 months*

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
