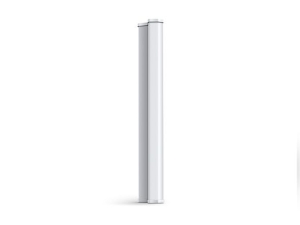

TP-Link TL-ANT2415MS 2.4Ghz 15dBi 2x2 MIMO Sector Antenna - For WBS210
  • High-Gain Directional Antenna, Easy Installation and Seamless Integration, MIMO Technology, Weatherproof Design

IMG 1 of 1
No Longer Available
Part Number:
408231
(?) Brand:
TP-Link
Manuf No:
TL-ANT2415MS
TLANT2415MS
Shipping Weight:
6 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
TLANT2415MS, TL-ANT2415MS, 6935364091910

Overview

  • High gain directional operation, wide coverage, ideal for Point to Multi-Point connections.
  • Easy Installation, seamlessly integrated with the Pharos Base Station WBS210
  • MIMO technology
  • Weatherproof design offers protection in harsh environments

The Pharos Sector Antenna features 2x2 MIMO technology, is suitable for outdoor use, and is ideally paired with a Pharos Base Station. These antennas feature high-gain directional transmission and represent an excellent solution for providing long distance Point-to-Multi-Point coverage.

Common Deployment Goals

When installed alongside a Pharos Base Station, the TL-ANT2415MS is capable of providing Point-to-Multi-Point data transmission coverage for a large area.

Easy Installation

TP-LINK sector antennas (TL-ANT5819MS/TL-ANT2415MS) feature a built in mounting apparatus and work seamlessly with Pharos Base Stations, meaning that no tools are required for installation.

Specifications

ANTENNA

Frequency

2.3-2.7GHz

Impedance

50

Gain

15dBi

VSWR(MAX.)

1.8 Max

HPOL Beamwidth

120 (6dB) & 90 (3dB)

VPOL Beamwidth

120 (6dB) & 90 (3dB)

Elevation Beamwidth

8

Polarization

Vertical & Horizontal





Mounting

Pole Mount

Electrical Downtilt

0

F/B Ratio

25dB Min

Survival Wind Speed

241km/h

Standards

RoHS,WEEE

Interfaces

RP-SMA

Dimension

Product Size:70013357mm

Package Size:1030x185x140mm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 36 months*

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
