Overview
-
450Mbps
wireless speed ideal for interruption sensitive applications like HD video
streaming
-
Three
antennas increase the wireless robustness and stability
-
Easy
wireless security encryption at a push of WPS button
-
IP
based bandwidth control allows administrators to determine how much bandwidth
is allotted to each PC
*450Mbps wireless speed is only for TL-WR940NV3while the earlier
version is 300Mbps.

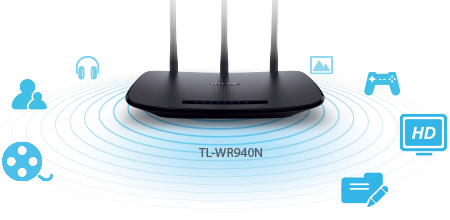

What This Product Does

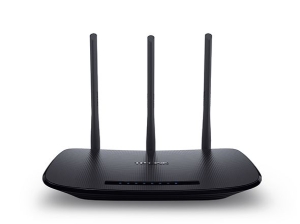

450Mbps Wireless N Router TL-WR940N is a combined wired/wireless network
connection device designed specifically for small business and home office
networking requirements. With MIMO Technology, TL-WR940N creates an exceptional
and advanced wireless performance, making it ideal for streaming HD video, VoIP
and online gaming. Also, WPS button on the sleek and fashionable exterior
ensures WPA2 encryptions, preventing the network from outside intrusions.

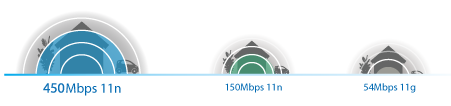

Wireless N Speed & Range
Complying with the IEEE 802.11n standard, TL-WR940N can establish a wireless
network and get up to 18X the speed and 6X the range of conventional 11g
products. Also, with transmission rates up to 450Mbps, it shows more excellent
abilities of mitigating data loss over long distances and through obstacles in a
small office or a large apartment, even in a steel-and-concrete building. Above
all, you could easily pick up the wireless network during long-distance
connection where legacy 11g products may not!
Better Wireless Performance
The router has the speed to work smoothly with almost any bandwidth intensive
application including VoIP, HD streaming, or online gaming, without the lag.
Using its powerful N technologies, the router is also able to mitigate data loss
over long distances and through obstacles turning your home and even your yard
into one big hot - spot.
WPA / WPA2 Encryptions
WPA/WPA2 encryption standards ensure your wireless connection is safe from
intruders.
WPS
Instantly setup WiFi connections simply by pressing the "WPS" button.
Easy Set Up
Either using the optimized user interface and setup wizard or the CD
(included) setup wizard will allow you to get online quickly and easily.
Specifications
|
HARDWARE
FEATURES |
|
Interface |
4 10/100Mbps LAN
PORTS |
|
1 10/100Mbps WAN
PORT |
|
Button |
Wireless On/Off
Button,WPS/Reset Button, |
|
Power On/Off
Button |
|
Antenna |
3*5dBi Fixed Omni
Directional Antenna |
|
External Power
Supply |
12VDC /
1A |
|
Wireless
Standards |
IEEE 802.11n, IEEE
802.11g, IEEE 802.11b |
|
Dimensions ( W x D x H
) |
9.1 x 5.7 x 1.4 in.
(230 x 144 x 35mm) |
|
|
|
|
WIRELESS
FEATURES |
|
Frequency |
2.4-2.4835GHz |
|
Signal
Rate |
11n: Up to
450Mbps(dynamic) |
|
11g: Up to
54Mbps(dynamic) |
|
11b: Up to
11Mbps(dynamic) |
|
Reception
Sensitivity |
270M: -68dBm@10%
PER |
|
130M: -68dBm@10%
PER |
|
108M: -68dBm@10%
PER |
|
54M: -68dBm@10%
PER |
|
11M: -85dBm@8%
PER |
|
6M: -88dBm@10%
PER |
|
1M: -90dBm@8%
PER |
|
Transmit
Power |
CE: |
|
<20dBm(2.4GHz) |
|
FCC: |
|
<30dBm |
|
Wireless
Functions |
Enable/Disable Wireless
Radio, WDS Bridge, WMM, Wireless Statistics |
|
Wireless
Security |
64/128/152-bit WEP /
WPA / WPA2,WPA-PSK / WPA2-PSK |
|
|
|
|
SOFTWARE
FEATURES |
|
Quality of
Service |
WMM, Bandwidth
Control |
|
WAN
Type |
Dynamic IP/Static
IP/PPPoE/ |
|
PPTP(Dual
Access)/L2TP(Dual Access)/BigPond |
|
Management |
Access
Control |
|
Local
Management |
|
Remote
Management |
|
DHCP |
Server, Client, DHCP
Client List, |
|
Address
Reservation |
|
Port
Forwarding |
Virtual Server,Port
Triggering, UPnP, DMZ |
|
Dynamic
DNS |
DynDns, Comexe,
NO-IP |
|
VPN
Pass-Through |
PPTP, L2TP, IPSec (ESP
Head) |
|
Access
Control |
Parental Control, Local
Management Control, Host List, Access Schedule, Rule
Management |
|
Firewall
Security |
DoS, SPI
Firewall |
|
IP Address Filter/MAC
Address Filter/Domain Filter |
|
IP and MAC Address
Binding |
|
Protocols |
Support
IPv4 |
|
|
|
|
OTHERS |
|
Certification |
CE, FCC,
RoHS |
|
Package
Contents |
TL-WR940N |
|
Power supply
unit |
|
Resource
CD |
|
Ethernet
Cable |
|
Quick Installation
Guide |
|
System
Requirements |
Microsoft Windows 98SE,
NT, 2000, XP, Vista or Windows 7, Windows8/ 8.1/10 |
|
MAC OS, NetWare, UNIX
or Linux |
|
Environment |
Operating Temperature:
0~40
(32~104) |
|
Storage Temperature:
-40~70
(-40~158) |
|
Operating Humidity:
10%~90% non-condensing |
|
Storage Humidity:
5%~90% non-condensing |
