Overview
-
Share 4G connection with up to 150Mbps download/50Mbps
upload speeds
-
Supports up to 11 devices simultaneously (10 Wireless+1
Wired)
-
2000mAh battery for 10 hours of usage
-
High speed Wi-Fi hotspot at speeds of
300Mbps
-
Equipped with a Micro SD card slot for up to 32GB of
optional storage
-
Easy managementwith the tpMiFi App
Do more with a Faster Connection |

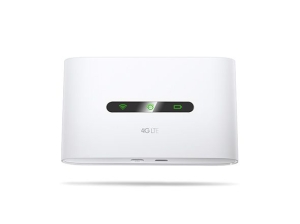

The M7300 supports the latest generation 4G LTE networks, providing
convenient carry-on Wi-Fi that can reach speeds of up to 150Mbps. Now you can
enjoy lag-free HD video, fast file downloads, and stable video chats regardless
of where life takes.
Share with friends Internet access for up to 11 devices
Simultaneously |
This compact device works seamlessly with an impressive range of wireless
gadgets. The M7300 can easily share a 4G/3G connection with up to 10 wireless
devices like tablets, laptops, and mobile phones at the same time. It can also
provide internet access for desktop computers via the integrated USB port.
Power Through Your Day with 10+ Hours of Sharable
4G |
With its powerful 2000mAh battery, the M7300 can provide up to 10+ hours of
wireless connectivity, making it the perfect companion for travel, business
trips, outdoor activities, and more.
* Battery life may vary in accordance with environmental
conditions
Get Your Network Up and Running in Seconds
M7300 features a compact and user-friendly design, all you need is to insert
a SIM card and press the power button. Your high-speed 4G hotspot will be
operational within a half minute.
Easy Management with the tpMiFi App |
With the tpMiFi App, you can easily access and manage the M7300 from your
connected iOS/Android devices. The tpMiFi app allows you to establish data
limits, control which devices can access your Wi-Fi, send messages, and share
media files to/from a removable Micro SD card.
Micro SD Card Wireless Sharing
The integrated Micro SD card slot allows you to easily share photos, music,
videos and more wirelessly across your network from a inserted micro SD card
supports optional storage of up to 32G*.
* Micro SD card sold separately
* You can access and share files using tpMiFi App for
iOS/Android.
Specifications
|
HARDWARE
FEATURES |
|
Interfaces |
1 micro USB port for
power supply |
|
1 SIM card
slot |
|
1 Micro SD card
slot |
|
Button |
Power
On/Off |
|
Power
Supply |
Internal 2000mAh
Rechargeable Battery |
|
Antenna |
Internal
Antenna |
|
Network Type (M7300
v1) |
4G: FDD-LTE
B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) |
|
3G:
DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) |
|
2G: EDGE/GPRS/GSM Quad
Band (850/900/1800/1900MHz) |
|
Network Type (M7300 v2
with TDD-LTE) |
4G: FDD-LTE
B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) |
|
TDD-LTE B38/B40/B41
(2300/2500/2600MHz) |
|
3G:
DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) |
|
2G: EDGE/GPRS/GSM Quad
Band (850/900/1800/1900MHz) |
|
Data
Rates |
DL: 150Mbps, UL:
50Mbps |
|
Dimensions ( W x D x H
) |
4.02.50.6 in.
(102.66316mm) |
|
Micro SD Card
Reader |
Up to
32GB |
|
LED
Display |
Wi-Fi status, Internet
connection status, Battery status |
|
|
|
|
WIRELESS
FEATURES |
|
Wireless
Standards |
IEEE 802.11b/g/n
2.4GHz |
|
Frequency |
2.4GHz |
|
Transmit
Power |
<33dBm |
|
Wireless
Security |
Support
WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
|
DHCP |
Enable/Disable SSID
Broadcast |
|
|
|
|
OTHERS |
|
Certification |
CE,
RoHS |
|
Package
Contents |
LTE-Advanced Mobile
Wi-Fi M7300 |
|
Micro USB
Cable |
|
Micro to Standard SIM
Card Adapter |
|
Nano to Standard SIM
Card Adapter |
|
Power
Adapter |
|
2000mAh
Battery |
|
Quick Installation
Guide |
|
System
Requirements |
Windows
10/8/7/vista/XP, Mac OS, Android, iOS, Windows
Phone |
