All stock codes associated to this product
TSEC2480UE34GER2, TS-EC2480U-E3-4GER2, TSEC2480U4GR2, TS-EC2480U-4GR2
Features

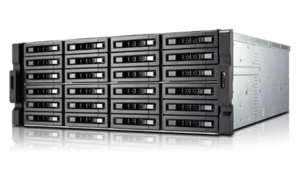

QNAP TS-EC2480U, featuring the easy-to-use QTS operating
system, provides a reliable and scalable NAS solution to fulfill data
backup, file synchronization and remote access. The TS-EC2480U is 10GbE-ready,
delivers exceptional performance, and supports cross-platform file sharing,
comprehensive backup solutions, iSCSI and virtualization applications, and many
practical business functions, making it the ideal choice for SMBs to secure
important business data. It also includes abundant multimedia applications
backed by its powerful hardware specifications.
-
3,700+ MB/s throughput and
410,000+ IOPS
-
Two internal cache ports and up to
4 SSDs for caching
-
Scalable design, up to 912TB raw
capacity
-
Virtualization-ready, centralized
data storage, backup, sharing and disaster recovery
QTS - Simple and efficient
Thanks to QTSs intuitive user interface, system operations of the TS-EC2480U
are smooth and handy. Its intelligent desktop allows you to find the desired
functions quickly, create desktop shortcuts or group shortcuts, monitor
important system information on a real-time basis, and open multiple application
windows to run multiple tasks concurrently, bringing greater working
efficiency.
Qsirch – A smarter, faster way to search
Quickly and easily find documents, photos, videos, and music with Qsirch,
QNAP's new built-in NAS search application lets you find what you need by
real-time, natural search. Simply type in as much as you know about what you are
trying to find, including bits of the file name or even words/phrases in the
document, and Qsirch will display a list of matches, complete with thumbnails,
as you type. Qsirch even remembers your search history so you can quickly
navigate to files you've previously searched for. Qsirch is a huge productivity
boost it greatly reduces the amount of time spent looking for files on the NAS
so you can focus on other tasks.
Note: 2GB RAM (4GB or more RAM is recommended for optimum performance)
and QTS 4.1 or newer firmware is required.
Breakthrough Performance
The TS-EC2480U supports 6Gbps hard drives driving over 3,700 MB/s throughput
and 410,000 IOPS*. Featuring with Intel Xeon E3 v3 Quad-Core Processor and 4 GB
DDR3 ECC RAM, the TS-EC2480U greatly enhances efficiency of CPU-consuming tasks
and serves more concurrent tasks at the same time.
*Tested in QNAP Lab. Figures could vary by environment.
Test Environment:
4 Client PC configurations: Intel(R) Core(TM) i7-2600 CPU, 16GB DDR3 RAM,
Windows 7 professional 64-bit, Dual-port Intel X520 10GbE Server Adapter,
IOMeter sequential read and write.
NAS Configuration:
OCZ Vertex4 VTX4-25SAT3-128G SSDs with RAID 6 configuration, QNAP
LAN-10G2T-U dual-port 10GBase-T network adapter*2
Internal cache port for IO acceleration
The TS-EC2480U supports two on-board mSATA internal cache ports, and up to 4
SSDs can be used for caching. By installing mSATA flash modules (optional
purchase), the IOPS performance of storage volumes can remarkably boost. It is
perfect for improving overall workflow of random IOPS demanding applications
such as database and virtualization. The internal cache port design reserves the
space of hard drive tray for more storage capacity.
*Note: Instead of installing the mSATA in the internal cache port, SSDs
are supported to be installed in the hard drive tray.
Removable motherboard drawer for easy maintenance
With the TS-EC2480U's removable motherboard drawer, IT administrators have
easier access in upgrading/installing components such as RAM, the internal cache
and 10GbE adapter. The motherboard itself can be removed and replaced without
needing to remove the heavy TS-EC2480U from the rack cabinet, making it
especially useful in maintaining the TS-EC2480U in data centers with multiple
rack cabinets.
Note: Power-off is necessary before removing the motherboard drawer. It
is not hot-pluggable.
10GbE ready
The TS-EC2480U offers four inbuilt Gigabit Ethernet ports and supports 10
Gigabit high speed network by installing 10GbE network adapter. The 10GbE-ready
TS-EC2480U delivers lightening data throughput. Coupled with the support for
large storage capacity, the TS-EC2480U is perfect for data centers to storage
big data and excel in fast data transmission, and for editing large size videos
on-the-fly without transferring the videos between the TS-EC2480U and desktop
computers.
Seamless capacity expansion
The TS-EC2480U supports online capacity expansion by cascading multiple
QNAPRAID expansion enclosuresto meet the needs of growing
business data. With the QNAP scale-up solution, raw storage capacity can be
gradually expanded to 912TB. It is especially useful for large data
applications, such as video surveillance, data archiving, and TV broadcast
storage, to name few.
The maximum raw storage capacity available by connecting RAID expansion
enclosures:
|
Turbo NAS Model |
RAID Expansion Enclosure |
No. of RAID Expansion
Enclosure |
Total HDD No. |
Max. Raw Capacity (TB)
* |
|
(NAS + Enclosure) |
|
TS-EC2480U |
REXP-1600U-RP |
8 |
152 |
912 |
|
7 |
136 |
816 |
|
6 |
120 |
720 |
|
5 |
104 |
624 |
|
4 |
88 |
528 |
|
3 |
72 |
432 |
|
2 |
56 |
336 |
|
1 |
40 |
240 |
|
REXP-1200U-RP |
8 |
120 |
720 |
|
7 |
108 |
648 |
|
6 |
96 |
576 |
|
5 |
84 |
504 |
|
4 |
72 |
432 |
|
3 |
60 |
360 |
|
2 |
48 |
288 |
|
1 |
36 |
216 |
*The maximum capacity is calculated by 6TB
HDDs.
Powerful QNAP flexible volume
QNAP flexible volume provides a more secure and flexible way to store the NAS
data. This next generation volume offers powerful features such as storage
pooling with multiple RAID group protection, thin provisioned volume with space
reclaim, block-level iSCSI LUN, and online capacity expansion. The QTS Storage
Manager neatly presents tools and options for managing system storage which
simplifies the process of NAS capacity expansion and QNAP RAID expansion
enclosure management.
Cross-platform file sharing, centralized data storage
The TS-EC2480U supports SMB/CIFS, NFS, and AFP protocols for file sharing
across Windows, Mac, Linux/UNIX networks. Data, logs and ISO image of CDs and
DVDs can be centralized store in the NAS and protected by integrated antivirus
solution. The Windows AD and LDAP services enable system administrators to
configure user permissions by using existing Windows AD server, LDAP server or
NAS build-in LDAP service.
Well-rounded backup solutions to secure data
The TS-EC2480U offers well-rounded backup solutions as a reliable backup
center. QNAP NetBak Replicator supports scheduled and real-time data backup on
Windows OS. Mac Time Machine is also supported to provide Mac OS X users with an
effortless solution to back up data to the TS-EC2480U.
Disaster recovery solutions brings peace of mind
The TS-EC2480U offers various data recovery options. RTRR (Real-Time Remote
Replication) supports real time or scheduled data backup to a remote Turbo NAS
or FTP server and synchronizes files to a remote folder from a local folder with
better backup efficiency and reduced backup time. The TS-EC2480U also supports
rsync protocol to back up data to another remote server on scheduling basis.
Besides, data can be backed up to cloud storage, such as Amazon® S3, Amazon
Glacier, Microsoft® Azure, ElephantDrive®, Symform®, Dropbox® and Google Cloud
Storage, and restored to the TS-EC2480U anytime.
Comprehensive security options
In the open network environment, business data might be exposed in potential
hack. The TS-EC2480U provides numerous security options, such as encrypted
access, IP blocking, and so on. Besides, IT administrators can control the
access rights of each user to different folders, preventing unauthorized access
to important files. The TS-EC2480U is validated with military level FIPS 140-2
AES 256-bit encryption, preventing the sensitive business data from unauthorized
access and breach even if the hard disk drives or the entire system were
stolen.
Storage for comprehensive virtualization applications
The TS-EC2480U
is VMware Ready, Citrix Ready, compatible with Microsoft Hyper-V certification
and Windows Server 2012, benefiting flexible deployment and management in the
virtualization environments. The TS-EC2480U supports VMware VAAI and Microsoft
ODX to increase performance by offloading server loading for ESXi and Hyper-V
respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider
with enhanced efficiency of operations and management in virtualization
applications. |
Run multiple OS’ on the TS-EC2480U
The Virtualization Station transforms the TS-EC2480U into a 2-in-a-box NAS
that can function as an all-in-one NAS and a virtualization platform supporting
multiple operating systems, fast virtual machine creation, virtual machine
import/export, snapshot, and enables desktop operations on web browser. With the
easy-to-use interface, you can centrally manage all virtual machines created on
the TS-EC2480U with least efforts. Furthermore, you can download VMs on demand
from the online VM markets and import them to TS-EC2480U to use directly without
any complex procedure.
Note: Pre-installed with 4GB RAM x1. You can upgrade the RAM to 32GB to
run 8 virtual machines.
Highly-efficient storage solution for video
editing |
Digital film and video production produces volumes of data that require high
performance RAID storage with sustainable throughput to balance with the
demanding output of video editing. The TS-EC2480U fulfills storage and video
editing needs with a high speed 10GbE network interface. Digital videos can be
quickly stored and edited on the TS-EC2480U directly over the network.
File synchronization across multiple devices
The Qsync utility turns your TS-EC2480U into a safe data center for file
synchronization with large storage capacity. Any file uploaded to the TS-EC2480U
will be made available for all linked devices, such as computers, laptops or
mobile devices. Qsync is especially useful for frequent travelers to manage
files and always have the most updated files on different devices. Qsync
provides multiple ways of file synchronization and group file sharing, greatly
enhancing the flexibility of collaboration.
Comprehensive surveillance solution with 24/7
security |
The TS-EC2480U Surveillance Station is a professional surveillance solution
with a wide range of over 2,600 compatible IP camera models and expandable IP
camera channel licenses. It supports real-time monitoring, video and audio
recording and playback with flexible options to customize. You can also install
the Vmobile app on your iOS® or Android™ mobile devices to manage the monitoring
channels anytime and anywhere, and safeguard your office environment.
Additional SMB-ready features
The TS-EC2480U supports various business applications as an all-in-one Turbo
NAS with cost-efficiency.
FTP Server
The Turbo NAS supports FTP server to share large size files, coming with
user-defined settings including bandwidth limitation, number of connections, and
write-only permission.
Web Server
The Turbo NAS supports Web server which allows numerous websites built on the
same server conveniently. Administrators can manage up to 32 websites on the
single one Turbo NAS with reduced IT cost.
RADIUS Server
The Turbo NAS supports RADIUS server which provides centralized authorization
management for computers to connect and use a network service.
The Turbo NAS supports VPN server which provides an easy way for IT
administrators to build up a secure private network and allows the staff to log
on from outside the office and access business resources securely such as files
and Internet connections.
Printer Server
The Turbo NAS supports Printer server to send remote printing request over
the Internet (max. 3 USB printers), and supports IPP (Internet Printing
Protocol), Samba, print job management and Bonjour printing for Mac OS X.
Surveillance Station
The Turbo NAS supports Printer server to send remote printing request over
the Internet (max. 3 USB printers), and supports IPP (Internet Printing
Protocol), Samba, print job management and Bonjour printing for Mac OS X.
Install-on-demand apps extend NAS features
The TS-EC2480U has built in App Center providing various install-on-demand
apps developed by QNAP and third-party developers, including backup/sync,
business, content management, communications, download, entertainment, and so
on. Its also a central place to manage and update installed apps. Besides, QNAPs
development platform brings forth the open-source spirit to welcome program
developers to develop various applications, adding values to the TS-EC2480U for
extensive opportunities.
Specifications
HARDWARE
|
CPU |
Intel Xeon E3-1200 v3
Family 3.4 GHz Quad Core Processor |
|
Memory |
System memory: 4 GB
DDR3 ECC RAM |
|
Memory module
pre-installed: 4 GB x1 |
|
Total memory slots:
4 |
|
Memory expandable up
to: 32 GB (8GB x4) |
|
|
|
Note: |
|
1. When upgrading RAM
to more than 28GB, the original 4GB RAM modules must be
removed. |
|
2. For the information of RAM module installation and
compatible NAS models, please refer to the QNAP RAM Module
Installation Guide |
|
Flash
Memory |
512MB
DOM |
|
Internal Cache
Port |
Two mSATA port on board
for read caching |
|
Note: The standard
system is shipped without mSATA flash. For the optional mSATA flash,
please visit |
|
https://shop.qnap.com/ |
|
Hard
Drive |
24 x 3.5-inch SATA
6Gbps/3Gbps hard drive or 2.5-inch SATA, 6Gbps/3Gbps hard drive SSD hard
drive |
|
NOTE: |
|
1. The standard system
is shipped without hard drives. |
|
2. For the hard drive compatibility list, please
visit Compatibility list |
|
Hard Drive
Tray |
24 x hot-swappable and
lockable tray |
|
LAN
Port |
4 x Gigabit RJ-45
Ethernet port |
|
(Expandable up to 8 x 1
Gb LAN or 4 x 10 Gb + 4 x 1 Gb LAN by installing optional dual-port 10 Gb
and 1 Gb network card) |
|
Note: |
|
1. For the optional network card compatibility list,
please visit Compatibility list of Expansion
Card |
|
2. For the
information of network card installation, please refer to chapter 6 in
the Turbo NAS Hardware Manual. |
|
LED
Indicators |
Status, 10 GbE, LAN,
eSATA, storage expansion port status |
|
USB |
4x USB 3.0 port
(rear) |
|
4x USB 2.0 port
(rear) |
|
Support USB printer,
pen drive, USB hub, and USB UPS etc. |
|
Buttons |
System: Power button
and reset button |
|
Alarm
Buzzer |
System
warning |
|
Form
Factor |
4U,
Rackmount |
|
Dimensions |
176.15(H) x 442.5(W) x
530.5(D) mm |
|
6.94(H) x 17.42(W) x
20.89(D) inch |
|
Weight |
Net weight (NAS only) :
23.08 kg/50.88 lb |
|
Gross weight (with
packing and accessories) : 28.56 kg/ 62.96 lb |
|
Sound Level
(dB) |
Sound Level (dB) Sound
pressure (LpAm) (bystander position): 48.3 dB |
|
(with 24 x HITACHI
HUS724020ALA640 hard drive installed) |
|
Sound
Level* |
Sound pressure (LpAm)
:48.3 dB(A) |
|
Power Consumption
(W) |
Sleep mode:
129.43 |
|
In Operation: 263.81
W |
|
(with 24 x HITACHI
HUS724020ALA640 hard drive installed) |
|
Temperature |
0-40C |
|
Relative
Humidity |
5~95% non-condensing,
wet bulb: 27C. |
|
Power
Supply |
Redundant
power: |
|
Input: 50-60
Hz; 100-127V~/ 8.5A; 200-240V/ 4.2A |
|
Output:
650W |
|
PCIe
Slot |
2 (1* PCIe Gen3 x8, 1*
PCIe Gen3 x4) |
|
Fan |
4 x 8 cm smart cooling
fan |
|
1 |
Power
Button |
5 |
Gigabit LAN x
4 |
|
2 |
LED
Indicators: |
6 |
USB 3.0 Port x
4 |
|
10 GbE, Status, LAN,
Storage Expansion Port Status |
|
3 |
Password & Network
Settings Reset Button |
7 |
Left slot: PCIe Gen.3 x
8 |
|
Right slot: PCIe Gen.3
x 4 (This PCIe slot is an open-edge design. It can be used with a Gen.3 x
8 card.) |
|
4 |
USB 2.0 Port x
4 |
8 |
Power
Connector |
Remark:
The TS-x80 rack mount models comply
with ANSI/EIA-RS-310-D rack mounting standards. Before purchasing the server
racks for these models, please make sure the server racks conform to the
following criteria:
1. Rack size
- Mounting post width: 451mm
- Panel width: 485mm
- Mounting post depth: 578.6 ~
871.5mm
- The distance between two rack
posts is465mm (center-to-center measurement of the rack's square
holes)
2. The optional rack kits for the TS-x80 rack mount models are only
compatible with square-hole server racks.
* Testing Environment:
Refer
to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1
meter in front of operating NAS
SOFTWARE
|
Operating
System |
Disk
Management |
|
QTS 4.1 (embedded
Linux) |
1. QNAP Flexible
volume |
|
|
2. Thin-provisioning
with space reclamation supported |
|
|
3. Online Volume
Expansion |
|
|
4. Online Storage Pool
Expansion (via QNAP RAID expansion enclosure) |
|
|
5. Single Disk, JBOD,
RAID 0, 1, 5, 6, 10 |
|
|
6. RAID Hot Spare and
Global Hot Spare |
|
|
7. Online RAID Capacity
Expansion and Online RAID Level Migration |
|
|
8. Bad Block Scan and
Hard Drive S.M.A.R.T. |
|
|
9. Bad Block
Recovery |
|
|
10. RAID
Recovery |
|
|
11. Bitmap
Support |
|
|
|
|
Supported
Clients |
Power
Management |
|
1. Windows Server 2003
onward, Apple Mac OS X onward, Linux & UNIX |
1. Wake on
LAN* |
|
|
2. Internal Hard Drive
Standby Mode |
|
|
3. Scheduled Power
on/off |
|
|
4. Automatic Power on
after Power Recovery |
|
|
5. USB and Network UPS
Support with SNMP Management |
|
|
|
|
Supported
Browsers |
Access Right
Management |
|
1. Microsoft Internet
Explorer 10+ |
1. Batch Users
Creation |
|
2. Mozilla Firefox
8+ |
2. Import/Export
Users |
|
3. Apple Safari
4+ |
3. User Quota
Management |
|
4. Google
Chrome |
4. Local User Access
Control for CIFS, AFP, FTP, and WebDAV, |
|
|
5. Subfolder
Permissions Support for CIFS/SMB, AFP, FTP, and Web File
Manager |
|
|
|
|
Multilingual
Support |
Domain
Authentication Integration |
|
1. Chinese (Traditional
& Simplified), Czech, Danish, Dutch, English, Finnish, French, German,
Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese
(Brazil), Romanian, Russian, Spanish, Swedish, Thai,
Turkish |
1. Microsoft Active
Directory (AD) |
|
|
2. LDAP
Server |
|
|
3. LDAP
Client |
|
|
4. Domain Users Login
via CIFS/SMB, AFP, FTP, and File Station |
|
|
|
|
File
System |
Web
Administration |
|
1. Internal Hard Drive:
EXT4 |
1. Multi-window,
Multi-tasking based System Management |
|
2. External Hard Drive:
EXT3, EXT4, NTFS, FAT32, HFS+ |
2. Movable Icons and
Personalized Desktop |
|
|
3. Smart Toolbar and
Dashboard for Neat Display on System Status |
|
|
4. Smart Fan
Control |
|
|
5. Dynamic DNS
(DDNS) |
|
|
6. SNMP (v2 &
v3) |
|
|
7. Resource
Monitor |
|
|
8. Network Recycle Bin
for File Deletion via CIFS/SMB and AFP |
|
|
Automatic
Cleanup |
|
|
File Type
Filter |
|
|
9. Comprehensive Logs
(Events & Connection) |
|
|
10. Syslog
Client |
|
|
11. Firmware Live
Update |
|
|
12. System Settings
Backup and Restore |
|
|
13. Restore to Factory
Default |
|
|
14. Mobile App Qmanager
for Remote Monitoring |
|
|
|
|
Networking |
File
Server |
|
1. TCP/IP (IPv4 &
IPv6: Dual Stack) |
1. File Sharing across
Windows, Mac, and Linux/UNIX |
|
2. Quad Gigabit NICs
with Jumbo Frame* |
2. Protocols: CIFS/SMB,
AFP, NFS, FTP/FTPS, HTTP/HTTPS (Web File Manager),
WebDAV |
|
Failover |
3. Windows
ACL |
|
Multi-IP
Settings |
4. Advanced Folder
Permission for CIFS/SMB, AFP, FTP |
|
Port Trunking/NIC
Teaming (Modes: Balance-RR, Active Backup, Balance XOR, Broadcast, IEEE
802.3ad/Link Aggregation, Balance-TLB and Balance-ALB) |
5. Shared Folder
Aggregation (CIFS/SMB) |
|
3. Optional Dual-port
10 GbE and 1 GbE Network Expansion Cards* |
|
|
4. Service Binding
Based on Network Interfaces* |
|
|
5. Proxy Client, Proxy
Server |
|
|
6. DHCP Client, DHCP
Server |
|
|
7. Protocols: CIFS/SMB,
AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI,
SNMP, SMTP, and SMSC |
|
|
8. UPnP & Bonjour
Discovery |
|
|
9. USB Wi-Fi Adapter
Support |
|
|
|
|
|
Security |
File
Station |
|
1. IP Filter &
Policy-based Automatic IP Blocking |
1. Supports ISO
Mounting (Up to 256 ISO Files) |
|
2. Network Access
Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB,
AFP |
2. Creates and Sends
Download Links for Sharing Public Files with Expiration Time and Password
Protection |
|
3. Encrypted Access:
HTTPS, FTP with SSL/ TLS (Explicit), SSH/SFTP (admin only), Encrypted
Remote Replication (Rsync over SSH) |
3. Drag-n-drop Files
via Chrome and Firefox Browsers |
|
4. CIFS Host Access
Control for Shared Folders |
4. Photo, Music, and
Video Preview and Playback Empowered by Built-in Transcoding
Technology |
|
5. Antivirus
Protection |
5. File Compression
(ZIP or 7z) |
|
6. FIPS 140-2 Validated
AES 256-bit Volume-based Data Encryption** |
6. Advanced
Search |
|
7. AES 256-bit External
Drive Encryption* |
7. Mobile App: Qfile
for File Browsing and Management |
|
8. Importable SSL
Certificate |
|
|
9. Instant Alert via
E-mail, SMS, Beep, and LCD Panel* |
|
|
|
|
|
Powerful All-in-one
server |
|
|
|
|
FTP
Server |
Syslog
Server |
|
1. FTP over SSL/TLS
(Explicit) |
1. Centralized Log
Monitoring and Archiving |
|
2. Concurrent
Connections: Max 256 |
2. Immediate Email
Alerts |
|
3. Passive FTP Port
Range Control |
3. Supports Log
Filtering |
|
4. FTP Bandwidth &
Connection Control |
|
|
5. Supports FXP &
Unicode |
|
|
|
|
|
Backup
Station |
Print
Server |
|
1. Remote Replication
Server (over Rsync) |
1. Max No. of Printers:
3 |
|
2. Real-time Remote
Replication (RTRR) to another QNAP NAS or FTP Server |
2. Supports Internet
Printing Protocol |
|
3. Works as Both RTRR
Server & Client with Bandwidth Control |
3. Print Job Display
and Management |
|
4. Real-time &
Scheduled Backup |
4. IP-based and Domain
Name-based Privilege Control |
|
5. Encryption,
Compression, File Filter, and Transfer Rate Limitation |
5. Supports Apple
Bonjour Printing |
|
6. Encrypted
Replication between QNAP NAS Servers |
|
|
7. Desktop Backup by
QNAP NetBak Replicator for Windows |
|
|
8. Apple Time Machine
Support with Backup Management |
|
|
9. Data Backup to
Multiple External Storage Devices |
|
|
10. Synchronizes with
Cloud Storage: Amazon S3, ElephantDrive, Symform, Dropbox, and Google
Cloud Storage |
|
|
11. Third Party Backup
Software Support: Veeam Backup & Replication, Acronis
True |
|
|
12. Image, ARCserve
Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper,
etc. |
|
|
|
|
|
iSCSI (IP
SAN) |
Database
Server |
|
1. iSCSI
Target |
1. Built-in MySQL
Server |
|
2. Multi-LUNs per
Target |
2. Web-based Management
via phpMyAdmin |
|
3. Up to 256
Targets/LUNs Combined |
|
|
4. Supports LUN Mapping
& Masking |
|
|
5. Block-based
LUN |
|
|
6. Thin-provisioned LUN
with Space Reclamation supported |
|
|
7. Online LUN Capacity
Expansion |
|
|
8. Supports SPC-3
Persistent Reservation |
|
|
9. Supports MPIO &
MC/S |
|
|
10. iSCSI LUN Backup,
One-time Snapshot, and Restore |
|
|
11. iSCSI Connection
and Management by QNAP Finder (Windows) |
|
|
12. Virtual Disk Drive
(via iSCSI Initiator) |
|
|
13. Stack Chaining
Master |
|
|
14. Max No. of Virtual
Disk Drives: 8 |
|
|
|
|
|
Server
Virtualization & Clustering |
RADIUS
Server |
|
1. VMware vSphere
(ESX/ESXi 4.x, 5.x) |
1. Centralized Account
Management and Authentication for Network Access |
|
2. VMware VAAI for
iSCSI and VAAI for NAS |
2. Supports 802.1x
Security Authentication |
|
3. vSphere
Plug-in |
3. TFTP Server with PXE
Booting (Read-only) |
|
4. Citrix XenServer
(6.0) |
|
|
5. Windows Server 2012
Hyper-V |
|
|
6. Supports Microsoft
ODX |
|
|
7. QNAP SMI-S provider
for Microsoft SCVMM |
|
|
8. Windows Server 2012
Failover Clustering |
|
|
|
|
|
Virtualization
Station |
VPN
Server |
|
1. Support up to 8
Virtual Machine (32GB RAM is required) creating to run an operating system
such as Windows, Linux, Unix. |
1. Secure Remote
Access: PPTP & OpenVPN VPN services |
|
2. VM import from
Virtual Appliances |
2. Remote Access to
Other Resources on Local Network |
|
3. VM export into a
virtual appliance in OVF / QVM format |
3. Max No. of Clients:
30 |
|
4. VM
clone |
|
|
5. VM
snapshot |
|
|
6. HTML5 based shared
remote console |
|
|
|
|
|
Storage Plug &
Connect via Windows Qfinder Pro by QNAP |
Surveillance
Station |
|
1. Create and Map
Shared Folders |
1. Supports over 1,400
IP Cameras |
|
2. Create and Connect
to iSCSI Target/LUN |
2. Includes 8 Free
Camera License |
|
|
3. Up to 80 Camera
Channels via Additional License Purchase* |
|
|
4. Intelligent Video
Analytics (IVA) for Advanced Video Search |
|
|
5. Visual Aid by
E-map |
|
|
6. Surveillance Client
for Mac |
|
|
7. Mobile App: Vmobile
(iOS and Android) |
|
|
|
|
myQNAPcloud
Service |
Antivirus |
|
1. Private Cloud
Storage and Sharing |
1. Supports ClamAV
(free) and McAfee (optional purchase ) virus scanner. |
|
2. Free Host Name
Registration (DDNS) |
2. Protection against
Viruses, Trojans, and Other Threats |
|
3. Auto Router
Configuration (via UPnP) |
3. Free Virus Databases
Update on Manual or Scheduled Basis |
|
4. CloudLink for Remote
Access without Complicated Router Setup |
4. Multiple Scan Tasks
(Max: 64, Concurrent: 5) with Custom Folder Selection and Scheduled
Scanning |
|
5. myQNAPcloud Connect
for Easy VPN Connection (Windows VPN Utility) |
5. Email Notification
upon Task Completion or Virus Detection |
|
|
6. Quarantines or
Deletes Infected Files |
|
|
|
|
Qsync |
APP
Center |
|
1. Syncs Files among
Multiple Devices through the NAS |
Add New Features by
Online Installation of over 90 Official and Community
Software |
|
2. Option for Not
Removing Files on the NAS during Synchronization |
|
|
3. Selective
Synchronization |
|
|
4. Shares Securely with
SSL |
|
|
5. Team
Folder |
|
|
6. Shares Files by
Links via E-mail |
|
|
7. Uploads Photos or
Videos to Qsync Folder Automatically via Qfile |
|
|
8. Restores Files from
Network Recycle Bin |
|
|
9. File Name Conflict
Policy |
|
|
10. Option for Filter
Settings |
|
|
11. Privilege Control
for Qsync Users |
|
|
12. Supports Windows
& Mac OS |
|
|
|
|
|
Web
Server |
Add-ons |
|
1. HTTP/HTTPS
Connections |
(The actual available
software add-ons may vary depending on the NAS
platform) |
|
2. Built-in MySQL
Server |
|
|
3. Web-based Management
via phpMyAdmin (QPKG) |
|
|
4. Virtual Hosts: Max
32 |
|
* This feature may vary according to different models.
**The
data encryption functions may not available in accordance with the legislative
restrictions of some countries.
PACKAGE CONTENTS
TS-EC2480U
Ethernet cable x 4
Power cord x 2
Flat head screw x 96 (for 3.5" HDD)
Flat head screw x 96 (for 2.5" HDD)
Quick Installation Guide
