Overview
The ability to convert a 2.5 SSD/HDD to 3.5 Standard HDD form factor and to
turn it into a USB 3.0 enclosure is the latest addition to the Storage
Accessories. This new 2.5 to 3.5 SATA SSD/HDD Converter with USB 3.0 is designed
with Aluminum and Steel Alloy casing for heat dissipation, this versatile
converter emulates the same Standard 3.5 HDD size, SATA connection and pass thru
design for the fastest 6Gbps speed possible for any 2.5 SSD/HDD place into the
converter. The connector on the converter use a Patent NSS connector design to
support many cycles of hot swap (50,000), thus keeping the hard drive safe and

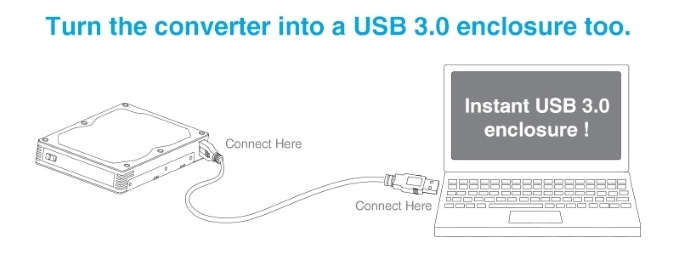

in a durable environment. In addition, when it is connected via a USB 3.0 cable,

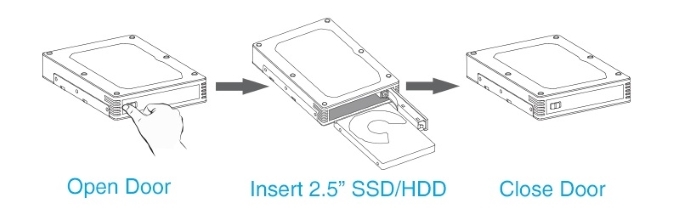

it turns into a USB 3.0 enclosure. The screw-less and tool-less designed
converter makes it very easy to add and change drive on this 2.5 to 3.5 SATA
SSD/HDD Converter with USB 3.0.
Features
With All The Great Features
- Design to mimic the size of 3.5" HDD to fit in any application
- USB 3.0 port to turn this converter into a USB 3.0 enclosure
- Fits in any 3.5" enclosure or drive bay
- SMART Support in SATA mode
- Support 9.5mm and 12.5mm SSD/HDD
- Aluminum and Steel Alloy for good heat dissipation
- Patent NSS Connector for 50,000 cycles of hot swap
- Pass thru for the fastest SATA III speed (6Gbps)
- Support any speed of the SATA drive (SATA I/II/III)
- No Drivers Needed (NDN) for any OS
- Status LED for clear indication of power/activity
Specifications
| Model |
MRK-235ST-U3 |
| Device
Support |
2.5 SATA III/II/I
SSD/HDD (9.5mm &12.5mm) |
| Device
Size |
3.5 SATA drive form
factor |
| Internal
Interface |
Standard
SATA |
| External
Interface |
Standard SATA and USB
3.0 (Micro B) |
| USB 3.0
cable |
USB 3.0 Type A to Micro
B (Length: 762 mm) |
| HDD
Capacity |
Any
Capacity |
| Material |
Aluminum, Steel Alloy
and ABS |
| Dimension |
141 x 101.6 x 25.5
mm |
| Weight |
150g |
System Requirements
- Any OS
- Any standard 2.5 SSD/HDD (9.5mm &12.5mm)
- USB 3.0 port if using as a USB 3.0 enclosure
Package Contents
- 2.5 to 3.5 SATA SSD/HDD Converter, mounting screws, USB 3.0 cable, Quick
installation Guide
