All stock codes associated to this product
TVS882i38G, TVS-882-i3-8G, QN17337
Features

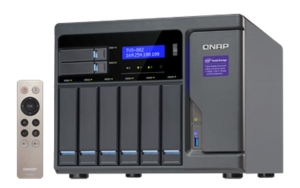

The TVS-882 features advanced hardware by adopting 6th Generation Intel 14nm
multi-core processors and was designed around the concept of tiered storage,
application-based partitioning and network traffic distribution. Featuring PCIe
Gen.3 slots that can support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and
USB 3.1 expansion cards, the TVS-882 also supports smooth 4K 60 fps video
transfer and display, cross-platform file sharing, comprehensive backup and
disaster recovery, iSCSI & virtualization and more business applications.
Incorporating reliability and security, the TVS-882 presents an ideal choice for
a complete business-ready storage solution.
- Built-in M.2 SATA 6Gb/s slots & 2.5 SSD slots
- Qtier technology and SSD cache enable 24/7 optimized storage efficiency
- The Network & Virtual Switch app assists network traffic distribution,
and re-routes dedicated bandwidth for diverse applications
- Triple HDMI output (including one HDMI 2.0) for smooth 4K video playback
- Scalable design with economical QNAP storage expansion enclosures
- Virtual JBOD (VJBOD) allows to use QNAP NAS to expand the TVS-882s storage
capacity
- Supports QRM+ unified remote server management, QvPC technology, virtual
machine and container applications, and storage for virtualization
6th Generation Intel processors, extraordinary
performance
The TVS-882 is powered by high-performance 6th Generation Intel multi-core
processors with options including Core i3 and Core i5,
increasing system performance by 20% - 30% compared with previous generations.
It greatly enhances the efficiency of CPU-demanding applications such as
virtualization, real-time 4K video playback, and serving large numbers of
simultaneous connections.
Advanced hardware for greater efficiency
High-performance hardware, well-designed application functionalities and
thoroughly-planned usage scenarios are three distinctive cornerstones for
achieving optimum performance.
1. 2 x
2.5 SSD slots |
Offers flexible configuration in tiered storage and enables cache
acceleration.
2.
Tool-less HDD tray and installation |
2.5 SSD trays and 3.5 hard drive trays feature tool-less design for easy
installation and replacement.
3. 2 x
built-in M.2 SSD slots |
Supports SATA M.2 SSDs with 2242, 2260, 2280, and 22110 form factors; allows
the greatest flexibility in tiered storage configuration and enables cache
acceleration.
4. DDR4
2133 MHz memory |
Supports four DDR4 memory modules for a maximum of 64GB RAM.
5. 6th
Generation Intel Core Processor |
Features the latest 14nm manufacturing technology with faster buses to
support DDR4, PCIe Gen.3, and DMI 3.0 for incredible performance and extremely
efficient data transmission.
6. 2 x
PCIe Gen.3 expansion slots |
PCIe Gen.3 provides 1GB/s bandwidth per lane; support for 10GbE/ 40GbE
adapters, PCIe NVMe SSD, external graphics cards (AMD Radeon R7), and USB 3.1
expansion cards.
7.
Compartmentalized smart cooling |
Separately detects the CPU and hard drive temperatures to dynamically control
fan speed and performs quieter fan operations.
8. 4 x
Gigabit Ethernet ports |
Allows optimized network traffic distribution for diverse applications. The
Network & Virtual Switch app makes network management much easier.
9. 3 x
HDMI outputs |
One HDMI 2.0 port and two HDMI 1.4b ports; supports duplicated and extended
desktop options. HDMI 2.0 increases bandwidth up to 18Gbps, and supports 4K 60
fps videos.
10.
3.5mm audio jack |
Connect speakers or headphones for direct audio output from the NAS.
11. 2 x
built-in speakers |
Supports direct audio output and provides verbal system warnings.
QNAP's full NAS encryption by volume-based technology effectively ensures
data security by encrypting all of the files stored in the default shared
folders. BesidesAES-NI 256-bit encryption for both volumes and shared
folders,italso provides numerous security options, such as encrypted access, IP
blocking, 2-step verification, and more.
Specifications
Hardware Spec.
|
Ordering
P/N |
TVS-882-i3-8G |
|
TVS-882-i5-16G |
|
TVS-882-i5-16G-450W |
|
|
|
CPU |
TVS-882-i3-8G:Intel
Core i3-6100 3.7 GHz dual-core processor |
|
TVS-882-i5-16G /
TVS-882-i5-16G-450W:Intel Core i5-6500 3.6 GHz quad-core
processor |
|
|
|
System
memory |
Total DIMM slots:
4 |
|
Maximum memory: 64 GB
(16 GB x4) |
|
Memory modules
pre-installed: |
|
TVS-882-i3-8G: 8 GB
DDR4 RAM (4 GB x 2) |
|
TVS-882-i5-16G /
TVS-882-i5-16G-450W: 16 GB DDR4 RAM ( 8 GB x 2) |
|
|
|
Flash
Memory |
512MB
DOM |
|
M.2
Slot |
2 x M.2
2242/2260/2280/22110 SATA 6Gb/s SSD |
|
Note: The M.2 SSD is
not included as standard. |
|
|
|
Hard Drive
Tray |
2 x 2.5
SSD |
|
6 x 2.5/3.5 hard drive
or SSD |
|
|
|
Drive
Interface |
SATA 6Gbps/3Gbps;
Hot-swappable |
|
USB |
1 x USB 3.0 port
(Front) |
|
4 x USB 3.0 port
(Rear) |
|
|
|
LAN
Port |
4 x GbE
port |
|
HDMI
Output |
3 (HDMI 1.4b x2, HDMI
2.0 x1) |
|
Audio
Input |
Audio In: 2 x 6.3mm MIC
In |
|
Audio
Output |
2 x built-in speaker, 1
x 3.5mm Line-out jack |
|
Note: Only one of the
above audio output ports can work at a time. If a speaker is connected,
the sound will output through the speaker. |
|
|
|
LED
Indicators |
System status, 2.5 SSD,
M.2 SSD, 3.5 HDD |
|
Buttons |
System: Power button,
Reset button, USB one-touch-backup button |
|
System
Warning |
Buzzer |
|
Form
Factor |
Tower |
|
Dimensions |
231.9 (H) x 292.8 (W) x
319.8(D) mm |
|
9.13 (H) x 11.53 (W) x
12.59 (D) inch |
|
|
|
Weight |
Net (NAS only): 9.05
kg/ 19.95 lb |
|
Gross (with packing and
accessories): 10.85 kg/ 23.92 lb |
|
|
|
Sound Level
(dB)* |
Sound pressure (LpAm)
(bystander position): 21.8 dB |
|
(with 6 x Seagate
ST2000VN000-1HJ164 hard drive installed) |
|
|
|
Temperature |
0-40C |
|
Relative
Humidity |
5~95% non-condensing,
wet bulb: 27C |
|
Power
Supply |
TVS-882-i3-8G /
TVS-882-i5-16: Input: 100-240V~, 3-1.5A, 60-50Hz; Output:
250W |
|
TVS-882-i5-16G-450W:
Input: 100-240V~, 8-4A, 60-50Hz; Output: 450W |
|
|
|
Note: If you plan to
use a graphics card with your NAS, please check its power requirements
beforehand. When using advanced graphics cards, the TVS-882-i5-16G-450W is
recommended as they have a suitable power supply for these graphics
cards. |
|
PCIe
Slot |
2 (1* PCIe Gen3 x16; 1*
PCIe Gen3 x4) |
|
Fan |
System: 2 x 8 cm
cooling fan |
|
CPU: 1 x 9 cm
fan |
Software Specs.
Powerful All-in-one
server
