All stock codes associated to this product
TVS1282Ti516G, TVS-1282T-i5-16G, QN17582
Features

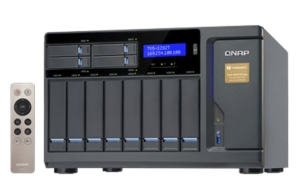

The TVS-1282T features advanced hardware by adopting 6th Generation Intel
14nm multi-core processors and was designed around the concept of tiered
storage, application-based partitioning and network traffic distribution.
Providing a Thunderbolt DAS/NAS/iSCSI SAN triple solution, the TVS-1282T
delivers the incredible power of Thunderbolt 2 to double the speed potential to
20 Gbps, supports smooth 4K 60 fps video transfer and display, and is a perfect
match for Thunderbolt-equipped Mac*users for 4K workflows, file storage and
high-speed sharing. Incorporating reliability, security and rich applications,
the TVS-1282T delivers the highest transfer rates ever as storage with
persistent throughput, and provides a complete business-ready storage
solution.
- Built-in M.2 SATA 6Gb/s slots & 2.5 SSD slots
- Qtier technology and SSD cache enable 24/7 optimized storage efficiency
- The Network & Virtual Switch app assists network traffic distribution,
and re-routes dedicated bandwidth for diverse applications
- Triple HDMI output (including one HDMI 2.0) for smooth 4K video playback
- Thunderbolt 2 (20Gbps) and 10GbE dual network for on-the-fly video editing
and speedy sharing
- 4 available combinations with Mac/PC and JBOD for flexible attaching,
sharing and expansion
- Scalable up to 448 TB with the Thunderbolt 2 storage expansion enclosures
TX-800P/ TX-500P
- Virtual JBOD (VJBOD) allows to use QNAP NAS to expand the TVS-1282Ts
storage capacity
- Supports QRM+ unified remote server management, QvPC technology, virtual
machine and container applications, and storage for virtualization
Advanced hardware for greater efficiency
High-performance hardware, well-designed application functionalities and
thoroughly-planned usage scenarios are three distinctive cornerstones for
achieving optimum performance.
1. 4 x
2.5" SSD slots |
Offers flexible configuration in tiered storage and enables cache
acceleration.
2.
Tool-less HDD tray and installation |
2.5" SSD trays and 3.5" hard drive trays feature tool-less design for easy
installation and replacement.
3. 2 x
built-in M.2 SSD slots |
Supports SATA M.2 SSDs with 2242, 2260, 2280, and 22110 form factors; allows
the greatest flexibility in tiered storage configuration and enables cache
acceleration.
4. DDR4
2133 MHz memory |
Supports four DDR4 memory modules for a maximum of 64GB RAM.
5. 6th
Generation Intel Core Processor |
Features the latest 14nm manufacturing technology with faster buses to
support DDR4, PCIe Gen.3, and DMI 3.0 for incredible performance and extremely
efficient data transmission.
6. 3 x
PCIe Gen.3 expansion slots |
PCIe Gen.3 provides 1GB/s bandwidth per lane; support for 10GbE/ 40GbE
adapters, PCIe NVMe SSD, external graphics cards (AMD Radeon R7), and USB 3.1
expansion cards
7. 4 x
Gigabit Ethernet ports |
Ideal for service binding, port trunking, and MPIO configurations.
8. 3 x
HDMI outputs |
One HDMI 2.0 port and two HDMI 1.4b ports; supports duplicated and extended
desktop options. HDMI 2.0 increases bandwidth up to 18Gbps, and supports 4K 60
fps videos.
9. 3.5mm
audio jack |
Connect speakers or headphones for direct audio output from the NAS.
10.
Compartmentalized smart cooling |
Separately detects the CPU and hard drive temperatures to dynamically control
fan speed and performs quieter fan operations.
11. 2 x
10GBase-T network port |
Allows optimized network traffic distribution with the other four Gigabit
Ethernet ports for diverse applications. The Network & Virtual Switch app
makes network management much easier.
12. 2 x
Thunderbolt 2 connectors |
Thunderbolt 2 (20 Gbps) capabilities; industry-leading converged storage with
Thunderbolt DAS/NAS/iSCSI connectivity
13. 2 x
built-in speakers |
Supports direct audio output and provides verbal system warnings.
Specifications
Hardware Specs.
|
Ordering
P/N |
TVS-1282T-i5-16G |
|
TVS-1282T-i7-32G |
|
CPU |
TVS-1282T-i5-16G:Intel
Core i5-6500 3.6 GHz quad-core processor |
|
TVS-1282T-i7-32G:Intel
Core i7-6700 3.4 GHz quad-core processor |
|
System
memory |
TVS-1282T-i5-16G
|
|
Total DIMM slots:
4 |
|
System memory: 16 GB
DDR4 RAM |
|
Memory modules
pre-installed: 8 GB x2 |
|
Maximum memory: 64 GB
(16 GB x4) |
|
|
|
TVS-1282T-i7-32G
|
|
Total DIMM slots:
4 |
|
System memory: 32 GB
DDR4 RAM |
|
Memory modules
pre-installed: 8 GB x4 |
|
Maximum memory: 64 GB
(16 GB x4) |
|
Flash
Memory |
512MB
DOM |
|
M.2
Slot |
2 x M.2
2242/2260/2280/22110 SATA 6Gb/s SSD |
|
Note:The M.2 SSD is not
included as standard. |
|
Hard Drive
Tray |
4 x 2.5"
SSD |
|
8 x 2.5"/3.5" hard
drive or SSD |
|
Drive
Interface |
SATA 6Gbps/3Gbps;
Hot-swappable |
|
Thunderbolt
Port |
2 x Thunderbolt 2
high-speed port port |
|
USB |
1 x USB 3.0 port
(Front) |
|
4 x USB 3.0 port
(Rear) |
|
LAN
Port |
2 x 10GBase-T
port |
|
4 x GbE
port |
|
HDMI
Output |
3 (HDMI 1.4b x2, HDMI
2.0 x1) |
|
Audio
Input |
Audio In: 2 x 6.3mm MIC
In |
|
Audio
Output |
2 x built-in speaker, 1
x 3.5mm Line-out jack |
|
Note:Only one of the
above audio output ports can work at a time. If a speaker is connected,
the sound will output through the speaker. |
|
LED
Indicators |
System status, 2.5"
SSD, M.2 SSD, 3.5" HDD |
|
Buttons |
System: Power button,
Reset button, USB one-touch-backup button |
|
System
Warning |
Buzzer |
|
Form
Factor |
Tower |
|
Dimensions |
234.6 (H) x 369.9 (W) x
319.8 (D) mm |
|
9.23 (H) x 14.56 (W) x
12.59 (D) inch |
|
Weight: |
Net (NAS only):
11.55kg/ 25.46 lb |
|
Gross (with packing and
accessories): 13.65 kg/ 30.09 lb |
|
Sound Level
(dB)* |
Sound pressure (LpAm)
(bystander position): 21.6 dB |
|
(with 8 x Seagate
ST2000VN000-1HJ164 hard drive installed) |
|
Temperature |
0-40C |
|
Relative
Humidity |
5~95% non-condensing,
wet bulb: 27C |
|
Power
Supply |
Input: 100-240V~,
3-1.5A, 60-50Hz; Output: 250W |
|
PCIe
Slot |
3 (1* PCIe Gen3 x8; 2*
PCIe Gen3 x4) |
|
Note:Two PCle slots are
occupied by a Thunderbolt 2 card and a 10GbE adapter. |
|
Fan |
System: 3 x 8 cm
cooling fan |
|
CPU: 1 x 9 cm
fan |
Software Specs.
