All stock codes associated to this product
TVS871URPPT4G, TVS-871U-RP-PT-4G, QN17355
Features

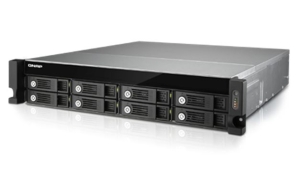

The QNAP TVS-871U-RP, featuring the easy-to-use QTS operating system,
provides a reliable and scalable NAS solution to fulfill data backup, file
synchronization and remote access. The TVS-871U-RP is 10GbE-ready, delivers
exceptional performance, and supports cross-platform file sharing, comprehensive
backup solutions, iSCSI and virtualization applications, and many practical
business functions, making it the ideal choice for SMBs to secure important
business data. It also includes abundant multimedia applications backed by its
powerful hardware specifications.
- 3,300+ MB/s throughput and 172,000+ IOPS
- Two internal cache ports for IO acceleration
- Scalable design, up to 1088TB raw capacity
- Virtualization-ready, centralized data storage, backup, sharing and
disaster recovery
Breakthrough performance |
The TVS-871U-RP supports SATA 6Gbps hard drives driving over 3,300 MB/s
throughput and 172,000 IOPS *. The TVS-871U-RP is powered by an IntelHaswell
processor with numerous options includingPentium, Core i3 and Core
i5for users to flexibly choose based on their demands, greatly
enhancing the efficiency of CPU-consuming tasks and serving more concurrent
tasks at the same time.
Internal
cache port for IO acceleration |
The TVS-871U-RP supports two on-board internal cache ports. By installing
mSATA flash modules (optional purchase), the IOPS performance of storage volumes
can be remarkably boosted. It is perfect for improving the overall workflow of
random IOPS demanding applications such as databases and virtualization. The
internal cache port design does not require the space of a hard drive tray to
allow for more storage capacity.
10GbE
ready |
The TVS-871U-RP offers four inbuilt Gigabit Ethernet ports and supports 10
Gigabit high speed networks by installing a 10GbE network adapter. The
10GbE-ready TVS-871U-RP delivers lightning-fast data throughput and coupled with
the support for a large storage capacity is perfect for data centers to store
big data, excel in fast data transmission, and for editing large size videos
on-the-fly without transferring the videos between the TVS-871U-RP and desktop
computers.
Seamless
capacity expansion |
The TVS-871U-RP supports online capacity expansion by cascading multiple
QNAPRAID expansion enclosuresto meet the needs of growing
business data. With the QNAP scale-up solution, raw storage capacity can be
gradually expanded on demand. It is especially useful for video surveillance,
data archiving, TV broadcast storage, and other large-data applications.
Use your
TVS-871U-RP as a PC with the exclusive QvPC Technology |
QNAP's exclusive QvPC Technology consolidates a number of high-end
technologies including VM integration, HDMI output, cloud integration and NAS
connection technologies, allowing users to operate the TVS-871U-RP as a PC when
they plug in a keyboard, mouse and monitor. With QvPC Technology, the
TVS-871U-RP is transformed into a cost-effective device with PC functionalities
for users to directly access stored data, run multiple applications using
Windows/Linux/UNIX/Android-based VMs, surf the web on Google Chrome, enjoy Full
HD videos with up to 7.1 channel audio with Kodi, monitor Surveillance Station
in real time with local display, and much more.
QTS -
Simple and efficient |
Thanks to QTS' intuitive user interface, system operations of the TVS-871U-RP
are smooth and handy. Its intelligent desktop allows you to find desired
functions quickly, create desktop shortcuts or group shortcuts, monitor
important system information on a real-time basis, and open multiple application
windows to run multiple tasks concurrently, bringing greater working
efficiency.
Qsirch A
smarter, faster way to search |
Quickly and easily find documents, photos, videos, and music with Qsirch,
QNAPs new built-in NAS search application lets you find what you need by
real-time, natural search. Simply type in as much as you know about what you are
trying to find, including bits of the file name or even words/phrases in the
document, and Qsirch will display a list of matches, complete with thumbnails,
as you type. Qsirch even remembers your search history so you can quickly
navigate to files youve previously searched for. Qsirch is a huge productivity
boost it greatly reduces the amount of time spent looking for files on the NAS
so you can focus on other tasks.
Powerful
QNAP flexible volume |
QNAP's flexible volume provides an easier and more secure way to store NAS
data. This next-generation volume offers powerful features such as storage
pooling with multiple RAID group protection, thin provisioned volume with space
reclaim, block-level iSCSI LUN, and online capacity expansion. The QTS Storage
Manager neatly presents tools and options for managing system storage which
simplifies the process of NAS capacity expansion and QNAP RAID expansion
enclosure management.
Specifications
Hardware Specs.
|
CPU |
TVS-871U-RP-PT-4G: Dual-core
Intel Pentium G3250 3.1 GHz Processor |
|
TVS-871U-RP-i3-4G: Dual-core
Intel Core i3-4150 3.5 GHz Processor |
|
TVS-871U-RP-i5-8G: Quad-core
Intel Core i5-4590S 3.0 GHz Processor |
|
DRAM |
TVS-871U-RP-PT-4G /
TVS-871U-RP-i3-4G |
|
System memory: 4 GB
DDR3 RAM |
|
Memory module
pre-installed: 2 GB x2 |
|
Total memory slots:
4 |
|
Memory expandable up
to: 32 GB (8GB x4) |
|
Note: When upgrading
RAM to more than 20GB, the original 2GB RAM modules must be
removed. |
|
|
|
TVS-871U-RP-i5-8G
|
|
System memory: 8 GB
DDR3 RAM |
|
Memory module
pre-installed: 4 GB x2 |
|
Total memory slots:
4 |
|
Memory expandable up
to: 32 GB (8GB x4) |
|
Note: When upgrading
RAM to more than 24GB, the original 4GB RAM modules must be
removed. |
|
Flash
Memory |
512MB
DOM |
|
Internal Cache
Port |
Two mSATA port on board
for read caching |
|
Hard
Drive |
8 x 3.5-inch SATA
6Gb/s, SATA 3Gb/s hard drive or 2.5-inch SATA, SSD hard
drive |
|
Hard Disk
Tray |
8 x hot-swappable and
lockable tray |
|
LAN Port |
4 x Gigabit RJ-45
Ethernet port |
|
(Expandable up to 8 x 1
Gb LAN or 4 x 10 Gb + 4 x 1 Gb LAN by installing optional dual-port 10 Gb
and 1 Gb network card) |
|
LED
Indicators |
Status, 10 GbE, LAN,
storage expansion port status |
|
USB/eSATA |
4x USB 3.0 port
(rear) |
|
4x USB 2.0 port
(rear) |
|
|
|
Support USB printer,
pen drive, USB hub, and USB UPS etc. . |
|
HDMI |
1 |
|
Buttons |
System: Power button
and reset button |
|
Alarm
Buzzer |
System
warning |
|
Form
Factor |
2U,
Rackmount |
|
Dimensions |
89(H) x 482(W) x 534(D)
mm |
|
3.5(H) x 18.98(W) x
21.02(D) inch |
|
Weight |
9.9 kg/ 21.83 lb
(Net) |
|
12.74 kg/ 28.09 lb
(Gross) |
|
Power Consumption
(W) |
HDD
Standby: |
|
TVS-871U-RP-PT-4G:
70.87 |
|
TVS-871U-RP-i3-4G:
69.35 |
|
TVS-871U-RP-i5-8G:
80.94 |
|
|
|
In Operation:
|
|
TVS-871U-RP-PT-4G:
131.96 |
|
TVS-871U-RP-i3-4G:
128.72 |
|
TVS-871U-RP-i5-8G:
131.44 |
|
|
|
(with 8 x WD WD30EFRX
hard drive installed) |
|
Sound
Level* |
Sound pressure (LpAm):
41.9 dB(A) |
|
Temperature |
0~40C |
|
Relative
Humidity |
5~95% non-condensing,
wet bulb: 27C. |
|
Power
Supply |
Input: 100-240V AC,
50/60Hz |
|
Output:
250W |
|
PCIe
Slot |
2 (1* PCIe Gen3 x8, 1*
PCIe Gen3 x4) |
|
Fan |
3 x 7 cm smart cooling
fan |
Software Specs.
Powerful All-in-one
server
