All stock codes associated to this product
EX7300100AUS, EX7300-100AUS, 606449110951
Overview
Industrys First AC2200 Extender with MU-MIMO

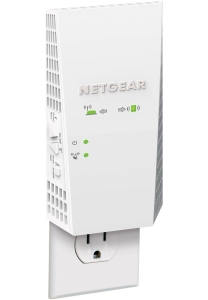

Extend any router’s existing WiFi with the Nighthawk® X4 AC2200 WiFi Range
Extender, delivering speeds up to 2.2Gbps. The powerful and compact X4 increases
coverage up to 930 m² MU-MIMO lets you stream to multiple devices for faster
speeds than traditional WiFi, while FastLane technology improves performance
using both WiFi bands. High-power amplifiers and internal antenna array increase
range for whole home coverage. Boost your WiFi to the Extreme with Nighthawk X4
Wall-plug extender.
The Ultimate in WiFi Range Extension
Industrys First AC2200 Extender with MU-MIMO let's you stay connected
throughout your home.
Extreme Speed and Coverage
The Nighthawk® X4 WiFi Range Extender boosts your existing network range,
delivering extreme WiFi speeds of up to 2.2Gbps over a coverage area up to
10,000 ft2.
Features
Get the whole-home connectivity you need for iPads®, smartphones, laptops,
& more. Boost the range of your WiFi network to every corner of your home
for maximum WiFi performance.
-
Dual
band WiFi up to 2.2Gbps
-
Up
to 930 m of coverage
-
MU-MIMO
for simultaneously streaming to multiple devices
-
Works
with any WiFi router
EXTEND | EXTREME RANGE & PERFORMANCE
| Extreme dual
band WiFi speed up to 2.2Gbps |
| High-power
amplifiers and internal antenna array increase range |
| Beamforming+
improves wireless range and reliability |
| Access Point
mode creates a WiFi hotspot using a wired Ethernet connectio |
STREAM | ULTIMATE CONNECTIVITY
| MU-MIMO
allows you to go faster by simultaneously streaming to multiple devices |
| FastLane
technology improves performance using both WiFi bands |
| Gigabit port
to connect to wired devices like smart TVs and game consoles to WiFi |
MOBILE | UP TO 100% FASTER
| Custom
Low-Noise Amplifier improves incoming transmission quality from mobile
devices |
| Access
scheduling for parental controls |
- Optimize your WiFi network with the WiFi Analytics app for Android®
| Mobile
browser support for installation |
Specifications
|
Product
Number |
EX7300 |
|
WiFi
Technology |
802.11ac |
|
WiFi
Performance |
AC2200 (450 Mbps+
1733Mbps) |
|
WiFi
Band |
Dual Band 2.4 &
5GHz |
|
Number of Ethernet
Ports |
One (1) 10/100/1000
Mbps Gigabit Ethernet port with auto-sensing
technology |
|
Number of USB
Ports |
N/A |
|
Key
Features |
Extends 2.4 and 5 GHz
WiFi signals from existing WiFi routers for better
range |
|
Dual band WiFi up to
2.2Gbps |
|
Up to 10,000 ft of
coverage |
|
MU-MIMO for
simultaneously streaming to multiple devices |
|
High power amplifiers
and internal antenna array increase range |
|
FastLane technology
improves performance using both WiFi bands |
|
Convenient wall plug
design for easy, discreet placement |
|
Works with any WiFi
router |
|
Ease of
Use |
CD-less setupgreat for
mobile devices |
|
Push N Connect using
Wi-Fi Protected Setup(WPS)1 |
|
Power on/off
button |
|
Security |
Wi-Fi Protected
Access (WPA/WPA2PSK) and WEP |
|
Package
Contents |
AC2200
Nighthawk X4 Range Extender (EX7300) |
|
Quick start
guide |
|
Physical
Specifications |
Dimensions: 6.34 x 3.2
x 1.75 in (161 x 81.4 x 44.5 mm) |
|
Weight: 0.66 lb (0.3
kg) |
|
Standards |
IEEE 802.11 b/g/n
2.4GHz |
|
IEEE 802.11 a/n/ac
5GHz |
|
One (1) 10/100/1000
Mbps Gigabit Ethernet port with auto-sensing
technology |
|
System
Requirements |
2.4 and/or 5GHz 802.11
a/b/g/n/ac wireless router or gateway |
|
Microsoft Internet
Explorer 8.0, Firefox 20, Safari 5.1, Google Chrome 25.0
browsers or higher |
1. Works with devices supporting Wi-Fi Protected Setup(WPS).
Data throughput, signal range, and wireless coverage per sq. ft. are not
guaranteed and may vary due to differences in operating environments of wireless
networks, including without limitation building materials and wireless
interference. Specifications are subject to change without notice. The product
may not be compatible with routers or gateways with firmware that has been
altered, is based on open source programs, or is non-standard or outdated.
Product Diagram
