All stock codes associated to this product
UAP-AC-LR-5, UAPACLR5, NHUUAPACLR5, NHU-UAP-AC-LR5, 810354025457
** Note: Does Not Include PoE Injectors **

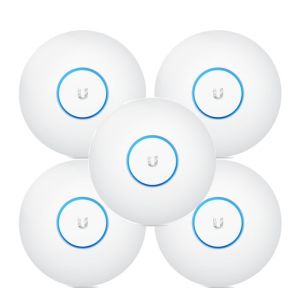

Ubiquiti UniFi AP AC Long Range - 5 Pack (UAP-AC-LR-5)
Ideal for long-range deployments, the UniFi AC LR AP offers simultaneous, dual-band operation with 3x3 MIMO in the 2.4 GHz band and 2x2 MIMO in the 5 GHz band.
The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients. It is available in single- and five-packs*.
* Four- or five-packs do not ship with PoE adapters; we recommend powering the UniFi APs with the UniFi Switch instead.
Features
Easy Mounting
Sleek design for seamless integration into any environment (all accessories included).
Designed for the Great Outdoors
The UniFi AC Pro and UniFi AC Outdoor APs feature weatherproof casing designed specifically for outdoor applications.
Advanced Acoustic Speaker
The UniFi AC EDU AP provides high-quality sound with accurate voice reproduction for announcements over Wi-Fi.
Power over Ethernet (PoE)
Includes Power over Ethernet (PoE) functionality. Each single-pack includes a PoE adapter.
PoE Standards
The UniFi AC EDU, Pro, and Outdoor APs are compatible with an 802.3at PoE+ compliant switch, while the UniFi AC Pro AP can also use 802.3af PoE.
Innovative Antenna Design
The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AP AC LR performs better than one-way, high transmit power does for connecting distant clients.
Designed for Optimal RF Performance
The newly redesigned UniFi Controller optimizes RF performance:
Scalable Enterprise Wi-Fi Management
The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
Indoor AC Model Comparison Chart
Specifications
|
UniFi AP AC LR
|
|
Dimensions
|
175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70")
|
|
Weight
With Mounting Kits
|
240 g (8.5 oz)
315 g (11.1 oz)
|
|
Networking Interface
|
(1) 10/100/1000 Ethernet Port
|
|
Buttons
|
Reset
|
|
Power Method
|
Passive Power over Ethernet (24V),
(Pairs 4, 5+; 7, 8 Return)
|
|
Power Supply
|
24V, 0.5A Gigabit PoE Adapter*
* Only the single-pack of the UAP-AC-LITE includes a PoE adapter.
|
|
Maximum Power Consumption
|
6.5W
|
|
Maximum TX Power
2.4 GHz
5GHz
|
24 dBm
20 dBm
|
|
Antennas
|
(1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi
|
|
Wi-Fi Standards
|
802.11 a/b/g/n/ac
|
|
Wireless Security
|
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
|
|
BSSID
|
Up to Four Per Radio
|
|
Mounting
|
Wall/Ceiling (Kits Included)
|
|
Operating Temperature
|
-10 to 70° C (14 to 158° F)
|
|
Operating Humidity
|
5 - 95% Noncondensing
|
|
Certifications
|
CE, FCC, IC
|
|
Advanced Traffic Management
|
|
VLAN
|
802.1Q
|
|
Advanced QoS
|
Per-User Rate Limiting
|
|
Guest Traffic Isolation
|
Supported
|
|
WMM
|
Voice, Video, Best Effort, and Background
|
|
Concurrent Clients
|
200+
|
|
Supported Data Rates (Mbps)
|
|
Standard
|
Data Rates
|
|
802.11a
|
6, 9, 12, 18, 24, 36, 48, 54 Mbps
|
|
802.11n
|
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
|
|
802.11ac
|
6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
|
|
802.11b
|
1, 2, 5.5, 11 Mbps
|
|
802.11g
|
6, 9, 12, 18, 24, 36, 48, 54 Mbps
|
