All stock codes associated to this product
ST10000VN0004, HASEA10TBIWNAS, HASEA10TB-IWNAS, ST10000VN0004 , 7636490076565, 763649089248, 7636490077548
Overview
Description

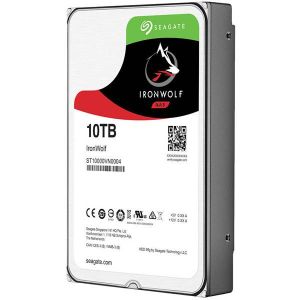

IronWolf is designed for everything NAS. Get used to tough, ready andscalable 24x7 performance that can handle multi-drive environments with a wide range of capacities.
Key Advantages
Optimized for NAS with AgileArray. AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with the most advanced power management possible.High performance means no lag times or downtime for users during high traf fic time for the NAS. Seagate leads the competition with the highest performance in NAS-class drives.1
Range of capacities up to 10TB. More capacity options mean more choices that will t
within the budget. Seagate provides a scalable solution for any NAS use-case scenario.
Get ahead with more cache. IronWolf provides high-cache options allowing your
NAS to serve data faster.
Do more with multi-user technology. Enables user workload rate of 180TB/year. Multiple
users can con dently upload and download data to the NAS server, knowing it can handle
the workload, whether youre a creative professional or small business.
Designed for always on, always accessible 24?7 performance. Access your data on
your NAS any time, remotely or on site.
1M hours MTBF, 3-year limited warranty represents an improved total cost of ownership
(TCO) with reduced maintenance costs.
Best-Fit Applications
" 1- to 8-bay network
attached storage (NAS)
" Desktop RAID and servers
" Multimedia server storage
" Private cloud
Specifications
| Interface |
SATA III 6 Gb/s |
| Number of Drive Bays Supported |
1 to 8 |
| Technology |
Multi-User (TB/yr): 180 |
| Supported Features |
Dual-plane balance
Error recovery control |
| Max Sustained Transfer Rate OD |
210 MB/s |
| Spindle Speed (RPM) |
7200 |
| Cache |
256 MB |
| Load/Unload Cycles |
600,000 |
| Nonrecoverable Read Errors per Bits Read, Max |
1 per 10E15 |
| Power-On Hours per Year |
8760 |
| Workload Rate Limit |
180 TB/year |
| Mean Time Between Failures (MTBF) |
1,000,000 Hours |
| Startup Current (12V typical, amps) |
1.8 A |
| Average Operating Power |
6.8 W |
| Idle Average |
4.42 W |
| Power Save Mode |
Standby: 0.8 W
Sleep: 0.8 W |
| Voltage Tolerance |
5 V: 5%
12 V: 10% |
| Temperature |
Operating (ambient, min): 41F / 5C
Operating (drive case, max): 158F / 70C
Non-operating (ambient, min): -40F / -40C
Non-operating (ambient, max): 158F / 70C |
| Halogen Free |
Yes |
| Shock |
Operating 2ms (max): 70 g
Non-operating 2ms (max): 250 g |
| Acoustics |
Idle (typical, bels): 2.8
Operating (typical, bels): 3.2 |
| |
|
| |
|
