All stock codes associated to this product
UAP-AC-LITE-5, UAPACLITE5, NHUUAPACLITE5, NHU-UAP-ACLITE5, 810354025440
** Note: Does Not
Include PoE Injectors **

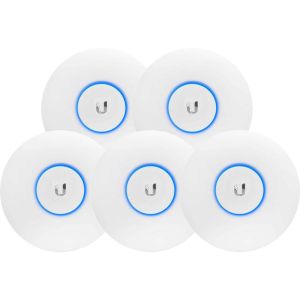

Ubiquiti UniFi AP
AC Lite - 5 Pack (UAP-AC-LITE-5)
Featuring
an ultra-compact design, the UniFi AC Lite AP delivers a
cost-effective combination of value and performance in a reduced
footprint: 25% smaller than the standard UniFi AP. The UniFi AC Lite
AP provides simultaneous, dual-band, 2x2 MIMO technology and is
available in single- and five-packs*.
*
Four- or five-packs do not ship with PoE adapters; we recommend
powering the UniFi APs with the UniFi Switch instead.
Features
Easy
Mounting
Sleek
design for seamless integration into any environment (all accessories
included).
Designed
for the Great Outdoors
The
UniFi AC Pro and UniFi AC Outdoor APs feature weatherproof casing
designed specifically for outdoor applications.
Advanced
Acoustic Speaker
The
UniFi AC EDU AP provides high-quality sound with accurate voice
reproduction for announcements over Wi-Fi.
Power
over Ethernet (PoE)
Includes
Power over
Ethernet (PoE) functionality. Each single-pack includes a PoE adapter.
PoE
Standards
The
UniFi AC EDU, Pro, and Outdoor APs are compatible with an 802.3at PoE+
compliant switch, while the UniFi AC Pro AP can also use 802.3af PoE.
Sleek, Ultra-Compact
Design
The
UniFi AC Lite AP features a cleaner design in a reduced footprint
– half the size compared to the standard UniFi AP.
Dual-Radio Performance, Gigabit Speeds
The
UniFi AC Lite AP delivers 5x the performance of the
first-generation UniFi AP while still maintaining Ubiquiti’s
disruptive pricing strategy.
Designed for Optimal RF Performance
The
newly redesigned UniFi Controller optimizes RF performance:
Scalable
Enterprise Wi-Fi Management
The
UniFi Controller v4 software is a powerful, enterprise
wireless software engine ideal for high-density client
deployments requiring low latency and high uptime performance.
With its software-based capabilities, the UniFi virtual control
plane allows for unlimited scalability under one centralized
controller. Remotely access the UniFi Controller to upgrade
deployed UniFi APs while in the field.
Indoor
AC Model Comparison Chart
Specifications
|
UniFi AP AC LITE
|
|
Dimensions
|
160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24")
|
|
Weight
With Mounting Kits
|
170
g (6.0 oz)
185
g (6.5 oz)
|
|
Networking Interface
|
(1)
10/100/1000 Ethernet Port
|
|
Buttons
|
Reset
|
|
Power Method
|
Passive Power over Ethernet
(24V),
(Pairs
4, 5+; 7, 8 Return)
|
|
Power Supply
|
24V, 0.5A
Gigabit PoE Adapter*
*
Only the single-pack of the UAP-AC-LITE includes a PoE
adapter.
|
|
Maximum Power Consumption
|
6.5W
|
|
Maximum TX Power
2.4 GHz
5GHz
|
20 dBm
20 dBm
|
|
Antennas
|
(2)
Dual-Band Antennas, 3 dBi Each
|
|
Wi-Fi Standards
|
802.11
a/b/g/n/ac
|
|
Wireless Security
|
WEP,
WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
|
|
BSSID
|
Up to Four
Per Radio
|
|
Certifications
|
CE, FCC, IC
|
|
Mounting
|
Wall/Ceiling
(Kits Included)
|
|
Operating Temperature
|
-10 to 70°
C (14 to 158° F)
|
|
Operating Humidity
|
5 - 95%
Noncondensing
|
|
Advanced
Traffic Management
|
|
VLAN
|
802.1Q
|
|
Advanced QoS
|
Per-User Rate
Limiting
|
|
Guest Traffic Isolation
|
Supported
|
|
WMM
|
Voice, Video,
Best Effort, and Background
|
|
Concurrent Clients
|
200+
|
|
Supported
Data Rates (Mbps)
|
|
Standard
|
Data Rates
|
|
802.11a
|
6,
9, 12, 18, 24, 36, 48, 54 Mbps
|
|
802.11n
|
6.5
Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
|
|
802.11ac
|
6.5
Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
|
|
802.11b
|
1, 2, 5.5,
11 Mbps
|
|
802.11g
|
6, 9, 12,
18, 24, 36, 48, 54 Mbps
|
Networking
