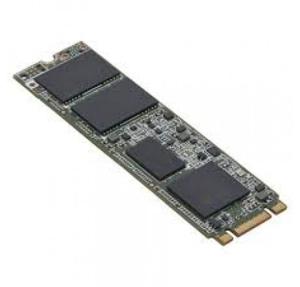

SSDSCKKW010X6X1 | Intel 1000GB (1TB) Solid State Drive - M.2 2280, SATA-III 6Gb/s, 16nm, TLC - 540 Series

-

Essentials

Capacity

1 TB

Status

Launched

Launch Date

Q1'16

Datasheet

N/A

Lithography Type

16nm

-

Performance

Sequential Read (up to)

560 MB/s

Sequential Write (up to)

480 MB/s

Random Read (8GB Span) (up to)

78000 IOPS

Random Write (8GB Span) (up to)

85000 IOPS

Latency - Read

50 s

Latency - Write

50 s

Power - Active

80 mW Typical

Power - Idle

40 mW Typical

-

Reliability

Vibration - Operating

2.17 GRMS (5-700Hz)

Vibration - Non-Operating

3.13 GRMS (5-800Hz)

Shock (Operating and Non-Operating)

1000 G/0.5 ms

Operating Temperature Range

0C to 70C

Mean Time Between Failures (MTBF)

1.6 Million Hours

Uncorrectable Bit Error Rate (UBER)

<1 sector per 10^16 bits read

Warranty Period

5 yrs

-

Package Specifications

Form Factor

M.2 22 x 80mm

Interface

SATA 3.0 6Gb/S

-

Advanced Technologies

Enhanced Power Loss Data Protection

No

Hardware Encryption

AES 256 bit

High Endurance Technology (HET)

No

Temperature Monitoring and Logging

No

End-to-End Data Protection

No

Intel Smart Response Technology

Yes

Intel Rapid Start Technology

Yes
