Cisco 4G LTE 2.0 Enhanced High-Speed WAN Interface Card - For Cisco ISR G2 Platforms
  • LTE Band 1, 3, 7, 8, 20 (800, Band 20), 900 (Band 8), 1800 (Band 3), 2100 (Band 1), 2600 (Band 7) MHz

IMG 1 of 1
No Longer Available
Part Number:
411916
(?) Brand:
Cisco Web Site
Manuf No:
EHWIC-4G-LTE-AU
EHWIC4GLTEAU
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
EHWIC4GLTEAU, EHWIC-4G-LTE-AU

Overview

The Cisco Fourth-Generation (4G) Long-Term Evolution (LTE) Enhanced High-Speed WAN Interface Cards (EHWICs) for Cisco Integrated Services Routers Generation 2 (ISR G2) provide the next generation of wireless WAN primary, backhaul, or backup solutions.

4G LTE is being used to provide both primary connectivity and network resiliency for business continuity. With greater agility and speed-to-deployment than wired solutions, 4G LTE reduces network cost and complexity while maintaining ROI.Practical applications of 4G LTE for distributed enterprises such as parallel networks, primary connection,failover, in-vehicle, network convergence, and wireless WAN diversity.The 4G LTEEHWICs with ISRG2is the industry leader to bring enterprise grade wireline like functionality such as Quality of Service (QoS) for cellular, Multi-VRF for cellular and Unified Communications solutions over LTE.

The Cisco 4G LTE EHWICs (Figure 1) are the first enterprise-class 4G multimode LTE wireless WAN (WWAN) solution. With 4G LTE, WWAN is a primary WAN link solution. Businesses can now run applications such as interactive video and telepresence on a primary 4G LTE WWAN link, which is 10 to 15 times faster and has 5 times lower latency than 3G links. These cards support the latest Third-Generation Partnership Project (3GPP) Release 9 LTE standards. Cisco 4G multimode LTE WWAN EHWICs provide persistent, reliable LTE connectivity with fallback and transparent handoff to earlier technologies. The cards provide bandwidth to support high-definition (HD) and peer-to-peer (P2P) video calls, providing customers with an excellent mobile broadband experience. The Cisco 4G LTE WWAN EHWICs are tightly integrated with the services provided on the award-winning Cisco ISR G2 devices, which deliver secure data, voice, video, and mobility services. The Cisco 4G LTE WWAN EHWICs are supported on the modular Cisco 1900, 2900, and 3900 Series ISR G2 devices.

Enterprises are looking for ways to reduce deployment time, enable comprehensive media services, increase revenue, and improve business continuity. The Cisco 4G LTE WWAN EHWICs, when coupled with a service providers wireless data plan, provide a rapidly deployable, high-bandwidth, reliable, and secure solution for branch offices and remote sites. With 4G LTE data rates, the Cisco 4G LTE WWAN EHWICs offer a primary WAN link solution capable of running comprehensive branch-office services, including voice and video services.

EHWIC-4G-LTE-AU

Multimode LTE for carriers that operates LTE on 800-MHz (band 20), 900-MHz (band 8), 1800-MHz (band 3), 2100-MHz (band 1), or 2600-MHz (band 7) networks; the multimode LTE Australia and Global EHWICs are backward compatible with DC-HSPA+, HSPA+, HSPA, UMTS, EDGE, and GPRS.

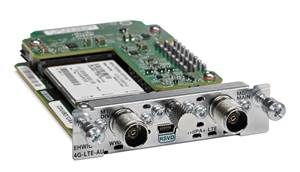

Figure 1. Cisco 4G LTE WWAN EHWIC for Cisco ISR G2



With enhanced data rates and improved latency, WWAN services are an ideal way to replace or supplement traditional wire-line services. 4G LTE WWAN data services offered today have theoretical limits of CAT3 100 Mbps on the downlink and 50 Mbps on the uplink. The actual data speed depends on the service providers network. 4G LTE WWAN data services are an alternative in areas in which broadband services either are not available or are very expensive. Cisco is building on these performance milestones and adding support for wireless to our wide variety of WAN interface alternatives.

Main Business Benefits

Primary connectivity: The Cisco multimode 4G LTE WWAN EHWIC provides persistent, reliable LTE connectivity with fallback and transparent handoff to earlier technologies. It enables high-performance, secure, reliable, and transparent multimedia applications anywhere and anytime and allows customers to deploy and manage the same device for multiple applications, simplifying deployment and management. For businesses requiring rapid setup or temporary connectivity, 4G LTE WWAN offers the capability to deploy a new site quickly. Using the integrated services available on the Cisco ISRs, Cisco 4G LTE WWAN EHWICs can provide instant and mobile communications during disasters and service outages.

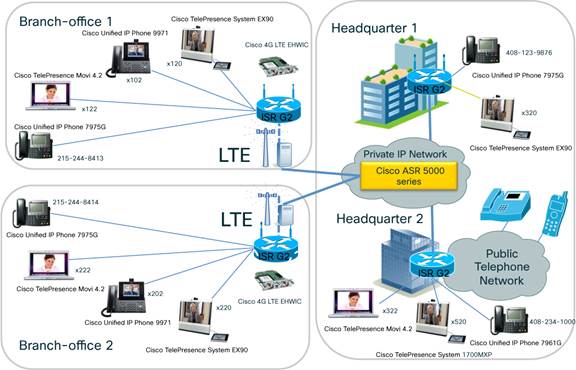

Figure 2. Cisco 4G LTE WWAN EHWIC for WAN

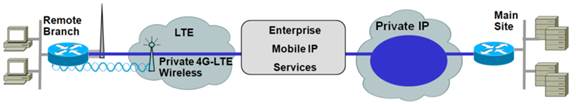

Figure 3. 4G LTE as a Primary WAN Link

WAN Backup: Resilient WAN access is a crucial requirement for branch offices connecting to a corporate site or the Internet. Although DSL, Frame Relay, ISDN, and dialup are common choices for backup if a primary WAN link fails, a nonterrestrial data path such as a 4G LTE WWAN provides enhanced WAN diversity (Figures 2 and 3). Cisco 4G LTE WWAN EHWICs, combined with the Cisco ISRs, offer the capability to automatically initiate connection over the 4G LTE WWAN when the primary WAN link is unavailable. In addition, you can use Cisco 4G LTE WWAN EHWICs to provide supplemental bandwidth when the primary WAN link is overloaded (Figure 4).

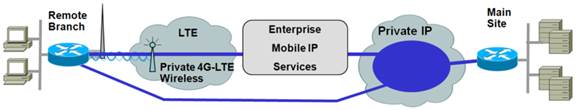

Figure 4. 4G LTE as a Backup WAN Link

Main Features and Benefits

  • Integrated 4G LTE WWAN broadband: With the 4G LTE WWAN modem integrated into the router, you gain the benefits of simplified installation and management. In addition, the Cisco 4G LTE WWAN EHWICs are tightly integrated with Cisco ISRs, which run the industry-leading Cisco IOS® Software, giving access to all the advanced features of Cisco IOS Software such as quality of service (QoS), intelligent network queuing, and robust security.
  • Performance: With increasing data use and the proliferation of web-based applications at remote sites, there is an increasing need for high-speed (broadband) data connections to run mission-critical applications at these sites. 4G LTE WWAN services promise low-latency links at high speeds.
  • Short installation time: Businesses sometimes have to wait weeks or months to get data circuits installed at new locations. For temporary or seasonal sites, wireless data services allow instant connectivity anywhere there is cellular coverage, and rapid deployment allows you to quickly set up networks with WAN connectivity.
  • Network resiliency through WAN diversity: WAN connectivity is crucial to the functioning of your business, and any downtime means a loss of productivity and lost opportunity. Staying connected and operational during a network outage can be vital. A wireless connection for backup to a remote site provides protection against line outages and an additional level of redundancy, because the 4G LTE WWAN infrastructure is often served by separate facilities, providing redundancy for the entire local loop. With 4G LTE WWAN, Cisco Intelligent WAN (IWAN) provide transport independent, intelligent path control, application optimization, and secure connectivity on any device, over any connection, and to any cloud.
  • Portability: You can easily relocate wireless routers and Cisco 4G LTE WWAN EHWICs wherever coverage is available.
  • Multiple-PDN: This feature allows configuration of multiple active (Access Point Name) APN so that Internet traffic can be kept separate from the corporate traffic.

Entrerprise grade WAN Features for 4G LTE

Figure 5. 4G LTE as a Backup WAN Link

  • 4G LTE multiple-bearer QoS for cellular: The 4G LTE EHWIC supports 4G LTE multiple-bearer QoS. Detailed information on the bearer is part of show CLI, SNMP-MIBs etc. The QoS feature is service provider (SP) dependent, and requires SP to launch this service.
  • Multi-VRF for cellular: 4G LTE EHWICs now support Multi-VRF for cellular network. Multi-VRF is a Cisco proprietary implementation over and above the 3GPP spec and requires Cisco ASR5K Packet Gateway (P-GW) as the head-end at the service provider’s network. The Multi-VRF feature is service provider (SP) dependent, and requires SP to launch this service.
  • Enterprise grade Unified Communications solutions over LTE: The 4G LTE EHWIC now supports voice and video and can be integrated with Cisco Unified Communications cloud or premises-based infrastructure.
  • Public Land Mobile Network (PLMN Search): UE presents end user with available PLMN search manually. UE can optimize PLMN search procedure using stored information such as RF carriers and cell parameters (support with mainline IOS 15.5(3)M1 or later releases).

Specifications

Region Theaters

EHWIC-4G-LTE-AU

Bands

LTE band 1, 3, 7, 8, 20 (800 [band 20], 900 [band 8], 1800 [band 3], 2100 [band 1], 2600 [band 7] MHz)

Theoretical Download/upload speeds

100 Mbps/50 Mbps

Australia

External interfaces

  Cisco LTE 2.0

  Mini-USB interface for use with diagnostics and monitoring tools

  Two TNC connectors with main and multiple-input/multiple-output (MIMO) RF port for antenna connection

  Separate active GPS with SMA

  Support for main and MIMO antenna connector

Form factor

Cisco LTE 2.0 single-wide EHWIC for Cisco ISR G2 platforms

Physical dimensions (H x W x D)

0.75 x 3.08 x 4.9 in. (1.9 x 7.8 x 12.4 cm)

Weight

5.2 oz (147 grams)

Subscriber Identity Module (SIM) card

4G LTE SIM card socket (USIM or mini-SIM)

Power

10.6W peak (5.1W typical)

Supported platforms

Modular Cisco 1900, 2900, and 3900 Series ISR G2

Software compatibility

Modular Cisco 1900, 2900, and 3900 Series ISRs supported with Cisco IOS Software release:

  Cisco IOS Software feature set: Universal Cisco IOS Software image

  EHWIC-4G-LTE-AU: Release 15.5(1)T1 or mainline 15.5(3)M with modem firmware 5.5.58.x or later IOS Release with respective modem firmware

  EHWIC-4G-LTE-GB: Release 15.5(1)T1 or mainline 15.5(3)M with modem firmware 5.5.58.x or later IOS Release with respective modem firmware

  EHWIC-4G-LTE-VZ, EHWIC-4G-LTE-ST, EHWIC-4G-LTE-AT, EHWIC-4G-LTE-CA: Mainline Cisco IOS Software Release 15.5(1)T1 or mainline 15.5(3)M with modem firmware 5.5.58.x or later IOS Release with respective modem firmware

Main Features Include

  Automatic switch failover between primary and backup links

  Multichannel-interface-processor (MIP) profile configuration

  3G Simple Network Management Protocol Version 2 (SNMPv2) MIBs and traps

  Remotely initiated data callback using voice

  Remotely initiated data callback using SMS

  Remote firmware upgrade over 4G LTE

  Virtual diagnostic monitoring

  SIM lock and unlock capability

  Mobile routing: Enterprise Dynamic Mobile Network Routing (DMNR) based on Cisco Network Mobility (NEMO)

  Receive diversity: For all supported bands (MIMO on LTE)

  Density: Maximum EHWIC slots (scalability depends on specific ISR G2 series)

SMS/GPS/multiple profile

  GPS antenna: SMA connector (separate standalone active GPS with SMA option)

  Send and receive SMS (maximum 160 characters)

  Configure multiple profile

MIBs

  3G MIB

  Entity MIB

  IF MIB

  3G WWAN MIB persistence

  Enhanced 3G MIB for 4G MIB extension

Network management and diagnostics

  In-band and out-of-band management using Telnet (Cisco IOS Software command-line interface [CLI]) and SNMP, including MIB II and other extensions

  Industry-standard 4G LTE diagnostics and monitoring tools (QUALCOMM CDMA Air Interface Tester [CAIT] and Spirent Universal Diagnostic Monitor [UDM]

Modem information

  Modem form factor: Embedded Peripheral Component Interconnect (PCI) minicard

  EHWIC-4G-LTE-AU and EHWIC-4G-LTE-GB: Sierra Wireless MC7304 with Qualcomm MDM9215

  EHWIC-4G-LTE-ATand EHWIC-4G-LTE-CA: Sierra Wireless MC7354 with Qualcomm MDM9615

  EHWIC-4G-LTE-VZ and EHWIC-4G-LTE-ST: Sierra Wireless MC7350 with Qualcomm MDM9615

Carrier support

For an updated list of carriers that offer services with Cisco 4G LTE WWAN EHWIC, please visit https://www.cisco.com/go/4g.

Diagnostic

RSVD mini-USB port

Update

OTA-DM

Programming interfaces

Cisco IOS Software CLI

Wireless technologies supported

EHWIC-4G-LTE-AU and EHWIC-4G-LTE-GB

  LTE 800 MHz (band 20), 900 MHz (band 8), 1800 MHz (band 3), 2100 MHz (band 1), 2600 MHz (band 7)

Backward compatibility:

  UMTS and HSPA+: 850 (band 5), 900 (band 8), 1900 (band 2), and 2100 (band 1) MHz

  Quad-band EDGE, GPRS, and GSM: 800, 900, 1800 and 1900 MHz

  HSPA+ speed DL up to CAT20 (42.2 Mbps) and UL up to CAT6 (5.76 Mbps)

  DC-HSPA+ speed DL with CAT24 (42.2 Mbps) and UL up to CAT6 (5.76 Mbps)

EHWIC-4G-LTE-AT and EHWIC-4G-LTE-CA

  LTE 1900 MHz (band 2 PCS), 1700/2100 MHz (band 4 AWS),850 MHz (band 5), 700 MHz (band 17)

Backward compatibility:

  UMTS and HSPA+: 850 (band 5), 900 (band 8), 1700/2100 (band 4 AWS), 1900 (band 2), and 2100 (band 1) MHz

  Quad-band EDGE, GPRS, and GSM: 800, 900, 1800 and 1900 MHz

  HSPA+ speed DL up to CAT20 (42.2 Mbps) and UL up to CAT6 (5.76 Mbps)

  DC-HSPA+ speed DL with CAT24 (42.2 Mbps) and UL up to CAT6 (5.76 Mbps)

EHWIC-4G-LTE-VZ and EHWIC-4G-LTE-ST

  LTE 700 MHz (band 4 AWS), 1700/2100 MHz (band 4 AWS), 1900 MHz (band 25 extended PCS)

Backward compatibility:

  EVDO Rev A/CDMA 1x BC0, BC1, BC10

LED indicators

EHWIC-4G-LTE-AU,  EHWIC-4G-LTE-GB, EHWIC-4G-LTE-AT, and EHWIC-4G-LTE-CA

WWAN LED (connection status indication)

  RSSI

  HSPA+

  GPS

  LTE

EHWIC-4G-LTE-VZ, and EHWIC-4G-LTE-ST

WWAN LED (connection status indication)

  RSSI

  EVDO

  GPS

  LTE

Approvals and compliance

Safety

  UL 60950-1,CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, FCC Part 2.1093, RSS-102, and EN 50385

EMC

  FCC Part 15, Industry Canada ICES-003, EN 301 489-01, EN 301 489-07, EN 301 489-24, EN55022 (CISPR22), EN55024 (CISPR24), EN300-386, EN 61000-3-2, EN 61000-3-3, AS/NZS CISPR 22, CNS13438, and VCCI V-3

Radio

  FCC Part 2, FCC Part 22, FCC Part 24, RSS 129 and RSS 133, RSS 132 and RSS 133, EN 301 511 GSM, EN 301 908-1, and EN 301 908-2

Antenna Specifications

Diversity (dual antenna) MIMO

  EHWIC-4G-LTE-AU, EHWIC-4G-LTE-GB, EHWIC-4G-LTE-AT, EHWIC-4G-LTE-CA, EHWIC-4G-LTE-VZ, and EHWIC-4G-LTE-ST

Antenna 4G-ANTM-OM-CM

Description

  Multiband indoor omnidirectional antenna

  Ceiling mount

Electrical Specifications

  Frequency range: 698 to 960 MHz, 1575 MHz and 1710 to 2690 MHz

  Gain: 1 and 1.5 decibels relative to isotropic (dBi) (700 to 960 MHz), 1.7 and 3.2 dBi (1700 to 2200 MHz), 3 and 4 dBi (2500 to 2700 MHz)

  Maximum power: 50W

  Connector: TNC male

  Voltage standing wave ratio (VSWR): 2.0:1 and 3.01:1 or less for GPS

  Nominal impedance: 50 ohms

  Polarization: Linear vertical

Mechanical Specifications

  Radome material: White ABS

  Dimensions (outside dimensions [OD] x height [H]): 5.64 OD in. x 2.0 H in. (143.3 X 50.8 mm)

  Weight: 6.0 oz (170.1 g)

  Temperature rating: -40 to 85C (-40 to 185 F)

  Can be used with the following cable extensions: 3G-CAB-ULL-20 and 3G-CAB-ULL-50

Antenna 4G- LTE-ANTM-D

Description

  Cisco 3G and 4G omnidirectional dipole antenna

  Articulating joint; can be rotated 360 degrees and is capable of maneuvering into three stop positions: 0 degrees, 45 degrees, and 90 degrees

  Plug-threaded TNC connector: Directly mount the antenna on any Cisco 4G or Cisco 3G wireless ISR EHWIC with a TNC connector; the threads on the connector must comply with the ANSI 7/16-28 UNEF 2B thread specification

  Multiband swivel-mount dipole antenna

  Faceplate mount (dual units included with all Cisco 4G WWAN EHWICs)

Electrical Specifications

  Operating frequency ranges: 698 to 806 MHz, 824 to 894 MHz, 925 to 960 MHz, 1710 to 1885 MHz, 1920 to 1980 MHz, 2110 to 2170 MHz, and 2500 to 2690 MHz

  Maximum peak gain: 2 dBi

  Maximum input power: 3W

  Connector: TNC plug

  VSWR: < 2.5:1 or less

  Characteristic impedance: 50 ohms

Mechanical Specifications

  Antenna dimensions (L x W x D): 9 x 1.2 x 7/16 in. (229 x 30.5 x 11 mm)

  Temperature rating: 22 to 158F (30 to 70C)

  Antenna base and random color: Cisco Raven Black

Antenna extension 4G-AE015-R

Description

  Single-unit antenna extension base (15 ft (457.2 cm))

Electrical Specifications

  Frequency range: 6 GHz

  Attenuation: Less than 3 dB at or below 2.5 GHz

  Base connector: TNC socket

  Pigtail connector: TNC plug

Mechanical Specifications

  Base material:Cisco gray UL94 V0 PC/ABS plastic

  Dimensions: 2.8 x 2.4 x 1.8 in. (7.1 x 6.1 x 4.6 cm)

  Weight: 6 oz (0.17 kg)

  Cable: 15 ft (457.2 cm) nonplenum rated Pro-Flex Plus 195

Antenna extension 4G-AE010-R

Description

  Single-unit antenna extension base (10 ft [304.8 cm] cable included)

Electrical Specifications

  Frequency range: 6 GHz

  Attenuation: Less than 3 dB at or below 2.5 GHz

  Base connector: TNC socket

  Pigtail connector: TNC plug

Mechanical Specifications

  Base material: UL 94 V0PC and ABS plastic

  Dimensions: 2.8 x 2.4 x 1.8 in. (7.1 x 6.1 x 4.6 cm)

  Weight: 6 oz (0.17 kg)

  Cable: 10 ft (304.8 cm) nonplenum rated Pro-Flex Plus 195

ANT-4G-OMNI-OUT-N*

Description: Cisco outdoor omnidirectional antenna for 2G, 3G, and 4G cellular

  UV-stable radome

  Mast-mounting bracket

  Applicable for both 3G and 4G solutions

  Domestic LTE 700 band and global LTE 2600 band

  Domestic cellular and global GSM

  WiMAX 2300 and 2500

Electrical Specifications

  Frequency ranges: 698 to 960 MHz, 1710 to 2170 MHz, and 2300 to 2700 MHz

  Nominal gain (dBi): 698 to 960 MHz = 1.5 dBi, and 1710 to 2700 MHz = 3.5 dBi

  3 dB beam width (E plane): 698 to 960 MHz = 81 degrees, 1710 to 2170 MHz = 75 degrees, and 2300 to 2700 MHz = 100 degrees

  3 dB beam width (H plane): 360 degrees, omnidirectional

  Polarization: Vertical and linear

  Normal impedance: 50 ohms

  VSWR: < 2.5:1 (698 to 960 MHz) and < 2.0:1 (1710 to 2690 MHz)

  Radiation pattern: Omnidirectional

Mechanical Specifications

  Mount style:Mast mount, upright position only

  Environment: Outdoor

  Connector: N-type socket

  Antenna length (height): 9.8 x 1 in. (24.9 x 2.45 cm)

  Weight: 1.5 lb (.68 kg)

  Dimensions (H x OD): 9.8 x 1 in. (248 x 24.5 mm)

  Operating temperature range: 22 to 158F (30 to 70C)

  Storage temperature: 40 to 185F (40 to 85C)

  Maximum power: 20W

  Radome: Polycarbonate, UV, white

  Material substance compliance: ROHS compliant

ANT-4G-SR-OUT-TNC

Description: Cisco integrated 4G low-profile outdoor saucer antenna

  Applicable for both 3G and 4G solutions

  Domestic LTE 700 band and global LTE 2600 band

  Domestic cellular and global GSM

  Weatherproof UV stable radome

  Performance optimized

  Excellent flame rating

Electrical Specifications

  Frequency ranges: 698 to 960 MHz and 1710 to 2700 MHz

  Peak gain with 1-ft cable: 1.5 dBi (698 to 960 MHz) and 3.7 dBi (1710 to 2700 MHz)

  Peak gain with 15-ft cable: 0.8 dBi (698 to 960 MHz) and 0.2 dBi (1710 to 2700 MHz)

  Average efficiency with 1-ft cable: 90% (698 to 960 MHz) and 82% (1710 to 2700 MHz)

  Average efficiency with 15-ft cable: 60% (698 to 960 MHz) and 40% (1710 to 2700 MHz)

  Polarization: Linear and vertical

  Nominal impedance: 50 ohms

  VSWR (maximum): 2.0:1 (698 to 960 MHz) and 2.0:1 (1710 to 2700 MHz)

  H-plane (3 dB beam width): Omnidirectional

Mechanical Specifications

  Power: 3W

  Cable: 15-ft LMR 195

  RF connector: Type N (f); TNC (plug) available

  Mount style: Ceiling mount

  Radome: PC/ABS, UV stable, black

  Material substance compliance: RoHS compliant

  Operational temperature: 22 to 158F (30 to 70C)

  Storage temperature: 40 to 185F (40 to 85C)

  Environment: Indoor

  Dimensions (H x OD): 3.4 x 7.9 in. (87 x 200 mm)

ANT-4G-PNL-OUT-N*

Description: Cisco multiband panel outdoor 4G antenna

  Supports 3G and 4G solutions

  Supports bands

  Wall mount and mast mount

  Indoor and outdoor

  Dual type-N socket connector

Electrical Specifications

  Frequency ranges: 698 to 960 MHz and 1710 to 2700 MHz

  VSWR: 2.0:1 maximum

  Gain: 5.5 to 10.5 dBi (698 to 960 MHz) and 6.5 to 9.0 dBi (1710 to 2700 MHz)

  3 dB beam width (vertical plane): 55 to 70 degrees = 698 to 960 MHz, 53 to 98 degrees = 1710 to 2200 MHz, 60 to 70 degrees = 2200 to 2500 MHz, and 55 to 70 degrees = 2500 to 2700 MHz

  3 dB beam width (horizontal plane): 55 to 70 degrees = 698 to 960 MHz and 50 to 90 degrees = 1710 to 2200 MHz

  F/B ratio: > 15 dB, typical 20 dB = 698 to 960 MHz, and > 17 dB, typical 23 dB = 1700 to 2700 MHz

  Isolation: > 30 dB

  Polarization: Slant +/ 45 degrees

  Nominal impedance: 50 ohms

  Radiation pattern: Directional

Mechanical Specifications

  Mount style:Wall or mast mount

  Environment: Outdoor

  Connector: Dual type-N socket (direct connect or dual 12 in. (30 cm))

  Antenna length (height): 11.6 in. (2.95 cm)

  Temperature range (operating): 22 to 158F (30 to 70C)

  Storage temperature: 40 to 185F (40 to 85C)

  Wind rating: 160 km per hr

  IP rating: IP 54

  Radome: Polycarbonate, UV resistant, white

  Material substance compliance: ROHS compliant

CGR-LA-NM-NF*

Description: Cisco Lightning Arrestor

CGR-LA-NF-NF*

  Broadband operation

  DC continuity for outdoor powering

  Reversed installation

  Permanently installed gas capsule

  CGR-LA-NM-NF: male-to-female connector

  CGR-LA-NF-NF: female-to-female connector

Feature Description

  Arrestor Type: Gas discharge tube

  Main path connectors: Port 1: protected, N plug (male), Port 2: unprotected, N jack (female, bulkhead side)

  Impedance: 50 ohms

  Frequency range: 0 MHz to 5800 MHz

  Return loss: Greater than or equal to 20 dB

  Insertion loss: Less than or equal to 0.2 dB

  RF CW power: Less than or equal to 60 W

  Surge current handling capability: 10 single, multiple kA (test pulse 8/20 ms)

  Residual pulse energy: 250 microsecond typically (test pulse 4 kV 1.2/50 microsecond; 2kA 8/20 microsecond), main path (protected side)

  Operating temperature range: -40 to 185 F (-40 to 85 C)

  Waterproof rating: IP 67 (according to IEC 60529, data refer to the coupled state)

  Mounting and grounding: MH24 (bulkhead)

  Material

   Housing: brass

   Port 1 center contact: gold-plated brass

   Port 2 center contract: copper beryllium alloy



No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Cisco) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

No related products found.


L7: 3 | TM: 6 | LM: 13 | TY: 6 | T: 1657

About | Contact Us | Service & Support | Feedback | Policies | Secure login | Free signup! | FAQ | SiteMap
We accept the following with No surcharge on VISA, Mastercard and Paypal!
© Techbuy Pty Ltd 2000 - 2025 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
