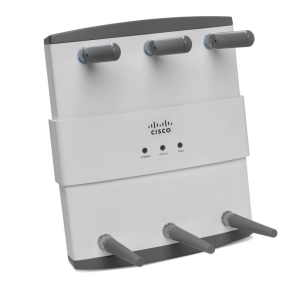

Cisco 1252AG Aironet Wireless Access Point
  • 1x 10/100/1000 Base-T Autosensing (RJ-45), 802.11a/g/n, MIMO, Dual-Band, 2.4GHz/5GHz, 6-Antennas, 2.4GHz RP-TNC(3), 5GHz RPC-TNC(3), WPA/ WAP2, 802.11i/X

IMG 1 of 1
No Longer Available
Part Number:
411941
(?) Brand:
Cisco Web Site
Manuf No:
AIR-AP1252AGNK9-RF
AIRAP1252AGNK9RF
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
AIRAP1252AGNK9RF, AIR-AP1252AGNK9-RF

Overview

Text Box: Performance with Investment Protection Up to nine times faster than 802.11a/g networks Backward-compatible with 802.11a/b/g clients M-Drive technology optimizes RF Flexible Platform Versatile RF coverage with external antennas Supports both 2.4-GHZ and 5-GHz modules Rugged Metal Housing and Extended Operating Temperature Ideal for factories, warehouses, and other industrial environments UL 2043 plenum rated for above ceiling installation options or suspended from drop ceilings Secure Interoperability 802.11n compliant Intel Connect with Centrino Certified Simplified Network Management Controller-based or standalone deployment options Secure Connections Supports rogue access point detection and denial of service attacks Management frame protection detects malicious users and alerts network administrators Greater Network Capacity Dynamic frequency selection 2 (DFS-2) compliant

The Cisco Aironet 1250 Series is an enterprise-class 802.11n access point designed for challenging RF environments. A dual-band rugged indoor access point, the 1250 Series supports data rates of up to 600 Mbps to provide users with reliable and predictable coverage for high-bandwidth data, voice, and video applications.

RF Excellence

Building on the Cisco Aironet heritage of RF excellence, the 1250 Series delivers industry-leading performance for secure and reliable wireless connections. Enterprise-class silicon and optimized radios deliver a robust mobilityexperience using Cisco M-Drive technology, which includes:

  • Client Link improves reliability and coverage for legacy clients
  • Band Select improves 5-GHz client connections in mixed client environments
  • Video Stream uses multicast to improve rich-media applications

All of these features ensure the best possible end-user experience on the wireless network.

Cisco also offers the industrys broadest selection of 802.11n antennas, delivering optimal coverage for a variety of deployment scenarios.

The Cisco Aironet 1250 Series is a component of the Cisco Unified Wireless Network, which can scale up to 18,000 access points with full Layer 3 mobility across central or remote locations on the enterprise campus, in branch offices, and at remote sites. The Cisco Unified Wireless Network is the industrys most flexible, resilient, and scalable architecture, delivering secure access to mobility services and applications and offering the lowest total cost of ownership and investment protection by integrating seamlessly with the existing wired network.

Power Options

With a Gigabit Ethernet (10/100/1000) interface, the Cisco Aironet 1250 Series offers the flexibility of inline as well as local power options. The Cisco Aironet 1250 Series Access Point can be powered by a Cisco Ethernet switch, a power injector, or a local power supply. The number of radio modules determines which Cisco Ethernet switch can power the Aironet 1250 Series Access Point.

Powering the Aironet 1250 Series Access Point with 802.3af Power over Ethernet

The Aironet 1250 Series Access Point with one RM1252 radio module installed requires 12.95W, which is within the 802.3af Power over Ethernet (PoE) standard. Any Cisco switch supporting 802.3af may be used to power the Aironet 1250 Series Access Point with one RM1252 radio module installed. This is ideal for businesses that chose to only deploy on a single frequency (2.4 GHz or 5 GHz). A single radio provides optimum performance with approximately 300 Mbps maximum PHY data rate. Customers who deploy dual-band, 802.11n radios and power the 1250 Series using standard 802.3af will have more reliable and predictable coverage than that provided by traditional 802.11a/g networks; however, operation will be limited to a single transmitter per radio with maximum PHY data rates of 150 Mbps instead of 300 Mbps per radio. Customers with a significant investment in 802.11 a/b/g client devices that have low-to-medium bandwidth needs but high-reliability requirements will benefit the most from this type of deployment scenario.

Powering the Aironet 1250 Series Access Point with Cisco Enhanced PoE

Cisco Enhanced PoE was designed for customers who want to install new PoE-enabled technologies that require greater than 15.4W per port to function at full capability, such as wireless technology based on the IEEE 802.11n standard. Cisco Enhanced PoE provides the full power requirements for dual-radio modules and eliminates the need to run an additional cabling drop or insert a separate power injector. Support for Enhanced PoE is currently available on a variety of Cisco Catalyst® switching platforms. For more information on Enhanced PoE.

Specifications

Part Numbers

Access point platform with pre-installed radio modules:

  AIR-AP1252AG-x-K9 802.11a/g/n 2.4/5-GHz Standalone AP; 6 RP-TNC

  AIR-AP1252G-x-K9 802.11g/n 2.4-GHz Standalone AP; 3 RP-TNC

  AIR-LAP1252AG-x-K9 802.11a/g/n 2.4/5-GHz Unified AP; 6 RP-TNC

  AIR-LAP1252G-x-K9 802.11g/n 2.4-GHz Unified AP; 3 RP-TNC

Individual components:

  AIR-AP1250= Standalone AP Platform (no radio modules); Spare

  AIR-LAP1250= Unified AP Platform (no radio modules); Spare

  AIR-RM1252A-x-K9= 802.11a/n 5-GHz Radio Module; 3 RP-TNC

  AIR-RM1252G-x-K9= 802.11g/n 2.4-GHz Radio Module; 3 RP-TNC

  AIR-AP1250MNTGKIT= 1250 Series Ceiling, Wall Mount Bracket kit- Spare

Eco-pack:

  AIR-LAP1252-x-K9-5 Eco-pack 802.11a/g/n 2.4/5 GHz Unified AP-5 qty (A, E, N Reg domains only)

  AIR-AP1252-N-K9-5 Eco-pack 802.11a/g/n 2.4/5 GHz Standalone AP-5 qty (N Reg domain only)

Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, please visithttps://www.cisco.com/go/aironet/compliance.

Software

  Cisco IOS Software Release 12.4(21a)JA or later (Standalone Mode)

  Cisco IOS Software Release 12.4(10b) JDD or later (Unified Mode)

  Cisco Unified Wireless Network Software Release 7.0 or later

802.11n Capabilities

  2x3 MIMO with two spatial streams

  Maximal Ratio Combining (MRC)

  20-and 40-MHz channels

  PHY data rates up to 300 Mbps

  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

  802.11 DFS (Bin 5)

  Cyclic Shift Diversity (CSD) support

Data Rates Supported

802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

802.11n data rates (2.4 GHz and 5 GHz):

MCS Index[1]

GI[2] = 800ns

GI = 400ns

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

0

6.5

13.5

7.2

15

1

13

27

14.4

30

2

19.5

40.5

21.7

45

3

26

54

28.9

60

4

39

81

43.3

90

5

52

108

57.8

120

6

58.5

121.5

65

135

7

65

135

72.2

150

8

13

27

14.4

30

9

26

54

28.9

60

10

39

81

43.3

90

11

52

108

57.8

120

12

78

162

86.7

180

13

104

216

115.6

240

14

117

243

130

270

15

130

270

144.4

300

Frequency Band and 20-MHz Operating Channels

A (A Regulatory Domain):

K (K Regulatory Domain):

  2.412 to 2.462 GHz; 11 channels

  2.412 to 2.472 GHz; 13 channels

  5.180 to 5.320 GHz; 8 channels

  5.180 to 5.320 GHz; 8 channels

  5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.640 GHz)

  5.500 to 5.620 GHz, 7 channels

  5.745 to 5.825 GHz; 5 channels

  5.745 to 5.805 GHz, 4 channels

C (C Regulatory Domain):

N (N Regulatory Domain):

  2.412 to 2.472 GHz; 13 channels

  2.412 to 2.462 GHz; 11 channels

  5.745 to 5.825 GHz; 5 channels

  5.180 to 5.320 GHz; 8 channels

  5.745 to 5.825 GHz; 5 channels

P (P Regulatory Domain):

  2.412 to 2.472 GHz; 13 channels

  5.180 to 5.320 GHz; 8 channels

E (E Reg Domain):

S (S Regulatory Domain):

  2.412 to 2.472 GHz; 13 channels

  2.412 to 2.472 GHz; 13 channels

  5.180 to 5.320 GHz; 8 channels

  5.180 to 5.320 GHz; 8 channels

  5.500 to 5.700 GHz, 8 channels

  5.745 to 5.825 GHz; 5 channels

I (I Regulatory Domain):

T (T Regulatory Domain):

  2.412 to 2.472 GHz, 13 channels

  2.412 to 2.462 GHz; 11 channels

5.180 to 5.320 GHz; 8 channels

  5.280 to 5.320 GHz; 3 channels

  5.500 to 5.700 GHz, 11 channels

5.745 to 5.825 GHz; 5 channels

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

Maximum Number of NonOverlapping Channels

2.4 GHz

5 GHz

  802.11b/g:

  802.11a:

   20 MHz: 3

   20 MHz: 21

  802.11n:

  802.11n:

   20 MHz: 3

   20 MHz: 21

   40 MHz: 9

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

Receive Sensitivity

802.11b

802.11g

802.11a

-90 dBm @ 1 Mb/s

-87 dBm @ 6 Mb/s

-86 dBm @ 6 Mb/s

-89 dBm @ 2 Mb/s

-86 dBm @ 9 Mb/s

-85 dBm @ 9 Mb/s

-87 dBm @ 5.5 Mb/s

-83 dBm @ 12 Mb/s

-82 dBm @ 12 Mb/s

-85 dBm @ 11 Mb/s

-82 dBm @ 18 Mb/s

-81 dBm @ 18 Mb/s

-81 dBm @ 24 Mb/s

-80 dBm @ 24 Mb/s

-80 dBm @ 36 Mb/s

-79 dBm @ 36 Mb/s

-75 dBm @ 48 Mb/s

-74 dBm @ 48 Mb/s

-74 dBm @ 54 Mb/s

-73 dBm @ 54 Mb/s

2.4-GHz

5-GHz

5-GHz

802.11n (HT20)

802.11n (HT20)

802.11n (HT40)

-86 dBm @ MC0

-85 dBm @ MC0

-85 dBm @ MC0

-85 dBm @ MC1

-84 dBm @ MC1

-84 dBm @ MC1

-84 dBm @ MC2

-83 dBm @ MC2

-83 dBm @ MC2

-83 dBm @ MC3

-82 dBm @ MC3

-79 dBm @ MC3

-80 dBm @ MC4

-79 dBm @ MC4

-76 dBm @ MC4

-75 dBm @ MC5

-74 dBm @ MC5

-71 dBm @ MC5

-74 dBm @ MC6

-73 dBm @ MC6

-70 dBm @ MC6

-73 dBm @ MC7

-72 dBm @ MC7

-69 dBm @ MC7

-86 dBm @ MC8

-85 dBm @ MC8

-85 dBm @ MC8

-85 dBm @ MC9

-84 dBm @ MC9

-84 dBm @ MC9

-84 dBm @ MC10

-83 dBm @ MC10

-83 dBm @ MC10

-83 dBm @ MC11

-82 dBm @ MC11

-79 dBm @ MC11

-80 dBm @ MC12

-79 dBm @ MC12

-76 dBm @ MC12

-75 dBm @ MC13

-74 dBm @ MC13

-71 dBm @ MC13

-74 dBm @ MC14

-73 dBm @ MC14

-70 dBm @ MC14

-73 dBm @ MC15

-72 dBm @ MC15

-69 dBm @ MC15

Maximum Transmit Power

2.4GHz

5GHz

  802.11b

  802.11a

   23 dBm with 1 antenna

   17 dBm with 1 antenna

  802.11g

  802.11n non-HT duplicate (802.11a duplicate) mode

   20 dBm with 1 antenna

   17 dBm with 1 antenna

  802.11n (HT20)

  802.11n (HT20)

   17 dBm with 1 antenna

   17 dBm with 1 antenna

   20 dBm with 2 antennas

   20 dBm with 2 antennas

  802.11n (HT40)

   17 dBm with 1 antenna

   20 dBm with 2 antennas

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

Available Transmit Power Settings

2.4GHz

5GHz

23 dBm (200 mW)

20 dBm (100 mW)

20 dBm (100 mW)

17 dBm (50 mW)

17 dBm (50 mW)

14 dBm (25 mW)

14 dBm (25 mW)

11 dBm (12.5 mW)

11 dBm (12.5 mW)

8 dBm (6.25 mW)

8 dBm (6.25 mW)

5 dBm (3.13 mW)

5 dBm (3.13 mW)

2 dBm (1.56 mW)

2 dBm (1.56 mW)

-1 dBm (0.78 mW)

-1 dBm (0.78 mW)

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

Antenna Connectors

  2.4-GHz: 3 RP-TNC connectors

  5-GHz: 3 RP-TNC connectors

Interfaces

  10/100/1000BASE-T autosensing (RJ-45)

  Management console port (RJ45)

Indicators

  Status LED indicates operating state, association status, error/warning condition, boot sequence, and maintenance status.

  Ethernet LED indicates activity over the Ethernet, status.

  Radio LED indicates activity over the radio, status.

Modularity

  Number of radio module slots: 2

  Available radio modules

Part Number

Description

Maximum per AP1250 platform

AIR-RM1252A-x-K9

2.4 802.11a/n-d2.0 5-GHz Radio Module; 3 RP-TNC

1

AIR-RM1252G-x-K9

802.11g/n-d2.0 2.4-GHz Radio Module; 3 RP-TNC

1

Dimensions (W x L x H)

  AP (without mounting bracket): 8.12 x 9.52 x 2.35 in. (20.62 x 24.18 x 5.97 cm)

  AP (with mounting bracket): 8.12 x 9.52 x 2.75 in. (20.62 x 24.18 x 6.99 cm)

Weight

  AP with 2 radios installed: 5.1 lbs (2.31 kg)

  AP chassis: 2.1 lbs (0.95 kg)

  2.4 GHz radio: 1.5 lbs (0.68 kg)

  5 GHz radio: 1.5 lbs (0.68 kg)

Environmental

Nonoperating (storage) temperature: -40 to 185F (-40 to 85C)

Operating temperature: -4 to +131F (-20 to +55C)

Operating humidity: 10 to 90 percent (noncondensing)

System Memory

  64 MB DRAM

  32 MB flash

Input Power Requirements

  AP1250: 36 to 57 VDC

  Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz

Powering Options

  Cisco Catalyst switch port capable of sourcing 20W or greater

  Cisco AP1250 Power Injector (AIR-PWRINJ4)

  Cisco AP1250 Local Power Supply (AIR-PWR-SPLY1)

  802.3af switch (AP1250 with single radio only)

Power Draw

  AP1250 with two RM1252 radio modules installed: 18.5W

  AP1250 with one RM1252 radio module installed: 12.95W

Note: For a 1250 Series Access Point with two radios, 18.5W is the maximum power required at the access point (powered device). When deployed using PoE, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable. This additional power may be as high as 1.5W, bringing the total system power draw (access point + cabling) to 20W. A similar consideration applies for a 1250 Series Access Point with one radio.

Warranty

Product purchased prior to January 1, 2010: Standard 90 Day

Product purchased on or after January 1, 2010: Limited Lifetime Warranty

Compliance

Standards

  Safety:

   UL 60950-1

   CAN/CSA-C22.2 No. 60950-1

   UL 2043

   IEC 60950-1

   EN 60950-1

  Radio approvals:

   FCC Part 15.247, 15.407

   RSS-210 (Canada)

   EN 300.328, EN 301.893 (Europe)

   ARIB-STD 33 (Japan)

   ARIB-STD 66 (Japan)

   ARIB-STD T71 (Japan)

   AS/NZS 4268.2003 (Australia and New Zealand)

   EMI and susceptibility (Class B)

   FCC Part 15.107 and 15.109

   ICES-003 (Canada)

   VCCI (Japan)

   EN 301.489-1 and -17 (Europe)

   EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC

  IEEE Standard:

   IEEE 802.11a/b/g, IEEE 802.11n, IEEE 802.11h, IEEE 802.11d

  Security:

   802.11i, Wi-Fi Protected Access 2 (WPA2), WPA

   802.1X

   Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

  EAP Type(s):

   Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)

   EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)

   Protected EAP (PEAP) v0 or EAP-MSCHAPv2

   Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST)

   PEAPv1 or EAP-Generic Token Card (GTC)

   EAP-Subscriber Identity Module (SIM)

  Multimedia:

   Wi-Fi Multimedia (WMM )

  Other:

   FCC Bulletin OET-65C

   RSS-102

Calculated Mean Time Between Failure (MTBF)

380,000 hours

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers (Cisco) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

No related products found.


L7: 6 | TM: 12 | LM: 13 | TY: 158 | T: 1958

About | Contact Us | Service & Support | Feedback | Policies | Secure login | Free signup! | FAQ | SiteMap
We accept the following with No surcharge on VISA, Mastercard and Paypal!
© Techbuy Pty Ltd 2000 - 2024 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
