All stock codes associated to this product
UAPACPRO, UAP-AC-PRO, 810354025389
Overview
Deploy the UniFi AC Pro AP indoors or outdoors, in wireless networks requiring maximum performance.
Sporting a weatherproof design, the UniFi AC Pro AP features simultaneous, dual-band, 3x3 MIMO technology and convenient 802.3af PoE/802.3at PoE+ compatibility. It is available in single- and five-packs*.
* Four- or five-packs do not ship with PoE adapters; we recommend powering the UniFi APs with the UniFi Switch instead.
Features
Easy Mounting
Sleek design for seamless integration into any environment (all accessories included).
LED
Unique LED provisioning ring or square provides administrator location tracking and alerts for each device.
Designed for the Great Outdoors
The UniFi AC Pro and UniFi AC Outdoor APs feature weatherproof casing designed specifically for outdoor applications.
Power over Ethernet (PoE)
Includes Power over Ethernet (PoE) functionality. Each single-pack includes a PoE adapter.

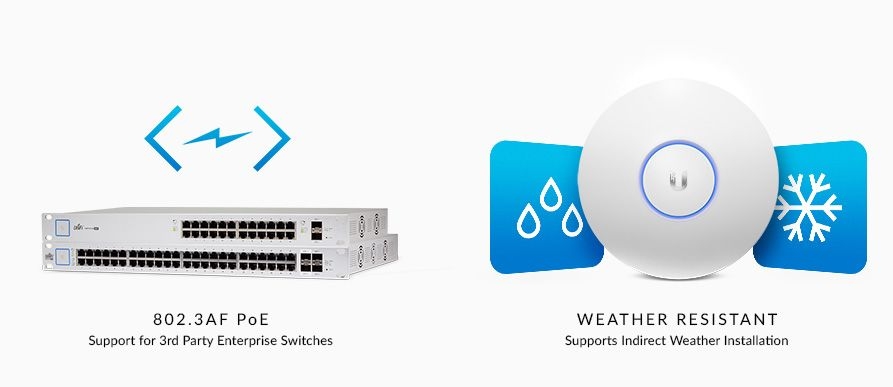

PoE Standards
The UniFi AC EDU, Pro, and Outdoor APs are compatible with an 802.3at PoE+ compliant switch, while the UniFi AC Pro AP can also use 802.3af PoE.

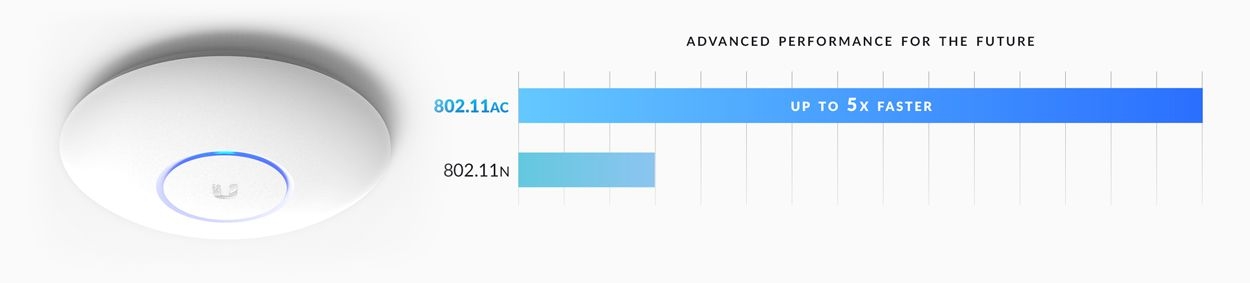

Up to 5X Faster with Dual-Radio 3x3 11AC MIMO Technology
The UniFi AC Pro AP supports simultaneous dual-band, 3x3 MIMO technology in the 5 and 2.4 GHz radio bands.
Designed for Optimal RF Performance
The newly redesigned UniFi Controller optimizes RF performance:
Versatile Design
The UniFi AC Pro AP is a gigabit, 802.3af-powered access point suitable for indoor or outdoor use.
Scalable Enterprise Wi-Fi Management
The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
Indoor AC Model Comparison Chart
Specifications
UniFi AP AC PRO
|
Dimensions
|
196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38")
|
Weight
With Mounting Kits
|
350 g (12.4 oz)
450 g (15.9 oz)
|
Networking Interface
|
Dual-Band Wi-Fi / Gigabit
Ethernet
|
Ports
|
Ports (2) 10/100/1000
Ethernet Ports
(1) USB 2.0 Port
|
Buttons
|
Reset
|
Power Method
|
Passive Power over Ethernet
(48V), 802.3af/803.2at Supported
(Supported Voltage Range: 44 to 57VDC)
|
Power Supply
|
48V, 0.5A PoE Gigabit Adapter*
* Only the single-pack of the UAP-AC-EDU includes a PoE
adapter.
|
Power Save
|
Supported
|
Maximum Power Consumption
|
9W
|
Maximum TX Power
2.4 GHz
5GHz
|
22 dBm
22 dBm
|
Antennas
|
(3) Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi
|
Wi-Fi Standards
|
802.11 a/b/g/n/ac
|
Wireless Security
|
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
|
BSSID
|
Up to Four Per Radio
|
Mounting
|
Wall/Ceiling (Kits
Included)
|
Operating Temperature
|
-10 to 70° C (14 to
158° F)
|
Operating Humidity
|
5 - 95%
Noncondensing
|
Certifications
|
CE, FCC, IC
|
Advanced Traffic Management
|
VLAN
|
802.1Q
|
Advanced QoS
|
Per-User Rate Limiting
|
Guest Traffic Isolation
|
Supported
|
WMM
|
Voice, Video, Best Effort,
and Background
|
Concurrent Clients
|
200+
|
Supported Data Rates (Mbps)
|
Standard
|
Data Rates
|
802.11a
|
6, 9, 12, 18, 24, 36, 48, 54 Mbps
|
802.11n
|
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
|
802.11ac
|
6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
|
802.11b
|
1, 2, 5.5, 11 Mbps
|
802.11g
|
6, 9, 12, 18, 24,
36, 48, 54 Mbps
|
