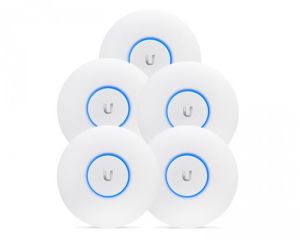

The Ubiquiti UAP-AC-PRO-5 UniFi Indoor/Outdoor 802.11ac Dual Radio PRO Access Point is designed for use in both indoor and outdoor environments. It features two radios, each with an antenna, for maximum coverage. The access point can be powered via an Ethernet cable or via a PoE injector (sold separately). It includes a mounting kit for easy installation. The Ubiquiti UAP-AC-PRO-5 UniFi Indoor/Outdoor 802.11ac Dual Radio PRO Access Point is a great choice for businesses or homes that need a high-performance, reliable, and versatile wireless solution.

The UniFi AC Pro AP features simultaneous, dual-band, 3x3 MIMO technology and convenient 802.3af PoE/802.3at PoE+ compatibility. It is available in single- and five-packs*. Sporting a weatherproof design, the UniFi AC Pro AP can be deployed indoors or outdoors, in wireless networks requiring maximum performance. * Four- or five-packs do not ship with PoE adapters; we recommend powering the UniFi APs with the UniFi Switch instead.

• 5X Faster with Dual-Radio 3x3 11AC MIMO Technology. The UniFi AC Pro AP supports simultaneous dual-band, 3x3 MIMO technology in the 5 and 2.4 GHz radio bands.
• PoE Standards.The UniFi AC EDU, Pro, and Outdoor APs are compatible with an 802.3at PoE+ compliant switch, while the UniFi AC Pro AP can also use 802.3af PoE.
• Power over Ethernet (PoE). Includes Power over Ethernet (PoE) functionality. Each single-pack includes a PoE adapter.
• Designed for the Great Outdoors. The UniFi AC Pro and UniFi AC Outdoor APs feature weatherproof casing designed specifically for outdoor applications.
• LED. Unique LED provisioning ring or square provides administrator location tracking and alerts for each device.
• Easy Mounting. Sleek design for seamless integration into any environment (all accessories included).

The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.

The UniFi AC Pro AP is a gigabit, 802.3af-powered access point suitable for indoor or outdoor use.

The newly redesigned UniFi Controller optimizes RF performance.

* Four- or five-packs do not ship with PoE adapters; we recommend powering the UniFi APs with the UniFi Switch instead.

Features







Indoor AC Model Comparison Chart





Specifications

UniFi AP AC PRO
Dimensions	196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38")
Weight With Mounting Kits	350 g (12.4 oz) 450 g (15.9 oz)
Networking Interface	Dual-Band Wi-Fi / Gigabit Ethernet
Ports	Ports (2) 10/100/1000 Ethernet Ports (1) USB 2.0 Port
Buttons	Reset
Power Method	Passive Power over Ethernet (48V), 802.3af/803.2at Supported (Supported Voltage Range: 44 to 57VDC)
Power Supply	48V, 0.5A PoE Gigabit Adapter* * Only the single-pack of the UAP-AC-EDU includes a PoE adapter.
Power Save	Supported
Maximum Power Consumption	9W
Maximum TX Power 2.4 GHz 5GHz	22 dBm 22 dBm
Antennas	(3) Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi
Wi-Fi Standards	802.11 a/b/g/n/ac
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID	Up to Four Per Radio
Mounting	Wall/Ceiling (Kits Included)
Operating Temperature	-10 to 70° C (14 to 158° F)
Operating Humidity	5 - 95% Noncondensing
Certifications	CE, FCC, IC
Advanced Traffic Management
VLAN	802.1Q
Advanced QoS	Per-User Rate Limiting
Guest Traffic Isolation	Supported
WMM	Voice, Video, Best Effort, and Background
Concurrent Clients	200+
Supported Data Rates (Mbps)
Standard	Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac	6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
