Overview

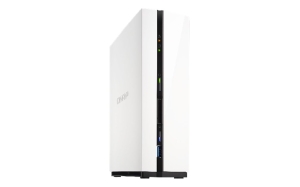

The TS-128 is a lightweight, easy to use and feature-rich networked storage
center for backup, synchronization, remote access, and home entertainment. Its
energy-efficient and budget-friendly, ideal for home users to start their
personal cloud and stay connected to files with full control. See how TS-128 can
make your digital life easier, simpler and more convenient.
- Organize your content and backups in one centralized location
- Synchronize files between computers, tablets, and mobile devices
- Collect, enjoy, and share your large photo, music, and video collection
- Stream your multimedia library via DLNA to other devices and your TV
- Access, manage and enjoy all your files with your tablets and smartphones
- Enjoy the App Center with hundreds of install-on-demand apps to increase
diverse applications
Dual-core processor for high performance
Powered by an ARM v7 1.1GHz dual-core processor with 1GB DDR3 RAM, the TS-128
delivers an average of 111 MB/s reading and 92 MB/s writing speed for smooth
data transmission, concurrent access from multiple users, and home applications.
The high-performance and capable TS-128 is ideal for serving as a multimedia
center as you can back up or download files without impacting the TS-128s
performance.
Test Environment:
NAS:
OS: QTS 4.2.0
HDD: Seagate ST1000NM0033 1TB
Volume type: TS-128 (Single), Seagate ST1000NM0033 1 TB (SN03)
Network environment: direct connection between NAS and PC, 1GbE LAN (MTU
1500)
Client PCs:
Intel® Core™ i7-4790 3.60GHz CPU; DDR3-1600 16GB; Seagate 500GB ST500DM002;
Intel Gigabit CT (MTU 1500);Windows® 7Professional 64bit SP1
IOMeter configuration: Transferring 8GB file continuously to/from 2 PCs for 3
minutes. Block size: 64KB for SMB2.0 (Throughput)
Light, handy, and tool-less design
The TS-128 features a mini-tower design that takes less desktop space, making
it suitable for homes and small/home offices. Compared with a traditional NAS
cooling fan, the TS-128 houses a compact and quiet exhaust that helps dissipate
heat with less noise and dust. With the tool-less design*, you can easily remove
the TS-128’s side cover to add or replace hard drives. The TS-128 is a light,
handy and functional NAS that fits snugly into your digital lifestyle.
Cross-platform file sharing, centralized data storage
The TS-128 supports SMB/CIFS, NFS, and AFP protocols for file sharing across
Windows®, Mac®, Linux®/UNIX® networks. Data, logs and ISO images of CDs and DVDs
can be centrally stored on the TS-128 and protected by an integrated antivirus
solution.
Specifications
|
CPU |
ARM v7 1.1 GHz
Dual-core |
|
System
memory |
1GB DDR3
RAM |
|
Flash
Memory |
4
GB |
|
Hard Disk
Drive |
1 x 3.5" SATA 3Gb/s
HDDs |
|
LAN
Port |
1 x Gigabit RJ-45
Ethernet port |
|
USB
Port |
1 X USB 3.0
(Front) |
|
1 X USB 2.0
(Rear) |
|
LED
Indicators |
HDD, LAN, Status,
USB |
|
Buttons |
Power/Status, USB
One-Touch-Backup, reset |
|
Alarm
Buzzer |
System
warning |
|
Form
Factor |
Mini-tower |
|
Dimensions |
187.7(H) x 60(W) x
125(D) mm |
|
7.36(H) x 2.36(W) x
4.92(D) inch |
|
Weight |
Net: 0.56 kg
(1.23lbs) |
|
Gross: 1.74 kg
(3.84lbs) |
|
Power
Consumption |
HDD standby5.03W |
|
(HDD standby
mode) |
In operation8.96W |
|
(with 1 x 2TB HDDs
intalled) |
|
Sound
Level* |
Sound pressure (LpAm):
15.7 dB(A) |
|
Temperature &
Humidity |
0 - 40 C5-95%
RH |
|
Power
Supply |
External Power Adapter
36W, 100-240V |
|
Fan |
Yes |
