Ubiquiti POE-24-12W-G 24V / 12W Gigabit PoE Injector
  • 1-Port 10/100/1000 Ethernet LAN, RJ45 Shielded Socket, Remote Reset, Reset Button, 24VDC @ 0.5A

IMG 1 of 1
No Longer Available
Part Number:
412081
(?) Brand:
Ubiquiti
Manuf No:
POE-24-12W-G
POE2412WG
Shipping Weight:
0.2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
POE-24-12W-G, POE2412WG, NHUPOE2412WG, NHU-POE-24-12WG, 810354021190, 810354023002
Overview

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:

  • airFiber
  • airMAX
  • EdgeMAX
  • mFi
  • UniFi AP
  • UniFi Video / airVision

                 * Check product specifications to verify PoE compatibility.

Features

Device Protection
PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.


Ubiquiti PoE Adapters provide a variety of features to help
protect your PoE devices:

  • Surge protection
  • Clamping protection
  • Maximum surge discharge
  • Peak pulse current
  • AC cable with earth ground

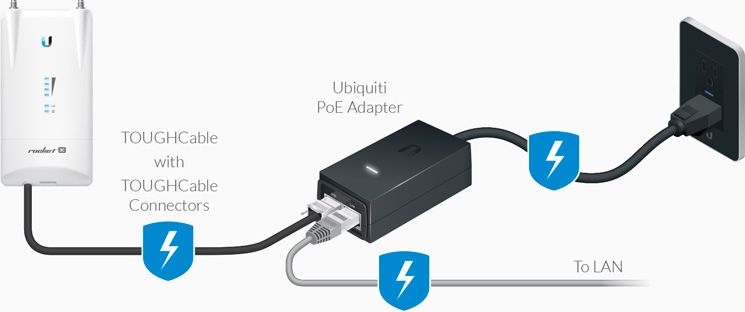

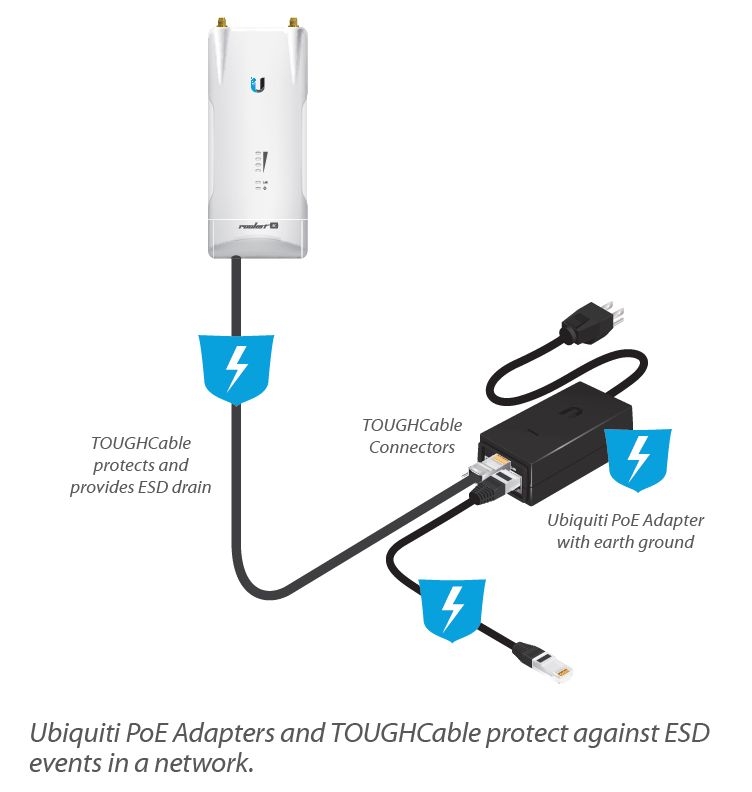

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable, and TOUGHCable Connectors.



Potential of ESD





Protection Against ESD



Specifications

POE-24-12W-G

Dimensions

87 x 44 x 29 mm

(3.43 x 1.73 x 1.14")

Weight

99.4 g (3.51 g)

Output Voltage

24VDC @ 0.5A

LAN Activity Indicator

No

Gigabit LAN Port

Yes

Remote Reset Capability

Yes

Reset Button

Yes

Input Voltage

90-260VAC @ 47-63 Hz

Input Current

0.3A @ 120VAC,

0.2A @ 240VAC

Inrush Current

<30A Peak @ 120VAC,

<60A Peak @ 230VAC

Efficiency

75+%

Output Ripple

1% Max.

Switching Frequency

50 kHz

Line Regulation

± 1%

Load Regulation

± 3%

2-Pair Powering

Pins 4, 5 (+) and Pins 7, 8 (-)

Operating Temperature

0 to 40° C (32 to 104° F)

Storage Temperature

-30 to 70°C (-22 to 158° F)

Operating Humidity

35 to 95% Noncondensing

AC Connector

IEC-320 C6

Data IN / POE

RJ45 Shielded Socket

Surge Protection

Difference and Common Mode

Clamping Protection

11V Data, 60V Power

Max. Surge Discharge

1500A (8/20 µs) Power

Peak Pulse Current

36A (10/1000 µs) Data

Shunt Capacitance

<5 pF data

Response Time

<1 ns

Compliance

IEC 60950-1:2005+A1

UL60950-1

EN55022:2010, EN55024:2010

FCC Class B

AC Cable with Earth Ground

USA, EU, AR, BR, UL, CCC, Mexico



No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
