Overview
Innovative Mounting Bracket
Simple to use mounting bracket enables vertical or horizontal orientation of
ports.

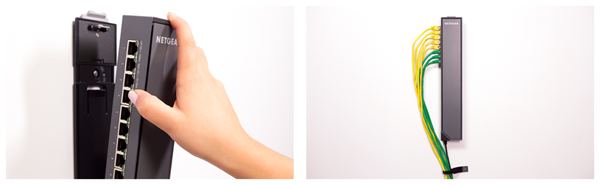

To install, just mount the bracket onto a wall, desk, table leg/pole, or
virtually anywhere, and "Click" the switch into the bracket.
Your ports and cables where you want them
Today's networks have increasing numbers of devices attached to them, both
wired and wireless. As wired devices proliferate, it can be difficult to easily
and neatly place networked ports where you want them.
NETGEAR ProSAFEWeb
Managed Click Switches address this issue with an innovative and thoughtful
hardware design, including the "Virtually Anywhere" flexible 1-2-3-4 Click
mounting system. The new ProSAFE Web Managed Click Switches are Gigabit Ethernet
switches with an industry-first, bracket mounting system for easy installation.
Available in either 8- or 16-Gigabit port configurations, their slim design and
internal power supplies enables you to organize wires, secure cables, eliminate
bulky power adapters, and improve the overall appearance of wiring closets,
training facilities, lab benches, conference rooms, and entertainment centers
that require multiple connected devices.
"Virtually Anywhere" Innovative 1-2-3-4 Mounting System
The innovative 1-2-3-4 mounting system gives you the flexibility to place the
Web Managed Click Switch in locations where other switches will not go. Whether

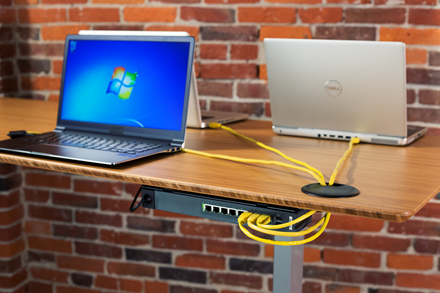

it's directly on a wall, strapped to a pole, under the meeting table in a
conference room or in a server closet, vertical or horizontal, flat or
perpendicular, the Web Managed Click Switch's unique mounting system allow you
to control exactly how and where your ports and cables are deployed.
NETGEAR ProSAFE Web Managed Click Switch Family

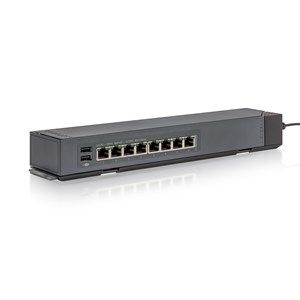

The Web Managed Click Switches GSS108E (8-port) and GSS116E (16-port) feature
an innovative and flexible mounting bracket, making it easy to mount the Web
Managed Click Switches vertically and horizontally, on a wall, under a desk, or
strapped to a pole, flat or perpendicular - allowing you to put your ports where
and how you need them! Watch the video to the left for more information.
Web Managed Switch Networking Features
The Web Managed Click Switches can go beyond plug n' play connectivity with
additional ProSAFE Web Managed Switch networking features, allowing businesses
to segment the network with VLANs or prioritize voice and video traffic with
QoS. IGMP Snooping allows for optimized multimedia delivery and port trunking
(GSS116E only) adds redundancy to uplinks and servers. Setup and configuration
is simple using the web browser-based configuration GUI
Features
Hardware

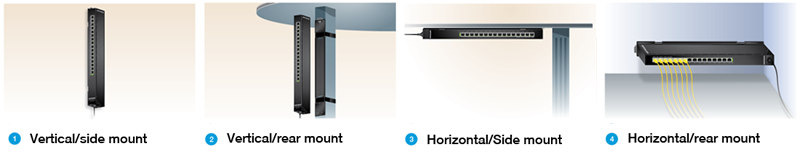

- Virtually Anywhere" 1-2-3-4 Click Mounting system allows
for:
1. Vertical/side mount
2. Vertical/rear mount
3. Horizontal/side mount
4. Horizontal/rear mount
- Multi-directional power cable can be routed outwards or downwards
- 2 Quick access USB charging ports for tablets or smartphones
- Rugged reinforced plastic (8-port) and metal (16-port) case
- Internal power supply (simple power cord from switch to outlet)
- LED lights can be turned off for non-distracting placement next to a TV
- Fanless for silent operation
Traffic Manager
- Auto-negotiation of speed and duplex modes
- 802.3x Flow Control
- DHCP client
- Dynamic MAC address management
- IEEE 802.1Q-based or port-based VLAN
- QoS based on WRR, strict priority, or both
- Port-based and IEEE 802.1p-based QoS
- QoS based on ToS (Type-of-Service)
- DSCP support
- Rate limiting
Multicast Efficiency
- IGMP snooping, v1, v2 and v3
- IGMP snooping querier (16 and 24 port models only)
- Blocking of unknown multicast traffic
- Act as static multicast router port
Link Aggregation (GSS116E only)
- IEEE 802.3ad - Static LAGs
- 2 LAGs with max 8 members in each LAG
Reliability, Performance and Troubleshooting
- Port mirroring both on ingress and egress traffic
- Jumbo frame support
- Broadcast storm control
- Cable diagnostics
- Loop detection
- DoS prevention (GSS116E Only)
- Energy Efficient Ethernet (IEEE 802.3az) compliant
Switch Management
- Advanced configuration and management using web browser-based GUI
- Manage or deploy multiple switches using ProSAFE Plus Utility (requires
Windows PC)
- Firmware Upgrade through ProSAFE Plus Utility (TFTP)
- Configuration upload (to Server)
- System password protection
NETGEAR Warranty
- This product is backed by a NETGEAR ProSAFE® Lifetime
Hardware Warranty.
- Lifetime Next Business Day Hardware Replacement. Click here for
coverage, availability and terms and conditions.
- ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote
diagnostics performed by our technical experts for prompt resolution of
technical issues). ProSUPPORT coverage can be extended by purchasing one,
three, or five year contracts.
- ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. (Remote
diagnostics performed by our technical experts for prompt resolution of
technical issues).
Model
Description |
- 16-port
Gigabit Click Switch
|
Gigabit
Ports |
|
|
USB Charging
Ports |
|
|
Max MAC
entries |
|
|
Buffer
Size |
|
|
VLAN (Number
Supported) |
|
|
Number of LAGs &
# of members |
- 2
LAGs with max 8 members in each LAG
|
Supported Multicast
Groups |
|
|
Auto
Denial-of-Service Prevention |
|
|
Port
Trunking |
|
|
Max Number of Source
Ports Allowed (Many to 1) |
|
|
LED Lights Off for
Stealth Operation |
|
|
Internal/External
Power Supply |
|
|
Max Power
Consumption (Watts) |
|
|
Number of
FANs |
|
|
Acoustic Noise Level
@25C (dBA) |
|
|
Operating
Temperature |
|
|
MTBF |
|
|
Weight
(kg) |
|
|
Dimensions (WxDxH)
mm |
|
|
Case
Material |
|
|
Electromagnetic
Compliance (A or B) |
|
|
Networking
