All stock codes associated to this product
UAPIW, UAP-IW, 810354025471
Overview
The UAP-IW is ideal for retrofitting an existing in-wall wired Ethernet
jack to a wireless access point.
It also provides one RJ45 data port and one PoE port to connect devices
like a VoIP phone.

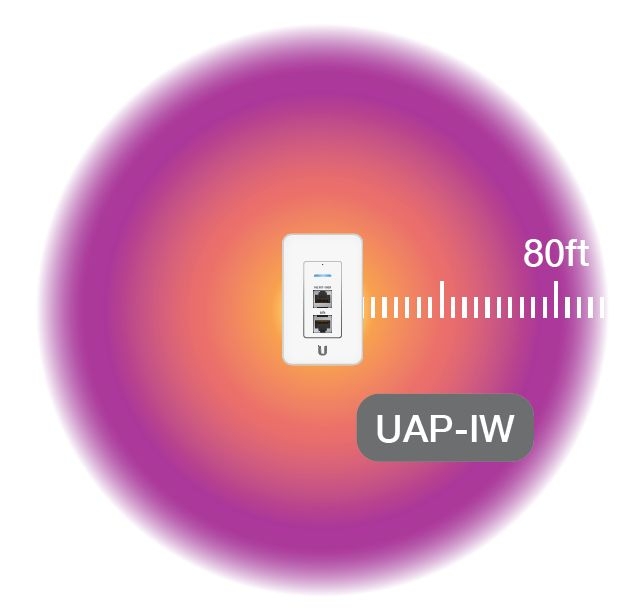

The UAP-IW is capable of speeds of up to 150 Mbps with a range of up to 25
m (82 ft).
Features
Easy Mounting
Sleek design for seamless integration into any environment (all
accessories included).

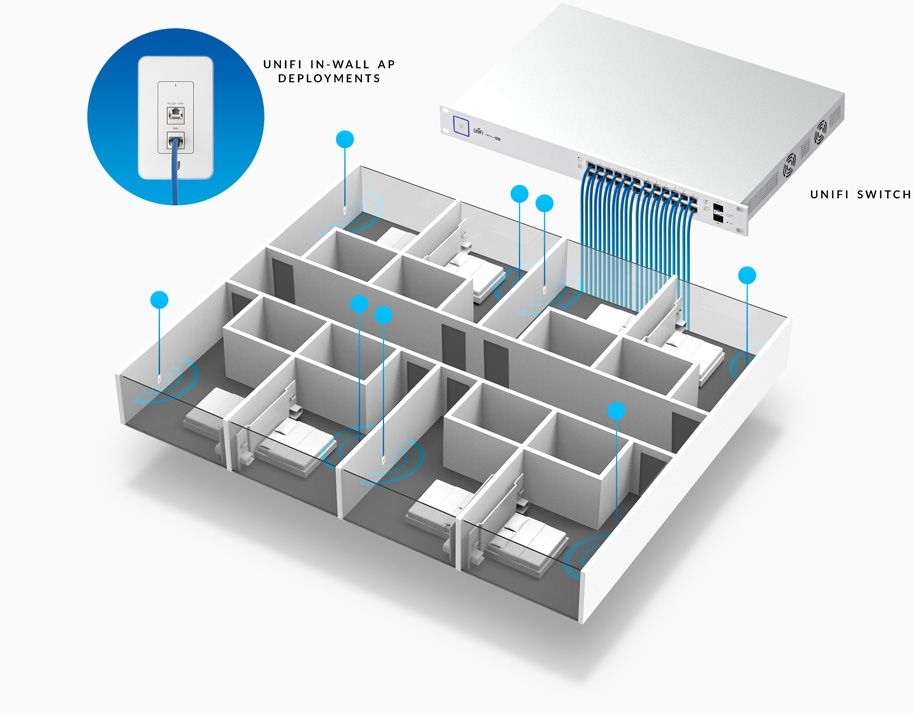

Instant Deployment
Transform any existing Ethernet outlet into a versatile UniFi AP - no
additional wiring needed.
Design
Aesthetic industrial design with a unique LED provisioning ring or square,
which provides administrator location tracking and alerts for each device.
Power over Ethernet (PoE)
The UAP-IW can be powered by a UniFi Switch. The UAP-IW cannot be powered
by a passive PoE source such as a PoE injector or the TOUGHSwitch.

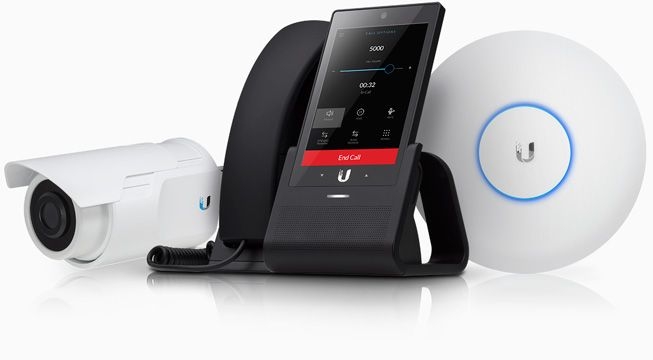

Versatile Data and PoE Output
An integrated PoE passthrough port conveniently connects and powers a
security camera, VoIP phone, or high-end AP.

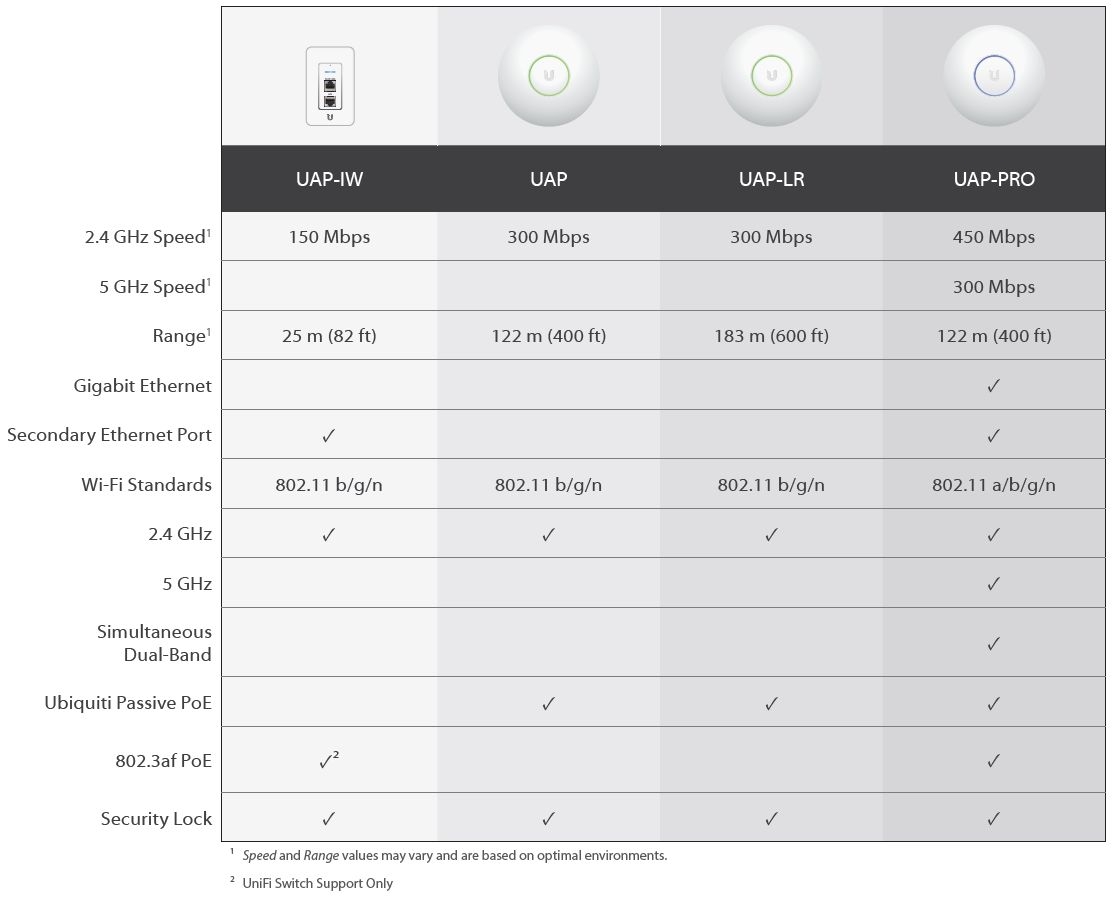

Indoor Model Comparison Chart
Specifications
| UniFi AP In-Wall |
| Dimensions |
114.6 x 70.6 x 28.5 mm (4.51 x 2.78 x
1.12 in) |
| Weight |
117 g (4.127 oz) |
| Networking Interface |
(3) 10/100 Ethernet Ports |
| Buttons |
Reset |
| Operating Band |
2.4 GHz |
| Antenna Gain |
1 dBi |
| Wi-Fi Standards |
802.11 b/g/n |
| Power Method |
UniFi Switch |
| PoE Out |
48V Pass-Through (Pins 1, 2+; 3, 6-) |
| Maximum Power Consumption |
6W |
| Maximum TX Power |
17 dBm |
| BSSID |
Up to Four Per Radio |
| Power Save |
Supported |
| Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2,
TKIP/AES) |
| Certifications |
CE, FCC, IC |
| Mounting |
1-Gang Electrical Wall Box (Not
Included) |
| Operating Temperature |
-10 to 70° C (14 to 158° F) |
| Operating Humitidy |
5 to 95% Non-Condensing
|
| Advanced Traffic Management |
| VLAN |
802.1Q
|
| Advanced QoS |
Per-User Rate Limiting
|
| Guest Traffic Isolation |
Supported
|
| WMM |
Voice, Video, Best Effort, and
Background
|
| Concurrent Clients |
100+
|
| Supported Data Rates (Mbps) |
| Standard |
Data Rates
|
| 802.11n |
6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT
20/40)
|
| 802.11b |
1, 2, 5.5, 11 Mbps
|
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps
|
Networking
