All stock codes associated to this product
USGAU, USG-AU, NHUUSG, NHU-USG, 810354020803, 817882022996

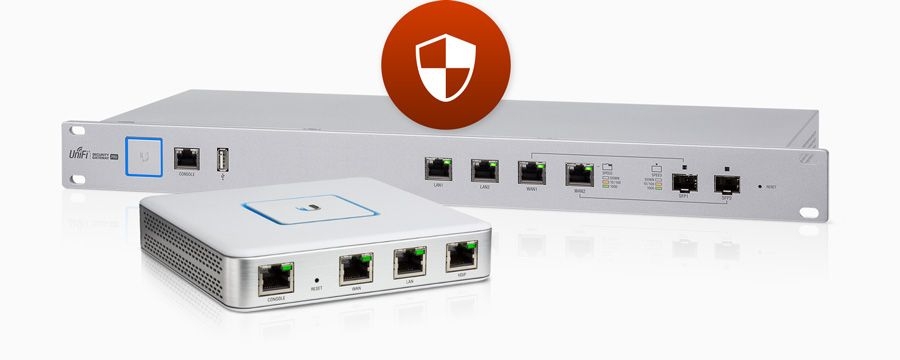

Ubiquiti UniFi Security Gateway (USG)
The UniFi Security Gateway extends the UniFi Enterprise System to provide cost-effective, reliable routing and advanced security for your network.
It combines reliable security features with high-performance routing technology in a cost-effective unit.

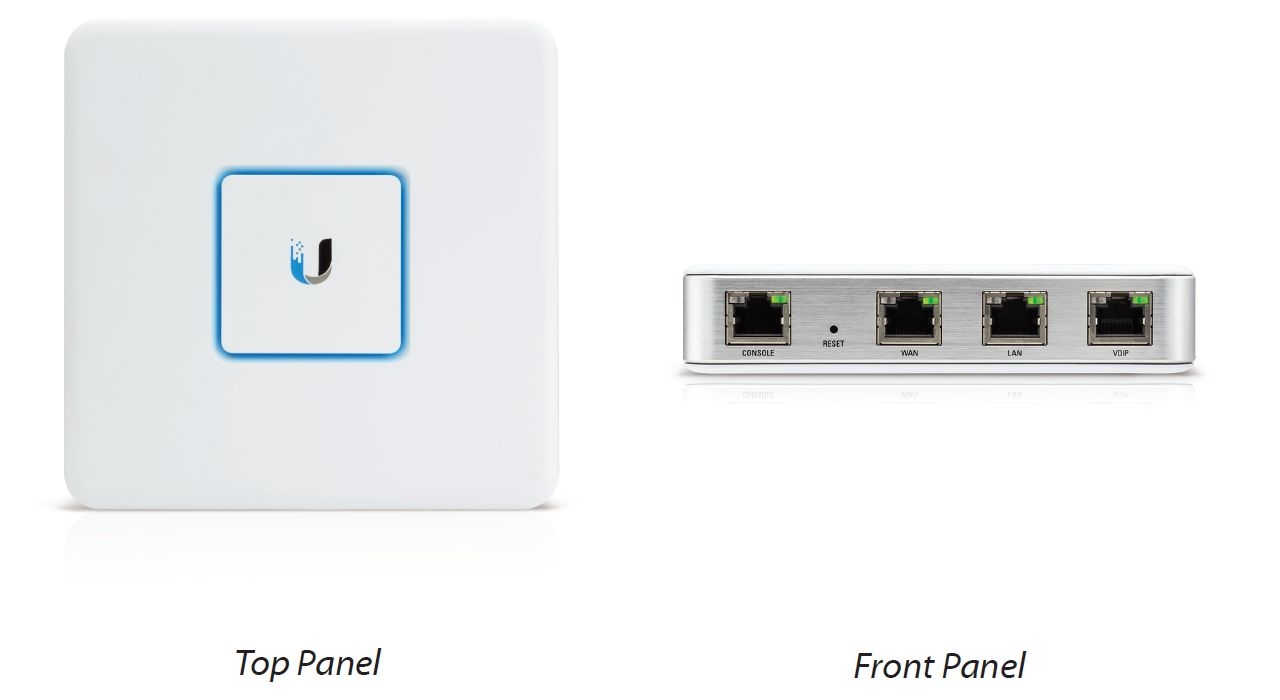

The USG features a compact form factor and fanless operation for discreet integration.
- (3) 10/100/1000 RJ45 Ports*
- (1) RJ45 Serial Console Port
- Quiet, Fanless Operation
- Wall-Mounting Capability
- Layer 3 Forwarding Performance
- Packet Size of 64 Bytes: 1,000,000 pps
- Packet Size of 512 Bytes or Larger: 3 Gbps (Line Rate)
* VOIP port is available for port remapping in UniFi v5.
Features
Powerful Firewall Performance
The UniFi Security Gateway offers advanced firewall policies to protect your network and its data.

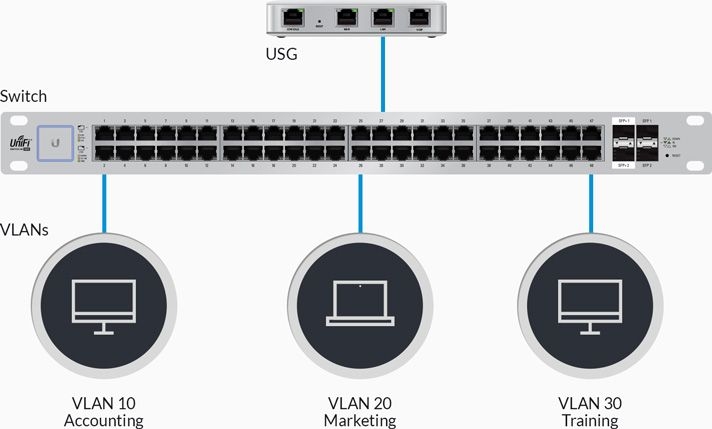

Convenient VLAN Support
The UniFi Security Gateway can create virtual network segments for security and network traffic management.

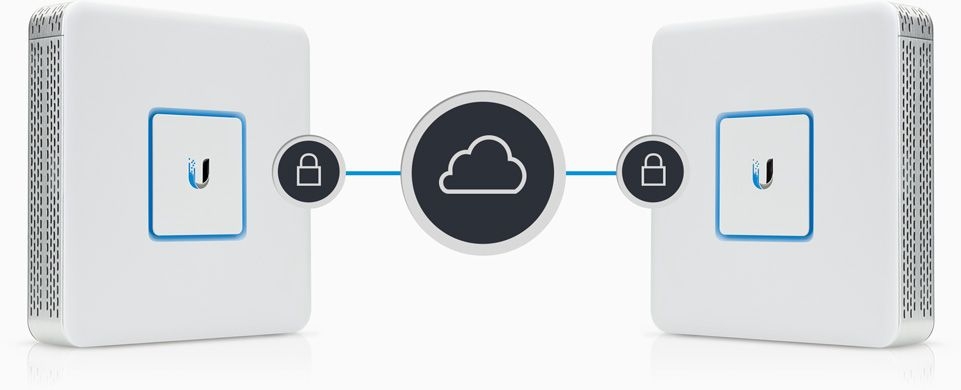

VPN Server for Secure Communications
A site-to-site VPN secures and encrypts private data communications traveling over the Internet.
QoS for Enterprise VOIP
Top QoS priority is assigned to voice/video call traffic for clear calls and lag-free, video streaming.
Specifications
| UniFi Security Gateway |
| Dimensions |
135 x 135 x 28.3 mm (5.32 x 5.32 x 1.11") |
| Weight |
366 g (4.127 oz) |
Networking Interfaces
Serial Console Port
Data Ports |
(1) RJ45 Serial Port
(3) 10/100/1000 Ethernet Ports
|
Layer 3 Forwarding Performance
Packet Size: 64 Bytes
Packet Size: 512 Bytes or Larger |
1,000,000 pps
3 Gbps (Line Rate) |
LEDs
System
Serial Console Port
Data Ports
|
Status
Power
Speed/Link/Activity |
| Power Supply |
12VDC, 1A Power Adapter (Included) |
| Power Input |
9 to 24VDC, Supported Voltage Range |
| Maximum Power Consumption |
7 W |
Processor
|
Dual-Core 500 MHz
MIPS64 with Hardware Acceleration for Packet Processing |
| System Memory |
512 MB DDR2 RAM |
| Certifications |
CE, FCC, IC |
| Wall-Mountable |
Yes |
| Operating Temperature |
-10 to 45° C (14 to 113° F) |
| Operating Humitidy |
10 to 90% Non-Condensing
|
*VOIP port is available for port remapping in UniFi v5.
