IMG 1 of 5
No Longer Available

Part Number:
412787
(?) Brand:
Manuf No:
USG-PRO-4
USGPRO4
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
USGPRO4, USG-PRO-4, NHUUSGPRO4, NHU-USG-PRO-4, 810354021572, 817882023030

Ubiquiti UniFi Security Gateway Pro (USG-PRO-4)

The Ubiquiti USG-PRO-4 UniFi Security Gateway Pro is a powerful security gateway that offers advanced firewall, VPN, and routing features. It is designed to provide reliable, high-performance security for enterprise networks. The USG-PRO-4 features four Gigabit Ethernet ports, two USB ports, and a serial console port. It also supports multiple VLANs and high-availability failover.

The UniFi Security Gateway Pro (USG-PRO-4) is a powerful, cost-effective router that extends the UniFi Enterprise System while providing reliable routing and advanced security features for your network. With optional SFP ports for fiber connectivity, it can also support backhaul applications.

The Ubiquiti UniFi Security Gateway Pro (USG-PRO-4) is a rack-mountable network security appliance that offers advanced firewall, routing, and network switching capabilities. The USG-PRO-4 has two 10/100/1000 RJ45 ports, two 10/100/1000 RJ45/SFP combination ports, and one RJ45 serial console port. The USG-PRO-4 can handle a packet size of 64 bytes at 2.4 million packets per second and a packet size of 512 bytes or larger at 4 Gbps (line rate).

The Ubiquiti UniFi Security Gateway Pro (USG-PRO-4) is a powerful security gateway with optical fibre connectivity and rackmount design. It offers advanced firewall policies to protect your network and its data, as well as convenient VLAN support for security and network traffic management.

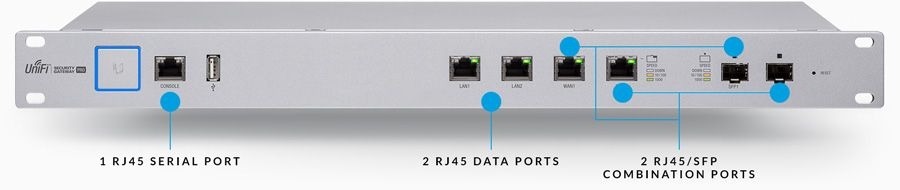

  • (2) 10/100/1000 RJ45 Ports
  • (2) 10/100/1000 RJ45 / SFP Combination Ports
  • (1) RJ45 Serial Console Port

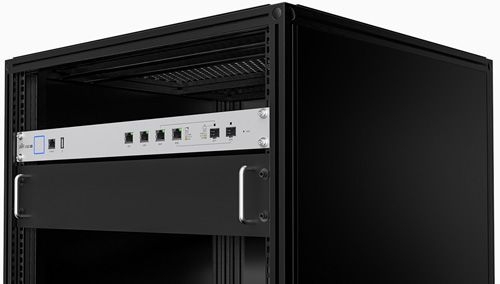

  • Rack-Mounting Capability
  • Layer 3 Forwarding Performance
  • Packet Size of 64 Bytes: 2,400,000 pps
  • Packet Size of 512 Bytes or Larger: 4 Gbps (Line Rate)











Specifications

UniFi Security Gateway Pro
Dimensions 484 x 44 x 164 mm (19.06 x 1.73 x 6.46")
Weight 2.3 kg (5.07 lb)
Networking Interfaces
 Serial Console Port
 Data Ports


(1) RJ45 Serial Port
(2) 10/100/1000 RJ45 Ports
(2) 10/100/1000 RJ45/SFP Combination Ports
Layer 3 Forwarding Performance
 Packet Size: 64 Bytes
 Packet Size: 512 Bytes or Larger

1,000,000 pps
3 Gbps (Line Rate)
LEDs
 System
 Data Ports

Status
Speed/Link/Activity
Power Supply Internal AC/DC Power Adapter, 60W (24V, 2.5A)
Power Input 110 - 240VAC
Maximum Power Consumption 40 W
Processor

Dual-Core 1 GHz
MIPS64 with Hardware Acceleration for Packet Processing
System Memory 2 GB DDR3 RAM
On-Board Flash Storage 4 GB
Certifications CE, FCC, IC
Rackmountable Yes
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humitidy 10 to 90% Non-Condensing

No additional files, specification sheets, guides or documentation found for product.
