Overview
- Versatile Connectivity - Ethernet WAN and USB ports, the VR900 is fully
compatible with VDSL2/ADSL2+/ADSL2/ADSL standard, fiber/cable access and 3G/4G
USB dongles
- Superfast Wi-Fi 600Mbps on 2.4GHz + 1300Mbps on 5GHz
- Maximum Range 3 dual band detachable antennas provide maximum
Omni-directional wireless coverage and reliability
- 1GHz Dual-core Processor - Ensures no interruption while processing
multiple wired or wireless tasks simultaneously
- Beamforming Technology - Improves wireless range and performance on both
2.4GHz and 5GHz band

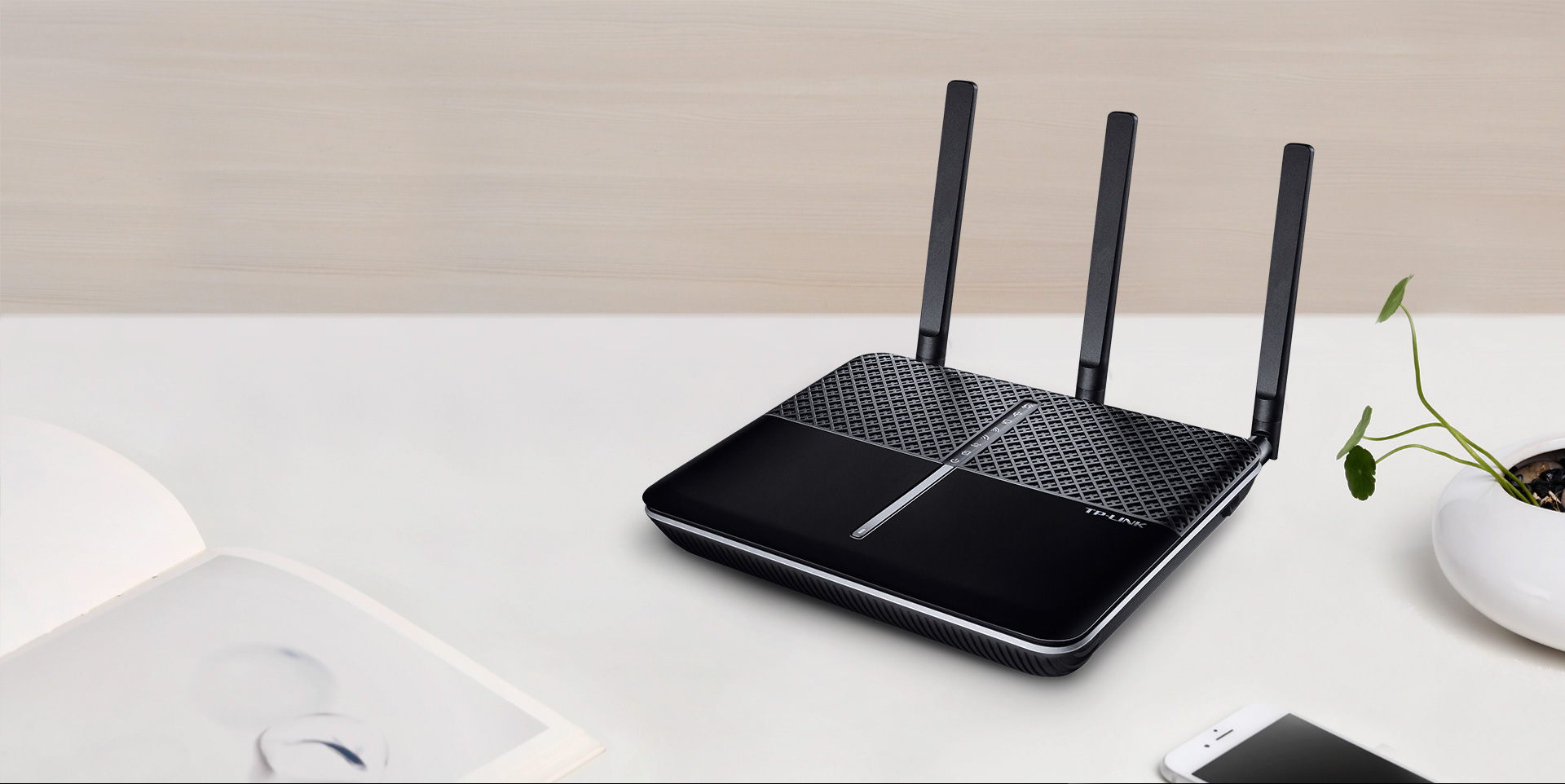

VDSL with 1.9Gbps Wi-Fi
The Ultimate Buffer Breaker
AC 1900 Wireless Gigabit VDSL/ADSLModem Router
Hop on the Interet Fast Lane with 1.9Gbps Wi-Fi
The Archer VR900 makes full use of its dual band Wi-Fi abilities, reaching
speeds of up to 600Mbps on the 2.4GHz band and 1300Mbps on the 5GHz band. Enjoy
a total speed of up to 1.9Gbps to eliminate buffering from your HD streams and
lag from online games.
The two wireless bands are separated in two dedicated Wi-Fi networks,
supporting more devices while reducing signal interference, to deliver a stable
connection for every wireless device in your home.

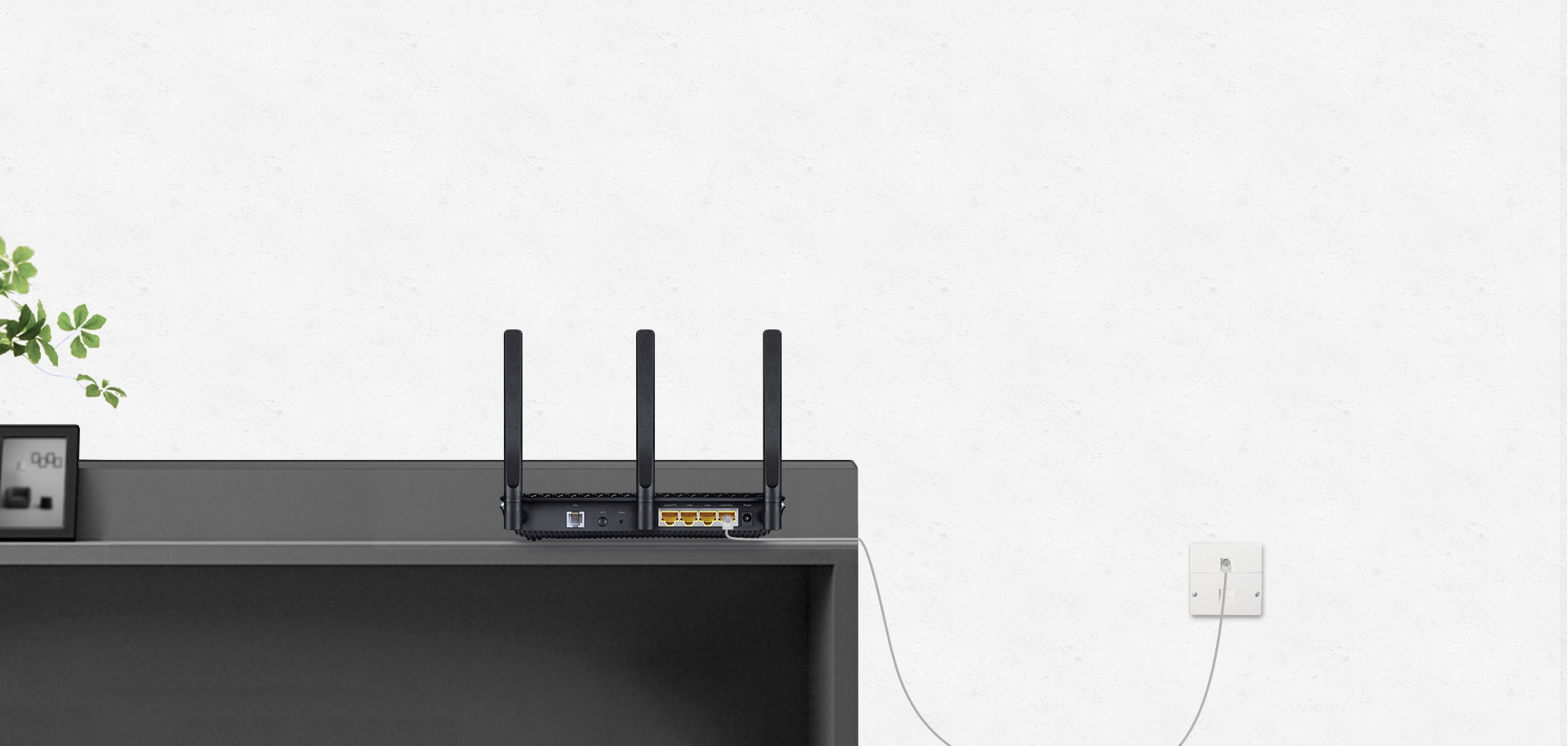

Breaking VDSL Broadband Speeds
Replace both your last-gen modem and Wi-Fi router with The Archer VR900, a
two-in-one advanced machine. Built with advanced VDSL technology, it delivers
broadband speeds of up to 100Mbps, almost five times faster than the previous
ADSL2+. In case you don't have VDSL2 yet, an intergrated DSL port supports all
standard DSL connections, including VDSL2, ADSL2+, ADSL2, ADSL.

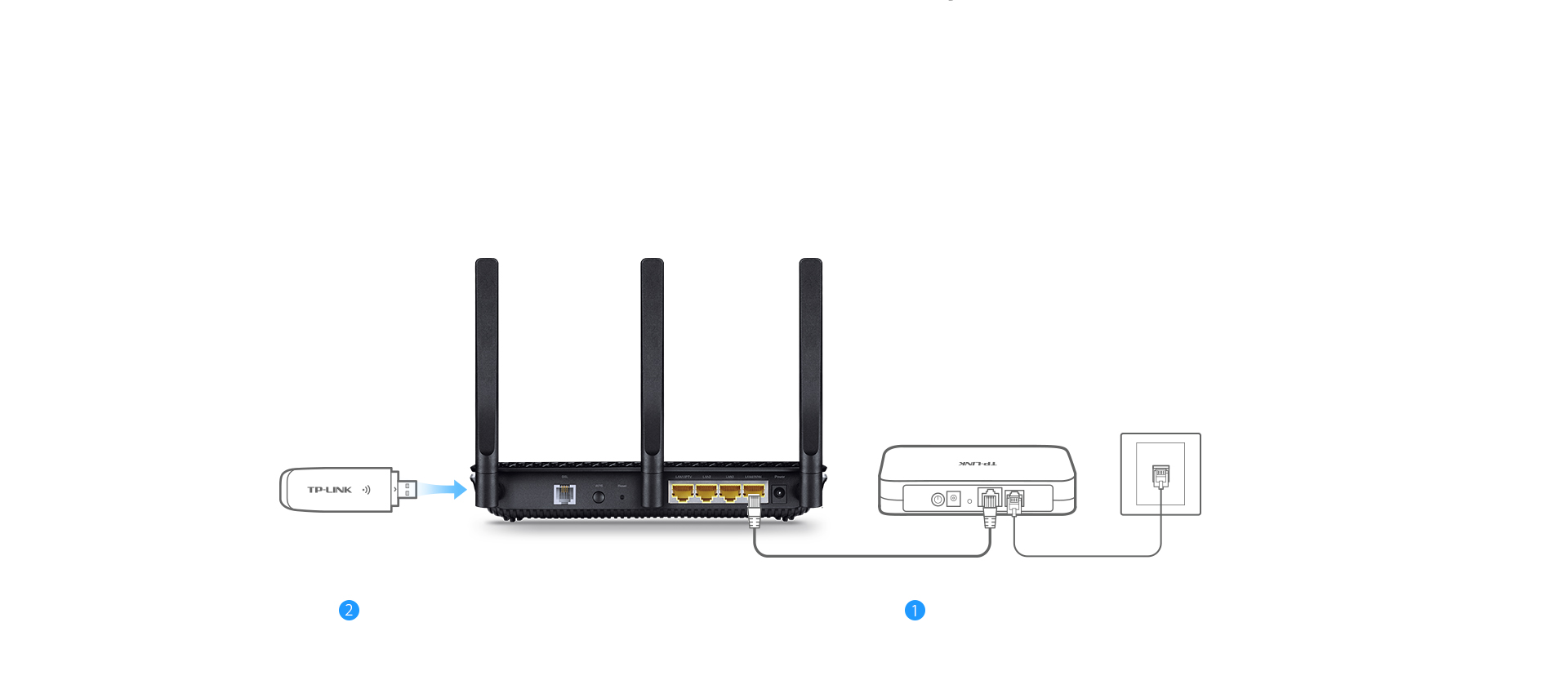

Diverse Connections
The Archer VR900 is built to connect you to the internet, no matter your
situation. The Ethernet WAN port supports wired connections to cable and fiber
modems, letting you take full charge of its wireless capabilities as a router.
In case your internet goes down, attach a 3G/4G adapter to two USB 3.0 ports to
serve as a backup option so you can get back online in no time.
- Ethernet WAN Connection
- 3G/4G Dongle Connection
Better Coverage and a More Stable Connection
With three external antennas, the Archer VR900 provides stable coverage
throughout your entire home or office. Advanced beamforming technology
automatically locates wireless devices and forms targeted, highly efficient
wireless connections to them, even as they move from room to room.

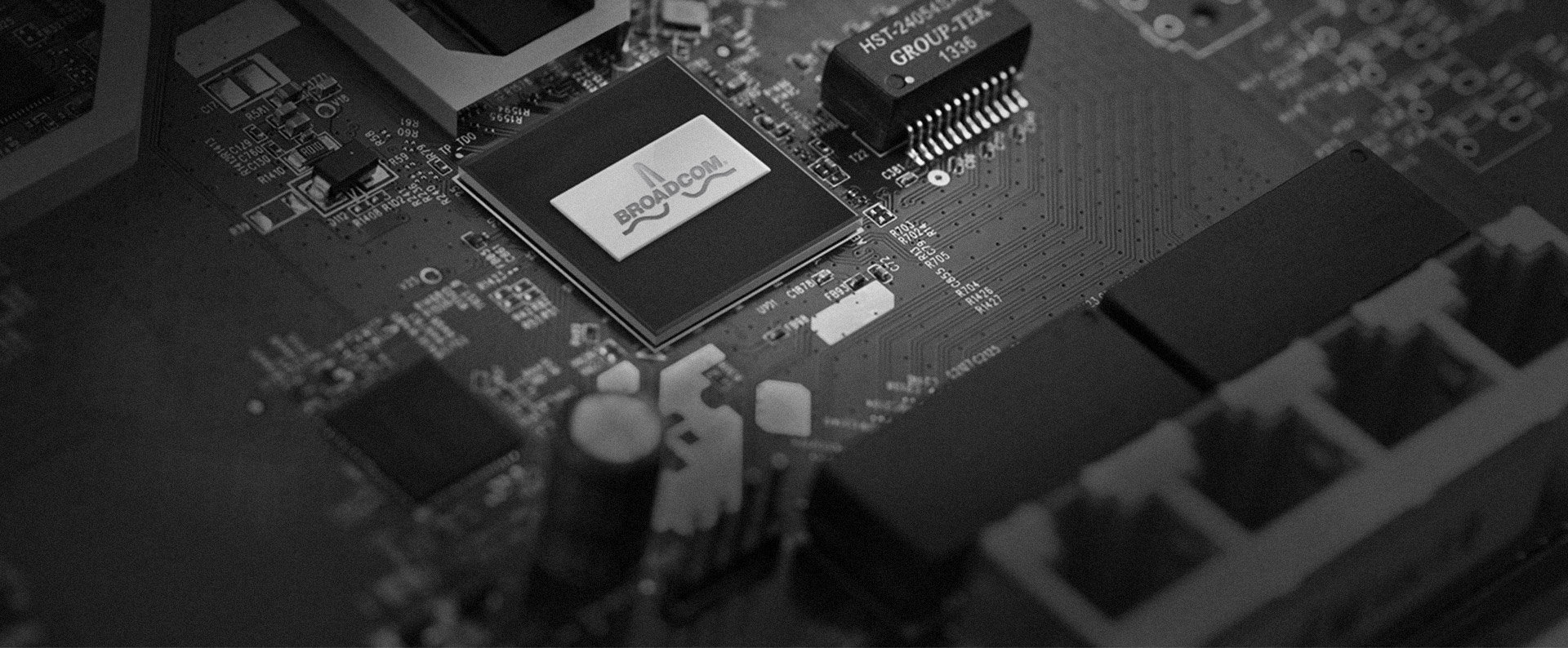

One Powerful Processor
The 1GHz dual-core Broadcom processor with 2 co-processors boost data
transfer speeds and ensures that performance is never compromised, even while
simultaneously processing multiple wireless and wired tasks. This processor is
equipped to handle your busy network while you enjoy a hassle-free, connected
life.

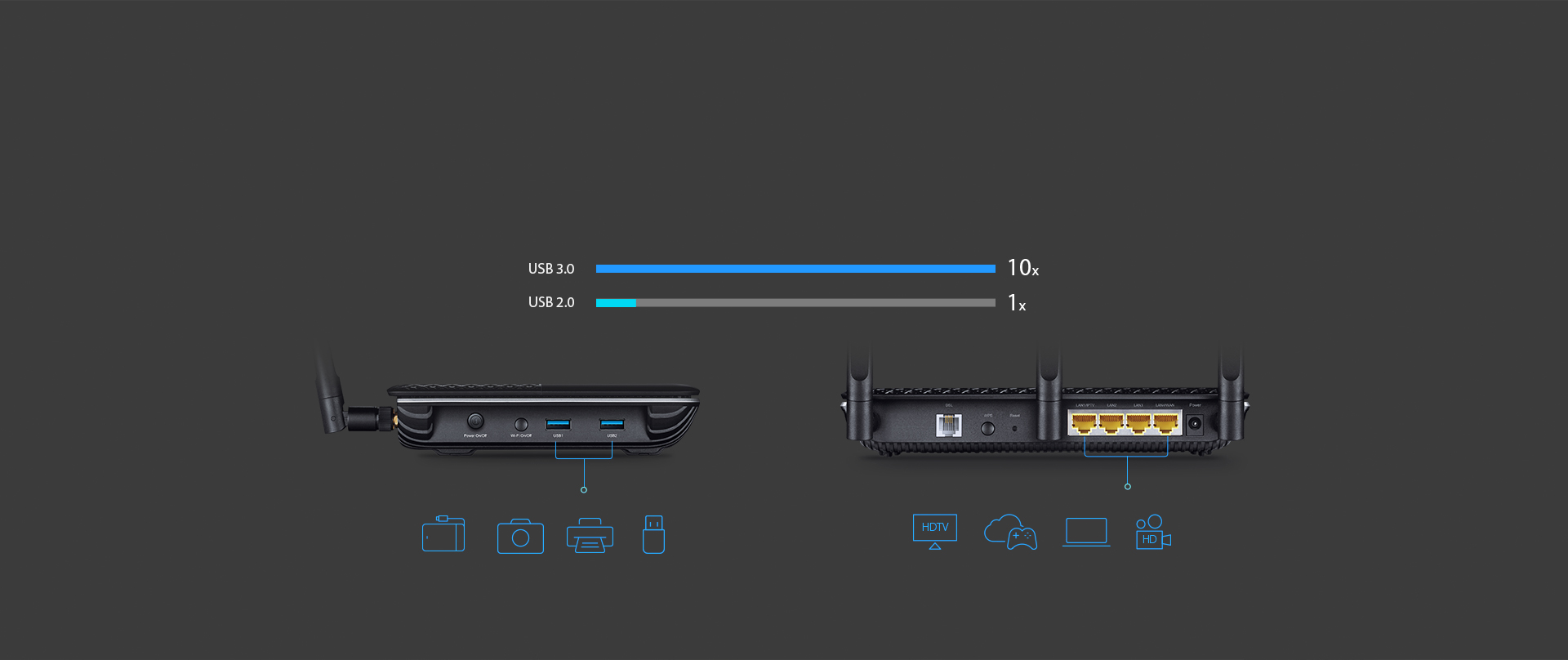

Lightning-Fast Wired Connection
The Archer VR900's dual
USB 3.0 ports run 10x faster than USB 2.0 for data transfer at lightning speed.
Connect external drives and easily share files, photos, music and video across
your network.
To help your wired devices achieve peak performance, the Archer VR900 is also
equipped with four Gigabit Ethernet ports that can operate 10x faster than
standard Ethernet.
An Appealing Aesthetic
The Archer VR900 is designed as a welcome addition your modern home. A glossy
black finish of makes it fit the decor of any bedroom or common space. Silver
accents provide an aura of elegance, making the Archer VR900 easy to display
atop a table or mounted on the wall.For added convenience, you can easily
disable the LED indicators to prevent distractions at night.
Easy Setup and Use
An intuitive, multilingual web interface (currently available in English,
German, French, Italian, Polish and Turkish) makes PC setup of the Archer VR900
easier than ever before. We also provide a new mobile interface for your
convenience. Put control at your fingertips with Tether, an app that lets you
manage network settings - including parental controls and media sharing - from
any Android or iOS device.
Guest Network
Provides visitors with Wi-Fi access separate from your main network
Parental Controls
Manage when and how connected devices can access the Internet
Advanced Security
WPA-WPA2 encryption actively defends against security threats
Specifications
Interface |
1 10/100/1000Mbps RJ45 WAN/LAN Port 3 10/100/1000Mbps RJ45 LAN
Ports 1 RJ11 Port 2 USB 3.0 Port |
Button |
WPS Button, Reset Button, LED On/Off Button, Wireless On/Off Button,
Power On/Off Button |
External Power Supply |
12V/2.5A |
IEEE Standards |
IEEE 802.3, IEEE 802.3u, 802.3ab |
VDSL2 Standards |
ITU-T G.993.2, Up to 17a profile (POTS) ITU-T G.993.5
(G.vector) ITU-T G.998.4 (G.INP |
ADSL Standards |
Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T
G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
ADSL2 Standards |
ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis) |
ADSL2+ Standards |
ITU-T G.992.5 |
Dimensions ( W x D x H ) |
216 x 164 x 36.8mm |
Antenna Type |
3 external detachable dual band antennas (RP-SMA) |
Antenna Gain |
3 x 2dBi for 2.4GHz and 3 x 3dBi for 5GHz |
WIRELESS FEATURES |
Wireless Standards |
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz |
Wireless Speeds |
1300Mbps at 5GHz, 600Mbps at 2.4GHz |
Frequency |
2.4GHz and 5GHz (Supports DFS) |
Transmit Power |
<20dBm(EIRP) |
Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless
Statistics Support 2.4GHz and 5GHz Wireless Schedule |
Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless
MAC Filtering |
SOFTWARE FEATURES |
Quality of Service |
ATM QoS, Trafc Control(IP QoS) |
Security |
NAT Firewall, Access Control, MAC / IP / URL Filtering, IP and MAC
Address Binding |
Operating Modes |
VDSL/ADSL Modem Router, Wireless Router, 3G/4G Router |
Management |
Web Based Conguration(HTTP), Remote management, command Line
Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade,
Diagnostic Tools, Free Online Firmware Update |
DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP Relay
|
Port Forwarding |
Virtual Server, Port Triggering, DMZ, ALG, UPnP |
Dynamic DNS |
DynDns, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
Protocols |
Supports IPv4 and IPv6 |
ATM/PPP Protocols |
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet
(RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge
(RFC1483 Bridge), PVC Up to 8 PVCs |
Advanced Functions |
Parental Control, Network Address Translation(NAT), Port
Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS
Relay, DDNS, IGMP V1/V2/V3 |
USB Sharing |
Support Samba(Storage)/FTP Server/Media Server/Printer Server, 3G/4G
Modem |
Guest Network |
2.4GHz guest network x 1, 5GHz guest network x 1 |
IPSec VPN |
Supports up to 10 IPSec VPN tunnels |
OTHERS |
Certification |
CE, RCM, RoHS |
Package Contents |
AC1900 Wireless Dual Band Gigabit VDSL/ADSL Modem Router Archer
VR900 External Splitter RJ11 DSL Cable RJ45 Ethernet
Cable Power Adapter Quick Installation Guide |
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10,
MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0,
Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL
Modem Subscription with an Internet Service Provider (for Internet
access) |
Environment |
Operating Temperature: 0~40 (32 ~104) Storage Temperature: -40~70
(-40 ~158) Operating Humidity: 10%~90% non-condensing Storage
Humidity: 5%~90% non-condensing |
