All stock codes associated to this product
ArcherC20, Archer C20, NWTLARCHERC20, NWTL-ARCHERC20, 6935364080730
Overview
- Supports 802.11ac standard - the next generation of Wi-Fi
- Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of
total available bandwidth
- 2 external antennas provide stable omnidirectional signal and superior
wireless coverage
- USB port - share a printer locally and files & media with networked
devices or remotely via FTP server
802.11ac - The Next Generation of Wi-Fi

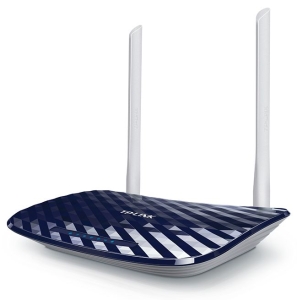

TP-LINKs Archer C20 comes with the next generation Wi-Fi standard 802.11ac,
backward compatible with 802.11n and 3 times faster than wireless N speeds. With
higher power efficiency and robust security, 802.11ac is the perfect way to
accelerate a home multimedia network and solve congestion that multiple devices
may cause.
733Mbps Dual Band Connections for Lag-Free Work
With 433Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps
over the 2.4GHz band, Archer C20 offers you the flexibility of two dedicated
networks and ensures amazing wireless performance. Simple tasks such as sending
e-mails or web browsing can be handled by the 2.4GHz band while bandwidth
intensive tasks like online gaming or HD video streaming can be processed by the
5GHz band all at the same time.
Stable Omnidirectional Signal and Superior Coverage
With 2 fixed external antennas combined with higher quality antenna
technology, you can experience excellent wireless performance with stable signal
in every direction and high speed across greater distances. This provides you
with incredible wireless coverage and reliability from anywhere in your large
home or office.
Easy USB Storage and Sharing
With the USB port, you can share a printer locally and files & media with
networked devices or remotely via FTP server.
Specifications
|
HARDWARE FEATURES |
|
|
Interface |
4 10/100Mbps LAN ports |
|
1 10/100Mbps WAN port |
|
1 USB 2.0 port |
|
Button |
WPS/Reset Button |
|
Wireless On/Off Switch |
|
Power On/Off Button |
|
Antenna |
2 2.4GHz Antennas |
|
1 5GHz Antenna |
|
External Power Supply |
12VDC /1A |
|
Dimensions ( W x D x H ) |
9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm) |
|
Antenna Type |
Two dual band fixed antennas
|
|
WIRELESS FEATURES |
|
|
Wireless Standards |
IEEE 802.11ac/n/a 5GHz |
|
IEEE 802.11b/g/n 2.4GHz |
|
Frequency |
2.4GHz and 5GHz |
|
Signal Rate |
5GHz: Up to 433Mbps |
|
2.4GHz: Up to 300Mbps |
|
Reception Sensitivity |
5GHz |
|
11a 6Mbps: -91dBm, 11a 54Mbps: -74dBm |
|
11ac HT20: -66dBm, 11ac HT40: -64dBm, 11ac HT80:
-61dBm, |
|
11n HT20: -71dBm, 11n HT40: -69dBm |
|
2.4GHz |
|
11g 54M: -76dBm |
|
11n HT20: -74dBm, 11n HT40: -71dBm |
|
Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless
Statistics |
|
Wireless Security |
64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK
encryption |
|
Transmission Power |
CE: |
|
<20dBm(2.4GHz) |
|
<23dBm(5GHz) |
|
FCC: |
|
<30dBm |
|
SOFTWARE FEATURES |
|
|
Quality of Service |
WMM, Bandwidth Control |
|
Management |
Access Control |
|
Local Management |
|
Remote Management |
|
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
|
Dynamic DNS |
DynDns, Comexe, NO-IP |
|
VPN Pass-Through |
PPTP, L2TP, IPSec |
|
Access Control |
Parental Control, Local Management |
|
Control, Host List, |
|
Access Schedule, Rule Management |
|
Firewall Security |
DoS, SPI Firewall |
|
IP Address Filtering/MAC Address Filtering/Domain
Filtering |
|
IP and MAC Address Binding |
|
Protocols |
Supports IPv4 and IPv6 |
|
USB Sharing |
Support Samba(Storage)/ FTP Server/Media Server/Printer
Server |
|
Guest Network |
2.4GHz guest network 1 |
|
5GHz guest network 1 |
|
OTHERS |
|
|
Certification |
CE, FCC, RoHS |
|
Package Contents |
AC750 Wireless Dual Band Router Archer C20 |
|
2 Fixed Antennas |
|
Power Supply Unit |
|
Resource CD |
|
Ethernet Cable |
|
Quick Installation Guide |
|
Box Dimensions (W X D X H) |
11.2 x 8.8 x 3.6 in. (285x223x91mm) |
|
System Requirements |
Windows 10/8.1/8/7/Vista/XP, Mac OS or Linux-based operating
system |
|
Environment |
Operating Temperature: 0~40 (32 ~104) |
|
Storage Temperature: -40~70 (-40 ~158) |
|
Operating Humidity: 10%~90% non-condensing |
|
Storage Humidity: 5%~90%
non-condensing |
