All stock codes associated to this product
ROGAREION10G, ROG AREION 10G, MBAROGAREION10G, MBA-ROG-AREION-10G, 4712900685800
Overview
Features
- Superfast 10Gbps networking: Enjoy up to 10X-faster data-transfer speeds
- RJ45 port for easy upgrades and wide compatibility: Compatible with
current network standards, including 10/5/2.5/1G and 100Mbps, for seamless
backward compatibility.
- Full-sized ROG-themed aluminum heatsink: Provides a huge cooling area to
silently dissipate heat for reliable operation
- LAN speed indicators: LEDs for at-a-glance 5/10G speed indication and LAN
activit
Overview

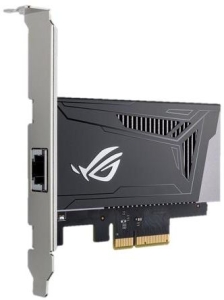

ROG AREION 10G
Designed for the demanding requirements of power users, content creators, and
others who push the envelope, the ROG AERION plugs you into a new era of 10G*
home networking. It's refined from our 10G Express under the name of a mythical
horse with legendary speed. The full-sized heatsink keeps the card cool while
transferring massive files like 4K videos, and support for intermediate 2.5G and
5G connectivity lets you step up to faster networks for maximum flexibility.
Choose the bandwidth that meets your needs and enjoy ultra-low latency at any
speed.
- RJ45 CONNECTOR - Painless upgrade for home network
- STYLISH ALUMINIUM COVER - Symbol in the Rig
- SPEED LED - Monitor the speed and status intuitively
- FULL-SIZED HEATSINK - Best thermal efficiency
- PCIE 3.0 X4 INTERFACE - Fastest transport speed
SUPERFAST 10GBIT/S NETWORKING
The next-generation 10Gbit/s (10GBase-T) ROG AREION 10G delivers superfast
speeds to match the demands of today's ultra-busy networks. Up to 10X faster
than gigabit Ethernet, it performs bandwidth-intensive tasks such as 4K video
streaming or file transfers in stride, so you'll never run out of network
horsepower.
ASUS Republic of Gamers products are performance leaders in the enthusiast
gaming market, and the new ROG Areion is no exception,” said Kamal Dalmia,
Senior Vice President of Sales and Marketing, Aquantia Corp. 'We are pleased
that ASUS has selected the Aquantia AQtion(TM) AQC107 10Gb Ethernet Controller
as the perfect solution for gamers who want the extreme performance that is 10
times faster than today's Gigabit LAN.
EASY TO USE, EASY TO UPGRADE
Installing ROG AREION 10G couldn't be easier: Just insert the card into a
suitable PCIe 3.0 slot and connect your existing copper network cables to the
RJ45 Ethernet port. It's that simple. There's no need to install any software or
set up the card ROG AREION 10G is instantly ready to run at full 10Gbps
speed!
|
Speed |
Compatible
cable |
|
100M |
CAT5 |
|
1G |
CAT5e |
|
2.5G |
CAT5e |
|
5G |
CAT5e(30M),CAT6 |
|
10G |
CAT6(55M), CAT6a or
higher |
*Compatible with current network standards, including 10/5/2.5/1Gbps and
100Mbps, for seamless backward compatibility.
STYLISH ROG DESIGN WITH A STREAMLINED, FULL-SIZED
HEATSINK
The Full-sized heatsink with its stylish ROG-themed aluminum cover doesn't
just look good it provides a huge cooling area to silently dissipate all the
heat. This means that ROG AREION 10G runs cool and stable, even in the heat of
the toughest battle.
CHECK LAN SPEED AT A GLANCE
Separate LED speed and activity indicators on ROG AREION 10G let you see the
current LAN speed and network activity at a glance. For convenience, there are
external LEDs (on the RJ45 port) and also LEDs on the edge of the PCB, so you
can easily keep an eye on things no matter how your rig is designed.
Specifications
|
Interface |
1 x RJ-45 |
|
PCI-e 3.0 x 4 |
|
|
|
Data Connection Rate |
100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps |
|
|
|
Standard Compliance |
IEEE802.3u 100BaseTX |
|
IEEE802.3ab 1000BaseT |
|
IEEE 802.3bz 2.5GBaseT |
|
IEEE 802.3bz 5GBaseT |
|
IEEE 802.3bz 10GBaseT |
|
|
|
LED Indicator |
|
|
10G(Green) |
Flashing-NIC card is transferring data at 10Gbps |
|
Under 5G(Yellow) |
Flashing-NIC card is transferring data under 5Gbps |
|
Speed LED(Red) |
LED indicators On the Edge of PCB, shows Under
5G/10G/Activity(Flashing) |
|
|
|
Dimensions |
13.5 x 6.3 x 1.9 cm |
|
|
|
EMC |
CE, FCC, VCCI |
|
|
|
OS Support |
Windows 10 |
|
Windows 8.1 * |
|
Windows 8 |
|
Windows 7 * |
|
Linux Kernel (Support Ubuntu only) |
|
|
|
Note |
*64-bit supported only |
|
Integrated MACsec, 1588v2, EEE support |
|
Full support for AES-256 and stand-alone operation |
|
Advanced Cable Diagnostics |
|
On-chip high-resolution cable analyzer |
|
Built-in Thermal Management |
|
On-chip thermal sensor with alarm and warning
thresholds |
|
High-Performance Interfaces |
|
Full KR with
auto-negotiation/XFI/USXGMII/2500BASE-X/SGMII |
