All stock codes associated to this product
AS6004U, 5466908, 887372000841

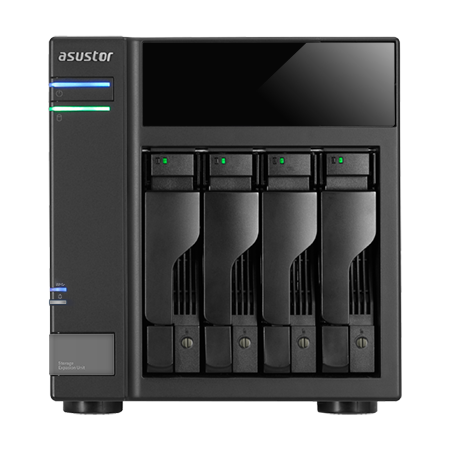

Asustor AS6004 NAS Storage Capacity Extender
Overview
- Plug and play online expansion
- Secure safety bracket Connection via USB cable
- Intelligent power synchronization helps save power
- Intelligent temperature control for stable operation
- Supports MyArchive backup technology
- Compatible with high-capacity 16TB hard drives

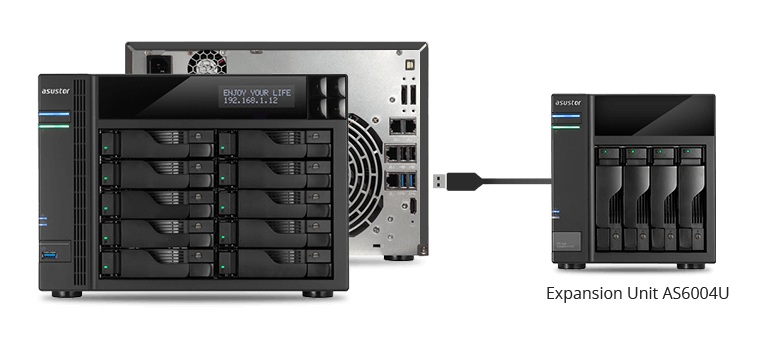

Simply plug in
Connect the AS6004U to any ASUSTOR NAS to complete hardware expansion using a
USB 3.0 connection cable! Depending on model *, ASUSTOR NAS devices can
simultaneously connect up to 3 AS6004U units that meet the high capacity storage
demands of enterprise users.
![](/images/extra/44/P449040-i1.png)
* NAS series supporting expansion up to 3 units: AS31 /
32/50/51/52/53/61/62/63/64/70 (other series can only expand to 2
units)
* To connect AS6004U, please contact NAS back Use the USB 3.0
port
* Use the USB 3.0 cable provided by ASUSTOR * If 12 devices are connected
to the USB 3.0 port on the 70-series models (1 hard drive = 1 device), other USB
ports will not be available.

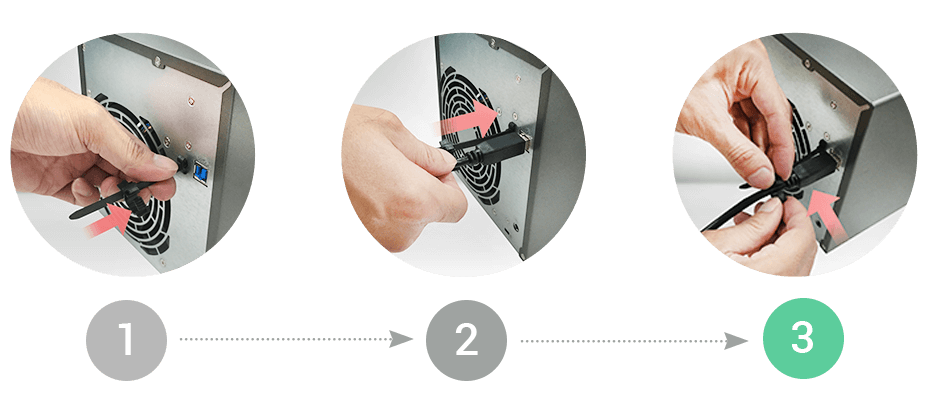

Security Bracket for Secure Connections
Safety bracket and mounting hole design;The AS6004U allows the USB
cable to be securely connected without having to worry about
disconnection.
![](/images/extra/44/P449040-i2.png)

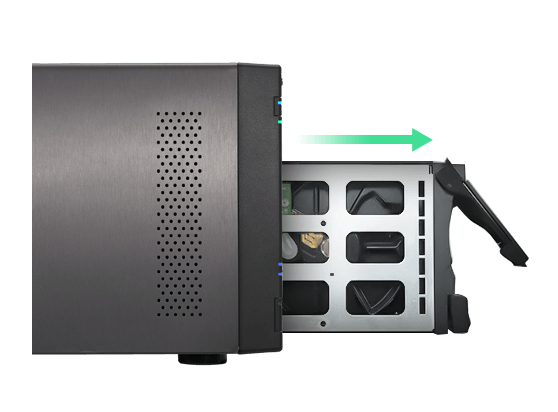

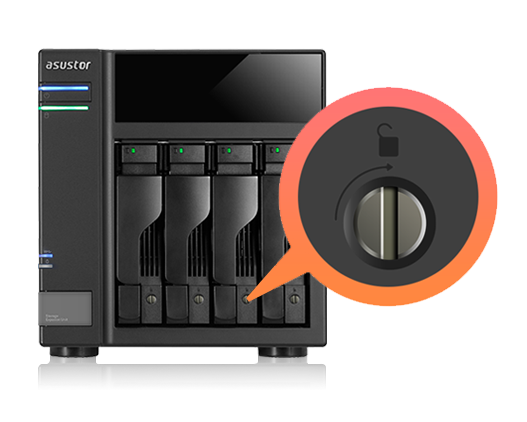

Secure Disc Tray Lock Design
Users have added a new lock mechanism to ASUSTOR, to prevent hard disk
removal during operation, by accidentally pressing the buttons on the disc
tray.Users do not need a special key or tool to unlock it.Only a
simple flat head screwdriver can control the locks.
![](/images/extra/44/P449040-i3.png)

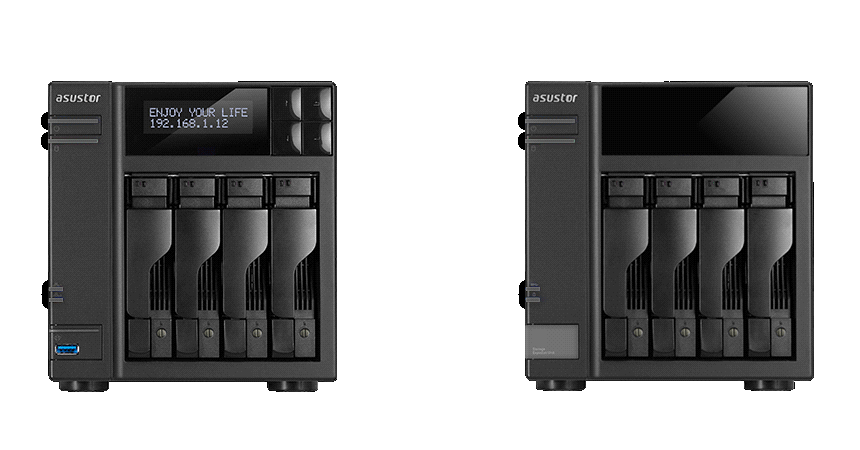

Smart Power Saver
The AS6004U has a power synchronization mechanism that synchronizes with the
NAS's operating state.If the NAS enters sleep mode or shuts down, the
AS6004U enters standby mode.When the NAS returns to normal operation, the
AS6004U will continue to connect to the NAS.This function works to help
users save significant power.
![](/images/extra/44/P449040-i4.gif)

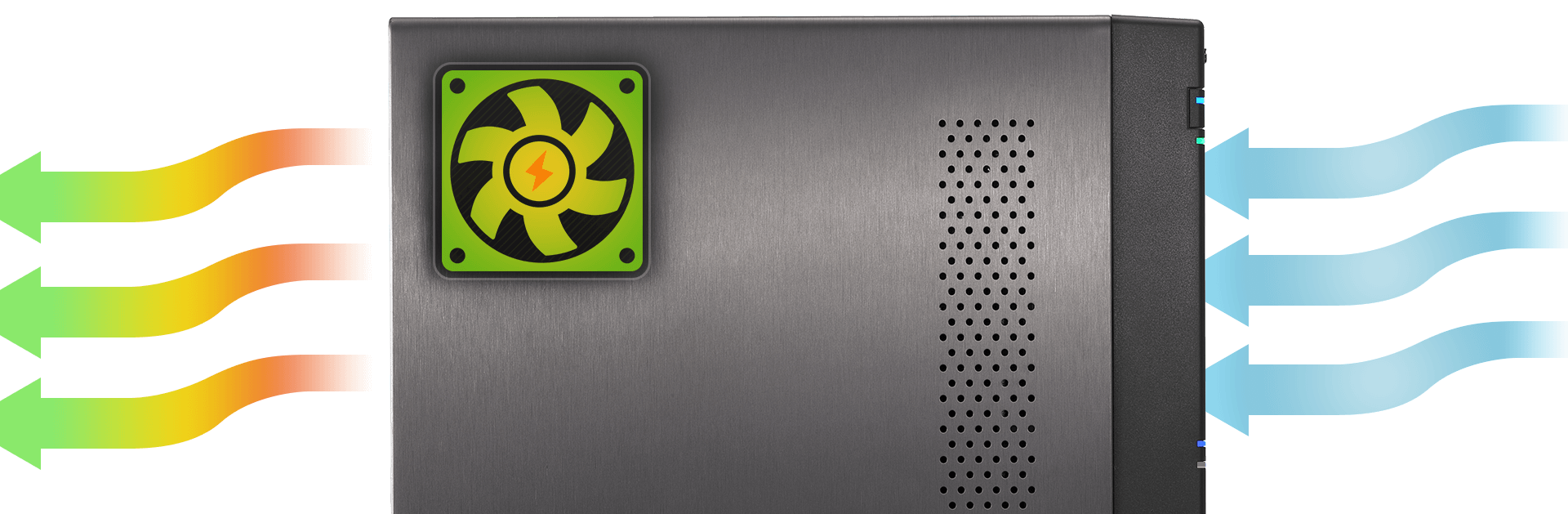

Intelligent Fan for Temperature
Control
The internal temperature of the system increases during heavy loading and
operating conditions.The AS6004U uses a wide speed range fan that supports
the temperature control function in combination with an intelligent speed
mechanism.As the system load and temperature increase, the fans will
automatically increase the speed for cooling the device and ensure a stable
operating temperature and service, ensuring that the system maintains an
appropriate operating temperature.
![](/images/extra/44/P449040-i5.png)

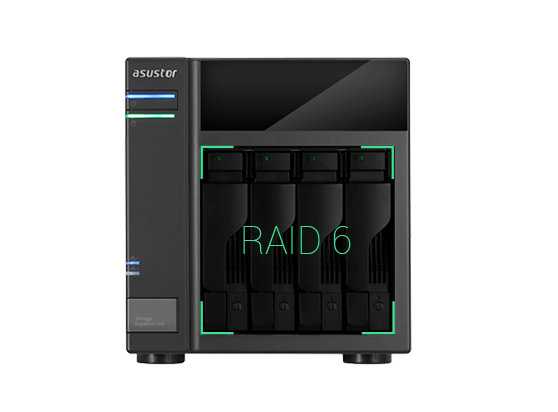

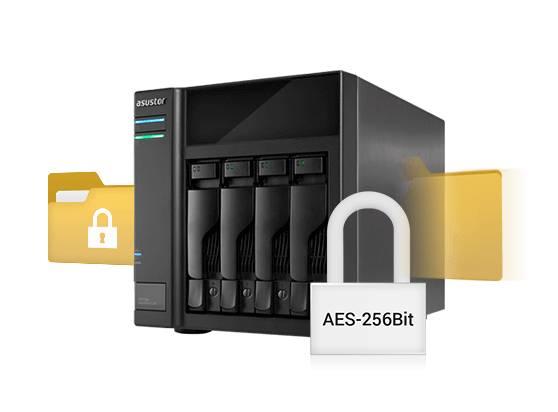

Secure Storage
The AS6004U is compatible with 4 hot-swappable disk slots and the largest
hard drives on the market.Supports RAID * and AES 256-bit encryption,
providing the best data protection mechanisms.
![](/images/extra/44/P449040-i8.png)

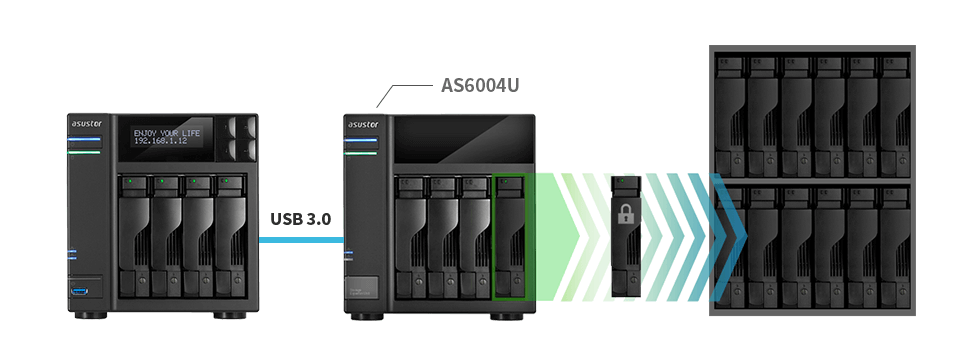

Flexible Storage Expansion and Backup
In addition to providing economical high-capacity storage, the AS6004U
supports ASUSTOR's MyArchive backup technology.This allows users to create
removable storage archives and back up important data to them at any
time.
![](/images/extra/44/P449040-i9.png)
First-Class Product Warranty
All ASUSTOR NAS products come with a 3-year warranty.ASUSTOR continues
to make the customer service a priority.
![](/images/extra/44/P449040-i10.png)
Specifications
Hardware
Features
- Flash Memory: 16MB Flash
- Expansion: USB 3.0
(USB3.1 Gen-1) Type B
- HDD: 4 x SATA3 6Gb /
s;3.5 "/2.5" HDD / SSDCompatibility
- Maximum Internal Raw
Capacity: 64 TB (16 TB HDD X 4, Capacity may vary depending on RAID types)
- Maximum Single Partition
Size: 16TB
- Hot-swappable drive
- System Fan: 120mm x1
- Power Supply Unit /
Adapter: 90W x1
- Input Voltage: 100V to
240V AC
- Certification: FCC, CE,
VCCI, BSMI, C-TICK
Work
- Energy consumption:
- Operation: 23.6 W
- Disk Hibernation: 9.7
W
- Sleep mode:
0.35W
- Operating Temperature: 0
C ~ 40 C (32 F ~ 104 F)
- Humidity: 5% to 95%
RH
Size
and Weight
- Dimension: 185.5 (H) x
170 (W) x 230 (D) mm
- Weight: 2.7 kg / 5.95
lbs
Storage
Management
- Supports Multi-Disk
Volumes with Redundant Disks
- Disk Volume Type: Single
disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
- Online RAID Level
Migration Support
myarchiv
to
- Insert the Hard Disk and
Access Files Now
- Transfer or Exchange
Terabytes of Data with the Built-in Hot-Swap Interface
- Up to 2 Slots Reserved
for MyArchive Docking Purposes
