All stock codes associated to this product
CSSDF1000GBMP600, CSSD-F1000GBMP600, 840006614517
Corsair CSSD-F1000GBMP600 Force Series Gen.4 PCIe MP600 1TB NVMe M.2
SSD
Overview
The CORSAIR Force MP600 Gen4 PCIe x4 NVMe M.2 SSD provides extreme storage
performance, using Gen4 PCIe technology toachieve blazing fast sequential read
speeds of up to 4,950MB/s.

PCIE 4.0 (GEN4) TECHNOLOGY

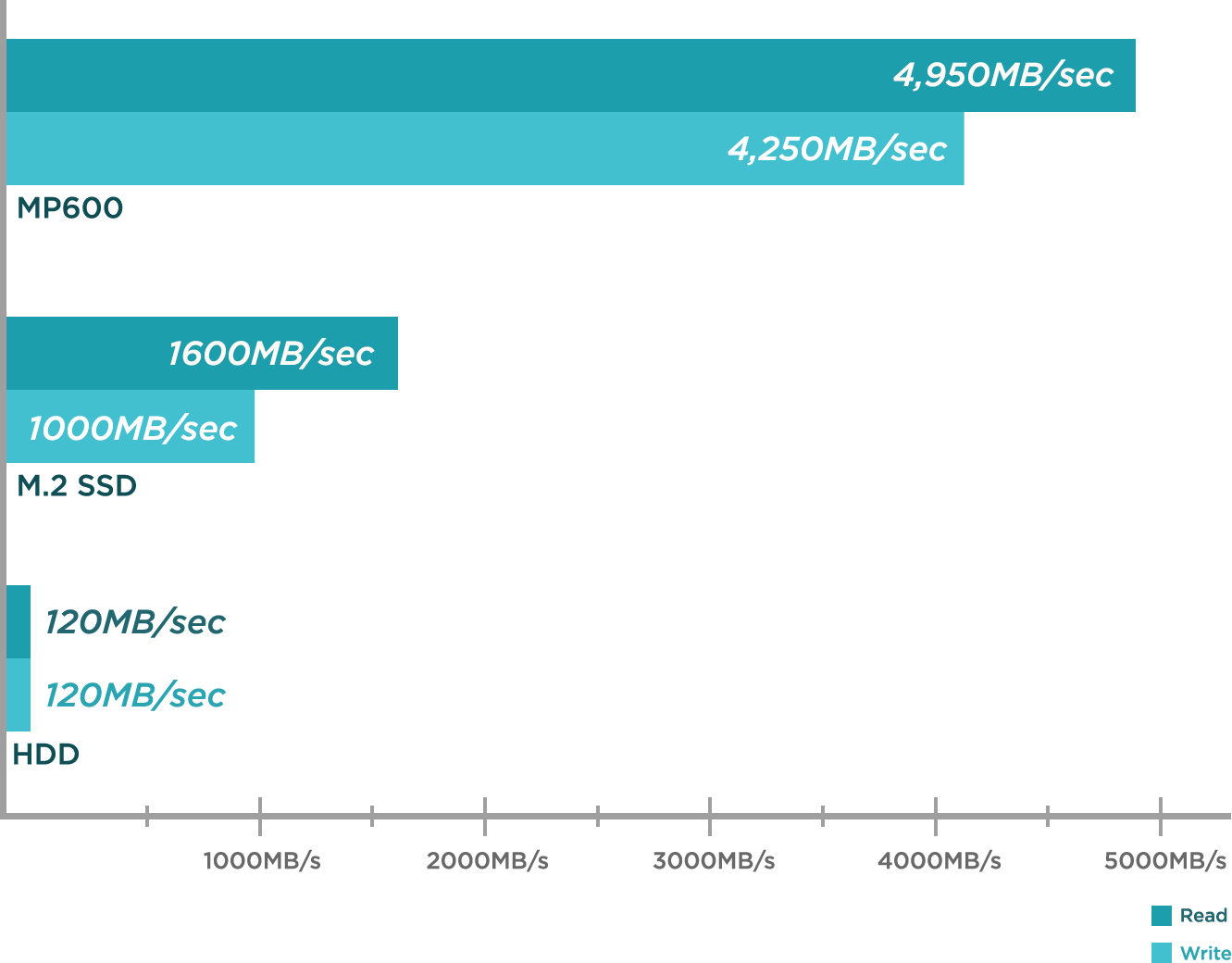

As a PCIe 4.0 SSD, the MP600 delivers incredible storage performance,
delivering up to 10 times the sequential read and sequential write speeds of
some SATA SSDs and up to 50 times the speed of some traditional HDDs. The MP600
is also fully backwards compatible with current PCIe 3.0
platforms

LOWER TEMPERATURES, HIGHER PERFORMANCE

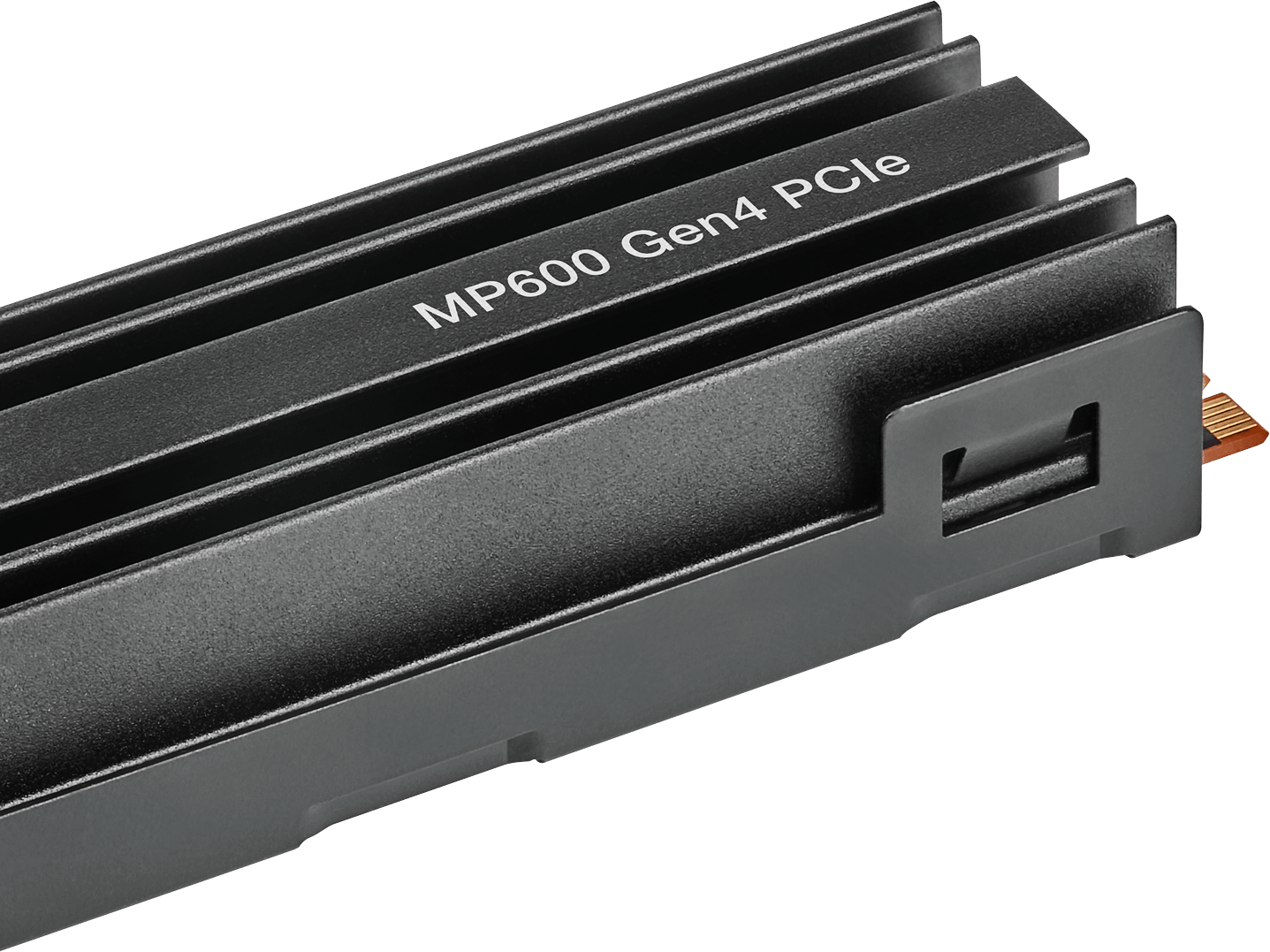

The MP600 is equipped with a high surface area aluminum heatsink, helping to
maintain its performance even under heavy load.
HIGH-DENSITY 3D TLC NAND MEMORY
Provides an ideal mix of performance, endurance, and value to keep your drive
performing at its best for years, with outstanding longevity up to 3,600TB
Written*.
*Endurance varies by capacity.
M.2 2280 FORM FACTOR
Easily fits directly into your new AMD X570 chipset-based motherboard,
freeing up drive space in your PC to provide better airflow and easier cable
routing.
READY FOR RYZEN
CORSAIR is a proud launch partner for AMD's 3rd generation of Ryzen
processors. The MP600 is engineered to help you get the full benefit of PCIe 4.0
speed right out of the gate with your new Ryzen-based PC.

COMPREHENSIVE FIVE-YEAR WARRANTY
Long-term reliability and industry-leading customer support for peace of
mind.
Compatibility
- Form Factor: M.2 SSD
- Supported PCIe Gen4 Platforms: X570
- Backward compatible with PCIe Gen3 Platforms: Intel 100, 200, 300, X99,
X299 Chipsets, AMD Socket AM4 Platform, X399
Specifications
SSD Unformatted
Capacity |
1TB |
SSD Smart
Support |
Yes |
Weight |
0.034kg |
SSD
Interface |
PCIe Gen 4.0
x4 |
SSD Max Sequential
Read CDM |
Up to
4,950MB/s |
SSD Max Sequential
Write CDM |
Up to
4,250MB/s |
Max Random Write
QD32 IOMeter |
Up to 600k
IOPS |
Max Random Read QD32
IOMeter |
Up to 680k
IOPS |
Power Consumption
active |
6.5W
Average |
Power Consumption
Inactive |
1.1W |
Form
Factor |
M.2
2280 |
Dimension |
80mm x 23mm x
15mm |
Application
Consumer |
Client |
NAND
Technology |
3D TLC
NAND |
Voltage |
3.3V, +/-
5% |
Endurance |
1,800
TBW |
TBW |
1800 |
MTBF |
1,700,000
Hours |
DEVSLP |
PS4 <
1.65mW |
Encryption |
AES 256-bit
Encryption |
Storage
Temperature |
-40C to
+85C |
SSD Operating
Temperature |
0C to
+70C |
SSD
Shock |
1500
G |
Storage
Humidity |
93% RH (40
C) |
Operating
Humidity |
90% RH (40
C) |
Vibration |
20Hz~80Hz/1.52mm,
80Hz~2000Hz/20G |
