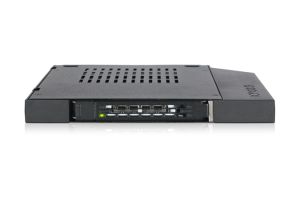

Introducing the ToughArmor MB411SPO-1B, a full metal 2.5 SATA
hard drive / SSD mobile rack designed to fit into a 12.7mm slimline
optical disk drive bay (Slim ODD bay) that is available in laptops,
desktop PCs, and workstations. The MB411SPO-1B uses a full metal
construction to ensure maximum device lifespan and is capable of
withstanding the harshest environments. The EZ Slide Micro carrier tray
supports any capacity 2.5 (5 9.5mm) SATA hard drives and
solid-state-drives (SSD) and provides hot-swap capability for quick
drive removal and the easy drive maintenance. In addition, the
MB411SPO-1B supports up to 6Gbps transfer speed, with receiving
connector rated for up to 10,000 drive insertions.
Utilizing its heavy duty design with hot-swap drive function,
the MB411SPO-1B is a perfect storage device for those who need
high-quality, robust, removable drive enclosure to store, transport, and
protect their sensitive data such as government agencies, digital
cinemas, and small business organizations.
|
|
|
Slim ODD Bay Compatible
|
|
 |
|
|
The ToughArmor MB411SPO-1B has
the exact same form factor of a slim ODD, including the outer
dimensions, port locations, and mounting holes, allowing it to fit
perfectly into any 12.7mm slim optical bay. With ToughArmor MB411SPO-1B,
you can quickly add a hot-swappable 2.5 SATA HDD / SSD to any system
that has a slim ODD bay such as laptops, rackmount computers, IPCs,
workstation PCs, desktop computers, OEM / ODM systems, embedded control
systems, and factory automation systems.
|
 |
|
|
Removable 2.5 Drive Design
|
 |
|
The EZ Slide Micro carrier
tray supports hot-swap and makes drive maintenance completely
hassle-free in the event of drive failure, drive transport, and drive
archive. With this tray, down time from a swap of a hard drive is now
greatly reduced. Featuring both durable and slim design, the trays are
built with robust solid metal frames to securely mount and protect 5mm
to 9.5mm height HDD/SSD, creating a reliable 2.5" hot swap bay for any
standard slim optical bay. The EZ Slide Micro carrier tray is also
compatible with ToughArmor MB992SK-B and MB996SP-6SB, making drive interchangeability between systems as easy as 1-2-3.
|
|
 |
|
|
Exceptional Build Quality
|
 |
|
Ensuring the material used can
be relied upon for many years after its deployment, the MB411SPO-1B has
a heavy duty metal construction throughout the entire device, capable
of holding up in the harshest environments. The ToughArmors full metal
design is perfect for industrial devices that may require a flammability
rating since a full-metal construction already complies with
flammability requirements.
|
|
|
|
|
|
Versatile Utility &Security
|
 |
|
To bring more utility to your
hard drives and SSDs, a LED is installed into the front of the mobile
rack to provide drive status information at all times. Active Power
Technology (APT) allows device power to be on only when a drive is
inserted into the enclosure. The ToughArmor MB411SPO-1B uses a single
13-pin slimline SATA cables to power &access the MB411SPO-1B.
|
|
|
|
Compatible with Laptop Optical Bay (12.7mm height)
|
|
 |
Transforming your optical CD/DVD-ROM bay to a hot-swappable
2.5" SSD bay is a simple task. However, for some Laptops, the ODD has a
bracket attached in the rear. The bracket needs to be removed and
installed onto the rear of MB411SPO-1B before inserting into the
laptop's optical bay.
|
|
 |
|
|
Drive Tray
|
|
 |
|
EZ-Slide Micro Tray MB992TRAY-B Drive Tray
|
|
|
|
|
Interchangeable Internal ToughArmor:
|
|
  |
|
|
|
|
|
Key Features
|
|
|
*
|
Exact same form factor of a slim optical drive.
|
|
*
|
Fits 1 x 5mm to 9.5mm height 2.5 SATA HDD / SSD in a 12.7mm slim ODD bay.
|
|
*
|
Supports transfer speed up to 6Gbps
|
|
*
|
The receiving SATA connector rated for up to 10,000 drive insertions
|
|
*
|
Removable EZ Slide Micro drive tray for easy maintenance.
|
|
*
|
Heavy duty full metal construction design - perfect for enterprise applications
|
|
*
|
Multi-Flow Technology provides excellent passive cooling
|
|
*
|
Anti-Vibration Technology creates a safe environment for hard drives or SSDs
|
|
*
|
Active Power Technology (APT) powers up individual LED if only there is drive installed in the drive bay
|
|
*
|
EMI Grounding protects hard drives from electrical damage
|
|
*
|
Ideal 2.5 drive mobile rack
for system that has ultra slim ODD bay, including rackmounts, IPCs,
workstations, laptops, desktop PCs, OEM / ODM systems, embedded control
systems, and factory automation systems.
|
|
*
|
Limited 3 year warranty to complement the typical warranty of a hard drive. | | |
