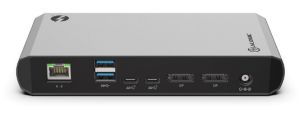

Alogic Thunderbolt 3.0 TURBO Docking Station with USB-C Compatibility
- Dual Display 4K@60Hz
Overview
ALOGIC Thunderbolt 3.0 TURBO Docking Station with USB-C support is one of its
kind next generation Thunderbolt 3 dock with cross compatibility across both
Thunderbolt 3 and USB-C laptops. It uses full 40Gbps bandwidth when connected to
a Thunderbolt 3 laptop to support dual 4K@60H monitors (DisplayPort), 2 x USB-C
(10G), 1 x USB-A (10G), 2 x USB-A (5G), Gigabit Ethernet and Combo headphone and
mic jack, while charging your laptop with 60W of power. The same dock when
connected to a USB-C laptop will also support dual 1080P monitors along with all
the other downstream ports and charge the laptop with 60W of power.
Universal
The dock provides universal compatibility across both Mac and Windows for
dual monitor support over all laptops with Thunderbolt 3 or USB-C ports. This
enables IT professionals to deploy the TURBO dock as a single dock solution
across all users, in turn enabling hot desk setups at workplaces with cross
platform laptops enabled with either Thunderbolt 3 or USB-C
outputs.
High-Definition Dual Display
The TURBO dock supports dual monitors with 4K@60Hz via the twin DisplayPort
outputs when connected to a Thunderbolt 3 enabled laptop. It will also support
dual monitor with 1080p resolution or a single 4K@30Hz monitor when connected to
a USB-C enabled laptop.
Complete Connectivity
The ALOGIC TURBO dock features 2 x DisplayPort, 2 x USB-C (10G), 1 x USB-A
(10G), 2 x USB-A (5G), Gigabit Ethernet and Combo headphone and mic jack to
cover all the connectivity requirements.
Specifications
|
Part
No. |
TB3DTRG2 |
|
Data
Rate |
USB-C (3.1 Gen 2) port:
10Gbps | USB-A (3.1 Gen 2) ports: 10Gbps | USB-A (3.1 gen 1) ports: 5Gbps
| Gigabit Ethernet port: Up to 10/100/1000 Mbps |
|
Warranty |
2
Years |
|
Output |
USB-A 3.1 (Gen 2) 10G x
1 | USB-A 3.1 (Gen 1) 5G x 2 | USB-C 3.1 (Gen 2) - 10G x 2 | DisplayPort x
2 | 3.5mm Combo Jack x 1 | Gigabit Ethernet Port x 1 |
|
Input |
ThunderboltTM 3 or
USB-C (With DisplayPort Alt Mode) with 60W Power
Delivery |
|
Compatibility |
Mac OS Sierra 10.13 or
later with Thunderbolt 3 port | Windows 10 with USB-C or Thunderbolt 3
port |
|
Resolution |
With ThunderboltTM 3
Laptops Dual Display : 3840 x 2160@60Hz | With USB-C Laptops: Single
Display: 3840 x 2160@60Hz, Dual display: 1080p@60Hz |
|
Package
Includes |
Thunderbolt 3 Turbo
Docking Station x 1 | Power Supply x 1 | User Manual x
1 |
|
Barcode
(EAN) |
9350784019257 |
