All stock codes associated to this product
GC4XM2G4, GC-4XM2G4, 4719331807610

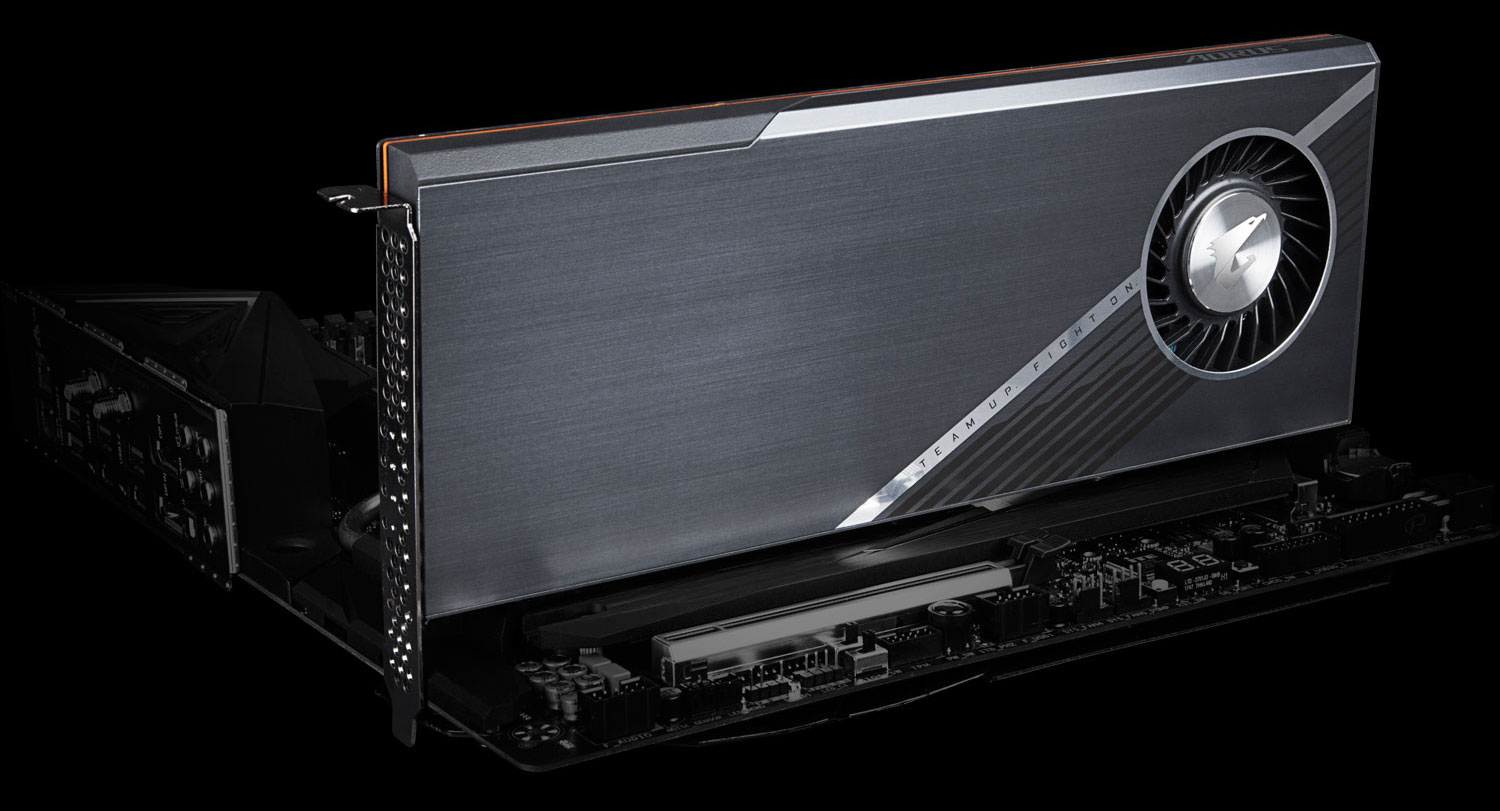

Gigabyte AORUS Gen4 AIC Adaptor
Overview
Easy One Click RAID by AORUS Storage Manager, Full PCIe 4.0 Design, Advanced
Thermal Solution for PCIe 4.0 SSD
- 4 x PCIe 4.0/3.0 M.2 Slots
- Full PCI Express 4.0 Ready Design
- Advanced Thermal Solution for PCIe 4.0 SSD
- Easy Software RAID with Single Click to Get Amazing Performance
- Custom AORUS Storage Manager
Unprecedented Performance
With AORUS Gen4 AIC Adaptor and 4 PCIe 4.0 2TB SSD, Read/Write performance
reaches amazing 15,000 MB/s
Easy RAID with a single click

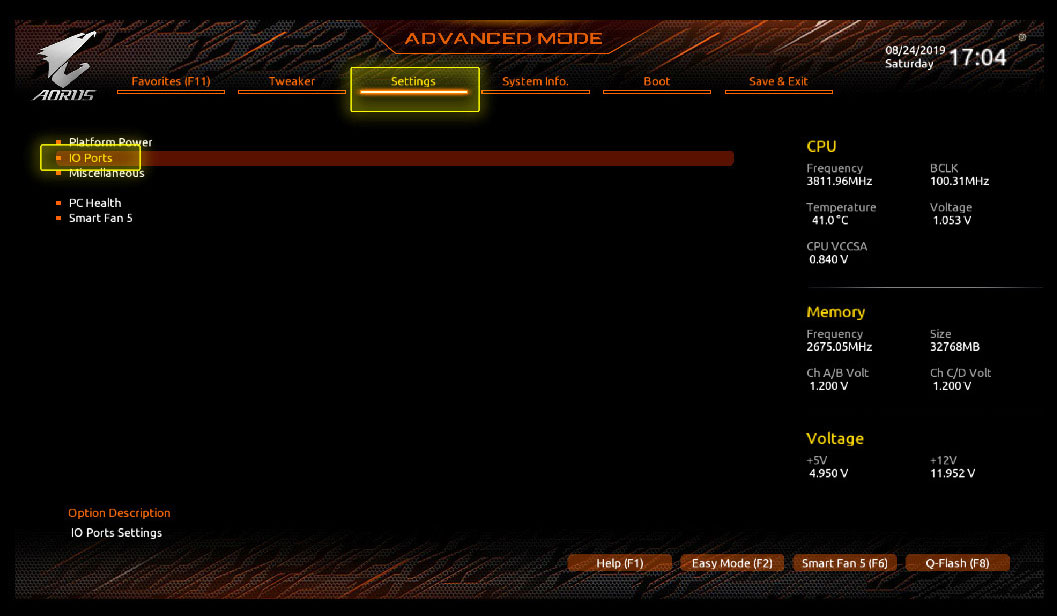

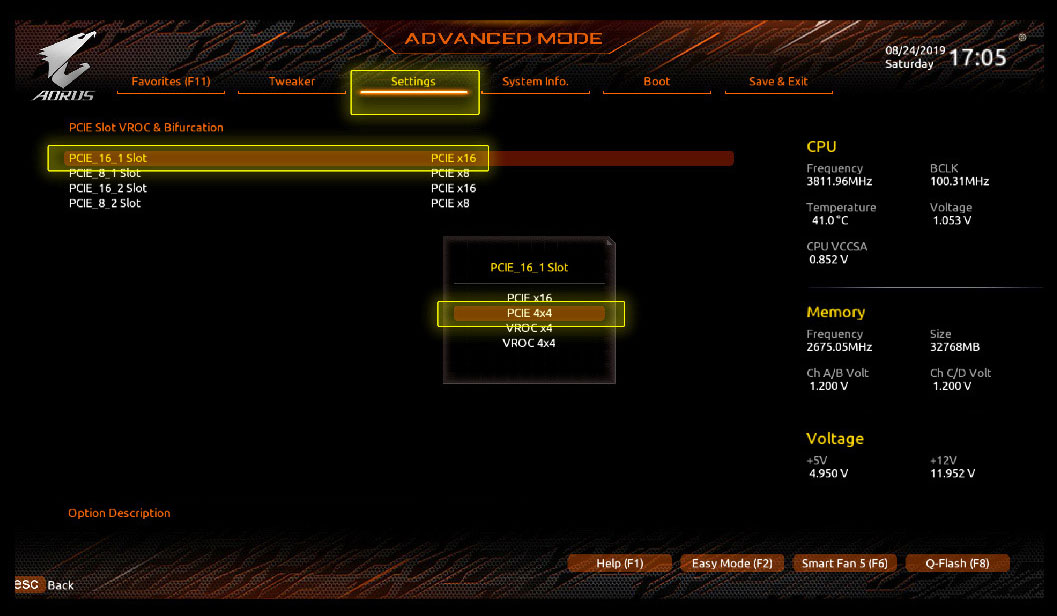

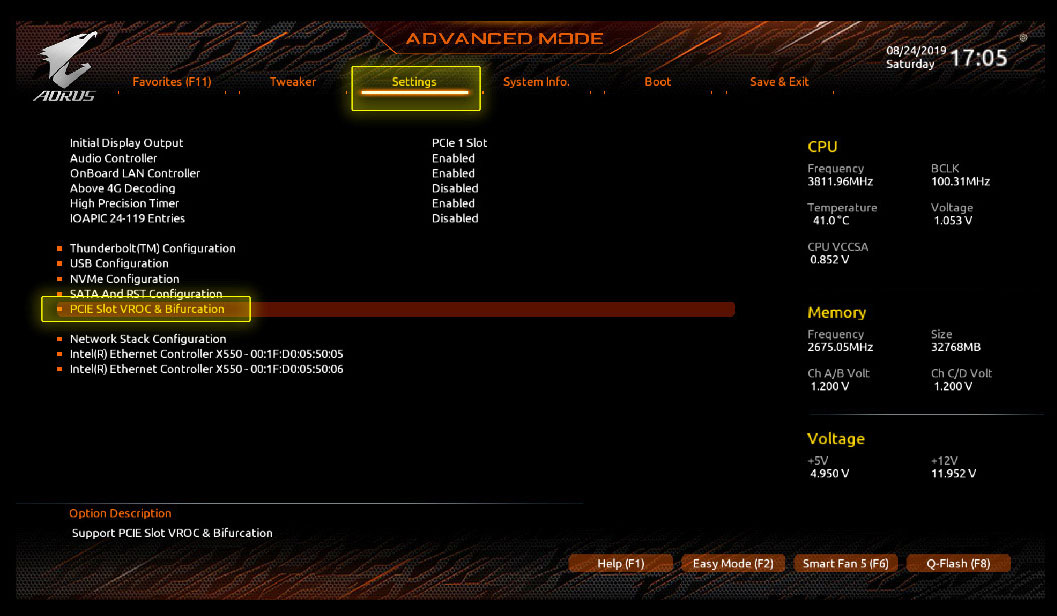

4x4 Bifurcation Setting

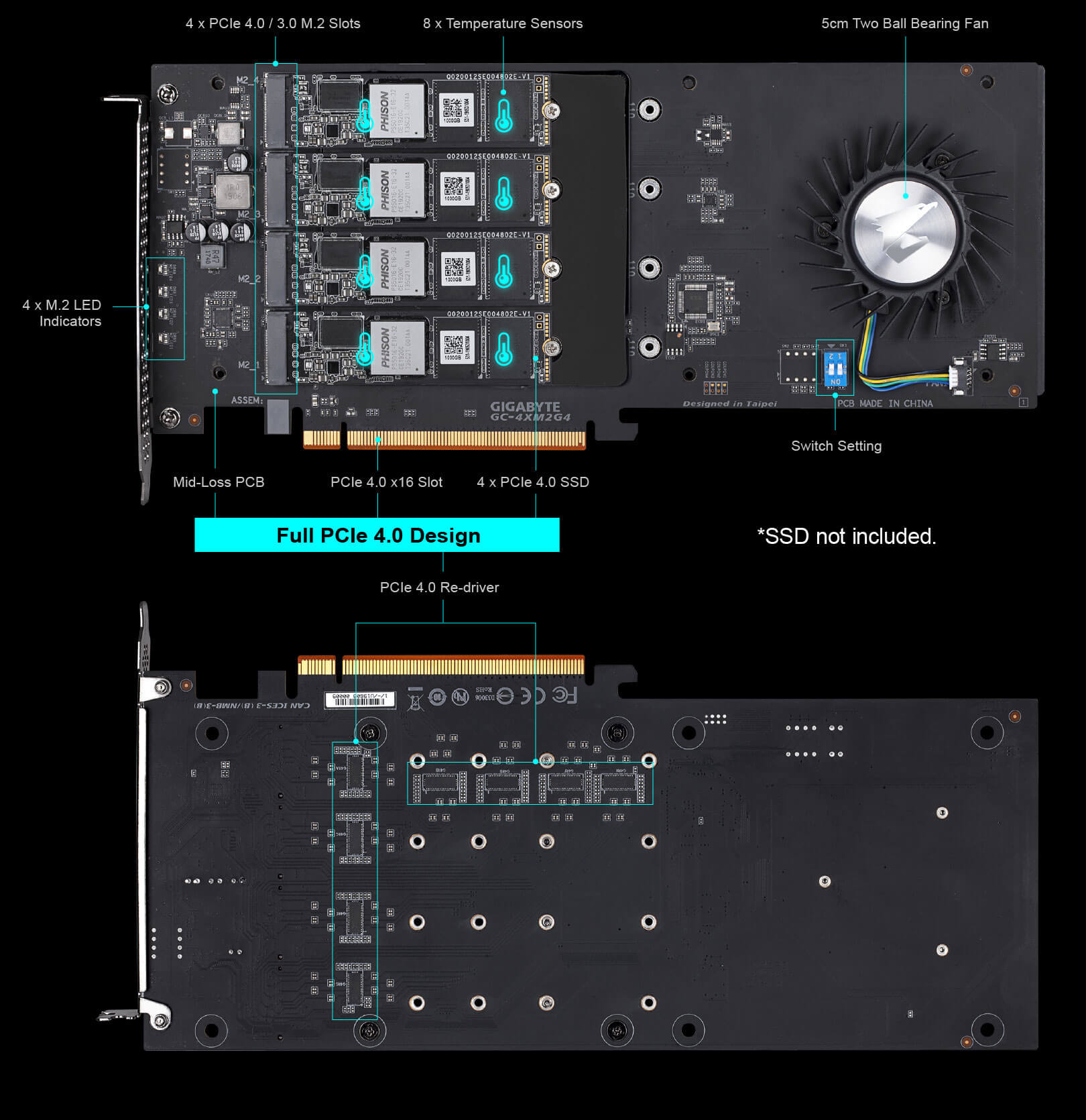

Full PCIe 4.0 Design
Advanced Thermal Solution
AORUS Gen4 AIC Adaptor equips very advanced thermal solution, including 5.5mm
pure copper heatsink, 5cm double ball bearing fan, M.2 SSD baseplate and
multiple thermal pads to cool down both sides of 4 M.2 high performance SSD with
active cooling.
Users can choose 3 different fan profile based on hardware configuration to
reach perfect balance of high storage performance and low noise.

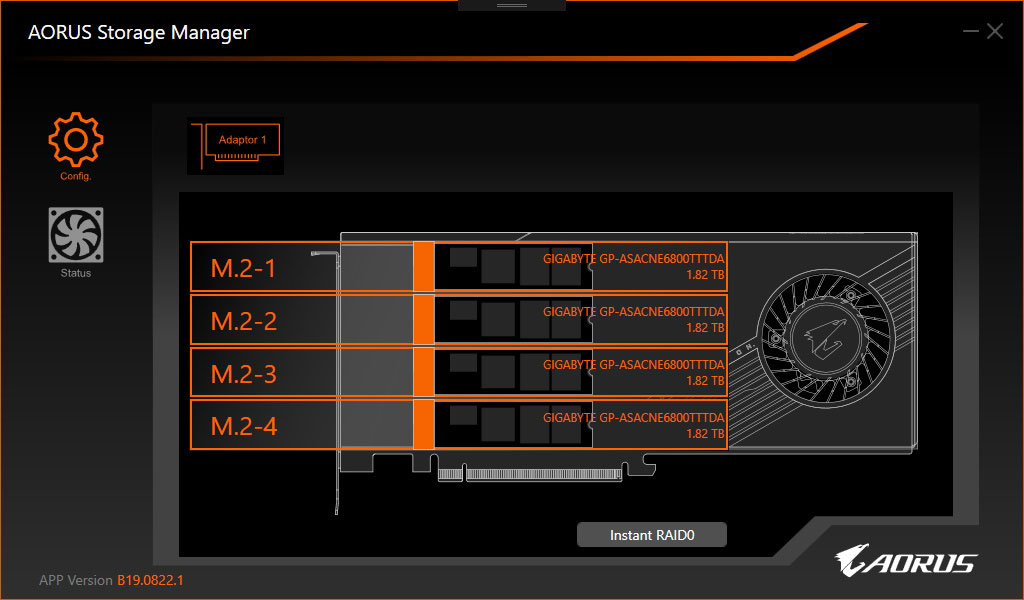

AORUS Storage Manager
AORUS Storage Manager, a dedicated software for AORUS Gen4 AIC Adaptor,
allows users to enable RAID 0 on multiple M.2 SSD in a single click, also
monitor overall temperature on SSD and PCB to change different fan profile based
on users' hardware configuration.

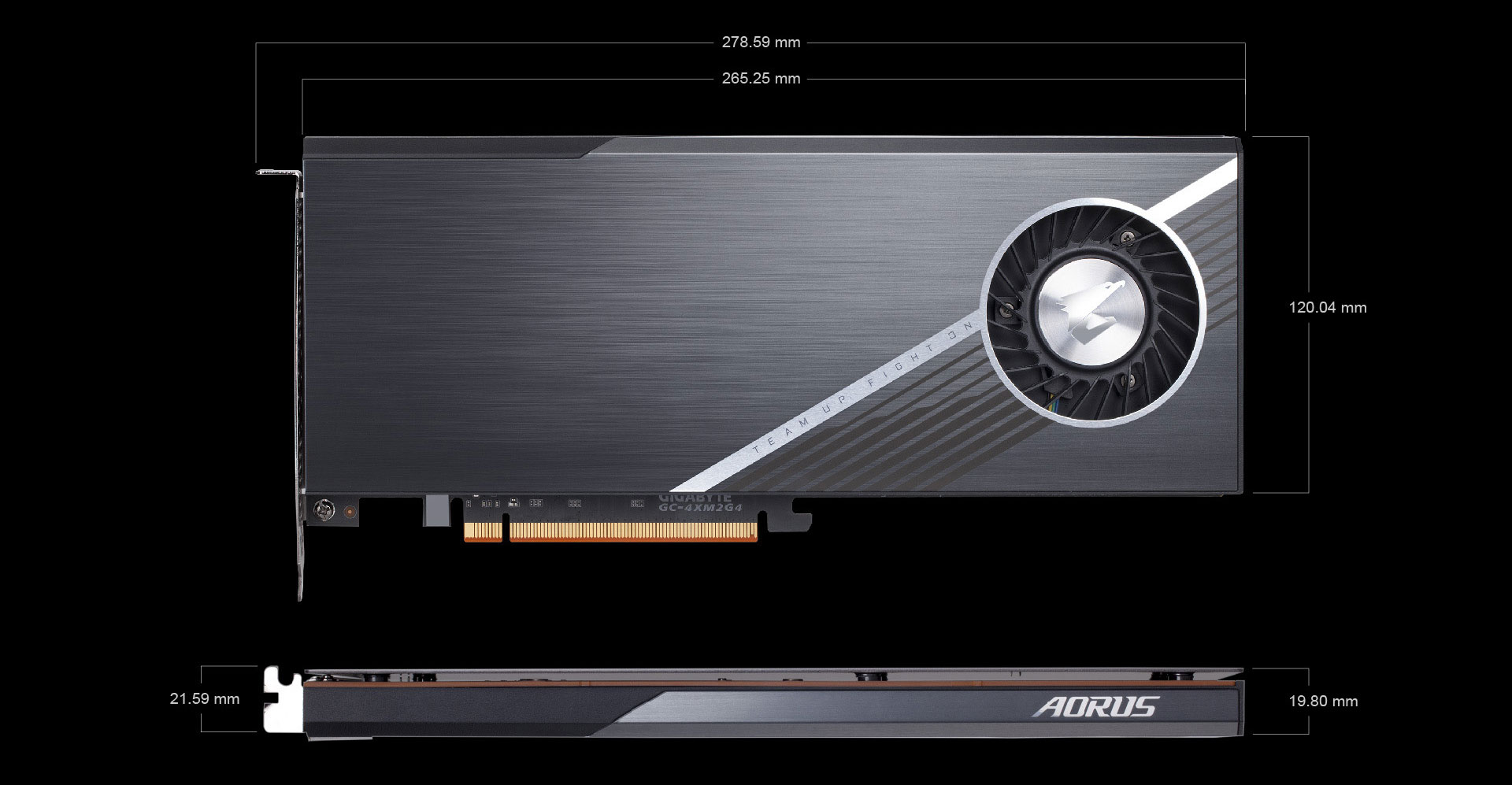

Dimension
Specifications
|
Interface |
PCI Express x16,
compatible with PCI Express x16 and x8 slots |
|
(If the adpater card is
installed in a x8 slot, only the M2_1 and M2_2 connectors can be
used.) |
|
LED |
4 x M.2 activity
LEDs |
|
Storage
Interface |
4 x M.2 connectors
(Socket 3, M key, type 2242/2260/2280/22110 PCIe x4 SSD
support) |
|
Support for RAID 0,
RAID 1, and RAID 10* |
|
* Supported RAID levels
vary by platform. |
|
Dimension |
26.2cm x
11.5cm |
