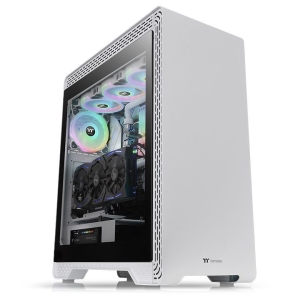

Thermaltake S500 Tempered Glass Snow Edition Mid-Tower
Chassis
Overview
S500 TG Snow Mid-tower case comes with one tempered glass panel on the left,
one pre-installed 140mm front fan and one 120mm rear fan, supporting
motherboards up to ATX.
S500 Tempered Glass Snow Edition mid-tower chassis combines sophistication
and elegance and is all built with a modern steel case construction. The S500 TG
Snow is manufactured with one tempered glass side panel. Two preinstalled
standard fans, one 140mm fan at the front and one 120mm at the rear to enable
outstanding ventilation. S500 TG Snow incorporates a full modular design,
vertical radiator & GPU mount, Patented Rotational PCI-E slots, and the
support for 200mm fans. The flexibility is limitless for high-end
components.
For storage this case has four drive trays with modular drive racks,
delivering advanced storage capacity and great liquid cooling expansion. S500 TG
Snow is a great fit for users who are looking for a modern and stylish
chassis.
TT Premium
To continue achieving the corporate mission of delivering the perfect user
experience, Thermaltake developed TT Premium with the essence of combining
supreme quality products with a new logo design. TT Premium is far more than
just a guarantee of quality. Behind the name, it represents the passion in DIY,
Modding and Thermaltakes desire to be the most innovative brand in the PC
hardware market. To satisfy the demand of the high-end PC users, TT Premium
follows its core values of Excellent Quality, Unique Design, Diverse
Combinations and Boundless Creativity to provide a high performance PC product
for every enthusiast.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should be held to. The Tt LCS certification was created so that we at
Thermaltake can designate to all power users which chassis have been tested to
be best compatible with extreme liquid cooling configurations to ensure you get
the best performance from the best features and fitment.
Sleek Steel Design
Full metal and glass construction with sleek front panel
design.
Built-in PSU Cover and Riser GPU Bracket
The built-in PSU cover with a ventilated design can improve airflow and hide
those unsightly cables. The integrated riser GPU support bracket not only
prevents the graphic card from sagging, but helps reduce the weight on the
motherboard PCI-E slots.
Patented Rotational PCI-E 8 Slot Design
With Patented Rotational PCI-E slots, you can choose the way you want to
display graphic cards vertically which helps you gain flexible space for
system.
Tempered Glass Window
The 4mm tempered glass window on the side of the S500 TG Snow is built to be
more durable, scratch resistant, and transparent for an advanced view of your
hardware.
Superior Hardware and Liquid Cooling Support
The S500 TG Snow has outstanding expandability. It can support a CPU cooler
with a maximum height of 172mm, dual expansion slot VGA of up to 400mm in length
without an HDD rack, and a power supply with a length of up to 220mm. Optimized
for excellent cooling capability with one 140mm exhaust front fan and one 120mm
rear fan preinstalled, S500 TG Snow is able to house up to three 140mm or two
200mm front fans, up to two 200mm fans on top, and a radiator up to 360mm on top
and 420mm at the front to allow users to build their desired high-end
system.
Handy I/O Ports
Two 3.0 USB and two 2.0 USB ports on top-front panel to grant direct access
when needed.

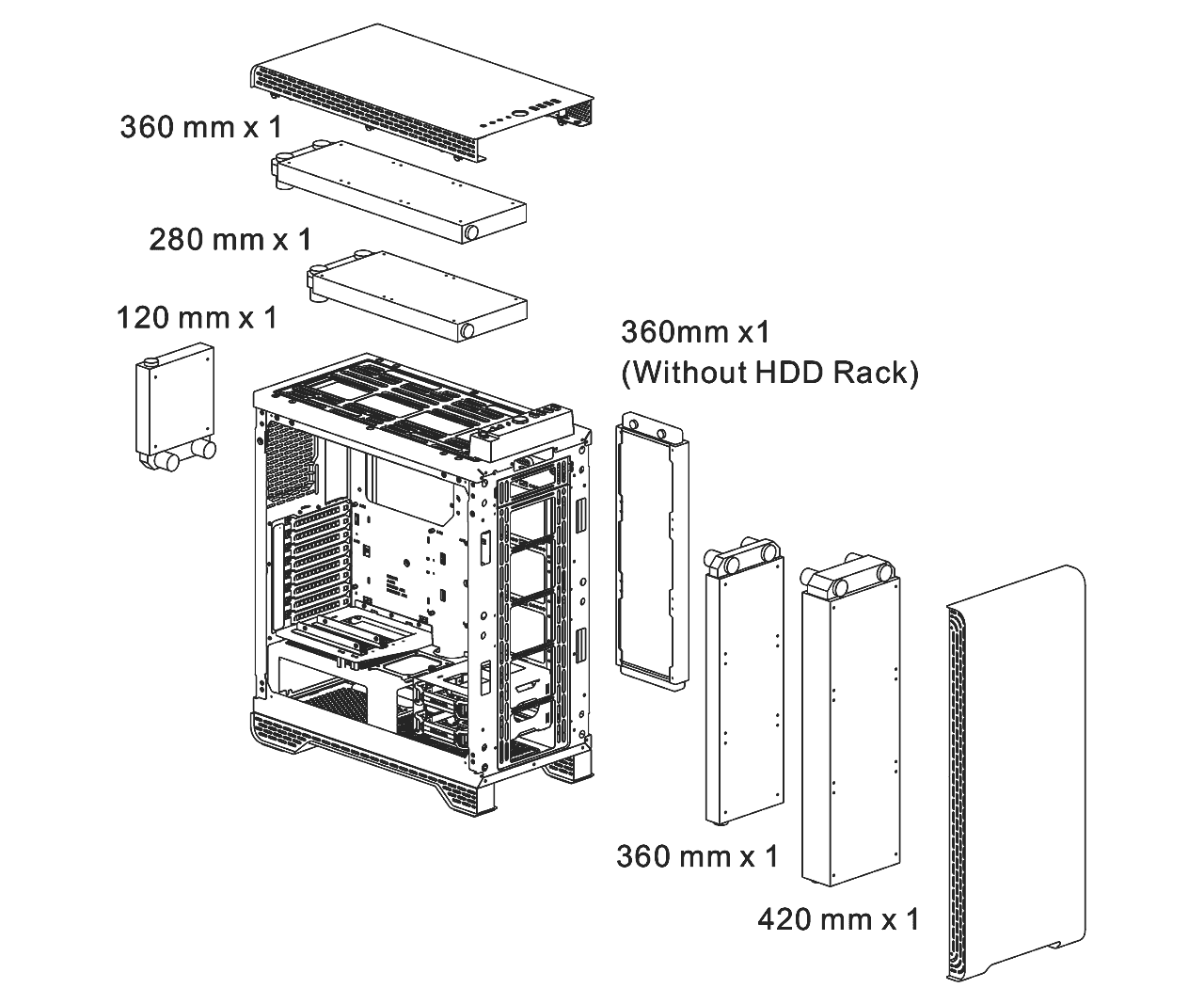

Radiator Support List

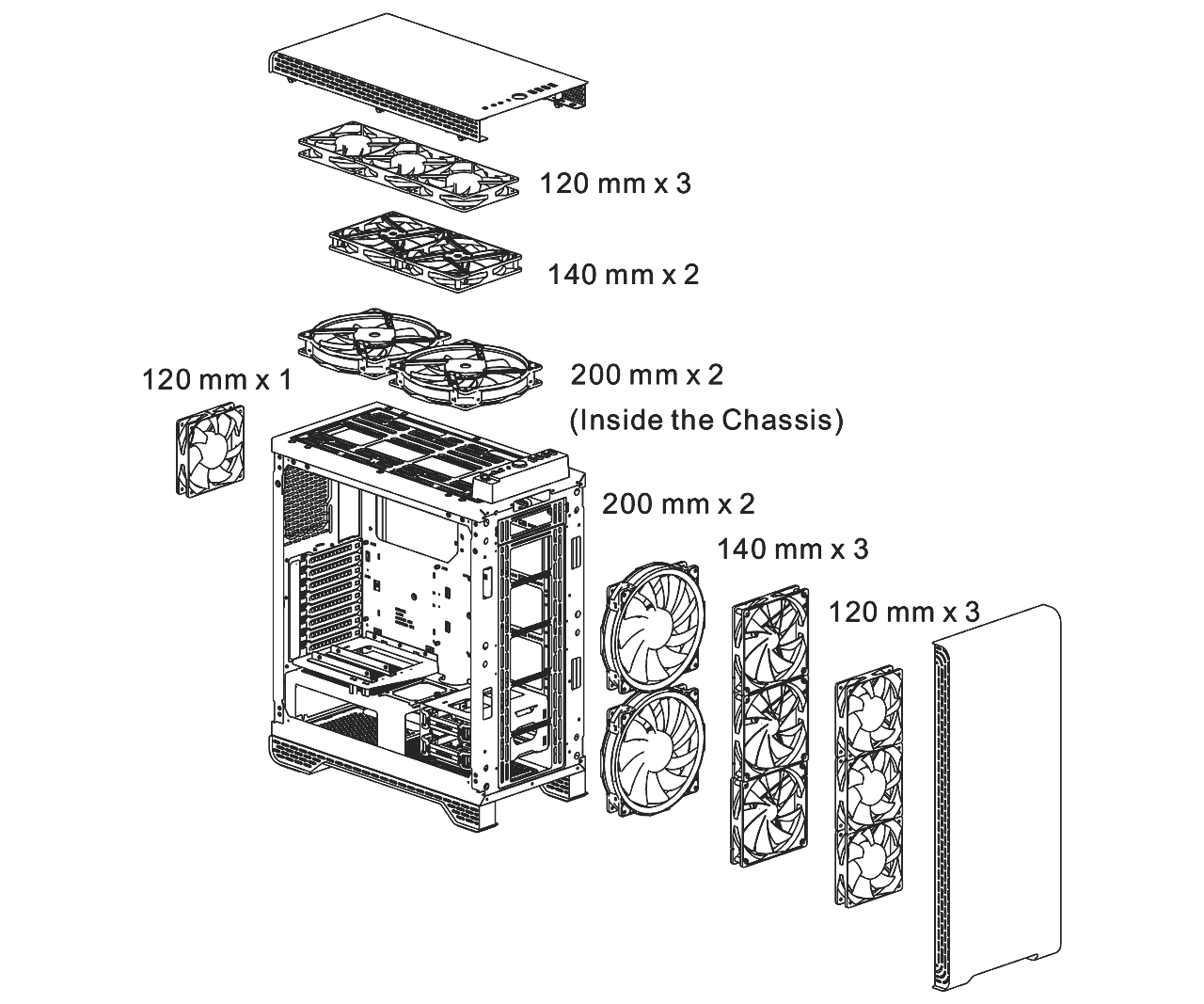

Fan Support List
Specifications
|
P/N |
CA-1O3-00M6WN-00 |
|
SERIES |
S
Series |
|
MODEL |
S500 TG
Snow |
|
CASE
TYPE |
Middle
Tower |
|
DIMENSION (H X W X
D) |
565 x 240 x 500
mm |
|
(22.2 x 9.4 x 19.7
inch) |
|
NET
WEIGHT |
17.2 kg / 37.91
lbs. |
|
SIDE
PANEL |
4mm Tempered Glass x
1(Left) |
|
COLOR |
Exterior & Interior
: White |
|
MATERIAL |
SPCC |
|
COOLING
SYSTEM |
Rear (exhaust)
: |
|
120 x 120 x 25 mm
fan |
|
(1000rpm, 16
dBA) |
|
Front (intake)
: |
|
140 x 140 x 25 mm
fan |
|
(1000rpm,
20dBA) |
|
DRIVE
BAYS |
|
|
-ACCESSIBLE |
2.5 x 2 or 3.5x 2 (HDD
Rack) |
|
-HIDDEN |
2.5x 1(HDD Bracket) ;
2.5 x 2 or 3.5 x 1(HDD Bracket) |
|
EXPANSION
SLOTS |
8 |
|
MOTHERBOARDS |
6.7 x 6.7 (Mini ITX),
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |
|
I/O
PORT |
USB 3.0 x 2, USB 2.0 x
2, HD Audio x 1, Reset Button x 1 |
|
PSU |
Standard PS2 PSU
(optional) |
|
FAN
SUPPORT |
Front: |
|
3 x 120mm, 3 x 140mm, 2
x 200mm |
|
Top: |
|
3 x 120mm, 2 x 140mm, 2
x 200mm |
|
Rear: |
|
1 x
120mm |
|
RADIATOR
SUPPORT |
Front: |
|
1 x 360mm, 1 x
420mm |
|
Top: |
|
1 x 280mm, 1 x
360mm |
|
Rear: |
|
1 x
120mm |
|
Right: |
|
1 x 360mm (Without HDD
Rack) |
|
CLEARANCE |
CPU cooler height
limitation: 172mm |
|
VGA length limitation:
282mm(With HDD Rack) |
|
400mm(Without HDD
Rack) |
|
280mm(With
reservoir) |
|
PSU length limitation:
220mm |
