HOME / Back -> Computer Systems -> BareBone - Intel -> Intel

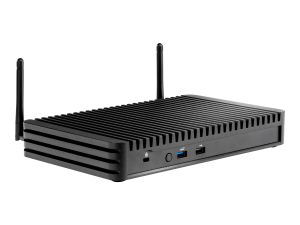

Intel NUC Rugged Chassis Element
  • M.2 SSD, HDMI, USB Ports(4), LAN

IMG 1 of 5
Our Price:
$325.95
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
476589
(?) Brand:
Intel Web Site
Manuf No:
BKCMCR1ABA
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
BKCMCR1ABA, 6103391, 90ABEABAMBR10A, 90ABEABA-MBR10A, 735858437684

Intel NUC Rugged Chassis Element



Specifications

Essentials



Product Collection

Intel NUC Chassis Elements

Code Name

Products formerly Austin Beach

Status

Launched

Launch Date

Q4'19

Supported Operating Systems

OS Independent

Board Form Factor

U-series Element Carrier Board

Internal Drive Form Factor

M.2 SSD

# of Internal Drives Supported

2

TDP

15 W

DC Input Voltage Supported

12V~24V

Warranty Period

3 yrs

Supplemental Information



Description

Technical one-pager for the Intel NUC Rugged Chassis

Processor Graphics



Graphics Output

HDMI

Expansion Options



M.2 Card Slot (storage)

2280, 2242/80 M-key

I/O Specifications



# of USB Ports

4

USB Configuration

USB3.1g2: 1 front, 2 rear ports USB3.0: 1 header USB2.0: 1 front port & 2 headers (or 2 rear USB2.0 ports on CMCR1ABB)

Serial Port via Internal Header

Yes

Integrated LAN

Intel i219-LM GbE (2nd Intel LAN on CMCR1ABB)

Additional Headers

Front panel (PWR_SW, PWR_LED, RST, HDD_Act, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector

Package Specifications



Chassis Dimensions

254 x 152.4 x 36 mm (plus 4.8mm for rubber feet)



No additional files, specification sheets, guides or documentation found for product.

Warranty: 36 Month Manufacturers Return To Base

Full manufacturers warranty details are available at the manufacturers (Intel) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
