All stock codes associated to this product
CL-F115-PL12SW-A, CLF115PL12SWA
Thermaltake Pure Duo 12 ARGB Sync Radiator Fan (2-Fan Pack) -
Black
Overview
120mm PWM controlled fan with a 16.8 million color addressable LED ring that
supports 5V RGB capable motherboards.

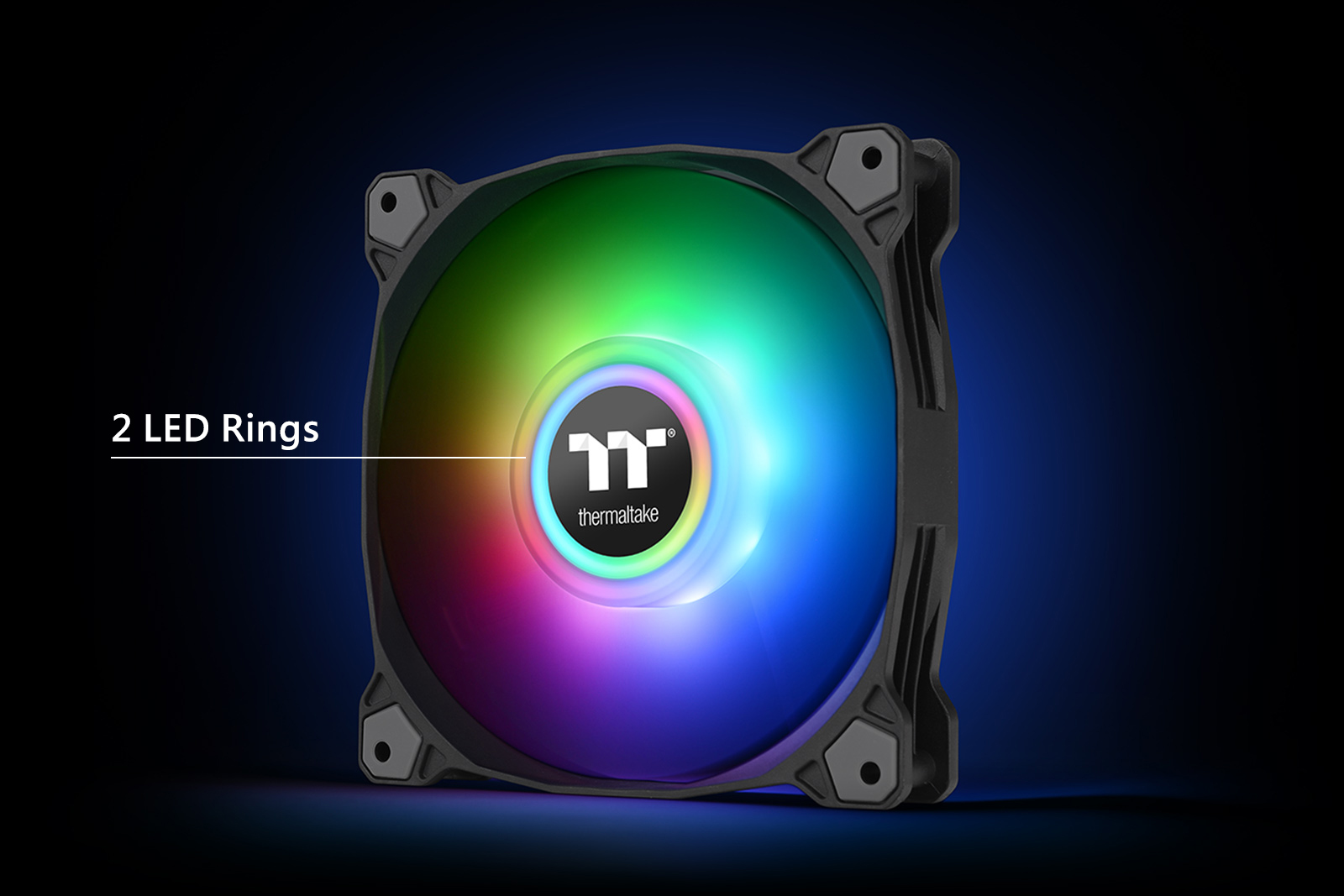

16.8 Million Color 2-LED Ring Design
Featuring 2 independent rings and 9 addressable LEDs on each ring, the Pure
Duo fan gives great light coverage, uniform color and brightness. The built-in
LED ring can light up your build with 16.8 million colors.
PWM Controlled Fan with 9 Fan Blade Design
PWM controlled fan with an unique 9 blade design is engineered to generate
higher airflow whilst keeping quiet. The Pure Duo fans ensure more efficient
cooling performance under intense operation.
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality, friction-reducing
substance, which lowers operation noise while improving thermal efficiency. The
seal cap prevents lubricant leakage and extends the lifespan of the
unit.
Anti-Vibration Mounting System
The In-mold injection anti-vibration rubber pads dampen the vibration of the
fan allowing the fan to spin at higher levels without compromising noise levels.
The fan is designed with 80% coverage for all corners, maintaining low noise
levels when in operation.
Simply Switch LED Modes with the Preset
Controller
The controller comprises of 7 preset lighting modes: wave, full light, rgb
spectrum, flow, ripple, pulse and blink modes, which are easy to switch even
without the 5V addressable RGB header on your motherboard. Not only can users
switch modes, but switch colors and lighting speeds intuitively.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic
Light Sync and ASRock Polychrome. It supports motherboards that have a 5V
addressable RGB header, allowing you to control the lights directly from the
above-mentioned software without installing any extra lighting software or
controllers. For more details, please visit ASUS, GIGABYTE, MSI and ASRock
official websites.
Specifications
|
P/N |
CL-F115-PL12SW-A |
|
FAN
DIMENSION |
120
x 120 x 25 mm |
|
INTERFACE |
Fan
2510-4P , LED 5V RGB Header |
|
STARTED
VOLTAGE |
9.0
V |
|
RATED
CURRENT |
Fan
0.17 A , LED 0.28 A (Fan*1) |
|
RATED
VOLTAGE |
12
V & 5V |
|
POWER
INPUT |
12V
4.08 W , 5V 2.8 W (Fan*2) |
|
FAN
SPEED |
PWM
500~1500 R.P.M |
|
MAX.
AIR PRESSURE |
1.72
mm-H2O |
|
MAX
AIR FLOW |
56.51
CFM |
|
NOISE
LEVEL |
28
dB-A |
|
BEARING
TYPE |
Hydraulic
Bearing |
|
LIFE
EXPECTATION |
40,000
hrs, 25 |
|
WEIGHT |
168
g (Fan*1) |
