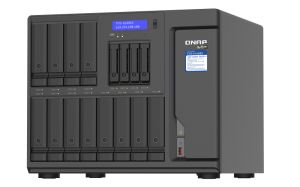

QNAP TVS-h1688X
Intel® Xeon® W desktop QuTS hero NAS, ideal for high-speed media collaboration over Thunderbolt™ 3 and 10GbE virtual machine applications
The high-capacity TVS-h1688X features a powerful Intel® Xeon® W processor and allows for installing two QNAP QXP-T32P Thunderbolt™ 3 PCIe expansion cards (sold separately) to attain four Thunderbolt™ 3 ports, making it a perfect match for Thunderbolt™-equipped Mac® and Windows® users for high-speed media collaboration. The built-in 10GbE and 2.5GbE connectivity supports Port Trunking and failover to further satisfy bandwidth and reliability demanding business applications. Running the ZFS-based QuTS hero operating system, the TVS-h1688X supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and read/write cache technologies, helping your business achieve reliable service-level agreement performance, from creative workflows to file server, virtualization server, and efficient file backup and recovery applications.
High-speed Thunderboltâ„¢ 3Attain quad-port Thunderboltâ„¢ 3 connectivity by installing two QXP-T32P expansion cards in the PCIe Gen 3 x4 slots.
Note: QXP-T32P expansion cards are sold separately
10GbE/2.5GbE connectivityTwo 10GBASE-T and four 2.5GbE LAN ports accelerate virtualization, intensive file access, large backup/restoration tasks, and media transfer.
Flexible PCIe expansionPCIe slots allow for installing 5/10/25/40GbE adapters, QM2 cards, or graphics cards to increase application performance.
4K HDMI output4K media playback and real-time transcoding; directly output videos to an HDMI display (up to 4K @30Hz).
Virtualization applicationsSupports virtual machines and containerized apps, centralized storage, backup, sharing, disaster recovery, and storage expansion.
Cloud storage gatewayCloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
Specifications
| Bays | 12 x 2.5"/3.5" SATA 6Gbps + 4 x 2.5" SATA 6Gbps + 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots |
| Capacity | Not Included |
| Form Factor | Tower |
| LAN Port | 4 x 2.5GbE (2.5G/1G) + 2 x 10GBASE-T (10G/1G) |
| Processor/Memory | Intel Xeon W-1250 6 cores 12 threads 3.3 GHz, boost up to 4.7 GHz; 32GB DDR4 ECC (Max. 128GB) |
| Product Family | |
| Raid | 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 |
| USB Port | USB 3.2 Gen2 10Gbps 3 (2 x USB-C + 1 x USB-A), 3x USB3.2 Gen1 5Gbps |
| Warranty | 3 Years |
| Series | QNAP Enterprise |
