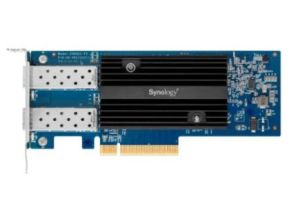

Synology E10G21-F2 Dual-port 10GbE SFP+ add-in card for Synology
servers
Overview
Boost Connectivity for Bandwidth-Heavy
Workloads
The Synology E10G21-F2 is a dual-port 10GbE SFP+ network interface card that
lets you boost network bandwidth and performance. Handle more operations, users,
and high-resolution videos.
Upgrade Synology systems with faster networking speeds. Thorough validation
ensures seamless integration with DSM.
Combine the E10G21-F2s two 10GbE ports into a Link Aggregation group to
enable higher simultaneous throughput, port failover, and load balancing.
5-year warranty
At Synology, we are committed to product innovation and quality. Synology
guarantees a robust and reliable data management experience with a 5-year
limited warranty, providing responsive technical support and hardware
replacement services to maximize your return on investment.
Specifications
|
General |
|
|
Host
Bus Interface |
PCIe
3.0 x8 |
|
Bracket
Height |
Low
Profile and Full Height |
|
Size
(Height x Width x Depth) |
69
mm x 168 mm x 17.3 mm |
|
Operating
Temperature |
0C
to 40C (32F to 104F) |
|
Storage
Temperature |
-20C
to 60C (-5F to 140F) |
|
Relative
Humidity |
5%
to 95% RH |
|
Warranty |
5
Years |
|
Notes |
Supports
PCIe upconfigure to reduce link width to conserve
power. |
|
The
warranty period starts from the purchase date as stated on your purchase
receipt. (Learn more) |
|
Network |
|
|
IEEE
Specification Compliance |
IEEE
802.3ad Link Aggregation |
|
IEEE
802.3ae 10Gbps Ethernet |
|
Data
Transfer Rates |
10
Gbps |
|
Supported
Features |
TCP
Segmentation Offload (TSO) |
|
Large
Send Offload (LSO) |
|
Receive
Side Scaling (RSS) |
|
Generic
Receive Offload (GRO) |
|
Generic
Segmentation Offload (GSO) |
|
1.5
- 9 KB Jumbo Frame |
|
Offloaded
storage over Ethernet |
|
Non-offloaded
storage over Ethernet |
|
TCP/UDP
Checksum Offload |
|
Transmit
side scaling (TSS) |
|
Compatibility |
FS
series:FS6400, FS3600, FS3400, FS3017, FS2017,
FS1018 |
|
SA
series:SA3600, SA3400, SA3200D |
|
UC
series:UC3200 |
|
21
series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+,
RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+,
DS1621+ |
|
Applied
Models |
20
series:RS820RP+, RS820+ |
|
19
series:RS1619xs+, DS2419+, DS1819+ |
|
18
series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+, DS3018xs,
DS1618+ |
|
17
series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs,
DS3617xs |
