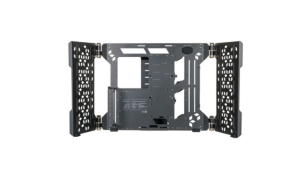

MCF-MF700-KGNN-S00 | CoolerMaster Masterframe 700 Full Tower Case - NO PSU, Black

SERIES

MasterFrame Series

SIZE

Full Tower

AVAILABLE COLOR(S)

Black

MATERIALS

Steel, Tempered Glass

DIMENSIONS (L X W X H)

702 x 306 x 410mm / 27.64 x 12.05 x 16.14inch (Incl. Panels)

MOTHERBOARD SUPPORT

SSI EEB, SSI CEB, XL-ATX, E-ATX, ATX, Micro ATX, Mini ITX

EXPANSION SLOTS

8

5.25" DRIVE BAYS

N/A

2.5" / 3.5" DRIVE BAYS (COMBO)

Up to 4 (PSU cover)

2.5" DRIVE BAYS

7 (3 SSD brackets + 4 PSU cover)

I/O PANEL

2x USB 3.1 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic)

PRE-INSTALLED FANS - TOP

N/A

PRE-INSTALLED FANS - FRONT

N/A

PRE-INSTALLED FANS - REAR

N/A

PRE-INSTALLED FANS - BOTTOM

N/A

FAN SUPPORT - TOP

N/A

FAN SUPPORT - FRONT

N/A

FAN SUPPORT - RIGHT SIDE

3x 120mm / 2x 140mm

FAN SUPPORT - LEFT SIDE

3x 120mm / 2x 140mm

RADIATOR SUPPORT - TOP

Up to 360/420mm

RADIATOR SUPPORT - RIGHT SIDE

Up to 280/360mm

RADIATOR SUPPORT - LEFT SIDE

Up to 280/360mm

CLEARANCE - CPU COOLER

158mm / 6.22inch

CLEARANCE - PSU

210mm / 8.26inch

CLEARANCE - GFX

Up to 450mm / 17.71inch, 310mm / 12.20inch recommended for maximum compatibility

CABLE ROUTING

100mm

DUST FILTERS

N/A

POWER SUPPLY SUPPORT

2x ATX

MODEL NUMBER

MCF-MF700-KGNN-S00

EAN CODE

4719512115152

UPC CODE

884102087462
